LAUNCH X431 PRO3S+ Elite Diagnostic Scan Tool User Manual

1. Giriş

The LAUNCH X431 PRO3S+ Elite is an advanced, all-in-one bidirectional scan tool designed for comprehensive vehicle diagnostics and maintenance. Featuring the SmartLinkC V2.0 communication interface, it supports a wide range of protocols including J2534, CANFD, DoIP, D-PDU, and FCA. This device offers OE-level full system diagnostics, intelligent topology mapping, over 60 service functions, and extensive vehicle coverage, making it an essential tool for professional mechanics and serious DIY enthusiasts.

Figure 1.1: LAUNCH X431 PRO3S+ Elite highlighting key features like Topology Mapping, J2534 Protocols, and 3000+ Active Tests.

2. Kurulum ve İlk Yapılandırma

2.1 Paket İçeriği

Başlamadan önce pakette tüm öğelerin mevcut olduğundan emin olun:

• X431 PRO3S+ ELITE Display Tablet
• SmartLink C V2.0 Communication Interface
• Taşıma Çantası
• HD15F to OBDII 16 Connector
• DB15F to HD15F Cable
• UK/EU/US Power Plugs
• Ağ kablosu
• Type A - Type B USB Cable
• Type A - Type C USB Cable
• Kullanıcı Kılavuzu
• PIN Envelope (for software activation)
• Hızlı Başlangıç ​​Kılavuzu
• Non-16 Pin Adapter Box containing: BENZ-38, BMW-20, HONDA-3, TOYOTA-17, GM/VAZ-12, TOYOTA-22, CHRYSLER-6, KIA-20, BENZ-14, FORD 6+1, NISSAN14+16, MITSUBISHI/HYUNI-12+16 connectors
• Güç Kablosu Klipsleri
• Sigortalar

Video 2.1: Unboxing the LAUNCH X431 PRO3S+ ELITE SMARTLINKC and reviewİçeriğini.

Figure 2.1: The LAUNCH X431 PRO3S+ Elite Display Tablet and the SmartLink C V2.0 communication interface.

Şekil 2.2: Arka view of the tablet showing the kickstand and the SmartLink C V2.0 module.

2.2 Açma ve İlk Kurulum

1. Tableti açmak için güç düğmesine basılı tutun.
2. Ekranda beliren yönergeleri izleyerek dilinizi, saat diliminizi seçin ve bir Wi-Fi ağına bağlanın.
3. Register your device using the serial number and activation code found in the PIN envelope.
4. Perform a system update to ensure all software and diagnostic applications are up to date.

Video 2.2: A detailed guide on how to use the LAUNCH X431 PRO3S+ ELITE, including initial setup steps.

3. Kullanım Talimatları

3.1 Araca Bağlantı

1. Aracın OBD-II portunu bulun (genellikle gösterge panelinin altında).
2. Connect the SmartLink C V2.0 to the vehicle's OBD-II port using the appropriate connector (OBDII 16-pin or a specific non-16 pin adapter).
3. Ensure the SmartLink C V2.0 is powered on (it typically draws power from the vehicle's OBD-II port).
4. On the X431 PRO3S+ Elite tablet, select 'Local Diagnose' or 'Intelligent Diagnose' to establish communication with the vehicle.

Figure 3.1: The LAUNCH X431 PRO3S+ Elite supports a wide range of vehicle makes and models, including HD Trucks and New Energy Vehicles.

3.2 Tanılama İşlevleri

The device offers a comprehensive suite of diagnostic capabilities:

• Akıllı Teşhis: Automatically identifies vehicle VIN, reads all system fault codes, and provides a health report.
• Topoloji Eşlemesi: Visually displays the vehicle's system network, showing the status of each control unit (normal, abnormal, scanned, not equipped) for quick identification of issues.
• Hata Kodlarını Oku ve Sil: Access and clear Diagnostic Trouble Codes (DTCs) from all available vehicle systems (Engine, ABS, SRS, Transmission, etc.).
• Canlı Veri Akışı: View real-time data parameters in various formats (text, graph, analog) to monitor vehicle performance and pinpoint intermittent issues.
• Active Test / Bi-directional Control: Send commands to vehicle components to test their functionality (e.g., activate cooling fan, open/close windows, test fuel pump).
• Special Functions (60+): Perform various maintenance and service functions such as Oil Reset, ABS Brake Bleed, EPB Reset, SAS Calibration, BMS Reset, Injector Reset, Throttle Adaptation, and more.
• ECU Kodlaması: Match component control modules, customize OE settings, perform adaptive data setting, and activate advanced functions.
• J2534 Programlama: Utilize the SmartLinkC V2.0 as a J2534 PassThru device for OEM diagnostic software to perform ECU programming and reprogramming.

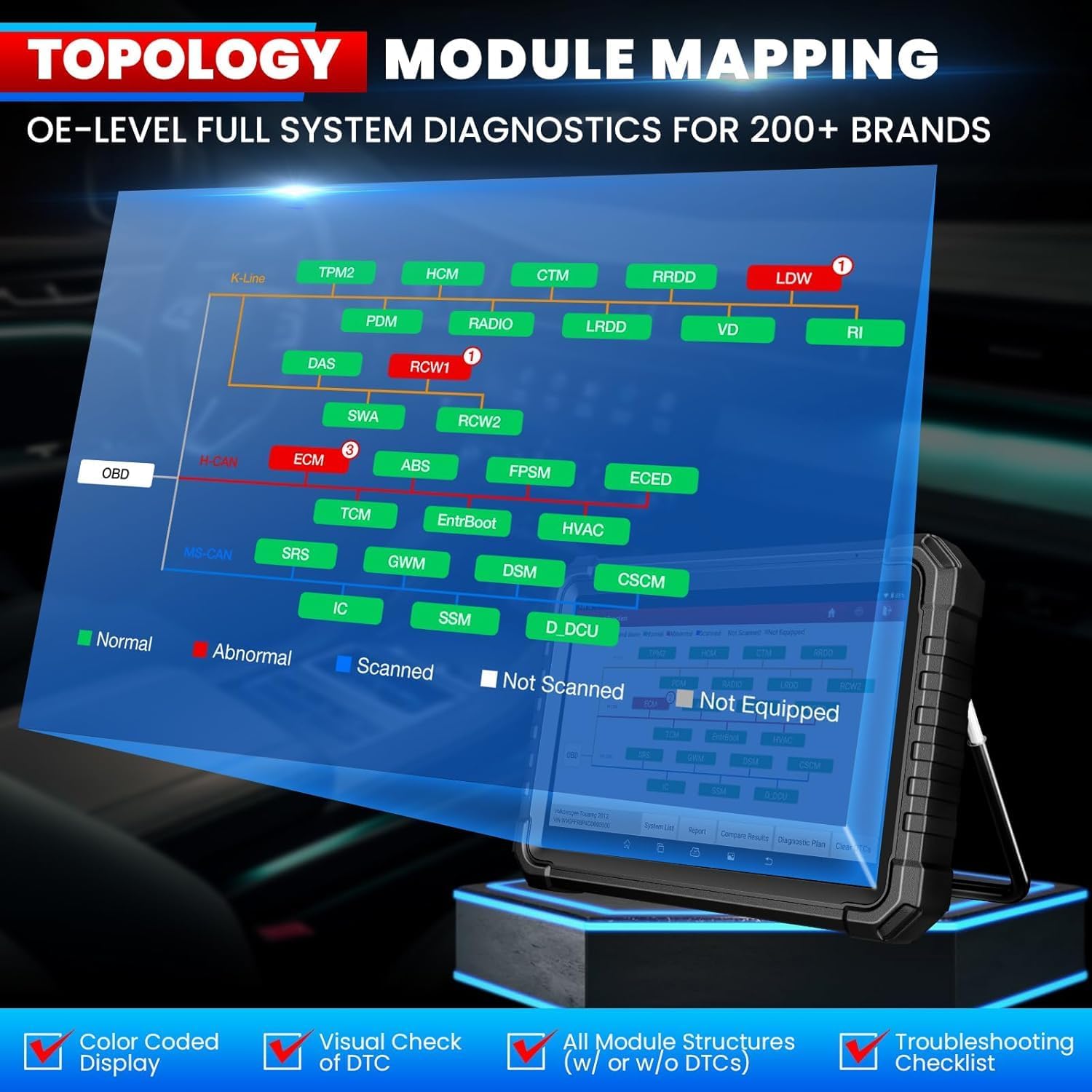

Figure 3.2: Intelligent Topology Mapping provides a visual overview of vehicle systems and their status.

Figure 3.3: Demonstrates Bi-Directional Control (Active Test) capabilities and OE-Level All System Diagnostics.

Figure 3.4: A selection of over 60 hot service functions, including Oil Reset, ABS Bleeding, and EPB Reset.

3.3 Remote Diagnosis

The SmartLink C V2.0 supports remote diagnosis, allowing you to connect with other professionals or receive remote assistance for complex issues.

4. Bakım

4.1 Yazılım Güncellemeleri

Your LAUNCH X431 PRO3S+ Elite includes 2 years of free software updates. Regularly check for and install updates to ensure optimal performance and access to the latest vehicle models and functions. Connect the tablet to a stable Wi-Fi network and navigate to the 'Software Update' section in the main menu.

Video 4.1: This video confirms the authenticity of LAUNCH products and highlights the importance of software updates.

4.2 Cihaz Bakımı

• Keep the tablet and SmartLink C V2.0 clean and free from dust and debris.
• Cihazı hasardan korumak için kullanılmadığı zamanlarda taşıma çantası içinde saklayın.
• Cihazı uzun süre aşırı sıcaklıklara veya doğrudan güneş ışığına maruz bırakmaktan kaçının.
• Charge the tablet regularly to maintain battery health.

5. Sorun Giderme

• Cihaz açılmıyor: Ensure the battery is charged or connect the device to a power source.
• Araçla iletişim hatası: Verify the SmartLink C V2.0 is securely connected to the OBD-II port and the correct adapter is used. Check vehicle ignition status.
• Yazılım güncelleme sorunları: Ensure a stable Wi-Fi connection. If registration issues occur, contact customer service for assistance.
• Product already registered: If prompted that the product has already been registered during initial setup, contact customer service for a replacement service or to clear the registered information.

6. Özellikler

7. Garanti ve Destek

The LAUNCH X431 PRO3S+ Elite comes with a commitment to customer satisfaction:

• Yazılım Güncellemeleri: Enjoy 2 years of free software updates to keep your device current with the latest vehicle models and diagnostic functions.
• İade politikasi: 90 günlük iade ve değişim politikası geçerlidir.
• Müşteri Hizmetleri: LAUNCH provides 100% customer service and online support (7/24/365).

For any questions or assistance, please refer to the contact information provided in the product documentation or on the official LAUNCH webalan.
