VILTROX 85mm F2.0 EVO Z-Mount Full Frame Lens Instruction Manual

1. Giriş

This manual provides detailed instructions for the VILTROX 85mm F2.0 EVO Z-Mount Full Frame Lens. This lens is a medium telephoto prime lens designed for Nikon Z-Mount cameras, offering a versatile focal length and wide aperture suitable for various photographic applications, including portraits, low-light conditions, and close-up photography. Please read this manual thoroughly before using the lens to ensure proper operation and care.

2. Temel Özellikler

• F2.0 Geniş Diyafram: Excels in low-light conditions, producing bright, clean images with excellent noise control. Delivers sharp results even at the widest aperture.
• 0.74m Closer Focus: Allows for a minimum focus distance of 0.74m, enabling stunning close-ups and detailed magnification. Optimized focus group ensures sharpness at various distances.
• Classic 85mm Focal Length: Ideal for portrait photography, offering natural perspective and flattering compression with excellent distortion control.
• Reliable Weather Resistance: Features a dust- and moisture-resistant seal at the lens mount and a water- and oil-repellent coating on the front element for outdoor protection.
• Professional Control: Includes a customizable Fn button, a Click ON/OFF switch for the aperture ring (suitable for both photos and video), and a quick AF/MF mode switch for seamless control.

3. Kutuda Neler Var?

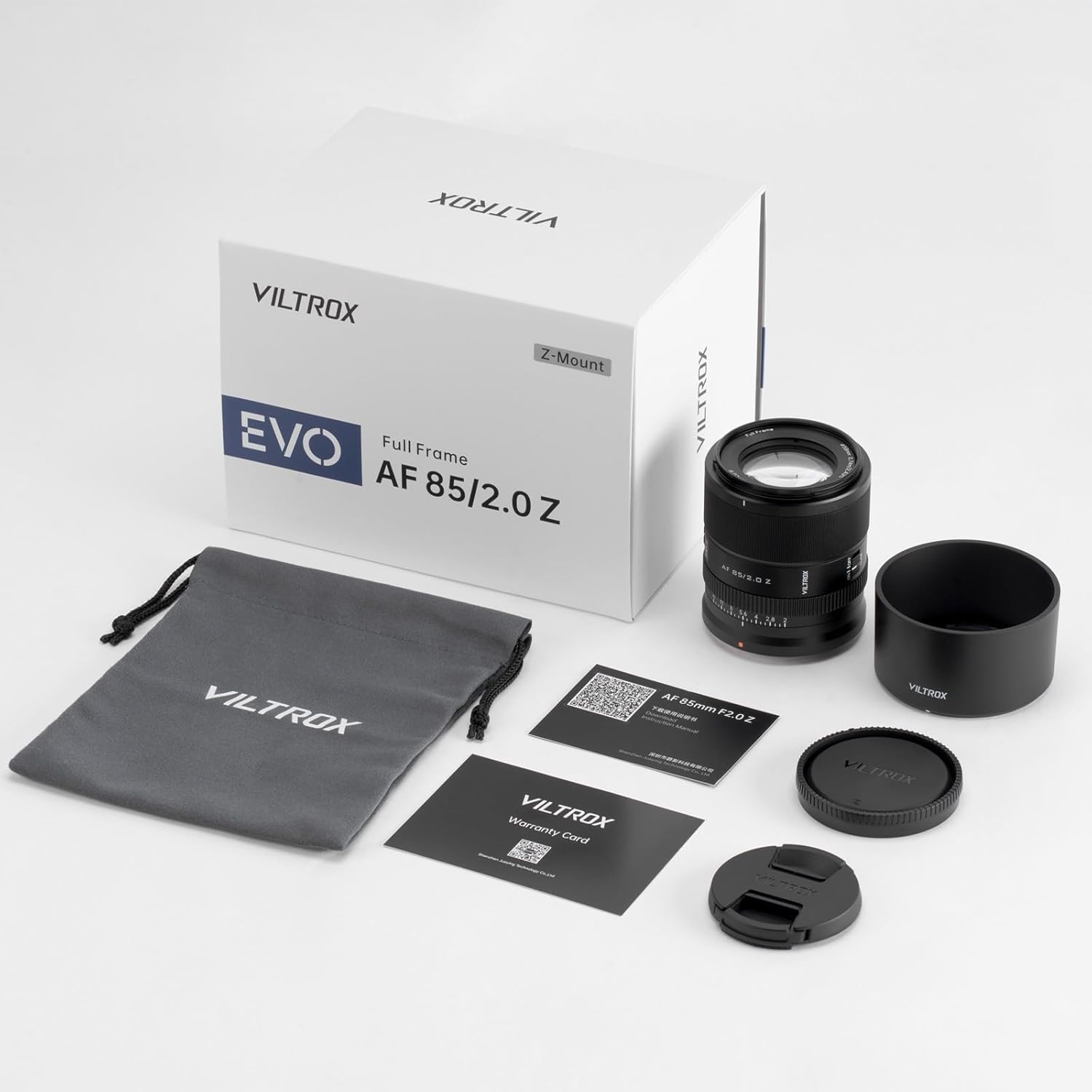

Image: The VILTROX 85mm F2.0 EVO Z-Mount lens and its included accessories laid out on a white surface.

• 1x VILTROX 85mm F2.0 EVO Z-Mount Lens
• 1x Taşıma Kesesi
• 1 adet parasoley
• 1x Rear Cap
• 1 adet Ön Lens Kapağı
• 1x Temizleme Bezi

4. Kurulum

4.1 Objektifin Takılması

1. Objektifi takmadan veya çıkarmadan önce kameranızın kapalı olduğundan emin olun.
2. Remove the rear lens cap from the VILTROX 85mm F2.0 EVO lens and the body cap from your Nikon Z-Mount camera.
3. Align the white mounting index mark on the lens barrel with the corresponding white mounting index mark on your camera body.
4. Objektifi kameranın objektif yuvasına yerleştirin ve yerine oturana kadar saat yönünde çevirin. Objektifi zorlamayın.

Image: The VILTROX 85mm F2.0 EVO Z-Mount lens securely attached to a Nikon Z-Mount camera body.

4.2 Lens Kapağının Takılması

Align the mark on the lens hood with the mark on the front of the lens, then twist the hood clockwise until it locks into position. The lens hood helps to prevent flare and protect the front element.

5. Kullanım Talimatları

5.1 Focus Mode Switch (AF/MF)

Image: The AF/MF switch and Fn button located on the side of the lens barrel.

• AF (Otomatik odaklama): Slide the switch to 'AF' for automatic focusing. The lens will use the camera's autofocus system, including features like Face and Eye Detection AF, for quick and precise focus.
• MF (Manuel Odaklama): Slide the switch to 'MF' to manually adjust focus using the focus ring on the lens. This mode is useful for precise control in specific photographic situations.

5.2 Aperture Ring and Click Switch

The lens features an aperture ring for direct control over the aperture setting. A 'Click ON/OFF' switch is provided:

• Click ON: Provides tactile clicks at each aperture stop, ideal for photography where precise, stepped adjustments are preferred.
• Click OFF: Allows for smooth, stepless aperture adjustments, which is beneficial for video recording to avoid audible clicks during exposure changes.

5.3 Customizable Fn Button

The lens is equipped with a customizable Fn (Function) button. This button can be assigned various functions through your camera's menu settings, allowing for quick access to frequently used features without navigating through menus.

5.4 Minimum Object Distance (MOD)

The VILTROX 85mm F2.0 EVO lens has a minimum object distance of 0.74 meters (approximately 2.43 feet). This allows for close-up shots, capturing fine details with a pleasing arka plan bulanıklığı.

6. Bakım

6.1 Lensin Temizlenmesi

Image: A person cleaning the front element of a VILTROX lens with a soft cloth.

• Use the provided cleaning cloth or a soft, lint-free microfiber cloth to gently wipe dust and smudges from the lens surfaces.
• For stubborn marks, use a specialized lens cleaning solution applied to the cloth, not directly to the lens.
• The front element has a water- and oil-repellent coating, making it easier to clean.

6.2 Depolama

• When not in use, always attach the front and rear lens caps to protect the optical elements.
• Store the lens in the provided carrying pouch to prevent scratches and minor impacts.
• Keep the lens in a cool, dry place away from direct sunlight and extreme temperatures.

6.3 Hava Koşullarına Dayanıklılık

Image: A VILTROX lens on a camera, showing water droplets on its exterior, highlighting its weather-resistant design.

The lens features a dust- and moisture-resistant seal at the lens mount. While this provides protection against light rain and dust, it is not fully waterproof. Avoid exposing the lens to heavy rain or submerging it in water.

7. Sorun Giderme

7.1 Lens Kamera Tarafından Tanınmadı

• Ensure the lens is securely mounted to the camera body. Remove and reattach the lens, ensuring it clicks into place.
• Check your camera's settings to ensure it is configured to shoot without a lens (if applicable) or to recognize third-party lenses.
• Yazılım güncellemesi: Outdated lens firmware can sometimes cause compatibility issues. Visit the official VILTROX website or contact VILTROX support to check for the latest firmware for your lens and camera model. Follow the provided instructions carefully for updating.
• Clean the electronic contacts on both the lens mount and the camera body with a clean, dry cloth.

7.2 Otomatik Odaklama Sorunları

• Ensure the AF/MF switch on the lens is set to 'AF'.
• Check your camera's autofocus settings (e.g., AF mode, AF area).
• Ensure there is sufficient light and contrast in your subject for the autofocus system to work effectively.
• If the issue persists, consider performing a firmware update as described above.

8. Özellikler

9. Resmi Ürün Videosu

10. Garanti ve Destek

VILTROX is committed to providing quality products and support. If you encounter any issues or require assistance with your VILTROX 85mm F2.0 EVO lens, please contact VILTROX customer support. For the latest firmware updates and detailed support information, please refer to the official VILTROX webalan.
