Ambition Soldier Pro 520 Wireless Rotary Tattoo Pen Machine

Model: AB-Soldier520-JS5981-1

giriiş

This manual provides comprehensive instructions for the safe and effective use of your Ambition Soldier Pro 520 Wireless Rotary Tattoo Pen Machine. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity.

Güvenlik Bilgileri

Paket İçeriği

Upon opening your Ambition Soldier Pro 520 package, verify that all the following items are included:

Ürün Özellikleri

The Ambition Soldier Pro 520 is engineered for precision and performance, offering a range of features designed for professional tattoo artists:

Kurulum Talimatları

1. Attaching the Grip

Select your preferred grip (42mm or 32mm). Align the grip with the machine body and twist clockwise until securely fastened. Ensure it is tight enough to prevent movement during operation.

Ambition Soldier Pro 520 with two different grip sizes

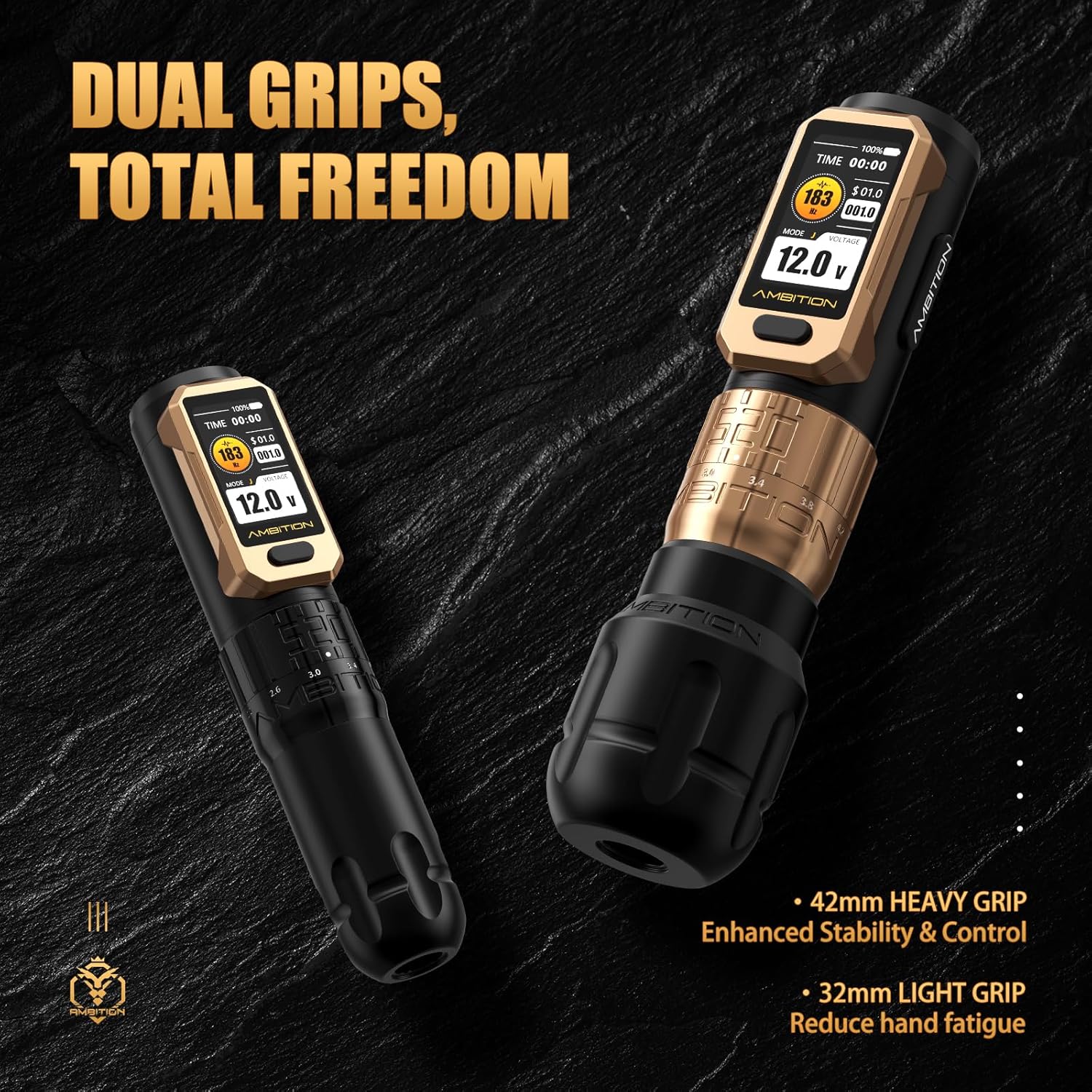

Image: The Ambition Soldier Pro 520 machine shown with both the 42mm heavy grip and the 32mm light grip, highlighting the dual grip options for user comfort and stability.

2. Inserting/Removing the Battery

To insert the battery, align the battery pack with the machine's battery compartment and push firmly until it clicks into place. To remove, gently pull the battery pack away from the machine.

3. Attaching Cartridge Needles

Insert the desired cartridge needle into the machine's needle port. Twist slightly to secure it. The machine is compatible with most cartridge needles and Ambition Mars-U P1 disposable grips.

Ambition Soldier Pro 520 compatible with Mars-U P1 disposable grips

Image: The Ambition Soldier Pro 520 machine with a Mars-U P1 disposable grip attached, demonstrating its compatibility and ease of use for hygienic practices.

Kullanım Talimatları

1. Güç Açma/Kapatma

Press and hold the power button for a few seconds to turn the machine on or off. The HD display will illuminate upon activation.

2. Hacmi Ayarlamatage

Once powered on, use the '+' and '-' buttons to adjust the output voltage. Each press adjusts the voltage by 0.1V. The current voltage ekranda görüntülenir.

3. Switching Startup Modes

Quickly double-click the power button to switch between startup modes. 'S' indicates Standard mode, and 'J' indicates Jump Start mode. Select the appropriate mode for your needle type.

4. Adjusting Stroke Length

Rotate the adjustable ring on the machine body to select your desired stroke length, ranging from 2.2mm to 4.2mm. There are six distinct settings for precise control.

Ambition Soldier Pro 520 adjustable stroke mechanism

Image: A close-up of the Ambition Soldier Pro 520's adjustable stroke mechanism, showing the markings for 2.2mm to 4.2mm stroke lengths.

5. Cihazın Şarj Edilmesi

Connect the provided Type-C charging cable to the machine's charging port and to a compatible 5V/2A adapter. The HD display will show the charging status. Avoid completely draining the battery before recharging to prolong battery life.

Ambition Soldier Pro 520 battery and charging information

Image: The Ambition Soldier Pro 520's display showing battery capacity and charging time, with a note on recommended charging input.

Bakım

Proper maintenance ensures the longevity and optimal performance of your tattoo machine.

Sorun giderme

SorunOlası NedenÇözüm
Makine açılmıyorDüşük pil; Güç düğmesine doğru basılmamışPili şarj edin; Güç düğmesine sıkıca basın ve basılı tutun.
Inconsistent power/stallingLow battery; Faulty needle cartridge; Motor issueRecharge battery; Replace needle cartridge; Contact support if issue persists.
Stroke adjustment not workingAdjustment ring stuck or damagedEnsure no debris is obstructing the ring; Do not force adjustment. Contact support if damaged.
Görüntü çalışmıyorBattery issue; Internal faultEnsure battery is charged and properly inserted. Contact support.

Özellikler

Ambition Soldier Pro 520 product specifications

Image: A visual representation of the Ambition Soldier Pro 520 machine alongside a table detailing its key specifications.

ÖzellikDetay
Weight (42mm grip)309 gr
Weight (32mm grip)242 gr
Boyut158*42/32mm
Motor22*30mm Coreless Motor
Motor Hızı12V/9200rpm
Tork520g.cm
Ayarlanabilir Strok2.2-4.2mm (6 options)
Cilttage Aralık1-12V
Pil Kapasitesi2400mAh
Kullanım Süresi7-8 Hours (on full charge)
Şarj Süresi2-3 Hours (Type-C fast charging)
Titreşim Değeri0.8 m/s²
Desibel50-52 dB
Ürün Boyutları5.9 x 3 x 2.3 inç
Ürün Model NumarasıAB-Soldier520-JS5981-1
UPC810174734812

Resmi Ürün Videosu

Video: An official product video demonstrating the features and operation of the Ambition Soldier Pro 520 Tattoo Gun.

Garanti ve Destek

The Ambition Soldier Pro 520 Wireless Rotary Tattoo Pen Machine comes with a 1 yıllık garanti. For any repair resolutions, technical assistance, or warranty claims, please contact Ambition official support. Ensure you have your model number (AB-Soldier520-JS5981-1) and proof of purchase available when contacting support.

For further information or assistance, please visit the Ambition Store.
