Kensington Pro Fit Ergo TB450 Wireless Trackball Mouse Instruction Manual

1. Ürün Bittiview

The Kensington Pro Fit Ergo TB450 Trackball Mouse combines ergonomic design with versatile wireless connectivity for enhanced comfort and productivity. It features both Bluetooth Low Energy (LE) and 2.4GHz wireless options, allowing connection to up to three devices. Constructed with 50% recycled plastic, this trackball mouse offers a long battery life, a patented ball ejection system for easy cleaning, and precise optical tracking with four adjustable DPI settings.

Figure 1: Kensington TB450 mouse showing 45-degree ergonomic tilt for natural hand positioning, which helps improve wrist and forearm alignment.

2. Kutuda Neler Var?

• Pro Fit® Ergo TB450 Trackball Mouse
• USB-A Alıcı
• Hızlı Başlangıç ​​Kılavuzu
• Uyumluluk Formu
• Garanti Kartı
• Hoşgeldin kartı
• 1 x AA Alkalin Pil

3. Kurulum

3.1 Cihazı Çalıştırma ve Pil Takma

1. Locate the battery compartment on the underside of the trackball mouse.
2. Insert the provided 1 x AA alkaline battery, ensuring correct polarity.
3. Turn the On/Off switch (located on the underside) to the 'On' position.

3.2 Cihazınızı Bağlama

The TB450 offers dual wireless connectivity: 2.4GHz via USB-A receiver or Bluetooth Low Energy (LE). You can connect up to three devices (one 2.4GHz, two Bluetooth).

Figure 2: Kensington TB450 mouse on a desk with a keyboard, illustrating dual wireless connection compatibility with Windows, macOS, and Chrome OS.

2.4GHz Kablosuz Bağlantı:

1. Remove the USB-A receiver from its storage slot on the underside of the mouse.
2. Plug the USB-A receiver into an available USB-A port on your computer.
3. Switch the channel selector button (located on the underside) to Channel 1 (indicated by a solid light). The mouse should automatically connect.

Bluetooth LE Connection:

1. Switch the channel selector button (located on the underside) to Channel 2 or 3. The corresponding LED will blink.
2. Bilgisayarınızda veya cihazınızda Bluetooth ayarlarına gidin ve yeni cihazları arayın.
3. Select 'Kensington TB450' from the list of available devices to pair. The LED will turn solid once connected.

4. Kullanım Talimatları

4.1 Düğme Fonksiyonları

The TB450 features multiple buttons for enhanced control:

• Sol tık: Standart birincil tıklama işlevi.
• Sağ tık: Standart ikincil tıklama fonksiyonu.
• Kaydırma tekerleği: Dikey kaydırma için.
• İleri/Geri Düğmeleri: For navigating web sayfalar veya belgeler.
• Thumb-Operated Trackball: For precise cursor control.

Figure 3: Diagram illustrating the various button functions and indicators on the Kensington TB450 mouse.

4.2 DPI Ayarı

The TB450 offers four DPI (Dots Per Inch) options to adjust cursor speed and precision:

• 400 DPI
• 800 DPI
• 1200 DPI
• 1600 DPI

To change the DPI setting, press the DPI switch button located on the underside of the mouse. The indicator lights will show the current DPI level.

4.3 Ergonomik Tasarım

The sculpted ergonomic design with a unique 45° tilt promotes natural hand positioning, helping to improve wrist and forearm alignment for all-day comfort.

Figure 4: Kensington TB450 mouse in a professional workspace setup, demonstrating comfortable use.

5. Bakım

5.1 Cleaning the Trackball

If you experience issues such as stickiness, slowness, or scrolling problems with your trackball mouse, it likely needs cleaning. Follow these steps to clean and lubricate your trackball for optimal functionality:

1. Remove the trackball from its socket using the eject button on the bottom of the trackball frame.
2. Clean the trackball and the trackball frame with a damp cloth or rubbing alcohol. Allow them to dry completely.
3. Lightly lubricate the trackball with a non-acidic lotion. An oil-based lotion like Vaseline is recommended for best results. Evenly rub a pea-sized amount of lotion into the palms of your hands and roll the trackball across the lotion until it is evenly lubricated.
4. Gently push the trackball back into the socket. If it feels slightly sticky, roll it around in the socket until it moves freely.

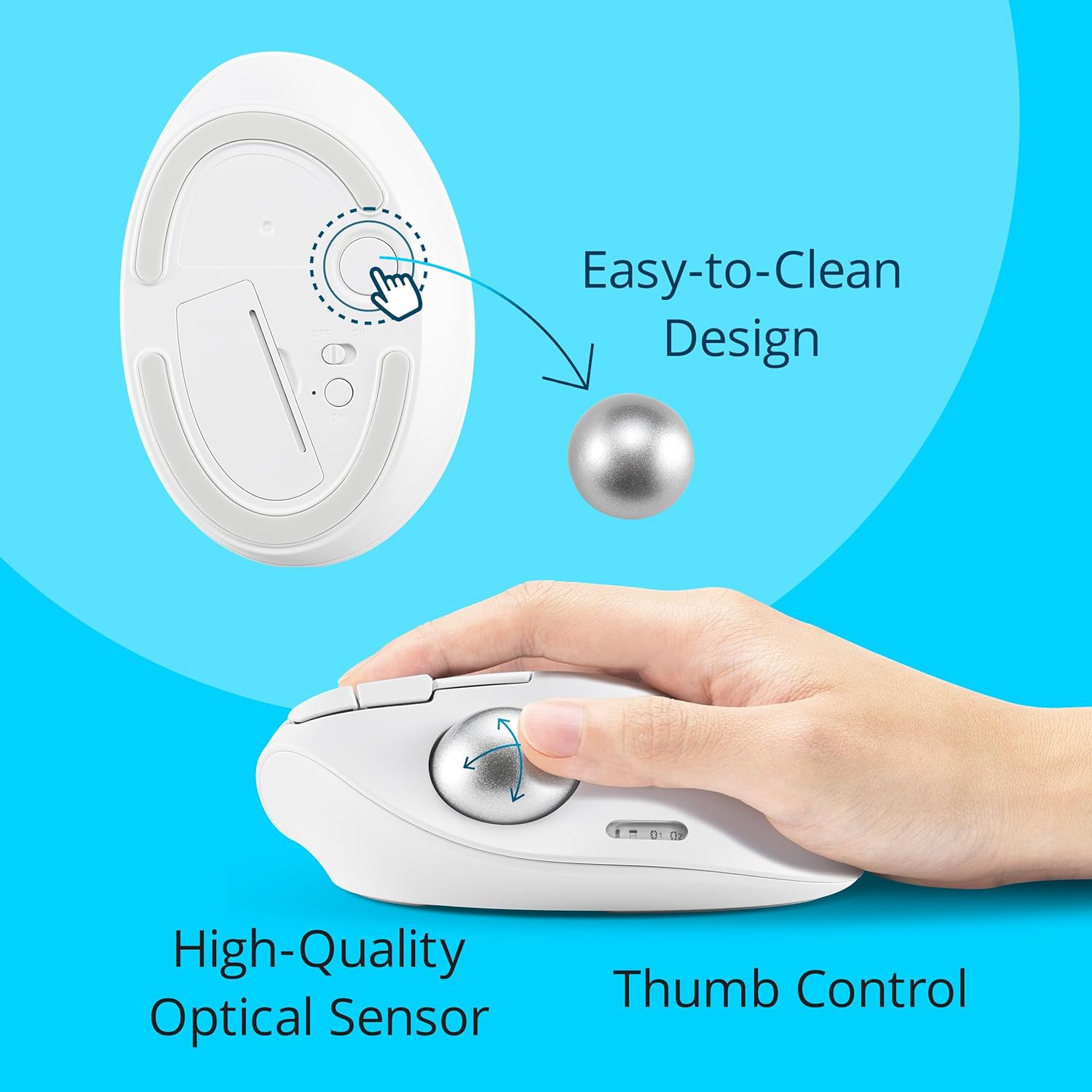

Figure 5: Underside of Kensington TB450 mouse showing the ball eject button for easy cleaning.

6. Sorun Giderme

If you encounter issues with your Kensington TB450 Trackball Mouse, consider the following:

• Bağlantı Sorunları: Ensure the mouse is turned on and the correct channel (2.4GHz, Bluetooth 1, or Bluetooth 2) is selected. For Bluetooth, verify your device's Bluetooth is enabled and the mouse is paired. For 2.4GHz, try plugging the USB receiver into a different port.
• Cursor Movement Problems (Sticky, Slow, Erratic): This is often due to dirt or debris on the trackball or inside the socket. Refer to Section 5.1 for detailed cleaning instructions.
• Pil Ömrü: If the mouse is unresponsive, the battery may be low. Replace the AA battery. The mouse offers up to 18 months with 2.4GHz and 15 months with Bluetooth.
• DPI Hassasiyeti: If the cursor speed is not as desired, adjust the DPI setting using the DPI switch button on the underside of the mouse.

7. Özellikler

8. Garanti ve Destek

Your Kensington Pro Fit Ergo TB450 Trackball Mouse comes with a limited warranty. Please refer to the included Warranty Card and Welcome Card for specific terms, conditions, and contact information for technical support.

For further assistance, visit the official Kensington support webÜrün dokümanlarınızda ayrıntılı olarak açıklandığı gibi siteyi ziyaret edin veya müşteri hizmetleriyle iletişime geçin.
