Radioddity X1 Walkie Talkies User Manual

1. Giriş

The Radioddity X1 Walkie Talkies are designed for reliable two-way communication in various environments. Featuring an IP67 waterproof and dustproof rating, durable construction, and advanced noise reduction, these FRS radios are suitable for outdoor adventures, professional use, and emergency situations. They offer a long communication range and include essential features like NOAA weather alerts and voice-activated transmission (VOX).

Image: The Radioddity X1 Walkie Talkie, showcasinsağlam tasarımı sayesinde.

2. Kutuda Neler Var?

Upon opening your Radioddity X1 package, you should find the following items:

• 2 x Radioddity X1 Walkie Talkies
• 2 x Şarj Edilebilir Piller
• 1 x 2'si 1 arada USB-C Şarj Kablosu
• 2 x Kemer Klipsleri
• 2 x El Kayışı
• 1 x Adaptör
• 1 x Kullanım Kılavuzu (bu belge)

Image: All components included in the Radioddity X1 package, including two radios, batteries, charging cable, belt clips, hand straps, and adapters.

3. Kurulum

3.1. Pil Kurulumu

1. Telsizin kapalı olduğundan emin olun.
2. Ünitenin arkasındaki pil bölmesini bulun.
3. Align the battery with the contacts and gently push it into the compartment until it clicks into place.

3.2. Pilin Şarj Edilmesi

The Radioddity X1 features a 2500mAh rechargeable lithium battery. For optimal performance, fully charge the battery before first use.

1. Connect the provided USB-C charging cable to the charging port on the walkie talkie.
2. Connect the other end of the USB-C cable to the adapter, and then plug the adapter into a standard power outlet. Alternatively, you can connect the USB-C cable to a compatible USB power source (e.g., computer, power bank).
3. Ekrandaki pil göstergesi şarj durumunu gösterecektir. Tam şarj genellikle birkaç saat sürer.

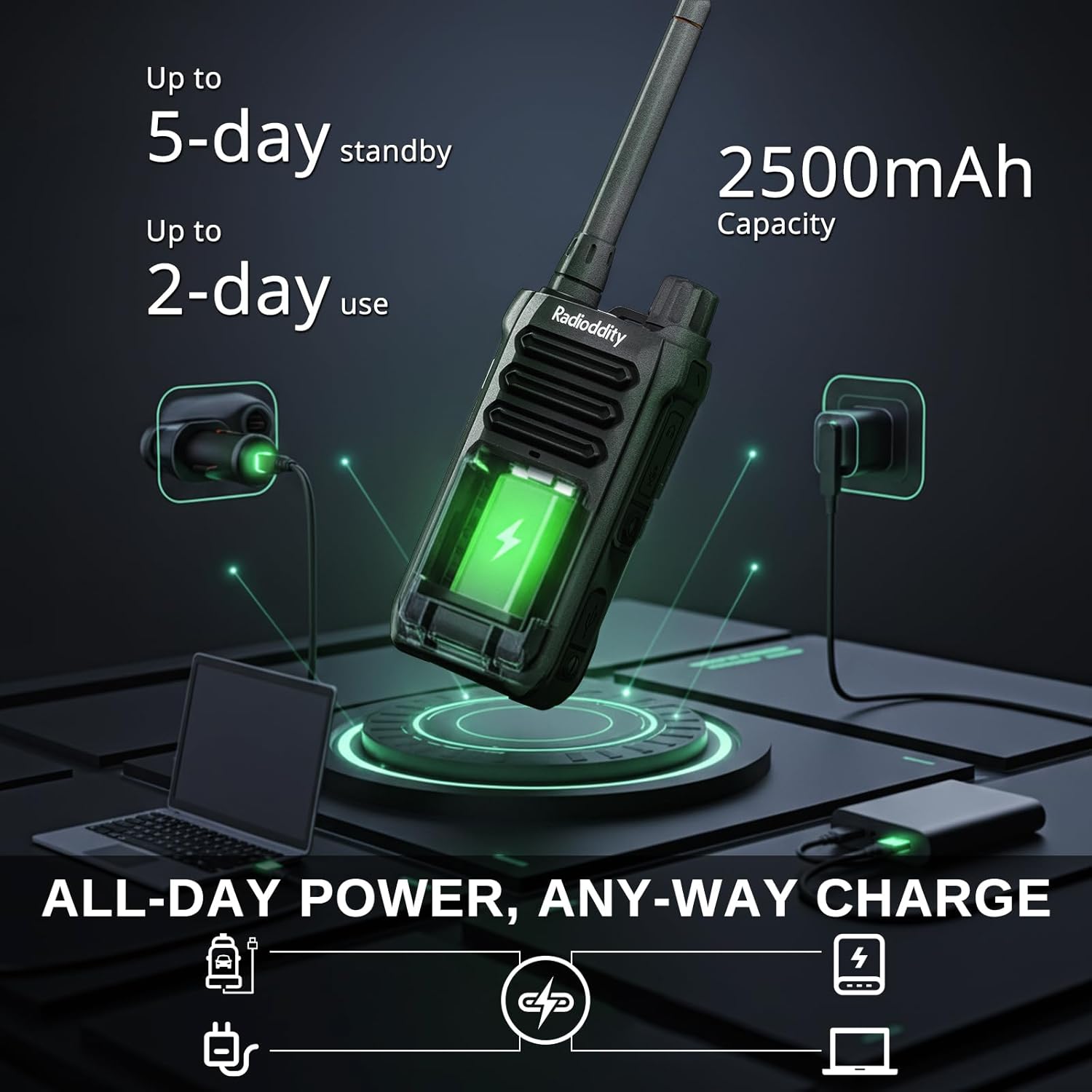

Image: The Radioddity X1 Walkie Talkie connected to a USB-C charger, illustrating the charging process.

3.3. Aksesuarların Takılması

1. Kemer tokası: Secure the belt clip to the designated slot on the back of the walkie talkie.
2. El kayışı: Thread the hand strap through the loop on the top or side of the walkie talkie for added security.

3.4. Açma/Kapama

To power on or off the device, rotate the power/volume knob located on the top of the unit clockwise to turn on, and counter-clockwise until it clicks to turn off.

4. Kullanım Talimatları

4.1. Kanal Seçimi

The Radioddity X1 comes pre-programmed with 22 FRS channels. To select a channel:

1. Basın MENÜ Menüye girmek için butona basın.
2. Kullanın Yukarı/Aşağı ok buttons to navigate to the channel setting.
3. Basmak OK onaylamak için ardından Yukarı/Aşağı ok İstediğiniz kanalı seçmek için düğmeler (1-22).
4. Basmak OK again to save the selection and MENÜ çıkmak.

4.2. Gizlilik Kodları (CTCSS/DCS)

The radio supports 155 privacy codes (CTCSS/DCS) to filter out unwanted conversations on a channel. While not providing true privacy, these codes ensure you only hear transmissions from radios set to the same channel and code.

1. Basın MENÜ düğme.
2. Navigate to the CTCSS or DCS setting using the Yukarı/Aşağı ok düğmeler.
3. Basmak OK, then select your desired code.
4. Basmak OK kaydetmek ve MENÜ to exit. Ensure all radios in your group use the same channel and privacy code.

4.3. Bas-Konuş (PTT)

İletmek için büyük düğmeye basılı tutun. PTT button on the side of the radio. Speak clearly into the microphone. Release the PTT Dinlemek için düğmeye tıklayın.

4.4. VOX Fonksiyonu (Sesle Çalıştırılan İletim)

The VOX function allows for hands-free operation. When activated, the radio transmits automatically when it detects your voice.

1. Basın MENÜ düğme.
2. Şuraya gidin: VOX ayar.
3. Basmak OK, then select an appropriate sensitivity level (higher numbers for lower sensitivity).
4. Basmak OK kaydetmek ve MENÜ çıkmak.

Image: Icon representing the Voice Operated Transmission (VOX) function.

4.5. NOAA Hava Durumu Uyarıları

Stay informed with 10 built-in NOAA weather channels providing real-time alerts.

1. Basın MENÜ düğme.
2. Şuraya gidin: NOAA ayar.
3. Basmak OK, then select the desired NOAA channel or activate weather alerts.
4. Basmak OK kaydetmek ve MENÜ çıkmak.

Image: Icon representing the NOAA Scan & Alert feature.

4.6. Kayıt Oynatma

The Radioddity X1 features a unique recording playback function for up to 20 messages.

1. To record, press and hold the dedicated KAYIT button (if available, or refer to specific menu options).
2. To play back recorded messages, press the TEKRAR OYNAT düğme.

Image: The Radioddity X1 display showing the recording and replay functions, highlighting its audio safety net capability.

Image: Icon representing the Recording function.

4.7. Gürültü Azaltma

The dual-way noise reduction feature ensures clear communication even in noisy environments.

Image: The Radioddity X1 in a construction setting, illustrating its noise reduction capabilities for clear communication.

5. Bakım

5.1. IP67 Waterproof and Dustproof Care

The Radioddity X1 is rated IP67, meaning it is dustproof and can withstand submersion in up to 1 meter of water for 30 minutes. To maintain its integrity:

• Ensure all port covers (e.g., charging port, accessory port) are securely closed before exposure to water or dust.
• After exposure to water, wipe the radio dry with a clean cloth. Do not charge the radio if the charging port is wet.
• Avoid prolonged submersion beyond the specified depth and time.

Image: The Radioddity X1 Walkie Talkie submerged in clear water, demonstrating its IP67 waterproof capability.

Image: The Radioddity X1 Walkie Talkie partially covered in sand, highlighting its dustproof design.

5.2. Pil Bakımı

The 2500mAh battery provides up to 48 hours of average use. To prolong battery life:

• Pilinizin düzenli olarak tamamen boşalmasından kaçının.
• Radyo kullanılmadığı zaman serin ve kuru bir yerde saklanmalıdır.
• Sadece verilen şarj kablosunu ve adaptörünü kullanın.

5.3. Temizlik

Radyoyu yumuşak bir bezle silin, damp bez. Sert kimyasallar veya aşındırıcı temizleyiciler kullanmayın.

6. Sorun Giderme

7. Özellikler

Image: Visual representation of the Radioddity X1's communication range, showing up to 5 miles in open areas and 2 miles in urban settings.

Image: The Radioddity X1 Walkie Talkie on the ground at a construction site, illustrating its durability and shockproof design after 1,000+ drop tests.

8. Garanti ve Destek

8.1. Garanti Bilgileri

The Radioddity X1 Walkie Talkies come with an 18 ay garanti from the date of purchase. This warranty covers manufacturing defects and ensures your product is free from material and workmanship flaws under normal use. Please retain your proof of purchase for warranty claims.

8.2. Müşteri Desteği

For technical assistance, troubleshooting, or warranty inquiries, please visit the official Radioddity website or contact their customer support team. You can find contact information and additional resources on their webalan: www.radioddity.com.
