RDINSCOS RD710 Rechargeable Gas Leak Detector User Manual

1. Giriş

This manual provides detailed instructions for the safe and effective use of the RDINSCOS RD710 Rechargeable Gas Leak Detector. Please read this manual thoroughly before operating the device and retain it for future reference. The RD710 is designed to detect various combustible gases, offering audible and visual alerts to help identify potential leaks.

Figure 1.1: RDINSCOS RD710 Gas Leak Detector and Included Accessories

The image displays the RDINSCOS RD710 gas leak detector, its retail packaging, and a USB-C charging cable. The device is black with an orange accent, featuring a digital display and control buttons.

2. Güvenlik Bilgileri

Yaralanmayı veya cihaza zarar gelmesini önlemek için her zaman aşağıdaki güvenlik önlemlerine uyun:

• Cihazı aşırı sıcaklıklara, neme veya aşındırıcı ortamlara maruz bırakmayın.
• Cihazı sökmeye veya üzerinde değişiklik yapmaya çalışmayın. Tüm servis işlemlerini yetkili personele yaptırın.
• Optimum performansı korumak için kullanmadan önce cihazın tamamen şarj edildiğinden emin olun.
• This device is a detection tool and should not replace professional gas leak inspection or safety systems.
• Keep the device away from strong electromagnetic fields, fans, or metal objects during detection to minimize false alarms.
• In case of a detected gas leak, immediately ventilate the area, turn off gas sources if safe to do so, and contact emergency services.

3. Ürün Bittiview

3.1 Temel Özellikler

• Şarj Edilebilir Tasarım: Built-in lithium battery for portable, cordless operation.
• High-Sensitivity Sensor: Equipped with a Japanese FIGARO sensor for accurate and rapid detection.
• Wide Gas Detection Range: Detects propane, methane, LPG, natural gas, gasoline, coal gas, ethane, hydrogen, alcohol, CO, gas fuel, and hydrogen sulfide.
• Digital Display & Alarms: Clear LCD screen shows gas concentration (PPM) with audible beeping and visual flashing alarms.
• Çok Amaçlı Kullanım: Suitable for home, RV, kitchen, industrial inspections, and professional applications.

3.2 Bileşenler

Figure 3.1: FIGARO Sensor and Detectable Gases

This image highlights the advanced FIGARO sensor at the tip of the RD710 detector, surrounded by bubbles labeled with various combustible gases such as Propane, Gasoline, Coal Gas, Natural Gas, Methane, and Ethane, indicating the device's broad detection capabilities.

Figure 3.2: Digital Display and Alarm Indicators

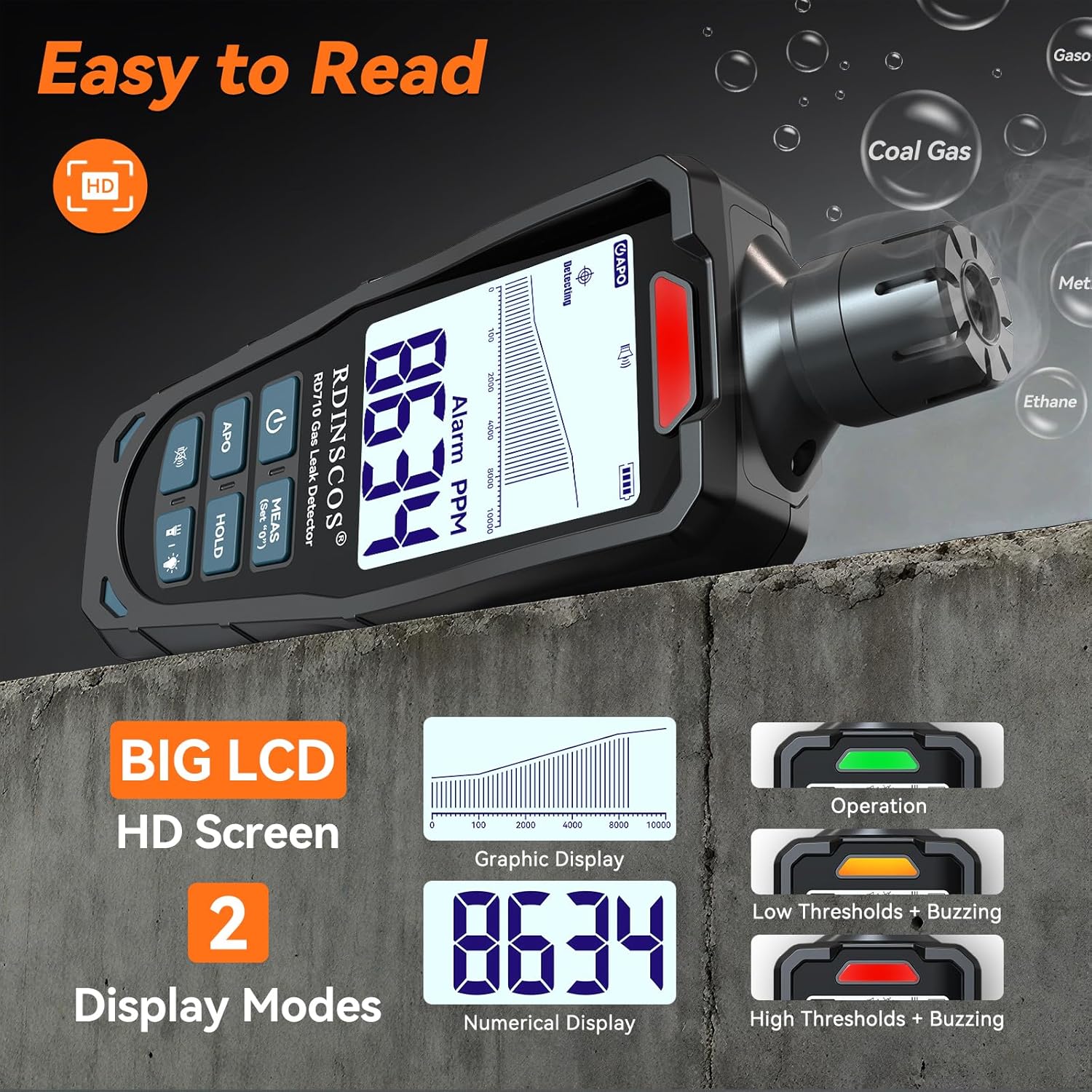

The image illustrates the RD710's large LCD screen, showcasing two display modes: a graphic display with a PPM scale and a numerical display showing '8634' PPM. It also depicts the visual alarm indicators for operation, low thresholds with buzzing, and high thresholds with buzzing.

The RD710 features a clear LCD screen, control buttons (Power, APO, HOLD, MEAS), a high-sensitivity sensor probe, and LED indicators for alarms.

4. Kurulum

4.1 Cihazı Şarj Etme

Before first use, fully charge the RD710. Use the provided USB-C cable and a standard 5V USB power adapter (not included).

• USB-C kablosunu cihazın şarj portuna bağlayın.
• Diğer ucunu bir USB güç kaynağına takın.
• Ekrandaki pil göstergesi şarj durumunu gösterecektir.
• Tam şarj genellikle yaklaşık 2-3 saat sürer.

Şekil 4.1: USB-C Şarjı

The image shows the RDINSCOS RD710 gas leak detector connected to a wall charger via its USB-C port, illustrating the charging process. The device has a 1200mAh battery capacity.

4.2 İlk Çalıştırma ve Ön Isıtma

İlk kurulum için şu adımları izleyin:

1. Step 1: Turn On. Güç tuşuna baş (UCihazı açmak için.
2. Step 2: UI Locked. The display will show a locked UI, indicating no input is accepted during this phase.
3. Step 3: Preheating. The device will enter a 30-second preheating phase. The display will show "di" and a countdown. Wait for this process to complete.
4. Step 4: Ready for Detection. Once preheating is complete, the device is ready for use.

Figure 4.2: Easy to Use Steps

This image provides a visual guide for the initial operation of the RD710, showing four steps: pressing the power key to turn on, the UI locked state, the 30-second preheating phase, and finally, the device ready for detection.

5. Kullanım Talimatları

5.1 Gaz Algılama

1. After preheating, hold the detector with the sensor probe near the suspected leak area.
2. Move the probe slowly along pipes, connections, and appliances.
3. Observe the digital display for PPM readings and listen for audible alarms.
4. Bir artışasing PPM value and more frequent beeping indicate a gas leak.

Figure 5.1: Detecting Gas Leaks

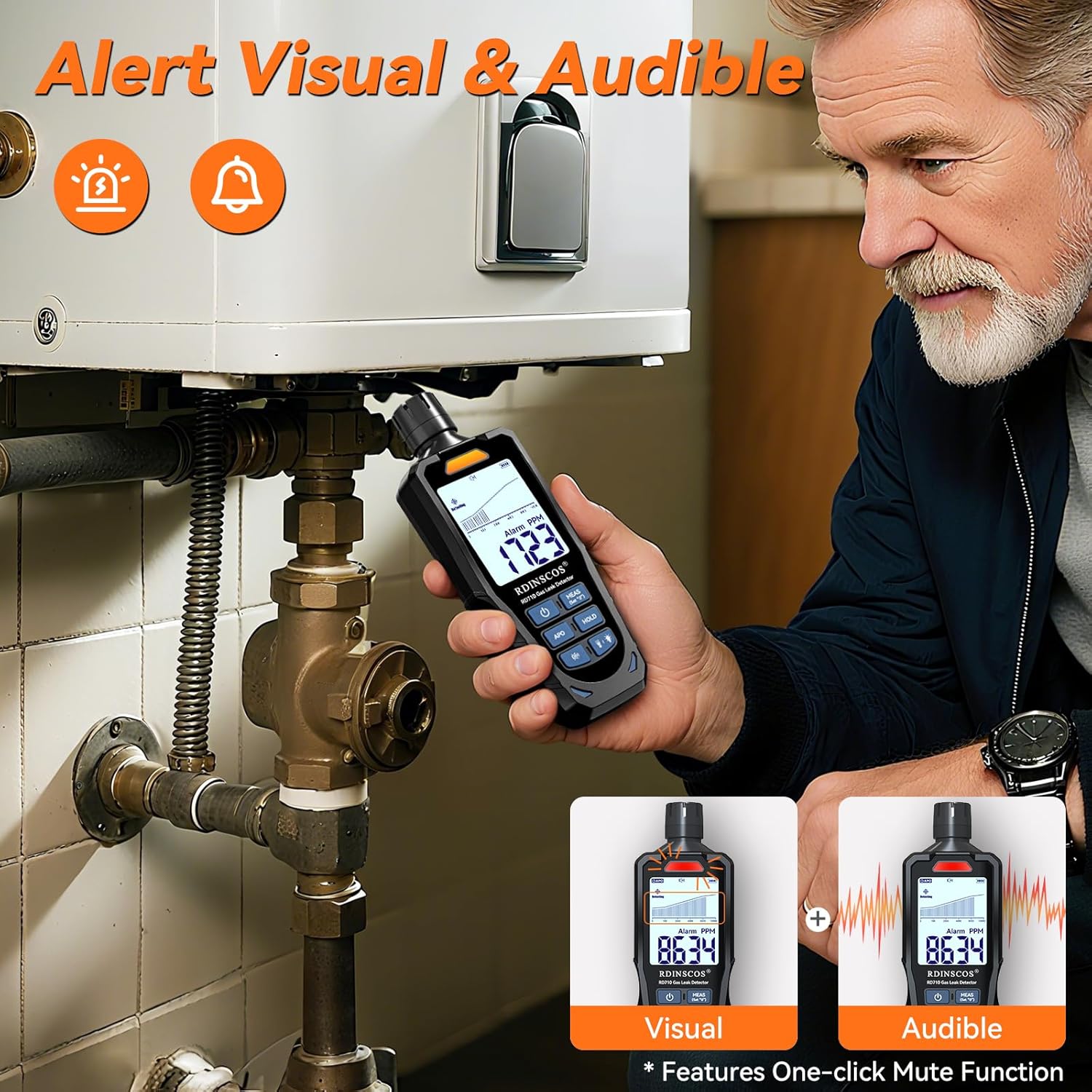

The image shows a person holding the RDINSCOS RD710 gas leak detector near the piping of a water heater or boiler, demonstrating its use in identifying potential gas leaks. The device's display shows a numerical reading, and visual and audible alarm indicators are present.

5.2 Audible and Visual Alarms

The RD710 provides both audible and visual alerts:

• Sesli alarm: A beeping sound increases in frequency as gas concentration rises.
• Görsel Alarm: LED indicators on the device will flash, and the digital display will show increasing PPM values.

5.3 Sessize Alma İşlevi

The device features a one-click mute function. Press the Mute button (speaker icon) to silence the audible alarm if needed, while visual alerts remain active.

5.4 Otomatik Kapanma (APO)

The RD710 includes an Auto Power Off (APO) function to conserve battery life. If no gas is detected and no buttons are pressed for a certain period, the device will automatically power off. This feature can typically be toggled using the APO button.

5.5 Veri Tutma Fonksiyonu

Press the HOLD button to freeze the current gas concentration reading on the display. Press it again to resume real-time detection.

6. Kalibrasyon

The RD710 features a one-touch calibration function to ensure accuracy. This process sets the current ambient air as the zero-point for detection.

1. Ensure the device is in a clean, fresh air environment, free from any combustible gases.
2. Turn on the device and allow it to complete its preheating cycle.
3. Basın MEAS (Set "0") button lightly.
4. The device will calibrate itself to the ambient air, setting the baseline reading to zero.
5. Once calibration is complete, the device is ready for accurate detection.

7. Bakım

7.1 Temizlik

• Cihazı yumuşak, kuru bir bezle silin.
• Do not use abrasive cleaners, solvents, or corrosive chemicals.
• Keep the sensor probe clean and free from dust or debris.

7.2 Depolama

• Cihazı serin, kuru, doğrudan güneş ışığından ve aşırı sıcaklıklardan uzak bir yerde saklayın.
• Uzun süre saklanacaksa, pilin ömrünü uzatmak için kısmen şarjlı (yaklaşık %50) olduğundan emin olun.

8. Sorun Giderme

9. Özellikler

10. Garanti ve Destek

For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official RDINSCOS webSite. Satın alma belgeniz olarak satın alma fişinizi saklayın.
