M-Vave SMK-37 Pro Bluetooth MIDI Keyboard with Built-in FM Synth

1. Giriş

The M-Vave SMK-37 Pro is a versatile musical instrument that combines the functionality of a modern MIDI controller with the sound capabilities of a classic FM synthesizer. Designed for both studio and mobile musicians, this device features 37 velocity-sensitive keys and a comprehensive set of controls, offering flexibility through wireless or USB connectivity.

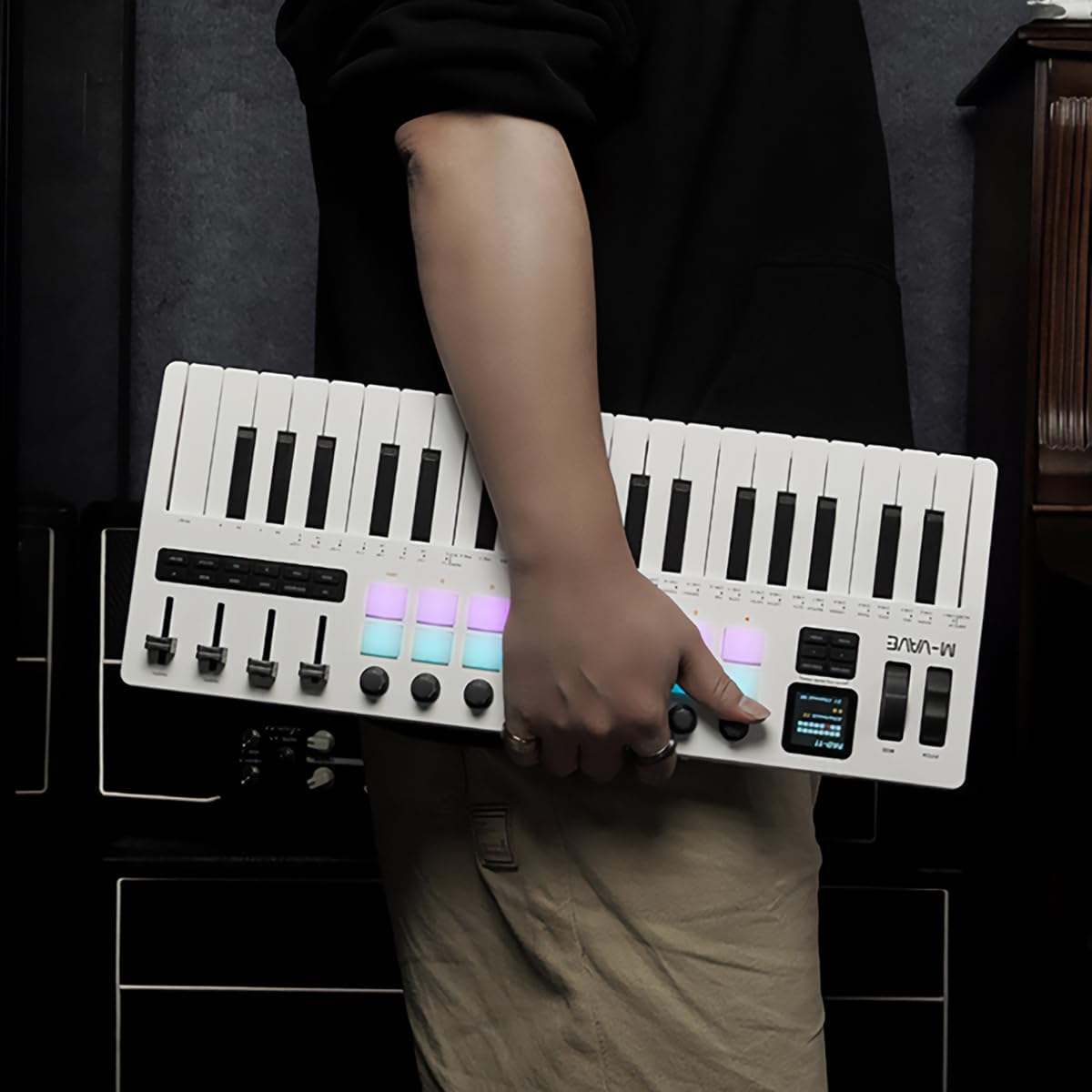

Figure 1.1: The M-Vave SMK-37 Pro is designed for portability, allowing musicians to create on the go.

2. Ürün Bittiview

The SMK-37 Pro is engineered to provide extensive control and sound generation capabilities. Below is an overview temel özellikleri ve bileşenleri.

2.1 Temel Özellikler

• 37 velocity-sensitive keys (3 octaves) for expressive play.
• Built-in FM synthesizer engine, inspired by the Yamaha DX7.
• 16 RGB illuminated drum pads for beat making and samptetikleme.
• 8 assignable rotary knobs and 4 assignable faders for real-time control.
• USB-C connectivity for power and data, alongside Bluetooth 5.0 and 2.4G wireless MIDI.
• Integrated 2000mAh rechargeable battery for up to 8 hours of portable use.
• 1.54-inch color display for clear parameter feedback.
• Pitch bend and modulation wheels for dynamic performance.
• Octave transform and Smart Chord functions.

2.2 Bileşen Tanımlama

Şekil 2.1: Ön view of the SMK-37 Pro, highlighting the keyboard, pads, and control surface.

• Klavye: 37 velocity-sensitive keys.
• Pedler: 16 RGB illuminated drum pads.
• Düğmeler: 8 assignable rotary encoders.
• Fader'lar: 4 assignable faders.
• Görüntülemek: 1.54-inch color screen for parameter visualization.
• Pitch/Mod Wheels: For expressive control.

Figure 2.2: Rear panel of the SMK-37 Pro, showing connectivity options.

• USB-C Bağlantı Noktası: For charging and USB MIDI connection.
• Güç Düğmesi: Cihazı açmak/kapatmak için.
• Ses Çıkışı: For monitoring the built-in FM synthesizer.

3. Kurulum

Follow these steps to set up your M-Vave SMK-37 Pro.

3.1 Cihazı Şarj Etme

1. Connect the included USB-C cable to the USB-C port on the rear of the SMK-37 Pro.
2. USB-C kablosunun diğer ucunu uyumlu bir USB güç adaptörüne (dahil değildir) veya bir bilgisayarın USB portuna bağlayın.
3. The device will begin charging. A full charge provides up to 8 hours of operation.

3.2 Açma/Kapatma

• To power on, press and hold the Power button on the rear panel until the display illuminates.
• To power off, press and hold the Power button until the display turns off.

3.3 Bağlantı Seçenekleri

The SMK-37 Pro offers multiple ways to connect to your devices.

3.3.1 USB MIDI Connection

• Connect the SMK-37 Pro to your computer using the USB-C cable.
• The device will be recognized as a standard MIDI input/output device by your operating system (Windows, macOS, iOS, Android).
• For Windows users, ensure you have Bluetooth 5.0 and an appropriate BLE MIDI driver installed for wireless functionality.

3.3.2 Wireless MIDI Connection (Bluetooth 5.0 / 2.4G)

Figure 3.1: Wireless connection guide for the SMK-37 Pro.

1. Ensure the SMK-37 Pro is powered on.
2. Activate Bluetooth on your Windows, macOS, iOS, or Android device.
3. Arama available Bluetooth devices and select "SMK-37 Pro" from the list.
4. For 2.4G wireless MIDI, a compatible 2.4G receiver (sold separately) may be required. Refer to the receiver's instructions for pairing.

4. Kullanım Talimatları

This section details how to use the M-Vave SMK-37 Pro as both a MIDI controller and a standalone FM synthesizer.

Figure 4.1: The SMK-37 Pro in use, showcasing its interactive controls.

4.1 MIDI Controller Mode

The SMK-37 Pro functions as a universal MIDI controller, compatible with various Digital Audio Workstations (DAWs) and software instruments.

• Connecting to DAWs: Once connected via USB or wirelessly, select "SMK-37 Pro" as a MIDI input device in your DAW's preferences (e.g., Ableton Live, FL Studio, Logic Pro, GarageBand).
• Assigning Controls: The 16 RGB pads, 8 knobs, and 4 faders can be assigned to control parameters within your DAW or VST instruments. Refer to your DAW's manual for MIDI mapping instructions.
• Keys and Wheels: The 37 velocity-sensitive keys, pitch bend, and modulation wheels transmit standard MIDI messages for expressive performance.

4.2 Built-in FM Synthesizer Mode

The SMK-37 Pro features an integrated FM synthesizer engine, allowing you to create and play sounds directly from the device without external software.

Figure 4.2: The SMK-37 Pro's internal sound source can be monitored via headphones or external speakers.

• Sound Generation: The FM synth engine is inspired by the legendary Yamaha DX7, supporting DX7 patches.
• Parametre Kontrolü: Use the onboard knobs and faders to edit synthesizer parameters such as algorithms, filters, envelopes, and effects. The 1.54-inch color display provides visual feedback on parameter values.
• Yama Yönetimi: Sounds can be played, edited, and stored directly on the device. Consult the on-screen menu for patch selection and saving procedures.
• Ses Çıkışı: Connect headphones or external speakers to the audio output jack on the rear panel to monitor the synthesizer's sound.

4.3 Görüntüleme ve Gezinme

Figure 4.3: The 1.54-inch display provides clear feedback on settings and parameters.

The 1.54-inch color display is your primary interface for navigating menus, adjusting parameters, and viewing patch information. Use the dedicated navigation buttons and rotary encoders near the display to browse options and confirm selections.

4.4 Özel Fonksiyonlar

• Octave Transform: Use the dedicated octave buttons to shift the keyboard's range up or down.
• Smart Chord Function: This feature assists in playing chords with single key presses. Refer to the on-screen menu for activation and configuration.
• Arpejci: The built-in arpeggiator can generate rhythmic patterns from held notes. Settings for mode, octave, swing, tempo, and latch can be adjusted via the display.

5. Bakım

Proper care will ensure the longevity and optimal performance of your SMK-37 Pro.

• Temizlik: Cihazın yüzeyini silmek için yumuşak, kuru bir bez kullanın. İnatçı kirler için, biraz daha kuru bir bez yeterli olacaktır.amp Önce bir bez, ardından kuru bir bez kullanılabilir. Aşındırıcı temizleyicilerden veya çözücülerden kaçının.
• Depolamak: Cihazı serin, kuru ve doğrudan güneş ışığından, aşırı sıcaklıklardan ve yüksek nemden uzak bir yerde saklayın.
• İşleme: Avoid dropping the device or subjecting it to strong impacts. Do not place heavy objects on top of it.
• Pil Bakım: En iyi pil ömrü için, pili sık sık tamamen boşaltmaktan kaçının. Uzun süre saklayacaksanız, pili birkaç ayda bir yaklaşık %50'ye kadar şarj edin.

6. Sorun Giderme

If you encounter issues with your M-Vave SMK-37 Pro, refer to the following common solutions.

7. Özellikler

Detailed technical specifications for the M-Vave SMK-37 Pro.

• Model Adı: M-Vave SMK-37 Midikeyboard w/built-in Synth
• Model Numarası: MVA-SMK37 Pro
• Anahtarlar: 37 velocity-sensitive keys (3 octaves)
• Pedler: 16 RGB illuminated drum pads
• Kontroller: 8 rotary knobs, 4 faders, Pitch bend, Modulation wheel
• Görüntülemek: 1.54 inç renkli ekran
• Bağlantı: USB-C, Bluetooth 5.0, 2.4G wireless MIDI
• Pil: Dahili 2000mAh şarj edilebilir pil
• Pil Ömrü: 8 saate kadar (yaklaşık)
• Sentezleyici: Built-in FM synthesizer (DX7-based)
• Uyumluluk: Windows, macOS, iOS, Android
• Desteklenen Yazılımlar: Ableton Live, FL Studio, Logic Pro, GarageBand, Carl Martin Studio (and other DAWs)
• Dahil Bileşenler: USB kablosu
• Ürün Ağırlığı: 1 Kilogram

8. Garanti ve Destek

For warranty information and technical support, please contact M-VAVE customer service through their official webSatın alma belgesi olarak satın alma fişinizi saklayın. (Bu belge web sitesinde veya satıcınızda bulunabilir.)

• Çevrimiçi destek: Visit the M-VAVE official webSSS, sürücü indirmeleri ve iletişim bilgileri için site.
• Ürün kaydı: Güncellemeleri ve desteği almak için ürününüzü çevrimiçi kaydedin.
