The WZATCO Legend Optimus is a Netflix Certified Smart Home Projector designed to deliver a premium cinematic experience. Featuring native 1080P resolution with 4K HDR support, 2000 ANSI lumens brightness, and fully automatic intelligent screen adjustments, this projector offers seamless entertainment. It includes built-in Wi-Fi 6 and Bluetooth connectivity, dual 10W Hi-Fi speakers with Dolby Atmos support via HDMI ARC, and a sealed optical engine for long-lasting performance.
Kutuda Neler Var?
Upon unboxing your WZATCO Legend Optimus projector, please ensure all the following items are present:
- Legend Optimus Projector
- Güç Kablosu
- Uzaktan kumanda
- Kullanıcı Kılavuzu
- Garanti Kartı
Kurmak
The WZATCO Legend Optimus is designed for easy setup with its fully automatic features. Follow these steps for initial installation:
- Atama: Position the projector on a stable, flat surface or mount it to the ceiling. Ensure there are no obstructions in front of the lens. The projector supports flexible mounting options for ceiling or table use.
- Güç Bağlantısı: Connect the provided power cord to the projector and then to a power outlet.
- İlk Güç Açma: Cihazı açmak için projektördeki veya uzaktan kumandadaki güç düğmesine basın.
- Otomatik Ayarlamalar: The projector will automatically perform the following adjustments:
- Otomatik odaklama: The image will automatically sharpen.
- Otomatik Kilit Taşı: The image will automatically correct its shape to be rectangular.
- Otomatik Ekran Uyumu: The projection will adjust to fit the screen area.
- Otomatik Engellerden Kaçınma: Projeksiyon cihazı, yansıtma yüzeyindeki engelleri algılayacak ve bunlardan kaçınmak için görüntüyü ayarlayacaktır.
- Ağ bağlantısı: Navigate to the settings menu to connect to your Wi-Fi 6 network for internet access and smart features.
- Harici Cihazlar: Connect any external devices such as laptops, gaming consoles, or media players using the available HDMI or USB ports.
Kullanım Talimatları
Ekran Özellikleri
The Legend Optimus delivers a vibrant and clear viewDeneyim:
- Çözünürlük: Native 1080P with support for 4K HDR and HLG.
- Parlaklık: 2000 ANSI Lumens for clear visuals even in well-lit rooms.
- Kontrast Oranı: 9000:1 Static Contrast Ratio for deep blacks and bright whites.
- Renk Gamı: 98% NTSC Wide Color Gamut for rich and accurate colors.
- Teknoloji: LTPS Technology for enhanced display performance.
Ses Özellikleri
Experience immersive sound with the projector's advanced audio system:

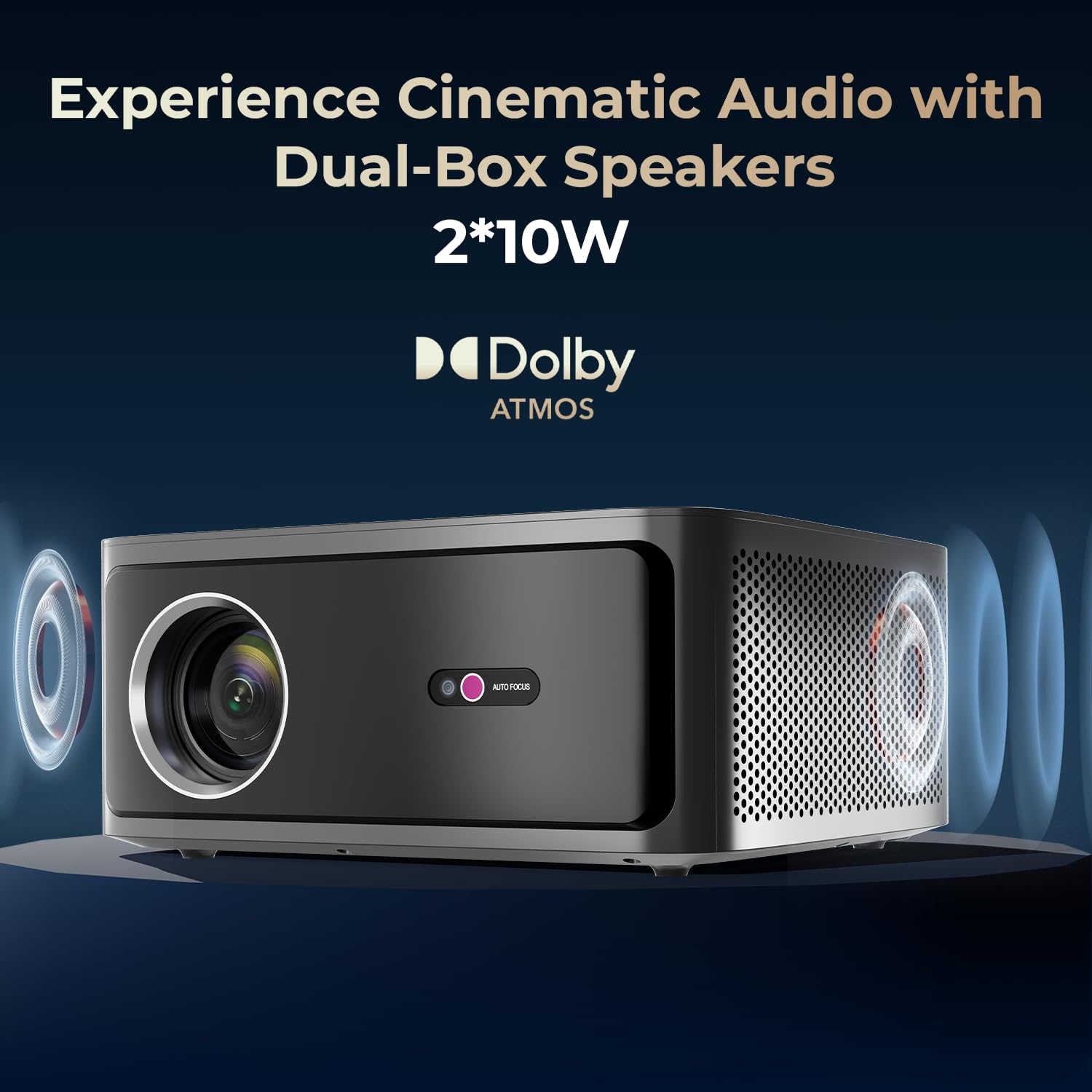

- Konuşmacılar: Hi-Fi stereo dual speakers (2x10W) for powerful bass and crisp audio details.
- Dolby Atmos: Supports Dolby Atmos via HDMI ARC for an enhanced audio experience.
- Bluetooth Sesi: Can function as a Bluetooth speaker, allowing you to stream audio from other devices.
Akıllı Özellikler ve Bağlantı
The Legend Optimus is equipped with smart functionalities for a modern entertainment setup:
- Certified Smart TV OS: Netflix Certified, providing one-click access to endless entertainment without the need for an external TV stick.
- Yerleşik Uygulamalar: Over 300+ officially licensed apps, including Netflix, Disney+, YouTube, Hulu, Prime Video, HBO Max, Apple TV+, and more.
- Kablosuz bağlantı: Ultra-high speed Wi-Fi 6 for smooth video playback and lag-free gaming, and Bluetooth 5.0 for easy connection to headphones, speakers, and other devices.
- Sesli Asistan: Integrated AI Voice Assistance for convenient control.
- Ekran yansıtma: Supports screen mirroring from compatible devices.
Bakım
To ensure the longevity and optimal performance of your WZATCO Legend Optimus projector, regular maintenance is recommended:
- Dust-Proof Engine: The projector features a fully sealed dust-proof optical engine, which significantly reduces dust accumulation and maintains image quality over time. This design minimizes the need for frequent internal cleaning.
- Lens Temizliği: Projeksiyon merceğini, optik yüzeyler için özel olarak tasarlanmış, yumuşak ve tüy bırakmayan bir bezle nazikçe temizleyin. Aşındırıcı malzemeler veya sert kimyasallar kullanmaktan kaçının.
- Dış Temizlik: Projektörün dış yüzeyini yumuşak, kuru bir bezle silin. Cihazın üzerine doğrudan sıvı temizleyiciler kullanmayın.
- Havalandırma: Aşırı ısınmayı önlemek için projektörün havalandırma açıklıklarının açık ve engelsiz olduğundan emin olun.
- Depolamak: When not in use for extended periods, store the projector in a cool, dry, and dust-free environment.
Sorun giderme
If you encounter any issues with your WZATCO Legend Optimus projector, refer to the following common troubleshooting tips:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Güç Yok | Power cord not connected securely; Power outlet malfunction. | Ensure the power cord is firmly plugged into both the projector and the wall outlet. Test the outlet with another device. |
| Görüntü Yok / Boş Ekran | Input source not selected; Cable connection issue; Projector in standby mode. | Verify the correct input source is selected (HDMI 1/2, USB). Check HDMI/USB cables for secure connection. Press the power button to wake from standby. |
| Blurry Image / Out of Focus | Auto-focus malfunction; Projector moved. | The projector has an auto-focus feature. If the image remains blurry, try moving the projector slightly or restarting it to trigger auto-focus again. Ensure the lens is clean. |
| Bozulmuş Görüntü (Yamuk Şekli) | Projector not perpendicular to the screen; Auto-keystone malfunction. | The projector has an auto-keystone feature. If distortion persists, try repositioning the projector or restarting it. |
| Ses Yok | Volume too low; Mute activated; External audio device not connected properly. | Increase volume. Check if mute is active. Ensure external audio devices (if used) are correctly connected via Bluetooth or AUX. |
| Uzaktan Kumanda Çalışmıyor | Low battery; Obstruction between remote and projector. | Replace batteries. Ensure a clear line of sight to the projector's IR receiver. |
Özellikler
Detailed technical specifications for the WZATCO Legend Optimus projector:
| Özellik | Detay |
|---|---|
| Marka | WZATCO |
| Model Adı | Legend Optimus |
| Ekran Teknolojisi | NEDEN OLMUŞ |
| Görüntü Türü | LCD |
| Yerel Çözünürlük | 1920 x 1080 (Orijinal 1080P) |
| Desteklenen Çözünürlük | 4K Pixels with HDR + HLG Support |
| Parlaklık | 2000 ANSI Lümenleri |
| Görüntü Kontrast Oranı | 9000:1 |
| En Boy Oranı | 16:9 |
| Özel Özellikler | Netflix Certified, Fully Automatic (Auto Focus, Auto Keystone, Auto Screen Fit, Auto Obstacle Avoidance), Dust Proof Sealed Engine, HDMI ARC (Dolby Atmos), Dual Band WiFi 6, Bluetooth 5.0, Android TV OS 13.0 (1GB+8GB), AI Voice Assistant, 10 Watt HiFi Speakers, Throw Ratio 1.35:1 |
| Bağlantı Teknolojisi | Wi-Fi, Bluetooth |
| Donanım Arayüzü | Bluetooth, USB, HDMI, LAN Port, AUX |
| Uyumlu Cihazlar | Laptops, Smartphones, Gaming Consoles, Media Players, Blu-ray Players |
| Ürün Boyutları | 22x28x17 cm |
| Ürün Ağırlığı | 3.5 kilo |
| Cilttage | 220 Volt |
| Netage | 210 Watt |
| Yenileme Hızı | 60 Hz |
| Lamp Hayat | 50,000 Saat |
Garanti ve Destek
The WZATCO Legend Optimus projector comes with comprehensive warranty coverage and dedicated customer support:
- Garanti Süresi: Enjoy peace of mind with a 1-Year Nationwide Warranty from the date of purchase.
- Kayıt: Product registration is mandatory to avail warranty benefits. Please visit the official WZATCO website for additional details and to register your product.
- Müşteri Hizmetleri: For any technical assistance or support, you can contact WZATCO Customer Care:
- Telefon: 709-209-0011
- E-posta: destek@wzatco.com
- İthalatçı Detayları: Zeblaze Solutions LLP #731, 3rd Floor, 4th phase, Yelahanka, New Town Bangalore - 560064.
Ürün Videoları
Watch these videos to learn more about the WZATCO Legend Optimus projector's features and capabilities.
This video demonstrates the picture quality and automatic features of the WZATCO Legend Optimus projector, showcasing its performance in various lighting conditions and ease of setup.
Görsel bir görüntüview of the WZATCO Legend Optimus, highlighting its design, built-in speakers, and smart interface for a home cinema experience.
This video showcases the brightness, color accuracy, and smooth performance of the projector, particularly for streaming and gaming, emphasizing its value for money.
