Greadio CD03P Portable Bluetooth CD Player User Manual

giriiş

Thank you for choosing the Greadio CD03P Portable Bluetooth CD Player. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

The Greadio CD03P is a versatile audio device featuring CD playback, Bluetooth 5.3 connectivity, dual wireless karaoke microphones, dynamic LED lights, and multiple input options including USB, TF card, and AUX. It is powered by a 4000mAh rechargeable battery, offering portability for various environments.

Ürün Bittiview

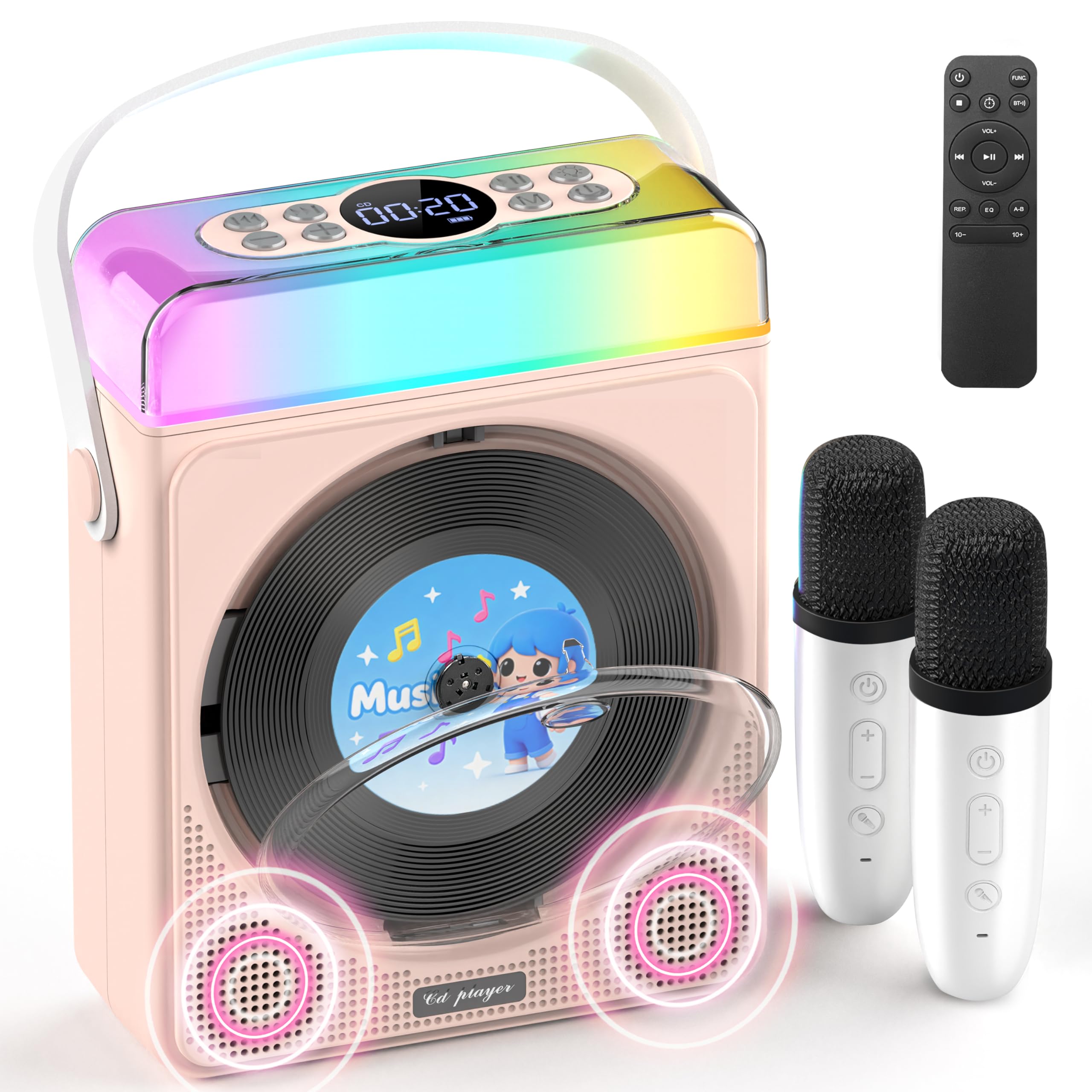

Şekil 1: Greadio CD03P Portable Bluetooth CD Player with two microphones and LED lights.

Şekil 2: Tepe view of the CD03P showing control buttons and LED light bar.

Paket İçeriği:

• Taşınabilir CD Çalar x 1
• Karaoke Mikrofonu x 2
• Tip-C Şarj Kablosu x 1
• Uzaktan Kumanda x 1
• AUX Kablosu x 1

Kurmak

Cihazı Şarj Etme:

Before first use, fully charge the CD player using the provided Type-C charging cable. Connect the cable to the Type-C port on the device and a compatible 5V/2A power adapter (not included). The battery indicator on the display will show charging status.

Mikrofonların Şarj Edilmesi:

The two wireless microphones are rechargeable. Connect them to a power source using their respective charging cables (if provided, or compatible USB cables). Each microphone offers over 30 hours of playtime on a full charge.

Kullanım Talimatları

1. Güç Açma/Kapama:

Güç düğmesine uzun süre basılı tutun (⏻) on the device or remote control to turn the unit on or off.

2. Mod Seçimi:

Basın M (Mode) button on the device or the EĞLENCE button on the remote control to cycle through available modes: CD, Bluetooth, USB, TF Card, and AUX.

3. CD Çalma:

1. Press the release button to open the CD compartment cover.
2. Carefully insert a CD (compatible with CD/CD-R/CD-RW/MP3/WMA formats) with the label side facing up.
3. CD bölmesinin kapağını sıkıca kapatın.
4. Select "CD" mode using the Mode/FUNC. button. The device will begin loading and playing the CD.
5. Kullanın |< Ve >| buttons for track navigation (short press) or fast forward/rewind (long press).
6. Basın ▶|| oynatmak veya duraklatmak için düğmesine basın.

4. Bluetooth Connectivity (Receiving Mode):

1. Basın M (Mode) button until "Bluetooth" mode is selected. The display will show "BLUE" and a blinking Bluetooth icon.
2. On your mobile device, enable Bluetooth and search for "CD03P".
3. Select "CD03P" to pair. A confirmation tone will sound upon successful connection.
4. Play audio from your mobile device, and it will stream through the Greadio CD03P speakers.

5. Bluetooth Connectivity (Transmitting Mode):

The CD03P can transmit audio to external Bluetooth speakers or headphones when in CD, USB, TF, or AUX mode (not in Bluetooth receiving mode).

1. Ensure the CD03P is in CD, USB, TF, or AUX mode.
2. Kısa basın BT button on the remote control. The Bluetooth icon on the display will blink.
3. Harici Bluetooth hoparlörünüzü veya kulaklığınızı eşleştirme moduna alın.
4. Once connected, the Bluetooth icon on the CD03P will stop blinking. Audio will now play through the external Bluetooth device.
5. To disconnect, short press the BT Tekrar düğmeye basın.

6. USB/TF Karttan Oynatma:

1. Insert a USB flash drive into the USB port or a TF card into the TF card slot on the back of the device.
2. Basın M (Mod) düğmesi veya EĞLENCE button on the remote to select "USB" or "TF" mode.
3. Cihaz, uyumlu sesleri otomatik olarak algılayacak ve çalacaktır. files (MP3/WMA/WAV/APE/FLAC).
4. Kullanın |< Ve >| buttons for track navigation (short press) or fast forward/rewind (long press).
5. Basın ▶|| oynatmak veya duraklatmak için düğmesine basın.

Note: For best performance with USB/TF cards, use 64GB or less. Reformat 128GB cards to FAT32 if needed.

7. AUX Girişi:

1. Connect an external audio device (e.g., smartphone, MP3 player) to the AUX port on the back of the CD03P using the provided AUX cable.
2. Basın M (Mod) düğmesi veya EĞLENCE button on the remote to select "AUX" mode.
3. Play audio from your external device. The sound will be output through the CD03P speakers.

8. Karaoke Microphones:

1. Turn on the microphones by pressing their power buttons. They will automatically connect to the CD03P.
2. Kullanın +/- buttons on the microphone to adjust microphone volume.
3. Basın MİKROFON button on the microphone to cycle through five voice effects: Female, Monster, Baby, Original, and KTV mode.
4. Basın Güç button on the microphone to switch between microphone modes (e.g., adjust background music, microphone volume, reverb).

9. LED Işıklar:

1. The RGB light (LED1) turns on automatically when the device is powered on.
2. Kısa basın Işık button on the device or remote to cycle through various light effects: breathing light (red, purple, blue, cyan, green, yellow, orange) and solid colors.
3. Uzun basın Işık button to turn the LED lights off.

10. Ses Kontrolü:

Kullanın HACİM+ Ve cilt buttons on the device or remote control to adjust the main speaker volume.

11. EQ Modes:

Kısa basın EQ button on the remote control to switch between different equalizer modes (e.g., Pop, Jazz, Classic, Bass, Flat, Rock).

12. Uyku Zamanlayıcısı:

The CD03P can function as a night light with a sleep timer. Refer to the full user manual for detailed instructions on setting the sleep timer.

Bakım

• Cihazı su ve nemden uzak tutunuz.
• Cihazı yumuşak ve kuru bir bezle temizleyin. Aşındırıcı temizleyiciler veya çözücüler kullanmayın.
• Cihazı aşırı sıcaklıklara veya doğrudan güneş ışığına maruz bırakmaktan kaçının.
• Do not press the CD base directly.
• Uzun süre kullanılmayacaksa, cihazı serin ve kuru bir yerde saklayın.

Sorun giderme

Özellikler

Garanti ve Destek

Greadio products come with a full year of coverage. For any issues or support needs, please contact Greadio customer service. Refer to the official Greadio webİletişim bilgileri için lütfen siteyi veya satın alma belgelerinizi inceleyin.

Note: This device is designed for personal and recreational use. Any unauthorized modifications or misuse may void the warranty.
