ANCEL FX6000 OBD2 Scanner Instruction Manual

1. Giriş

The ANCEL FX6000 is a professional-grade OBD2 bidirectional scan tool designed for comprehensive vehicle diagnostics. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance and accurate vehicle analysis.

2. Paket İçeriği

Lütfen aşağıda listelenen tüm öğelerin paketinizde yer aldığından emin olun:

• 1 x ANCEL FX6000 4-System Scan Tool
• 1 x EVA Hard Protective Case
• 1 x OBD2 Diagnostic Cable
• 1 x USB-A - USB-C Şarj Kablosu
• 1 x Power Adapter with Swappable Plugs (US, UK, EU)
• 1 x Hızlı Başlangıç ​​Kılavuzu

3. Ürün Bittiview

The ANCEL FX6000 features a robust design with a 7-inch touchscreen display, offering a user-friendly interface for efficient vehicle diagnostics. The device is housed in a durable EVA hard protective case for enhanced portability and protection.

Figure 3.1: ANCEL FX6000 Protective Case with dimensions (13.38in x 8.68in x 4.33in).

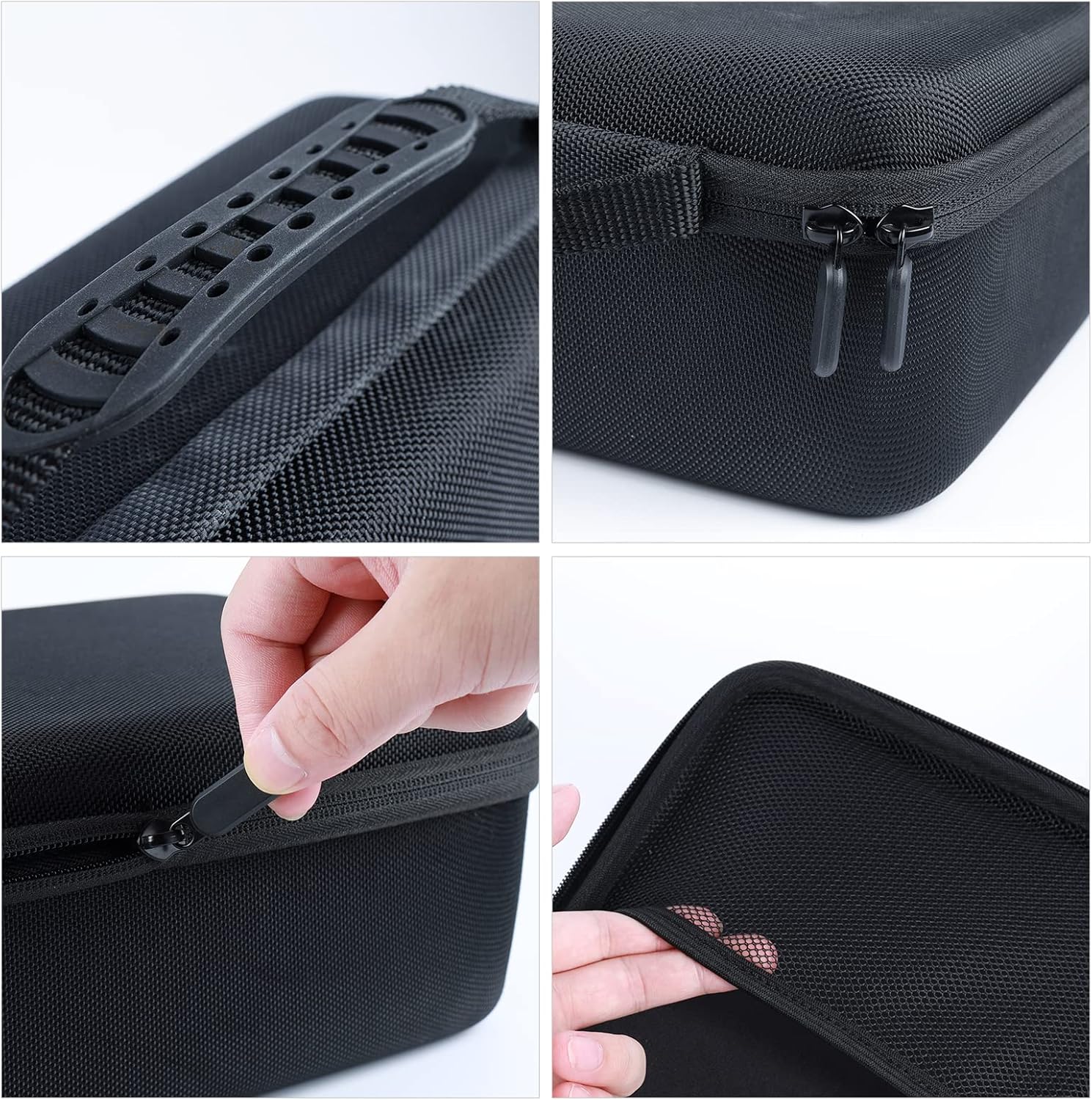

Şekil 3.2: Ayrıntılı view of the protective case handle, zipper, and interior padding.

The device is equipped with various ports including USB-A, USB-C, and an OBD port for connectivity. Its rugged construction ensures durability in a workshop environment.

Figure 3.3: The ANCEL FX6000 performing a 4-system diagnostic scan, covering Engine, ABS, SRS, and Transmission systems.

The FX6000 supports comprehensive diagnostic functions including reading and erasing fault codes, I/M readiness checks, and DTC lookup.

Figure 3.4: The ANCEL FX6000 demonstrating bidirectional control capabilities, allowing direct command sending for various actuator tests like Injectors, Fuel Pump, Shift Solenoid, and Cooling Fan.

Figure 3.5: The ANCEL FX6000 displaying a range of over 7 maintenance services, including ABS Bleeding, Battery Matching, Brake-pad Reset, Electronics Throttle Adaption, Gear Learning, Oil Reset, and Steering Angle Reset.

4. Kurulum

4.1 İlk Şarj

Before first use, it is recommended to fully charge the device. Connect the USB-C charging cable to the device and the power adapter to a suitable power outlet. The power adapter supports international voltages (100-240V) and includes swappable plugs for different regions.

4.2 Araca Bağlanma

Locate your vehicle's OBD2 diagnostic port, typically found under the dashboard on the driver's side. Connect the provided OBD2 diagnostic cable from the ANCEL FX6000 to the vehicle's OBD2 port. The device will automatically power on upon connection.

4.3 Wi-Fi Bağlantısı

Upon initial power-on, the device will prompt you to connect to a Wi-Fi network. Follow the on-screen instructions to select your network and enter the password. A stable internet connection is required for software updates and online features.

4.4 Yazılım Güncellemeleri

After connecting to Wi-Fi, navigate to the 'Update' section on the main menu. The device offers lifetime free updates, ensuring compatibility with the latest vehicle models and diagnostic protocols. Select 'Upgrade' to download and install available software updates.

5. Kullanım Talimatları

5.1 Basic Diagnostics

• Auto VIN Detection: The device can automatically identify your vehicle's VIN for quick and accurate model recognition.
• Read/Clear Fault Codes (DTCs): Access the 'Diagnose' menu to read current, pending, and permanent diagnostic trouble codes. Select 'Clear Codes' to erase DTCs after repairs are completed.
• Canlı Veri Akışı: View real-time vehicle sensor data in text or graphical format. This allows for monitoring various parameters like accelerator pedal position, engine RPM, and fuel pressure.
• Tam Sistem Taraması: Perform a comprehensive scan of all available vehicle systems, including Engine, ABS, SRS, and Transmission, to identify any issues.

Figure 5.1: The ANCEL FX6000 displaying live data streams for various vehicle parameters, allowing for real-time monitoring and analysis.

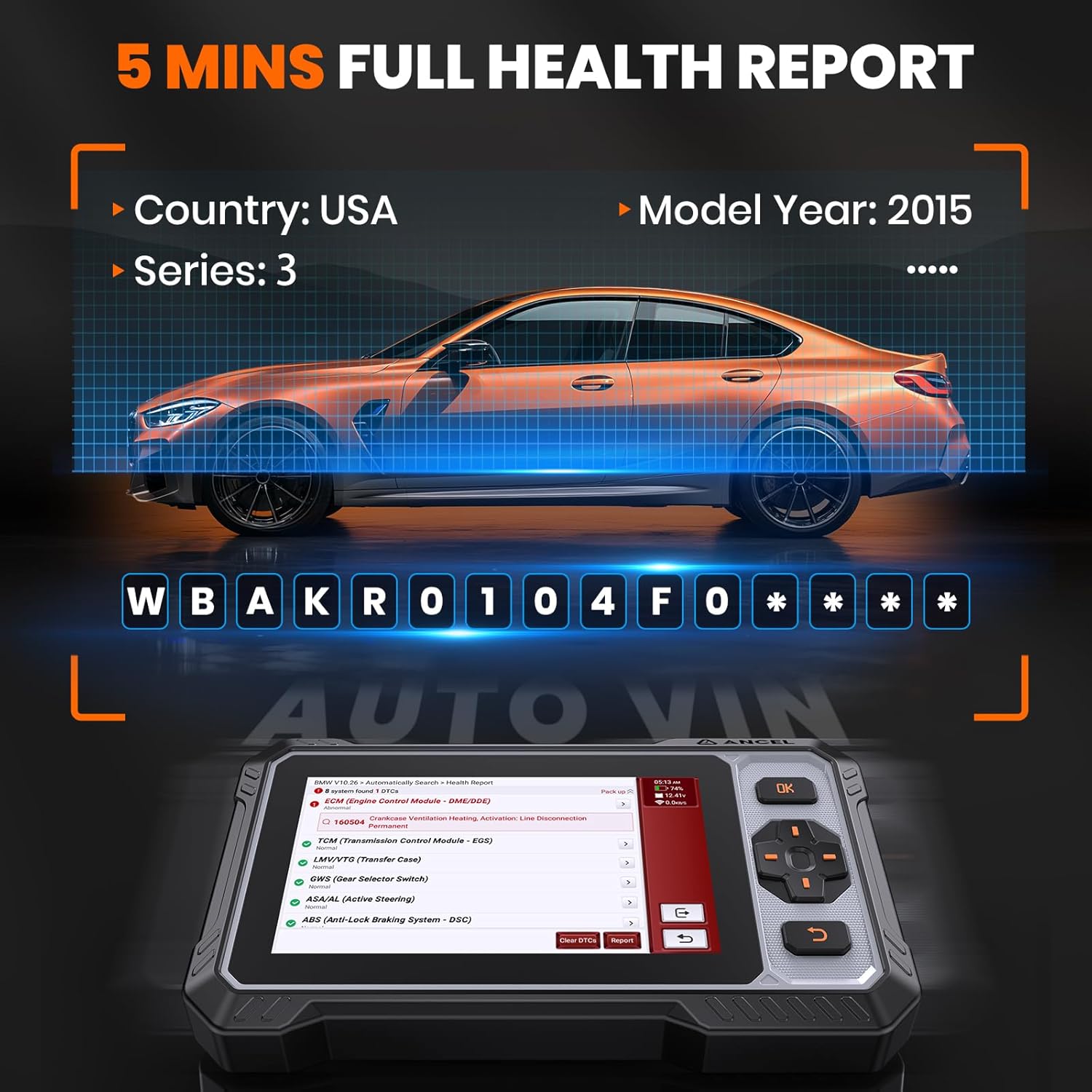

Figure 5.2: The ANCEL FX6000 performing an Auto VIN scan and generating a full health report, identifying vehicle information and system status.

5.2 Özel Fonksiyonlar

The FX6000 offers advanced special functions for various vehicle maintenance and repair tasks:

• Bidirectional Control (Actuation Tests): This function allows you to send commands to vehicle systems to perform active tests on components like injectors, fuel pumps, cooling fans, and more, to verify their functionality.
• Bakım Hizmetleri: Access a wide range of reset and adaptation functions including:
  • Yağ Sıfırlama
  • Elektronik Park Freni (EPB) Sıfırlama
  • Direksiyon Açısı Sensörü (SAS) Kalibrasyonu
  • Pil Yönetim Sistemi (BMS) Sıfırlama
  • Dizel Partikül Filtresi (DPF) Rejenerasyonu
  • Enjektör Kodlaması
  • ABS Kanaması
  • Gaz Kelebeği Adaptasyonu
  • Dişli Öğrenme
  • TPMS Sıfırlama
  • Ve daha fazlası.

5.3 Uzaktan Yardım

The device supports remote assistance via TeamViewer. This feature allows technical support personnel to remotely access your device to provide troubleshooting or guidance, enhancing user support.

6. Bakım

• Temizlik: Regularly clean the device screen and body with a soft, damp bez. Aşındırıcı temizleyiciler veya solventler kullanmaktan kaçının.
• Yazılım Güncellemeleri: Keep your device's software updated to ensure access to the latest features, vehicle coverage, and bug fixes. Connect to Wi-Fi and check for updates periodically.
• Pil Bakım: To prolong battery life, avoid extreme temperatures and store the device with a partial charge if not used for extended periods.

7. Sorun Giderme

If you encounter issues with your ANCEL FX6000, consider the following:

• Güç Yok: Ensure the device is properly connected to the vehicle's OBD2 port or the power adapter. Check the charging cable for damage.
• Bağlantı Sorunları: OBD2 kablosunun hem cihaza hem de araca güvenli bir şekilde bağlı olduğundan emin olun. Aracın kontağının açık olduğundan emin olun.
• Yazılım Hataları: Perform a software update or restore factory settings if the device is behaving erratically.
• Fault Code Information: Utilize the integrated Google search function within the device to find more information and repair suggestions for specific fault codes.

8. Özellikler

9. Garanti ve Destek

The ANCEL FX6000 comes with a manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the contact information provided in your Quick Start Guide or visit the official ANCEL website. The device also offers remote assistance capabilities for convenient support.
