giriiş
Thank you for choosing the KIBTOY Battery Operated Wall Sconces. This manual provides essential information for the safe and efficient use of your new wireless lighting solution. Please read these instructions carefully before installation and operation.
Image: Two KIBTOY Battery Operated Wall Sconces, showcasing their design, a magnetic bulb, and the remote control.
Kutuda Neler Var?
- Ampul x2
- Kumaş lampshades x2
- metal lamp holders x2
- Uzaktan Kumanda x2
- USB-C şarj kablosu x2
Kurulum ve Yükleme
The KIBTOY Wall Sconces are designed for easy, wireless installation, requiring no complex wiring or professional electricians. Simply mount the lamp holders to your desired location.
- L'yi hazırlaamp Kulp: Attach the fabric lampshade to the metal lamp tutucu.
- Tabanı Monte Edin: Use the provided mounting hardware to securely attach the circular base of the lamp holder to your wall. Ensure the surface is clean and dry. No wiring is required, making placement flexible.
- Insert the Magnetic Bulb: The included LED bulb features a magnetic base. Once the lamp holder is mounted, simply place the magnetic bulb into the socket. It will securely attach.
- Charge the Bulb: Before first use, fully charge the magnetic bulb using the provided USB-C charging cable. The bulb has a 10,000mAh capacity and charges in approximately 4-5 hours.

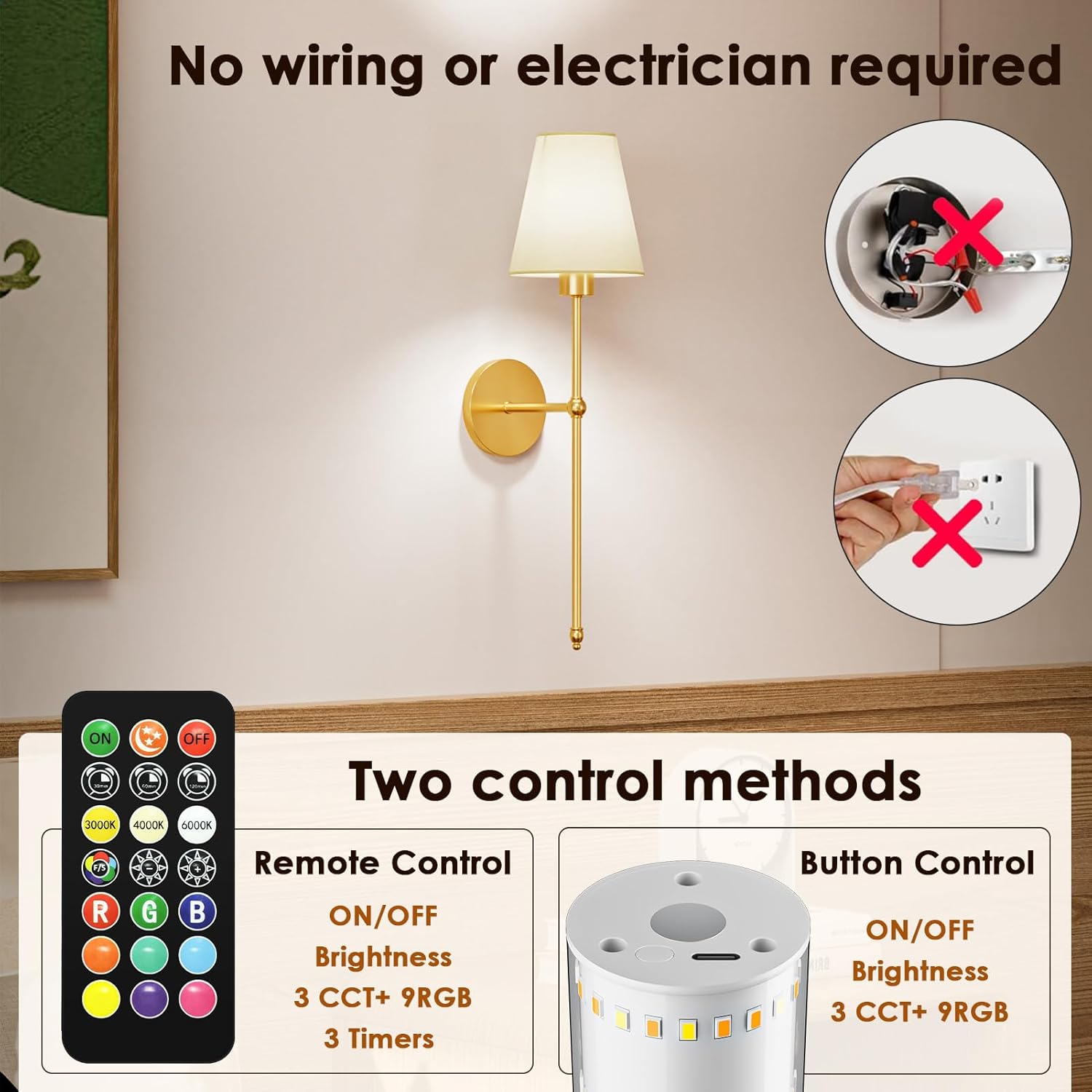

Image: Visual guide demonstrating the simple, no-wiring installation process for the wall sconce.
Video: Official KIBTOY video demonstrating the installation and features of the 10000mAh Battery Operated Wall Sconce.
Kullanım Talimatları
Your KIBTOY Wall Sconces can be operated using two methods: the included remote control or the button on the magnetic bulb.
Uzaktan Kumandanın Kullanımı:
- Güç Açma/Kapatma: Press the "ON" or "OFF" buttons.
- Parlaklık Ayarı: Use the brightness control buttons (sun icons) to adjust the light intensity from 15% to 100%.
- Renk Sıcaklığı Seçimi: Choose from 4 color temperatures: 1800K (Warm), 3000K, 4000K, and 6000K (Cool White).
- RGB Renk Seçimi: Select from 9 vibrant RGB colors using the dedicated color buttons.
- Zamanlayıcı Fonksiyonu: Set the light to automatically turn off after 30, 60, or 120 minutes using the timer buttons.
- Hafıza Fonksiyonu: The sconce automatically remembers your last color and brightness settings when powered off and on again.
Using the Bulb Button:
- Tek tık: Turns the bulb on or off.
- Çift tıklama: Cycles through different light functions (e.g., color temperatures, RGB modes).
- Uzun basma: Activates stepless dimming for static colors.
Image: Remote control and bulb button controls for the wall sconce.
Charging the Magnetic Bulb
The KIBTOY Wall Sconces feature a convenient magnetic bulb that can be easily removed for charging without disassembling the entire fixture.
- Remove the Bulb: Gently pull the magnetic bulb from the lamp tutucu.
- Şarj Cihazını Bağlayın: Plug the provided USB-C charging cable into the charging port located on the base of the bulb.
- Şarj Göstergesi: The bulb will indicate its charging status (e.g., a light indicator).
- Şarj Süresi: A full charge takes approximately 4-5 hours. The 10,000mAh battery provides up to 24 hours of use at maximum brightness and up to 80 hours at the lowest setting.
- Reattach Bulb: Once fully charged, simply reattach the magnetic bulb to the lamp tutucu.
Image: Magnetic bulb removal for charging and remote control timing functions.
Özellikler
- Kablosuz Kurulum: No wiring or electrician needed.
- Yüksek Kapasiteli Pil: 10,000mAh rechargeable bulb for extended use (24-80 hours runtime).
- Magnetic Bulb: Easy to remove for USB-C charging.
- Çok Yönlü Aydınlatma: 9 RGB colors and 4 color temperatures (1800K/3000K/4000K/6000K).
- Kısılabilir: Parlaklık %15 ile %100 arasında ayarlanabilir.
- Zamanlayıcı Fonksiyonu: Set automatic shut-off for 30, 60, or 120 minutes.
- Hafıza Fonksiyonu: Retains last brightness and color settings.
- 360° Even Illumination: Cylindrical bulb design provides comprehensive light distribution.
Image: Demonstrates the range of color temperatures and RGB lighting options.
Özellikler
| Marka | KİBTOY |
| Model Numarası | 360-CX04 |
| Renk | Altın |
| Malzeme | Metal, Kumaş |
| Güç Kaynağı | Pil ile çalışır |
| Pil Kapasitesi | 10,000mAh (Lityum İyon) |
| Şarj Süresi | 4-5 hours (via USB-C) |
| Çalışma zamanı | 24-80 hours (Max to Min brightness) |
| Işık Kaynağı Türü | NEDEN OLMUŞ |
| Parlaklık | Up to 300 lumens (per bulb) |
| Renk Sıcaklıkları | 1800 bin, 3000 bin, 4000 bin, 6000 bin |
| RGB Renkleri | 9 renk |
| Kontrol Yöntemi | Uzaktan Kumanda, Basmalı Düğme |
| Ürün Boyutları | 16.54 x 12.6 x 22.64 inç |
| Ürün Ağırlığı | 3.39 pound |
| Su Direnç Seviyesi | Suya dayanıklı değil |
Bakım
- Temizlik: Wipe the metal lamp holder and fabric lampshade with a soft, dry cloth. Do not use abrasive cleaners or liquids directly on the electrical components.
- Ampul Bakımı: Handle the magnetic bulb with care. Avoid dropping it or exposing it to extreme temperatures.
- Şarj: For optimal battery life, avoid completely draining the battery frequently. Charge the bulb when the light output noticeably diminishes.
Sorun giderme
- Işık Açılmıyor:
- Ensure the magnetic bulb is fully charged.
- Check if the bulb is securely seated in the lamp tutucu.
- Verify the remote control battery is functional and pointed directly at the bulb.
- Uzaktan Kumanda Yanıt Vermiyor:
- Gerekirse uzaktan kumandanın pilini değiştirin.
- Ensure there are no obstructions between the remote and the bulb.
- Try operating the bulb directly using its integrated button.
- Kısa Pil Ömrü:
- Ensure the bulb is fully charged (4-5 hours).
- High brightness settings and frequent color changes consume more power. Adjust settings for longer runtime.
Garanti ve Destek
The KIBTOY Battery Operated Wall Sconces come with a 3 yıllık sınırlı garanti.
For warranty claims, technical support, or any questions regarding your product, please contact KIBTOY customer service. You can typically find contact information on the product packaging or the official KIBTOY webalan.
For issues such as defective items, lights flashing or turning off during use, missing parts, or battery/charging problems, please submit your "Order No." to service01@kibtoy.com yardım için.
