SISESOL 4 Drawer Lateral File Kilitli Dolap

giriiş

This manual provides detailed instructions for the assembly, operation, and maintenance of your SISESOL 4 Drawer Lateral File Cabinet. Please read all instructions carefully before assembly and use to ensure safe and proper functionality.

Güvenlik Bilgileri

Always ensure that the cabinet is assembled correctly and securely to the floor to prevent tipping. Do not overload the cabinet with items heavier than 120 pounds. Keep the cabinet away from heat sources and do not place heavy objects on the top of the cabinet. Always use both hands when opening and closing the drawers to prevent injury.

Paket İçeriği

Montaja başlamadan önce tüm bileşenlerin eksiksiz olduğundan emin olun. Paket şunları içermelidir:

• Dolap panelleri (yanlar, üst, alt, arka)
• 4 Drawer units
• Full extension ball-bearing drawer slides
• Lock mechanism with 2 keys
• Adjustable hanging rods for file organizasyon
• 4 feet for stability
• Gerekli tüm vidalar ve bağlantı elemanları
• İsim tag holders for drawers

Montaj Talimatları

Simple assembly is required. An installation video is available to guide you through the process. For best results, follow the steps below in conjunction with the video.

General Assembly Video

This video provides a comprehensive guide on how to quickly assemble your SISESOL Lateral File Cabinet. It covers unpacking, attaching side panels, securing the top, and installing the drawers.

Adım Adım Görsel Rehber

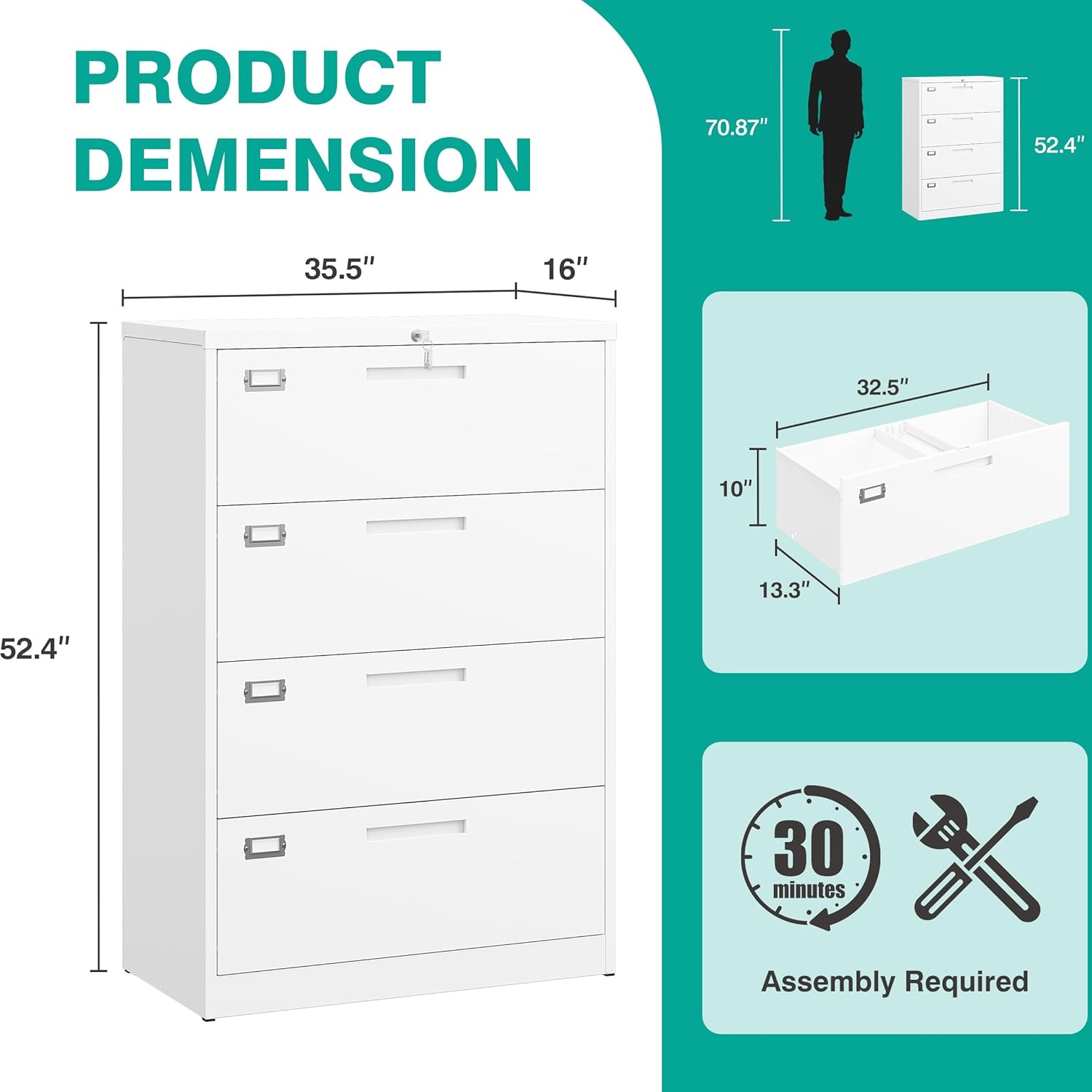

1. Ürün Boyutları

Review the product dimensions (16"D x 35.5"W x 52.4"H) to ensure it fits your intended space. Assembly is estimated to take approximately 30 minutes.

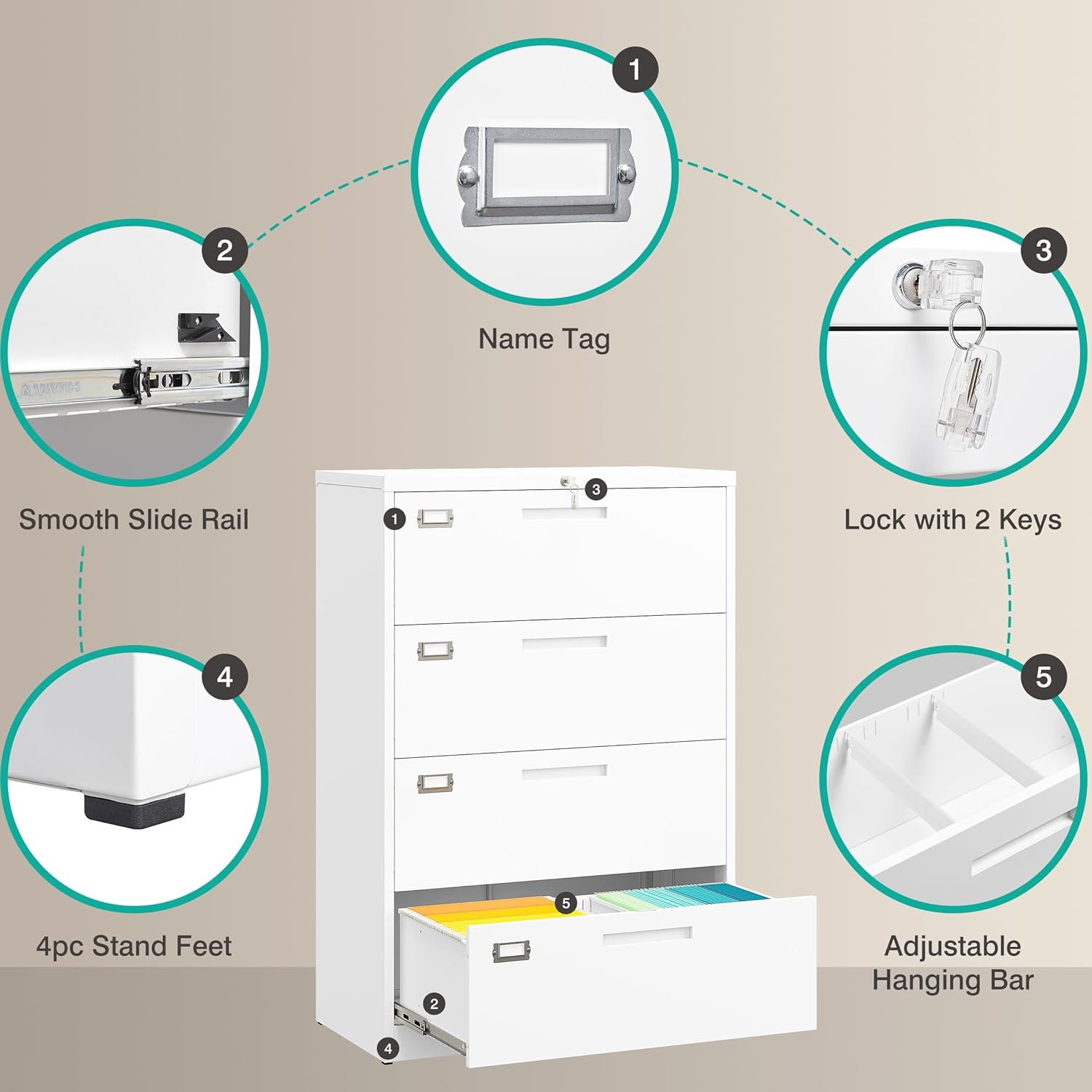

2. Temel Özellikler

Familiarize yourself with the cabinet's features: name tag holders, smooth slide rails, a lock with two keys, four stand feet, and an adjustable hanging bar for versatile file depolamak.

3. File Uyumluluk

The drawers are designed to accommodate various document sizes including A4, Letter, F4, and Legal files, thanks to the adjustable hanging bars.

4. Anti-Tilt Mechanism

The cabinet features an anti-tilt interlock system, allowing only one drawer to be opened at a time to prevent the cabinet from tipping over. Ensure this mechanism functions correctly after assembly.

Drawer Installation Video

This video demonstrates the correct method for installing the drawers into the file cabinet, ensuring smooth operation and proper engagement with the slide rails.

Kullanım Talimatları

Çekmeceleri Kullanmak

• To open a drawer, gently pull the handle. The full-extension ball-bearing slides ensure smooth and quiet operation.
• To close a drawer, push it firmly until it clicks into place. Ensure it is fully closed for the anti-tilt mechanism to engage properly.
• Utilize the adjustable hanging rods to organize your Letter, Legal, A4, or F4 size files.

Kilit Mekanizması

• The cabinet is equipped with a single lock that secures all drawers simultaneously.
• Insert one of the provided keys into the lock on the top drawer.
• Turn the key to lock or unlock the cabinet. Remove the key after locking to prevent unauthorized access.

Bakım

• Clean the metal surfaces with a soft, damp Kumaşı aşındırmayın. Cilaya zarar verebilecek aşındırıcı temizleyicilerden veya sert kimyasallardan kaçının.
• Tüm vidaların ve bağlantı elemanlarının sıkı olduğundan emin olmak için periyodik olarak kontrol edin. Gerekirse sıkın.
• Lubricate drawer slides annually with a silicone-based lubricant to maintain smooth operation.

Sorun giderme

Drawer Lockout Issue

If you encounter an issue where you cannot open another drawer after closing one, or if a drawer cannot be fully closed, it might be related to the anti-tilt mechanism or improper drawer installation.

This video provides guidance on resolving drawer lockout issues, which can occur if the anti-tilt mechanism is not properly engaged or if a drawer is not securely fastened.

• Drawer not closing fully: Fully pull out the problematic drawer. Push the small black latch on the side rail in the indicated direction while sliding the rail inward to remove the drawer. Repeat for the other side. Carefully remove the drawer. Reinstall the drawer, ensuring the connection points between the slide rails and the drawer are firmly pressed to ensure they are tightly secured and perfectly aligned.
• Cannot open another drawer: First, check if the accessible drawer is securely fastened. If it's not properly fixed, adjust the drawer until it's in place. This should restore normal operation. If the issue persists, open the lower drawer and slide the locking lever on the inner side of the cabinet downward. Firmly press the connection points between the slide rails and the drawer to ensure they're tightly secured and perfectly aligned. Reattach the top drawer, then slide it fully closed.

Özellikler

Garanti ve Destek

For any questions, concerns, or warranty claims, please contact SISESOL customer support. Refer to your purchase documentation for specific warranty details and contact information.
