1. Giriş
Thank you for choosing the VARUN Electric Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new e-bike. Please read it thoroughly before your first ride and keep it for future reference.
Önemli Güvenlik Bildirimi:
- Always wear a helmet when riding this product.
- Yetişkinlerin katılımıyla montaj yapılması gerekmektedir.
- This product contains small parts. Sharp edges and points may be present during assembly.
- Do not ride the bicycle at night without proper lighting.
2. Unpacking the Bicycle
Carefully remove the electric bike and all components from the packaging. Inspect all parts for any damage that may have occurred during shipping. Ensure all listed components are present before proceeding with assembly.

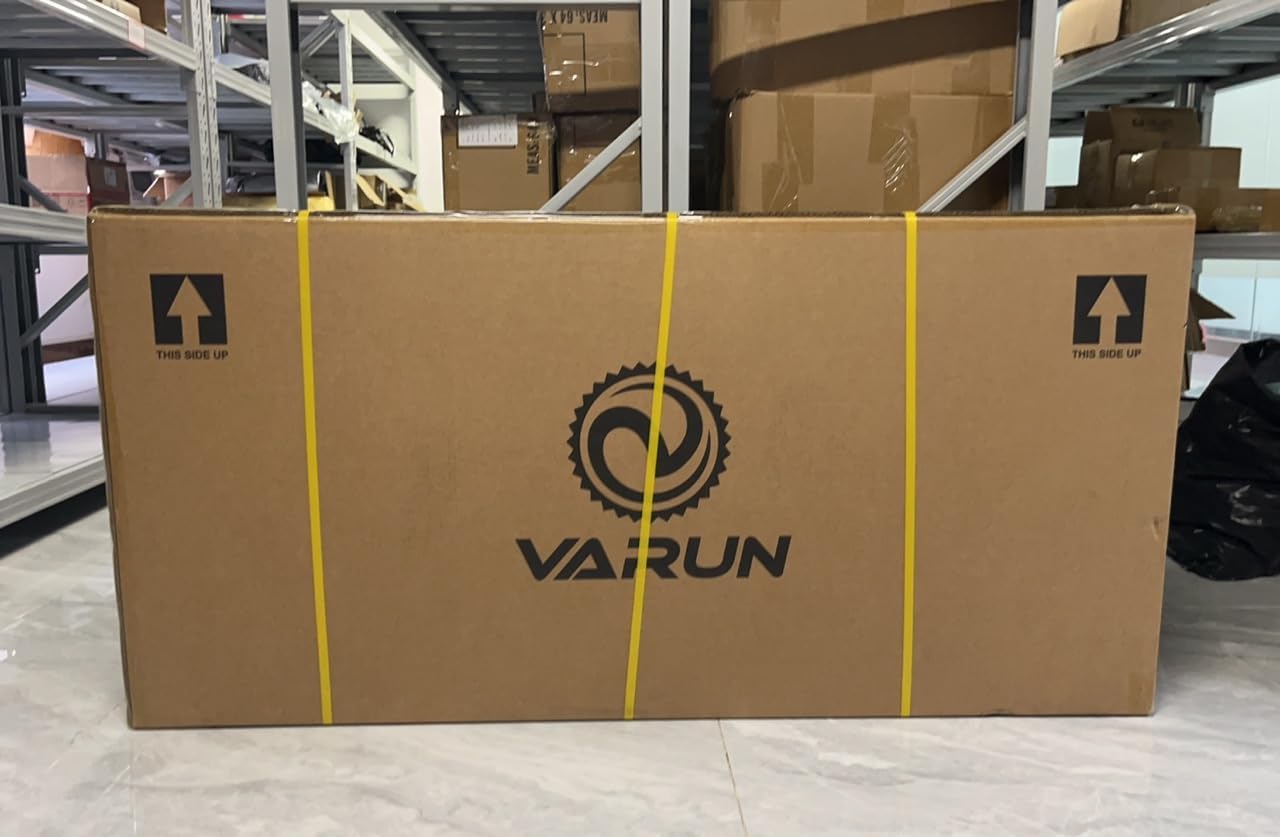

Figure 2.1: VARUN Electric Bike shipping box.
Figure 2.2: All components of the VARUN Electric Bike unpacked and laid out for assembly.
3. Montaj Talimatları
Follow these steps carefully to assemble your VARUN Electric Bike. Refer to the accompanying video for visual guidance.
3.1. Kurulum Videosu
Video 3.1: Official VARUN Electric Bike 2401 Installation Video. This video provides a step-by-step guide for assembling your e-bike, including unpacking, handlebar installation, saddle installation, wheel installation, pedal installation, and fender/headlight installation.
3.2. Gidona Montaj
Insert the handlebar stem into the fork tube. Ensure the handlebar is aligned straight with the front wheel. Tighten the bolts securely using the provided tools.
3.3. Saddle Installation
Insert the seat post into the frame's seat tube. Adjust the saddle height to a comfortable riding position, ensuring your feet can touch the ground when stopped. Secure the quick-release lever or tighten the bolt.
3.4. Ön Tekerlek Montajı
Carefully remove any protective packaging from the front wheel and fork. Align the front wheel with the fork dropouts, ensuring the brake rotor slides correctly into the caliper. Secure the wheel using the axle nuts. Ensure the wheel spins freely without rubbing the brake pads.
3.5. Pedal Montajı
Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Apply a small amount of grease to the pedal threads before installation. Tighten securely with a wrench.
3.6. Headlight and Fender Installation
Attach the front fender to the fork using the designated mounting points. Install the headlight onto the front of the fork or handlebar, connecting any necessary wiring. Attach the rear fender to the seat post or frame, ensuring it is securely fastened.
4. Operating Your VARUN Electric Bike
4.1. Battery Disassembly and Charging
To remove the battery, unlock it with the key and slide it out from the frame. The 36V 7.8AH lithium battery offers a range of up to 35 miles and charges in 4-6 hours. Charge the battery using the provided charger. Ensure the battery is securely locked in place before riding.
Figure 4.1: The removable and lockable 36V 7.8AH lithium battery, showing its capacity and charging time.
4.2. Instrumentation Display and Riding Modes
Your VARUN Electric Bike features an intuitive display to control power and riding modes. The bike offers three riding modes:
- Pure Electric Gliding: For effortless riding using only the motor.
- Pedal-Assisted Climbing: Provides motor assistance while you pedal, ideal for hills or extending range.
- Klasik Mod: Disables motor assistance for traditional bicycle riding.
Figure 4.2: Illustration of the three riding modes: Normal Bike Mode, Pedal-Assist Mode, and Throttle Mode.
The 350W brushless motor can instantly increase to 500W peak power, allowing the 24-inch tire to reach a top speed of 20 MPH, making it easy to cross urban hills.
Figure 4.3: Details of the 350W brushless motor with 500W peak power, 20 MPH top speed, and 30-40 miles max range.
5. Bakım
Regular maintenance ensures the longevity and safe operation of your VARUN Electric Bike.
- Lastikler: Check tire pressure regularly. The 24-inch tires are designed for all terrains.
- Frenler: Inspect dual disc brakes for wear and proper function before each ride. Adjust as needed.
- Pil: Keep the battery charged. Store in a cool, dry place when not in use.
- Çerçeve: The lightweight aluminum alloy frame is durable. Clean with a damp Kumaş.
- Askıya alma: The front fork suspension provides a smooth ride. Periodically check for proper function.
Figure 5.1: Close-up of the front suspension fork, designed for a smooth and comfortable riding experience.
Figure 5.2: The lightweight aluminum alloy frame, highlighting its 50-pound weight and durability for safe riding.
6. Sorun Giderme
This section addresses common issues you might encounter with your VARUN Electric Bike.
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Bisiklet açılmıyor. | Pil şarj edilmemiş veya düzgün takılmamış. | Ensure battery is fully charged and securely locked into the frame. Check connections. |
| Motor çalışmıyor. | Incorrect riding mode selected or low battery. | Switch to Pedal-Assist or Pure Electric mode. Check battery level and charge if necessary. |
| Frenler gevşek veya etkisiz hissediliyor. | Brake cables need adjustment or pads are worn. | Adjust brake cable tension. Inspect brake pads for wear and replace if needed. |
| Sürüş sırasında alışılmadık sesler. | Gevşek parçalar veya zincir sorunları. | Inspect all bolts and nuts for tightness. Lubricate chain if dry. Check for debris in drivetrain. |
If you encounter any problems not listed here, please contact VARUN customer support.
7. Özellikler
Detailed specifications for your VARUN Electric Bike.
| Özellik | Detay |
|---|---|
| Bisiklet Türü | Dağ bisikleti |
| Model Adı | VARUN M24-1 |
| Yaş Aralığı (Açıklama) | Yetişkin |
| Motor Gücü | 350W (Tepe Noktası 500W) Fırçasız Motor |
| Maksimum Hız | 20 mil/saat |
| Pil | 36V 7.8AH Lityum Pil (Çıkarılabilir) |
| Maksimum aralığı | 35 mile kadar |
| Şarj Süresi | 4-6 saat |
| Tekerlek Boyutu | 24 inç |
| Çerçeve Malzemesi | Aluminum Alloy (Lightweight, 50 lbs) |
| Süspansiyon Tipi | Ön Çatal Süspansiyonu |
| Fren Stili | Çift Diskli Fren |
| Hız Sayısı | 7 |
| Renk | Siyah |
| Ağırlık Kapasitesi | 220 kilo |
| Önerilen Yükseklik | 52.8 - 68.4 inches (4.4ft - 5.7ft) |
Figure 7.1: Detailed dimensions and load capacity for the VARUN Electric Bike.
8. Garanti ve Destek
Your VARUN Electric Bike comes with a 1 Yıl Üretici GarantisiBu garanti, üretim hatalarını kapsar ve size gönül rahatlığı sağlar.
For any questions, technical assistance, or warranty claims, please contact VARUN customer support. We are committed to providing excellent after-sales service.
Manufacturer Contact Information: VARUN
Daha fazla yardım için şu adresi ziyaret edin: VARUN Store on Amazon.
