Philips BHD839/00 Hair Dryer User Manual

1. Önemli Güvenlik Bilgileri

Lütfen bu cihazı kullanmadan önce tüm güvenlik uyarılarını ve talimatlarını okuyun. Uyarı ve talimatlara uyulmaması elektrik çarpmasına, yangına ve/veya ciddi yaralanmalara neden olabilir.

• Aşırı Isınma Uyarısı: Be aware of potential overheating. If the appliance overheats, it will automatically shut off. Allow it to cool down before resuming use.
• Otomatik Temizleme Modu: Wait for the automatic cleaning mode to complete before attempting any manual cleaning of the filter.
• Güç Kaynağı: Her zaman ses seviyesinin kontrol edildiğinden emin oluntage cihaz üzerinde belirtilen yerel şebeke hacminize karşılık gelir.tage cihazı bağlamadan önce.
• Bu cihazı suyun yakınında kullanmayın.
• Do not block the air inlet or outlet grilles during use.
• Cihazı yanıcı maddelerden uzak tutunuz.

2. Ürün Bittiview

The Philips BHD839/00 Hair Dryer is designed for fast and efficient hair drying while protecting your hair from heat damage. It features advanced ThermoShield temperature sensors and ionic technology for strong, shiny, and well-hydrated hair.

Şekil 2.1: Ön view of the Philips BHD839/00 Hair Dryer. This image shows the overall design of the hair dryer, highlighting its compact and ergonomic shape in blue.

Temel Özellikler:

• Hızlı kurutma: Achieve perfectly dry hair in 3 minutes or less, thanks to an advanced brushless DC motor (110,000 rpm) generating airflow at 228 km/h.
• ThermoShield Technology: Advanced temperature sensors protect hair from heat damage, ensuring strong, shiny, and well-hydrated results.
• İyonik Bakım: Releases up to 200 million negative ions and water to boost hair shine by up to 58% and reduce frizz, leaving hair soft and supple.
• Dual Airstream Technology: Extracts air through two inlets simultaneously, concentrating it into a powerful, smooth airflow for enhanced shine and reduced frizz.
• 7 Isı Ayarları: Provides versatile styling options for different hair types and preferences.
• Kompakt ve Hafif: Weighing only 395g, it is comfortable to use and convenient for travel.
• Enerji Verimliliği: Consumes up to 50% less energy compared to other Philips high-speed hair dryers while maintaining powerful drying performance.

Şekil 2.2: Arka view of the Philips BHD839/00 Hair Dryer, showing the control panel and digital display. This image illustrates the intuitive button layout for adjusting settings.

3. Kurulum

Follow these steps to set up your Philips BHD839/00 Hair Dryer for first use.

1. Cihazın ambalajını açın: Carefully remove the hair dryer and all accessories from the packaging. Retain the packaging for future storage or transport.
2. İçeriği Kontrol Edin: Ensure all components are present: the hair dryer unit, one magnetic 8mm styling nozzle, and one diffuser.
3. Aksesuarları Takın: To attach the styling nozzle or diffuser, align it with the air outlet and gently push until it clicks into place. The magnetic attachment ensures a secure fit.

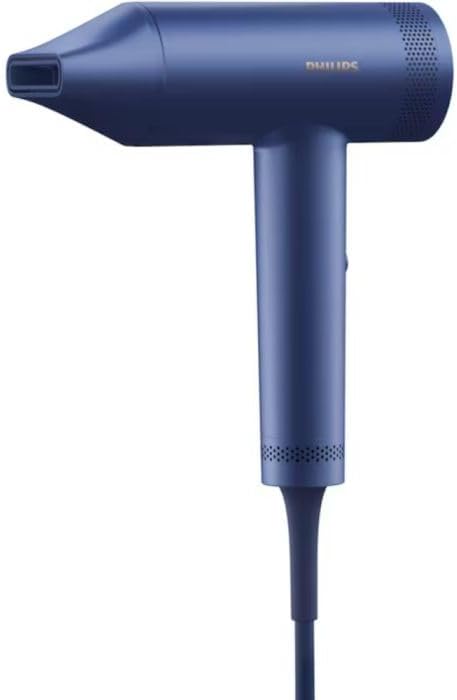

Şekil 3.1: The Philips BHD839/00 Hair Dryer with the styling nozzle attached. This demonstrates how accessories are connected to the main unit.

4. Güce Bağlanın: Güç kablosunu uygun bir elektrik prizine takın. Ses seviyesinin doğru ayarlandığından emin olun.tage, cihazın teknik özelliklerine uygundur.

4. Kullanım Talimatları

Learn how to effectively use your Philips BHD839/00 Hair Dryer for optimal results.

1. Güç Açma/Kapatma: Saç kurutma makinesini açmak veya kapatmak için sap üzerinde bulunan güç düğmesine basın.
2. Isı Ayarlarının Düzenlenmesi: Use the heat setting button to cycle through the 7 available heat levels. The current setting will be displayed on the digital screen.
3. Hız Ayarlarını Yapma: Use the speed setting button to select your desired airflow speed. There are multiple speed options to choose from.
4. Using the Styling Nozzle: For precise styling and smoothing, attach the 8mm styling nozzle. Direct the airflow onto sections of hair while brushing.
5. Difüzörü Kullanma: Doğal c'yi artırmak içinurls and adding volume, attach the diffuser. Gently cup sections of hair in the diffuser bowl and lift towards the scalp.
6. İyonik Fonksiyon: The ionic function is automatically active when the dryer is on, helping to reduce frizz and enhance shine.
7. Soğuk Atış Fonksiyonu: Press and hold the cool shot button to deliver a burst of cool air, which helps to set your hairstyle.

Şekil 4.1: A person using the Philips BHD839/00 Hair Dryer with a brush to style their hair. This illustrates a common method of use for achieving smooth results.

Şekil 4.2: A person using the Philips BHD839/00 Hair Dryer to dry their hair. This image shows the hair dryer in active use, demonstrating its ergonomic handling.

5. Bakım

Düzenli bakım, saç kurutma makinenizin uzun ömürlü olmasını ve en iyi performansı göstermesini sağlar.

1. Otomatik Temizleme Modu: The hair dryer features an automatic cleaning mode. To activate, ensure the appliance is unplugged, then follow the instructions in the full manual (if available) or press and hold the designated button (refer to Figure 2.2 for button location) to initiate the fan blade reverse rotation, which removes dust from the filter.
2. Dış Temizlik: Saç kurutma makinesinin dışını yumuşak bir bezle silin.amp bezle silin. Aşındırıcı temizleyiciler veya çözücüler kullanmayın.
3. Filtre Temizleme: While the automatic cleaning mode handles most dust, periodically check the air inlet grille for any accumulated lint or hair. If necessary, gently remove it with a soft brush or cloth. Ensure the appliance is unplugged before cleaning.
4. Depolamak: Store the hair dryer in a dry, safe place, away from direct sunlight and moisture. Do not wrap the cord tightly around the appliance.

6. Sorun Giderme

If you encounter issues with your Philips BHD839/00 Hair Dryer, refer to the following common problems and solutions.

7. Özellikler

Detailed technical specifications for the Philips BHD839/00 Hair Dryer.

• Model Adı: Philips BHD839/00
• Güç: 1400 B
• Isı Ayarı Sayısı: 7
• Hız Sayısı: 7
• Özel Özellikler: Brushless DC Motor, Ionic Technology, ThermoShield Advanced Sensors, Dual Airstream Technology, Automatic Cleaning Mode
• Malzeme: Plastik
• Renk: Mavi
• Ürün Ölçüleri (U x G x Y): 7.3x18.1x30.1 cm
• Ağırlık: 500 grams (approx. 395g for the dryer unit itself)
• Güç Kaynağı: Kablolu Elektrik
• Önerilen Kullanımlar: Drying, Styling
• Dahil Olan Bileşenler: 1x Philips Series 8000 Hair Dryer, 1x 8mm Magnetic Styling Nozzle, 1x Diffuser

8. Garanti ve Destek

Philips products are designed and manufactured to the highest quality standards. This product is covered by a standard manufacturer's warranty.

• Garanti Bilgileri: For detailed information regarding the warranty period and terms, please refer to the warranty card included with your product or visit the official Philips webalan.
• Müşteri Desteği: If you have any questions, require technical assistance, or need to report a fault, please contact Philips customer support. Contact details can be found in the product packaging or on the official Philips support webalan.
• Çevrimiçi Kaynaklar: Ziyaret etmek www.philips.com/support for FAQs, additional manuals, and product registration.
