DYMO LabelManager Executive 640 CB Taşınabilir Etiket Yazıcı Kullanım Kılavuzu

1. Giriş

The DYMO LabelManager Executive 640 CB is a portable label printer designed for efficient and precise label creation. This device offers versatile labeling solutions for various environments, from office organization to field work. It features a QWERTY keyboard, a high-resolution color screen, and multiple connectivity options including Bluetooth Low Energy and USB-C.

This manual provides detailed instructions on how to set up, operate, maintain, and troubleshoot your LabelManager Executive 640 CB, ensuring you can maximize its functionality.

Image 1.1: The DYMO LabelManager Executive 640 CB portable label printer, shown with its packaging, a label tape cassette, and a USB-C charging cable.

2. Kurulum

2.1 Cihazı Şarj Etme

The LabelManager Executive 640 CB is powered by a rechargeable lithium-ion battery. Before initial use, fully charge the device.

1. Connect the provided USB-C cable to the USB-C port on the label printer.
2. USB-C kablosunun diğer ucunu uyumlu bir USB güç adaptörüne (dahil değildir) veya bir bilgisayarın USB portuna bağlayın.
3. The charging indicator on the device will illuminate. Allow sufficient time for a full charge.

Image 2.1: The portable nature of the LabelManager Executive 640 CB, demonstrating its use for labeling items on a shelf, highlighting its rechargeable battery for on-the-go use.

2.2 Inserting a Label Cassette

The printer uses DYMO D1 Standard and Durable labels, available in widths from 6mm (1/4") to 24mm (1").

1. Cihazın kapalı olduğundan emin olun.
2. Open the label compartment cover, typically located on the back or side of the device.
3. Insert the label cassette with the label tape facing the print head, ensuring it clicks into place.
4. Close the label compartment cover.

2.3 Açma/Kapatma

• To power on, press and hold the power button until the screen illuminates.
• Kapatmak için cihaz kapanana kadar güç düğmesini basılı tutun.

3. Operasyon

3.1 Using the QWERTY Keyboard and On-Device Screen

The integrated QWERTY keyboard allows for direct label creation on the device. The high-resolution color screen provides clear visibility of your label design.

1. Text Entry: Type your desired text using the QWERTY keyboard.
2. Biçimlendirme: Use the navigation buttons and menu options to select fonts, sizes, styles (bold, italic), and add symbols or borders.
3. Önview: The screen displays a real-time preview of your label.
4. Yazdır: Etiketinizi oluşturmak için yazdır butonuna basın.

Image 3.1: The large color screen of the LabelManager Executive 640 CB, displaying label text and options for customizing background colors, enhancing readability and design.

3.2 Connecting via Bluetooth (Mobile App)

The DYMO LM Connect mobile app allows for advanced label design and printing from your smartphone or tablet.

1. Download the "DYMO LM Connect" app from your device's app store.
2. Ensure Bluetooth is enabled on your mobile device and the label printer.
3. Open the app and follow the on-screen instructions to connect to your LabelManager Executive 640 CB. The device should appear automatically without manual pairing.
4. Design your label within the app, utilizing features like QR codes, signatures, and backgrounds.
5. Send the label to the printer via the app's print function.

Image 3.2: A user interacting with the DYMO LM Connect mobile app on a smartphone to design a label, with the LabelManager Executive 640 CB visible on the desk, demonstrating Bluetooth connectivity.

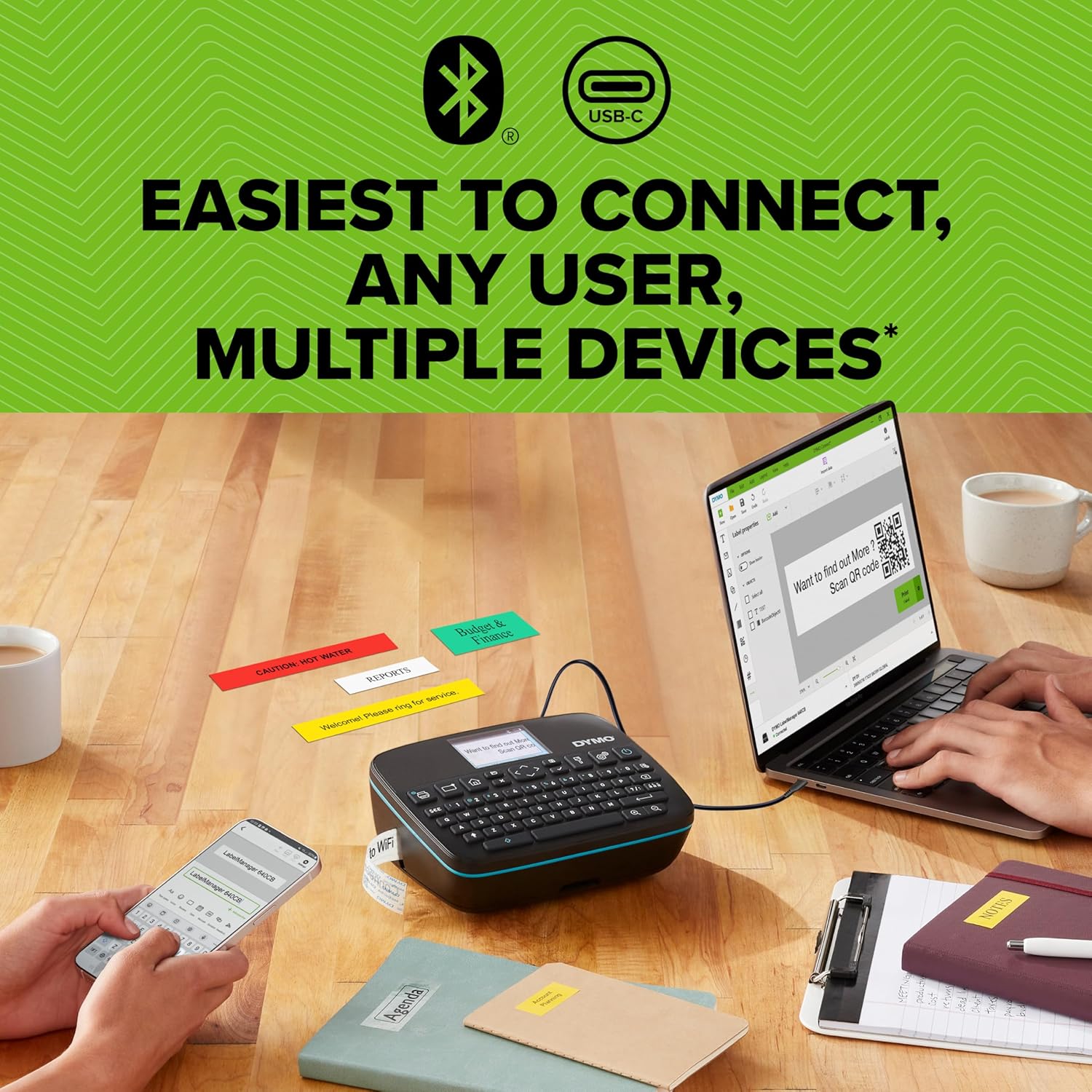

Image 3.3: The LabelManager Executive 640 CB demonstrating its dual connectivity, linked to both a laptop via USB-C and a smartphone via Bluetooth, with various printed labels on the table.

3.3 Connecting via USB-C (Desktop Software)

For comprehensive label design and management, connect your printer to a computer using the DYMO Connect for Desktop software.

1. Download and install the "DYMO Connect for Desktop" software from the official DYMO webalan.
2. Connect the label printer to your computer using the USB-C cable.
3. Launch the software. The printer should be recognized automatically.
4. Utilize the software's features to create and print labels.

Image 3.4: A user operating the DYMO LabelManager Executive 640 CB connected to a laptop via USB-C, demonstrating the use of desktop software for label design and printing.

3.4 Label Customization and Versatility

The LabelManager Executive 640 CB supports a wide range of label customization options.

• Etiket Türleri: Compatible with D1 Standard and Durable labels.
• Etiket Genişlikleri: Supports widths from 6mm (1/4") to 24mm (1").
• Tasarım Öğeleri: Incorporate various fonts, sizes, styles, symbols, clip art, barcodes, and QR codes into your labels.

Image 3.5: An assortment of customized labels created with the DYMO LabelManager Executive 640 CB, showcasing different text, colors, barcodes, and QR codes for diverse applications.

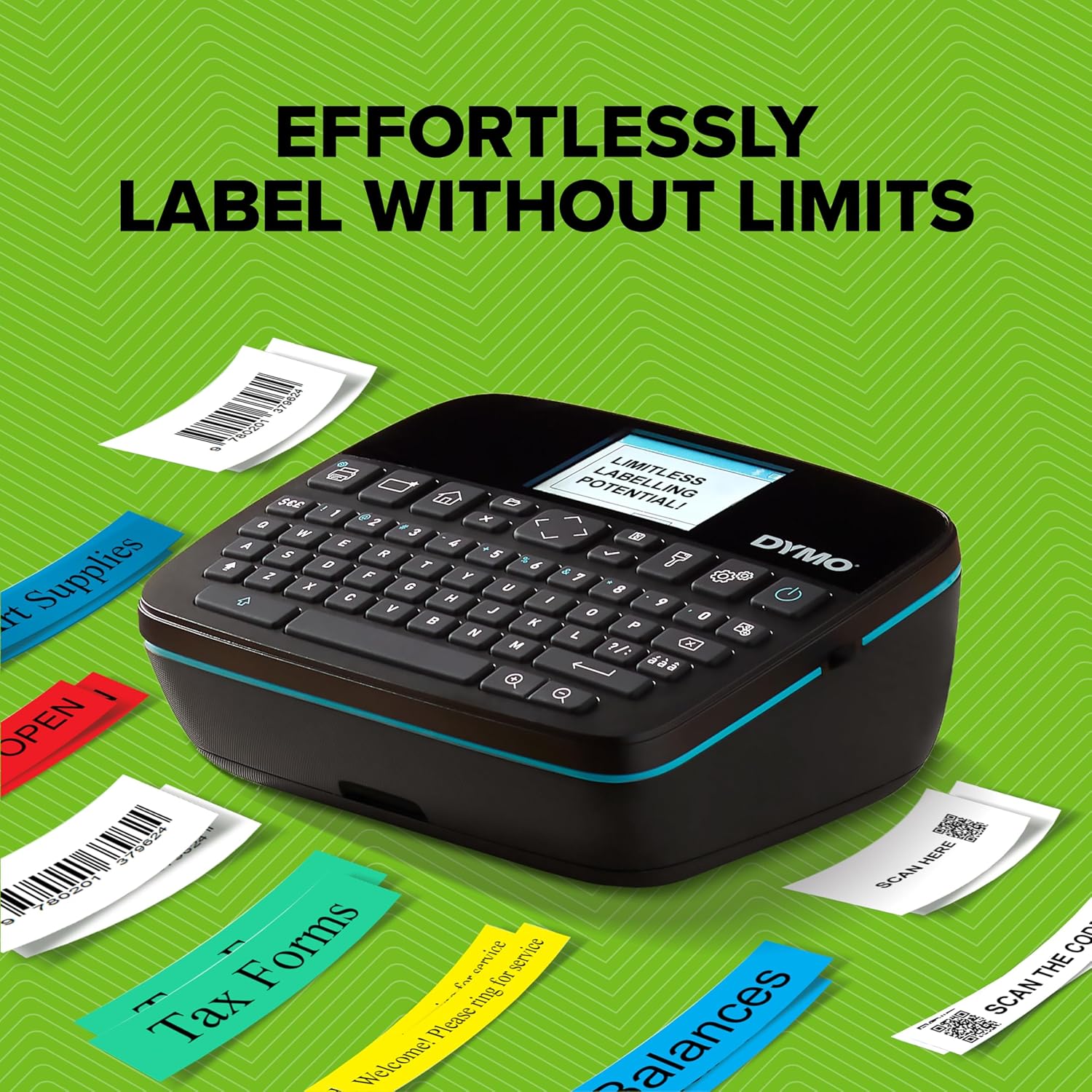

Image 3.6: The DYMO LabelManager Executive 640 CB demonstrating its capability to produce a variety of labels for organizational purposes, such as "Tax Forms" and "Balances," highlighting its versatility.

4. Bakım

4.1 Baskı Kafasının Temizlenmesi

To ensure optimal print quality, periodically clean the print head.

1. Power off the device and open the label compartment.
2. Gently wipe the print head with a clean, lint-free cloth or a cotton swab lightly dampİzopropil alkol ile yıkandı.
3. Allow the print head to dry completely before closing the compartment and powering on the device.

4.2 Pil Bakımı

• Pilinizin ömrünü uzatmak için sık sık tamamen boşaltmaktan kaçının.
• Uzun süre kullanılmayacaksa cihazı serin ve kuru bir yerde saklayın.
• Şarj için yalnızca verilen USB-C kablosunu kullanın.

4.3 Etiket Depolama

Store label cassettes in a cool, dry place away from direct sunlight and extreme temperatures to maintain adhesive quality and print integrity.

5. Sorun Giderme

If you encounter issues not listed here, please refer to the official DYMO support resources.

6. Özellikler

• Model Adı: LabelManager Executive 640 CB
• Model Numarası: 2197370
• Marka: DYMO
• Bağlantı Teknolojisi: Bluetooth Low Energy, USB Type C
• Baskı Teknolojisi: Termal Transfer
• Yazıcı Çıktısı: Tek renkli
• Maximum Media Size: 1 inç (24mm)
• Compatible Label Widths: 6mm (1/4") to 24mm (1")
• Compatible Labels: DYMO D1 Standard and Durable Labels
• Güç Kaynağı: Rechargeable Lithium Polymer Battery (included)
• Kontrol Yöntemi: On-device QWERTY keyboard, Mobile App (DYMO LM Connect), Desktop Software (DYMO Connect for Desktop)
• Ürün Ölçüleri: Yaklaşık 30" Derinlik x 8" Genişlik x 6" Yükseklik (Note: This dimension may refer to packaging. Please refer to the product for exact device dimensions.)
• Ürün Ağırlığı: 1.51 pound (685 Gram)
• Maksimum Baskı Çözünürlüğü: 200 dpi (Black and White)
• Dahil Bileşenler: Label Printer, 1 Label Tape, USB-C Cable

7. Garanti ve Destek

7.1 Garanti Bilgileri

The DYMO LabelManager Executive 640 CB comes with a limited warranty. Please refer to the warranty card included with your product or visit the official DYMO webGaranti kapsamı ve süresi ile ilgili detaylı şartlar ve koşullar için siteyi ziyaret edin.

7.2 Müşteri Desteği

For technical assistance, product inquiries, or to access additional resources, please visit the official DYMO support webalan or contact their customer service department. Contact information can typically be found on the DYMO webSitede veya ürün ambalajında.
