giriiş
This manual provides comprehensive instructions for the safe and efficient use of your BarcaLounger Maple Power Swivel Glider Recliner. Please read this manual thoroughly before assembly and operation to ensure proper function and longevity of your product.
The BarcaLounger Maple Power Swivel Glider Recliner features a low-profile design with a 360-degree swivel, power reclining mechanism, and a gliding function. It includes a steel seat box, a semi-attached back cushion, and a boxed-style chaise seat designed to support the legs and eliminate pressure points. Reclining functions are controlled by small round push buttons located on the inside of the arm.

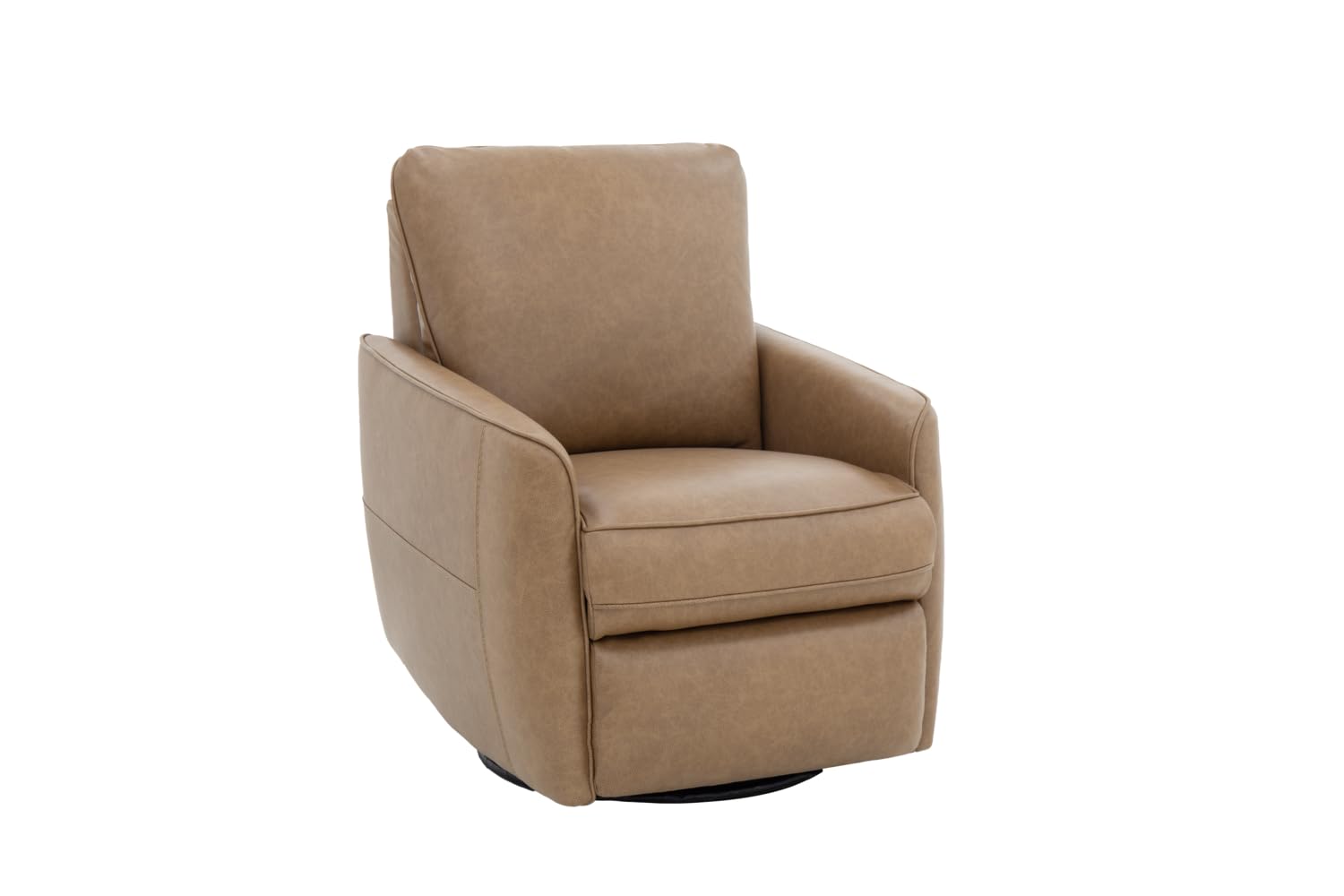

Figure 1: BarcaLounger Maple Power Swivel Glider Recliner (Seville-Fawn)
Güvenlik Bilgileri
UYARI: Bu güvenlik talimatlarına uyulmaması yaralanmaya veya ürünün hasar görmesine neden olabilir.
- Ensure sufficient space of at least 15 inches (38 cm) from any wall or obstruction for the recliner to fully recline without interference.
- Keep children and pets away from the reclining mechanism, especially during operation, to prevent entrapment or injury.
- Do not allow children to play on or operate the recliner.
- Avoid placing hands or feet near the moving parts of the reclining mechanism.
- Ayak dayama yerine veya kolçaklara basmayın.
- Ensure the power cord is not pinched or damaged. Keep it away from high-traffic areas.
- Only use the recliner on a level surface.
- Unplug the recliner from the power outlet before cleaning or maintenance.
Kurmak
Your recliner may require minimal assembly. Follow these general steps:
- Paketin açılması: Carefully remove all components from the packaging. Retain packaging materials until assembly is complete in case of return.
- Bileşen Tanımlaması: Tüm parçaların ambalaj listesine (bu kılavuzda yer almamaktadır, ürün ambalajına bakınız) uygun şekilde mevcut olduğunu doğrulayın.
- Backrest Attachment: If the backrest is separate, align the metal receivers on the backrest with the posts on the chair base. Push down firmly until the backrest locks into place. You should hear a click.
- Güç Bağlantısı: Locate the power cord. Connect the power adapter to the recliner's power input, then plug the adapter into a standard wall outlet. Ensure the connection is secure.
- Konumlandırma: Place the recliner in its desired location, ensuring the required 15-inch (38 cm) clearance from walls or other furniture for full recline.
Şekil 2: Ön view of the recliner.
Kullanım Talimatları
Your BarcaLounger recliner features power reclining, swivel, and gliding functions for optimal comfort.
Power Recline Operation
The power recline function is controlled by two small round push buttons located on the inside of the armrest.
Figure 3: Recline control buttons.
- To recline the chair and extend the footrest, press and hold the "Recline +" button. Release the button when you reach your desired position.
- To return the chair to the upright position and retract the footrest, press and hold the "Recline -" button. Release the button when the chair is fully upright or in your desired position.
- The power layflat mechanism allows for infinite reclining positions from upright to fully reclined.

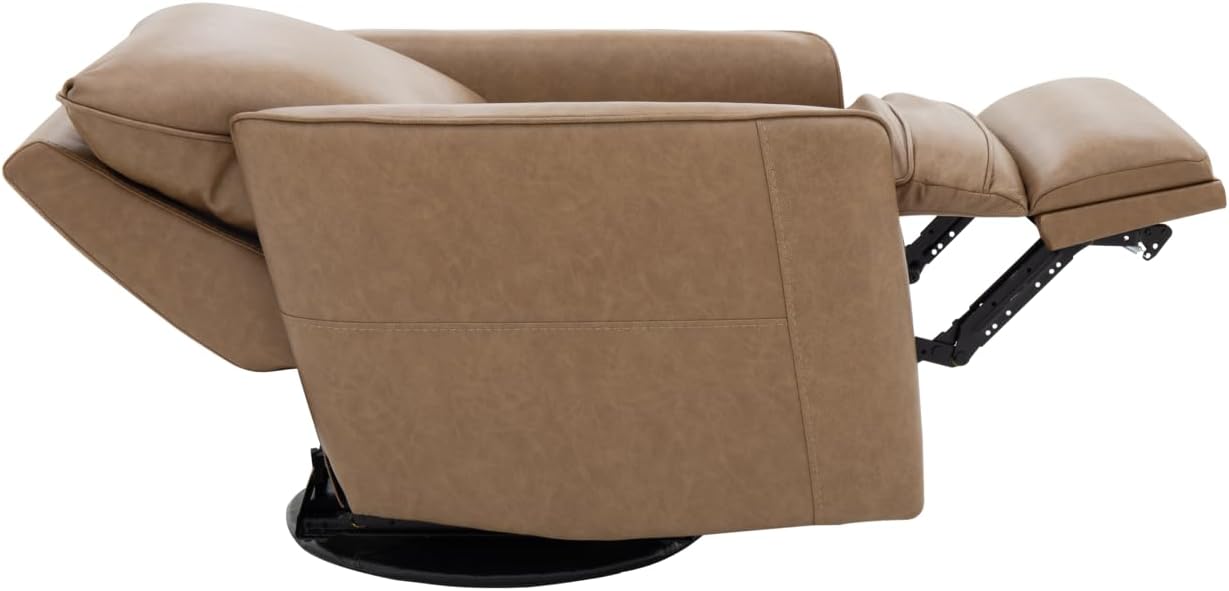

Figure 4: Recliner in a partially reclined state.
Figure 5: Reclining mechanism in extended position.
Swivel and Glider Functions
- The chair features a 360-degree swivel base, allowing you to rotate freely while seated.
- The glider function allows for a smooth back-and-forth motion. This function operates independently of the recline.
Bakım
Proper care and maintenance will extend the life and appearance of your recliner.
Bakım
- Düzenli Temizlik: Dust the leather regularly with a soft, dry cloth. For light cleaning, wipe with a damp bezle silin ve hemen kurulayın.
- Dökülmeler: Blot spills immediately with a clean, absorbent cloth. Do not rub. For stubborn stains, consult a professional leather cleaning service.
- Doğrudan Güneş Işığından Kaçının: Prolonged exposure to direct sunlight can cause leather to fade and dry out. Position your recliner away from direct sunlight.
- Isı Kaynaklarından Kaçının: Keep the recliner away from heat sources like radiators or fireplaces, which can dry and crack the leather.
- Şartlandırma: Periodically condition the leather with a reputable leather conditioner to keep it supple and prevent cracking. Follow the product manufacturer's instructions.
Mechanism Care
- Yağlama: The reclining mechanism is designed for long-term use and typically does not require lubrication. If you notice squeaking or stiffness, contact customer support.
- Denetimler: Periodically inspect the power cord for any signs of damage. If damaged, discontinue use and contact customer support for replacement.
Sorun giderme
Eğer uzanma koltuğunuzla ilgili sorunlarla karşılaşırsanız, aşağıdaki yaygın sorunlar ve çözümlerine göz atın:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Yatar koltuk çalışmıyor (elektrik yok). |
|
|
| Reclining mechanism is stiff or noisy. |
|
|
| Chair does not swivel smoothly. |
|
|
Özellikler
The following are the technical specifications for the BarcaLounger Maple Power Swivel Glider Recliner:
- Model Adı: Akçaağaç
- Ürün Model Numarası: 3P-1446-3768-86
- Renk: Seville-Fawn
- Ürün Ölçüleri (Dikey): 38"D x 31"G x 38"Y (96.5 cm D x 78.7 cm G x 96.5 cm Y)
- Oturma Yüksekliği: 21 İnç (53.3 cm)
- Koltuk Derinliği: 22 İnç (55.9 cm)
- Ürün Ağırlığı: 124 pound (56.2 kg)
- Malzeme: Deri
- Dolgu Malzemesi: Köpük
- Sırt Tarzı: 360 Derece Döndürme
- Kol Stili: Yuvarlak
- Bacak Stili: Kızak Tabanı
- Yatar Pozisyon Sayısı: 2 (Upright and Fully Reclined, with infinite positions in between)
- Wall Proximity Required: 15 inç (38 cm)
- UPC: 850063215725
Şekil 6: Geri view of the recliner.
Garanti ve Destek
For warranty information, please refer to the documentation included with your purchase or visit the official BarcaLounger website. If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact BarcaLounger customer support.
BarcaLounger Customer Support:
- Webalan: www.barcalounger.com
- İletişim Bilgileri: Şuna bakın: webGüncel iletişim yöntemleri (telefon, e-posta vb.) için site.
