Janome Skyline S6 Anniversary Edition Bilgisayarlı Kapitone Makinesi Kullanım Kılavuzu

giriiş

Welcome to your new Janome Skyline S6 Anniversary Edition Computerized Quilting Machine. This manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your machine. Please read this manual thoroughly before using the machine to ensure proper function and to maximize your sewing experience.

Şekil 1: Ön view of the Janome Skyline S6 Anniversary Edition Computerized Quilting Machine, showcasinŞık tasarımı ve entegre kontrol paneliyle öne çıkıyor.

Önemli Güvenlik Talimatları

Elektrikli bir cihaz kullanırken, aşağıdakiler de dahil olmak üzere temel güvenlik önlemlerine her zaman uyulmalıdır:

• Bu dikiş makinesini kullanmadan önce tüm talimatları okuyun.
• Bu talimatları makinenin yakınında, kolayca ulaşabileceğiniz bir yerde saklayın.
• To reduce the risk of electric shock, always unplug the machine from the electrical outlet immediately after using and before cleaning, removing covers, or making any user servicing adjustments.
• Do not allow children to play with the machine. Close supervision is necessary when the machine is used by or near children.
• Bu ürünü yalnızca bu kılavuzda açıklanan amacına uygun olarak kullanın. Yalnızca üretici tarafından önerilen aksesuarları kullanın.
• Bu cihazı, kablosu veya fişi hasarlıysa, düzgün çalışmıyorsa, düşürülmüş veya hasar görmüşse veya suya düşmüşse asla çalıştırmayın.
• Parmaklarınızı tüm hareketli parçalardan uzak tutun. Dikiş makinesi iğnesinin çevresinde özel dikkat gereklidir.
• Her zaman doğru iğne plakasını kullanın. Yanlış plaka iğnenin kırılmasına neden olabilir.
• Fişi çekmek için güç kablosunu çekmeyin. Kabloyu değil, fişi tutun.

Paket İçeriği

Your Janome Skyline S6 Anniversary Edition Computerized Quilting Machine package includes the following items:

• Skyline S6AE Sewing Machine
• AcuFeed Dual Feed Foot and Holder
• Automatic Buttonhole foot
• Blind Hem Feet
• Button Sewing foot
• Ekstra Geniş Masa
• Bobinler
• Tornavida
• Tüy fırçası
• İğne Seti
• Overcast foot
• Kapitone Kılavuz Çubuğu
• Kıvrılmış Kenar Ayağı 1mm
• Satin Stitch foot
• Dikiş sökücü
• Spool Holders (large, small and special)
• Dokunmatik Panel Kalemi
• ZigZag Foot
• Fermuar Ayağı

Şekil 2: A selection of included accessories, such as various presser feet, bobbins, and tools, designed to enhance your sewing capabilities.

Kurmak

1. Paketin Açılması ve Yerleştirilmesi

Carefully remove the machine from its packaging. Place the machine on a stable, level surface. Ensure there is adequate space around the machine for comfortable operation and fabric handling.

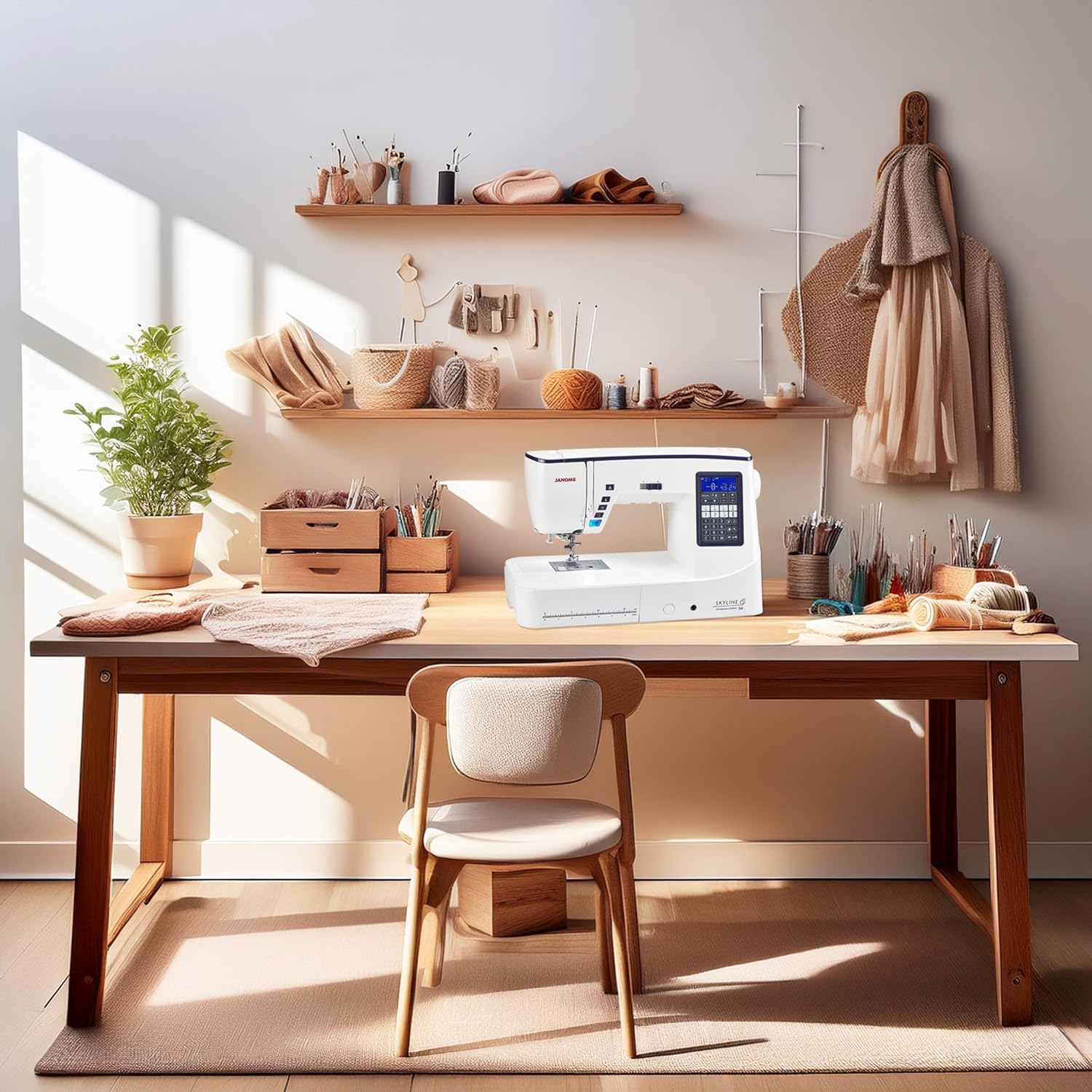

Şekil 3: The Janome Skyline S6 machine positioned on a spacious desk, illustrating an ideal setup for sewing projects.

2. Güç Bağlantısı

Connect the power cord to the machine's power input jack and then to a suitable electrical outlet. Ensure the power switch, located on the side of the machine, is in the 'OFF' position before connecting.

Şekil 4: Arka view of the machine, highlighting the power input and the main on/off switch for safe connection.

3. Uzatma Tablasının Takılması

For larger projects like quilting, attach the included extra wide table. Slide the table onto the free arm of the machine until it clicks securely into place. This provides an expanded workspace for better fabric support.

Şekil 5: The sewing machine with the extra wide table attached, demonstrating the increased work area for large projects.

4. Bobini Sarma

Follow the winding path indicated on the machine. Place an empty bobbin onto the bobbin winder spindle and push it to the right. Guide the thread from the spool through the tension disc and around the bobbin several times. Start the machine; it will automatically stop when the bobbin is full.

5. Makineye İplik Takma

Raise the presser foot and needle to their highest positions. Place a spool of thread on the spool pin. Follow the numbered threading path indicated on the machine, ensuring the thread passes through all guides and the take-up lever. Use the Superior Needle Threader 2 for easy needle threading.

Şekil 6: Ayrıntılı view of the needle and presser foot area, illustrating the precise threading path and the needle threader mechanism.

6. İğnenin Takılması

Ensure the machine is turned off. Loosen the needle clamp screw. Insert a new needle with the flat side facing the back of the machine, pushing it up as far as it will go. Tighten the needle clamp güvenli bir şekilde vidalayın.

Kullanım Talimatları

1. Makine Bittiview ve Kontroller

Familiarize yourself with the control panel, including the LCD screen, stitch selection buttons, and function keys. The Start/Stop button controls sewing without the foot pedal, while the speed slider adjusts sewing speed.

2. Dikiş Seçimi

The Skyline S6 Anniversary Edition offers 196 built-in stitches, including 10 one-step buttonholes. Open the top lid to view the stitch chart. Use the touch panel stylus or buttons to select your desired stitch. The machine will display the recommended presser foot and tension settings.

Şekil 7: The stitch chart located under the top lid, providing a visual guide to the machine's extensive stitch library.

3. Using the Superior Needle Threader 2

This feature simplifies needle threading. With the needle in its highest position, lower the needle threader lever. The hook will pass through the needle eye. Loop the thread under the hook and release the lever to pull the thread through the needle eye.

4. Otomatik İplik Kesici

Press the thread cutter button to automatically trim both the upper and bobbin threads at the end of a seam. This feature saves time and thread.

5. Sewing with the AcuFeed Dual Feed Foot

The AcuFeed Dual Feed Foot system ensures even feeding of multiple layers of fabric, ideal for quilting and matching plaids. Attach the AcuFeed foot and engage the dual feed mechanism as per the on-screen instructions.

6. Memorized Needle Up/Down

Use the needle up/down button to set the needle to stop in either the up or down position when the machine stops. This is particularly useful for pivoting fabric at corners.

7. Temel Dikiş İşlemleri

Place your fabric under the presser foot. Lower the presser foot. Select your desired stitch and adjust settings if necessary. Begin sewing using the Start/Stop button or the foot pedal. Guide the fabric gently, allowing the machine to feed it.

Şekil 8: The machine actively stitching on pink fabric, demonstrating precise stitch formation and fabric handling.

Bakım

1. Makinenin Temizlenmesi

Regular cleaning helps maintain optimal performance. Turn off and unplug the machine. Remove the needle plate and bobbin case. Use the included lint brush to remove lint and dust from the feed dogs and bobbin area. Do not use compressed air, as it can push lint further into the machine.

2. Replacing the Needle

Replace the needle frequently, especially after 8-10 hours of sewing or if it becomes bent or dull. A fresh needle prevents skipped stitches and fabric damage. Refer to the 'Installing the Needle' section for detailed steps.

3. Genel Bakım

Keep your machine covered when not in use to protect it from dust. Avoid storing it in extreme temperatures or humid environments. Do not attempt to oil the machine yourself unless specifically instructed by the manufacturer's guidelines for your model.

Sorun giderme

This section addresses common issues you might encounter. For problems not listed here, please contact Janome customer support.

Özellikler

Garanti ve Destek

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Janome website. You can also contact Janome customer service directly for assistance with any operational questions or technical issues.

Janome Official Webalan: www.janome.com
