1. Giriş
Thank you for choosing the AIWEIYA AWY-550 Remote Control Lawn Mower. This oil-electric hybrid, four-wheel drive crawler mower is designed for efficient lawn mowing and weed whacking across various terrains, including slopes and rough areas. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new equipment. Please read it thoroughly before use to ensure optimal performance and longevity of the product.
2. Güvenlik Bilgileri
UYARI: Bu güvenlik talimatlarına uyulmaması ciddi yaralanmalara veya ölüme neden olabilir.
- Always operate the mower from a safe distance using the remote control.
- Ensure no persons, especially children or pets, are within the operating area of the mower.
- Göz koruması, işitme koruması ve sağlam ayakkabılar dahil olmak üzere uygun kişisel koruyucu ekipman (KKE) giyin.
- Inspect the mowing area for debris, rocks, or other objects that could be thrown by the blades before operation.
- Do not operate the mower on excessively steep slopes beyond its rated gradeability (45 degrees).
- Herhangi bir bakım yapmadan veya tıkanıklıkları temizlemeden önce motoru kapatın ve buji kablosunu çıkarın.
- Yakıt ikmalini, motor kapalı ve soğukken, iyi havalandırılan bir alanda yapın. Yakıt dökülmesini önleyin.
- Store the mower in a secure location, away from flammable materials and out of reach of children.
3. Ürün Bittiview

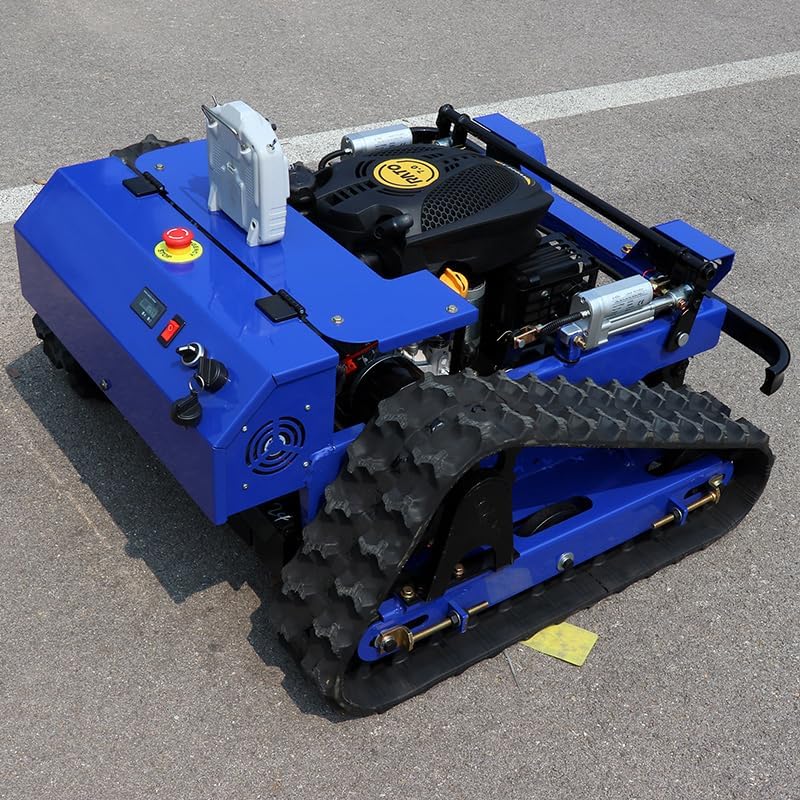

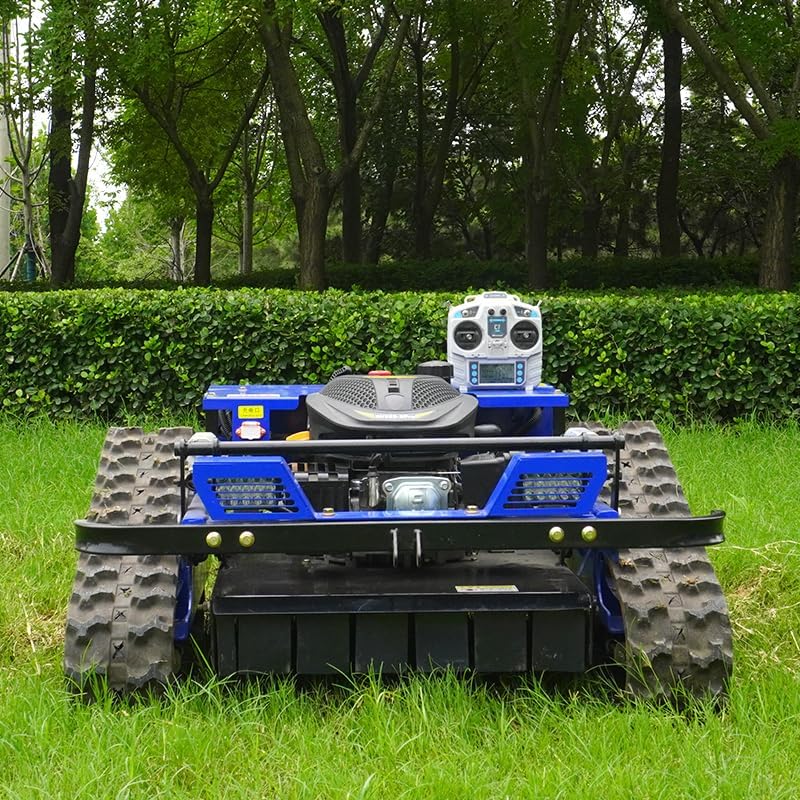

The AIWEIYA AWY-550 is a robust remote-controlled lawn mower designed for challenging terrains. Familiarize yourself with its key components.
4. Kurulum
4.1 Paketin Açılması ve İlk Muayene
- Carefully remove the mower and all accessories from the packaging.
- Inspect the unit for any signs of shipping damage. Contact your dealer immediately if damage is found.
- Paketleme listesinde listelenen tüm bileşenlerin mevcut olduğundan emin olun.
4.2 Yakıt ve Yağ
- Fill the fuel tank with unleaded gasoline. The fuel tank capacity is 1.2 liters.
- Check the engine oil level and fill with recommended engine oil (0.6 liters capacity). Refer to the engine manual for specific oil type.
- Important: Do not overfill fuel or oil.
4.3 Uzaktan Kumanda Hazırlığı
- Install batteries into the remote control unit.
- Ensure the remote control is paired with the mower according to the remote control's specific instructions.
5. Kullanım Talimatları
5.1 Çim Biçme Makinesini Çalıştırma
- Ensure the mower is on a flat, stable surface.
- Turn the main power switch on the mower to the 'ON' position.
- Insert the key and turn it to the 'START' position to ignite the engine.
- Once the engine is running, allow it to warm up for a few moments.
5.2 Uzaktan Kumanda İşlemi
The remote control allows for precise maneuvering and cutting height adjustment.
- Use the joysticks to control forward, reverse, and turning movements. The mower can perform 360-degree rotations.
- Utilize the dedicated buttons or levers on the remote to adjust the cutting height. The height can be adjusted from 1.1 inches to 5.9 inches.
- Maintain a clear line of sight to the mower during operation.
5.3 Biçme Teknikleri
- For optimal cutting, operate the mower at a steady pace (walking speed up to 4 KM/H).
- When mowing on slopes, it is recommended to cut perpendicular to the slope to maintain stability and prevent engine oil issues.
- Avoid abrupt turns on soft ground to prevent turf damage.
- The mower is designed for heavy brush and grass. Avoid attempting to cut saplings thicker than 1.5 inches.
6. Bakım
Regular maintenance ensures the longevity and optimal performance of your AIWEIYA AWY-550.
6.1 Her Kullanımdan Sonra
- Clean the cutting deck and blades to remove grass clippings and debris.
- Inspect blades for sharpness and damage. Replace or sharpen as needed.
- Check for loose fasteners and tighten if necessary.
6.2 Motor Bakımı
- Regularly check and maintain engine oil levels. Change oil according to engine manufacturer's recommendations.
- Özellikle tozlu ortamlarda, hava filtresini gerektiği gibi temizleyin veya değiştirin.
- Inspect the spark plug and replace if worn.
6.3 Depolama
- Uzun süreli depolama için yakıt deposunu boşaltın veya yakıt dengeleyici kullanın.
- Clean the mower thoroughly and store it in a dry, protected area.
7. Sorun Giderme
This section addresses common issues you might encounter with your mower.
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Motor çalışmıyor | No fuel; old fuel; spark plug issue; battery low (for electric start) | Check fuel level; replace with fresh fuel; inspect/replace spark plug; charge battery. |
| Mower loses power or sputters | Low fuel; clogged air filter; engine oil issue on steep slopes | Refuel; clean/replace air filter; adjust mowing path on slopes to keep carburetor uphill. |
| Düzensiz kesim | Dull or damaged blades; incorrect cutting height setting | Sharpen or replace blades; adjust cutting height evenly. |
| Uzaktan kumanda yanıt vermiyor | Remote control batteries low; out of range; pairing issue | Replace batteries; move closer to mower; re-pair remote control. |
| Mower stops unexpectedly | Overload (e.g., thick sapling); safety switch activated; low fuel | Clear obstruction; check safety switches; refuel. |
8. Özellikler
Detailed technical specifications for the AIWEIYA AWY-550 Remote Control Lawn Mower.
| Şartname | Değer |
|---|---|
| Örnek | AWY-550 |
| Marka | AIWEIYA |
| Güç Kaynağı | Benzinli Motor |
| Malzeme | Alaşımlı Çelik, Plastik |
| Renk | mavi |
| Ürün Ağırlığı | 286 Pound (130 kg) |
| Kesme Genişliği | 21.6 İnç (550 mm) |
| Çalışma Modu | Uzaktan kumanda |
| Ürün Boyutları (U x G x Y) | 38.5"D x 22"G x 36"Y (978 x 559 x 914 mm) |
| Maksimum Ayarlanabilir Kesme Yüksekliği | 5.9 İnç (150 mm) |
| Minimum Ayarlanabilir Kesme Yüksekliği | 1.1 İnç (28 mm) |
| Yürüme Hızı | 4 KM/SAAT |
| Derecelendirilebilirlik | 45° |
| Beygir gücü | RV225 (approx. 7 HP) |
| Yakıt Tankı Kapasitesi | 1.2 Litre |
| Yağ Kapasitesi | 0.6 Litre |
| Biçme Verimliliği | 1500 M²/H |
Not: Boyutlar ve ağırlıklar yaklaşık değerlerdir ve biraz farklılık gösterebilir.
9. Garanti ve Destek
For warranty information and technical support, please refer to the documentation provided at the time of purchase or contact AIWEIYA customer service. Our professional sales and maintenance teams are committed to maximizing equipment performance and are available for consultation and after-sales support.
You can also visit the official AIWEIYA store for more information: AIWEIYA Store on Amazon
