CAPHAUS L-Shaped Bookshelf Instruction Manual

1. Giriş

Thank you for choosing the CAPHAUS L-Shaped Bookshelf. This 5-tier industrial corner bookcase is designed to efficiently utilize corner spaces, offering ample storage and display options for your home or office. This manual provides essential information for safe assembly, operation, and maintenance of your new bookshelf.

2. Güvenlik Bilgileri

• Always assemble the shelf according to the provided instructions.
• Do not overload the shelves. Each layer has a load bearing capacity of 70 lbs. The total load bearing capacity is 350 lbs.
• The shelf can tip over if not properly assembled or if overloaded.
• Keep the shelf away from heat sources.
• Do not place heavy objects on the top shelf, as this can affect stability.
• Utilize the anti-tip hardware to secure the bookshelf to the wall for enhanced safety, especially in households with children or pets.

3. Ürün Özellikleri

The CAPHAUS L-Shaped Bookshelf combines functionality with an industrial aesthetic, designed to fit perfectly into corner spaces.

• L Şeklinde Tasarım: Optimizes corner space for efficient storage and display.
• 5 Tiers: Sağlar ample storage capacity across five levels.
• Dayanıklı Yapı: Features a sturdy metal frame (20mm steel) and 15mm thick wooden boards.
• Stabilite Özellikleri: Includes anti-tip hardware and adjustable leveling feet for stability on uneven surfaces.
• Kolay Bakım: Surfaces are waterproof, scratch-proof, and easy to clean.
• CARB P2 Approved: Ensures low emissions for healthier indoor air quality.

Figure 3.1: Dimensions and Load Bearing Capacity. The bookshelf measures 43.3" D x 43.3" W x 65.7" H. Each shelf layer can bear up to 70 lbs, with a total load bearing capacity of 350 lbs.

Figure 3.2: L-shaped design for space-saving corner placement.

Figure 3.3: Durability features: waterproof, scratch-proof, and easy to clean surfaces.

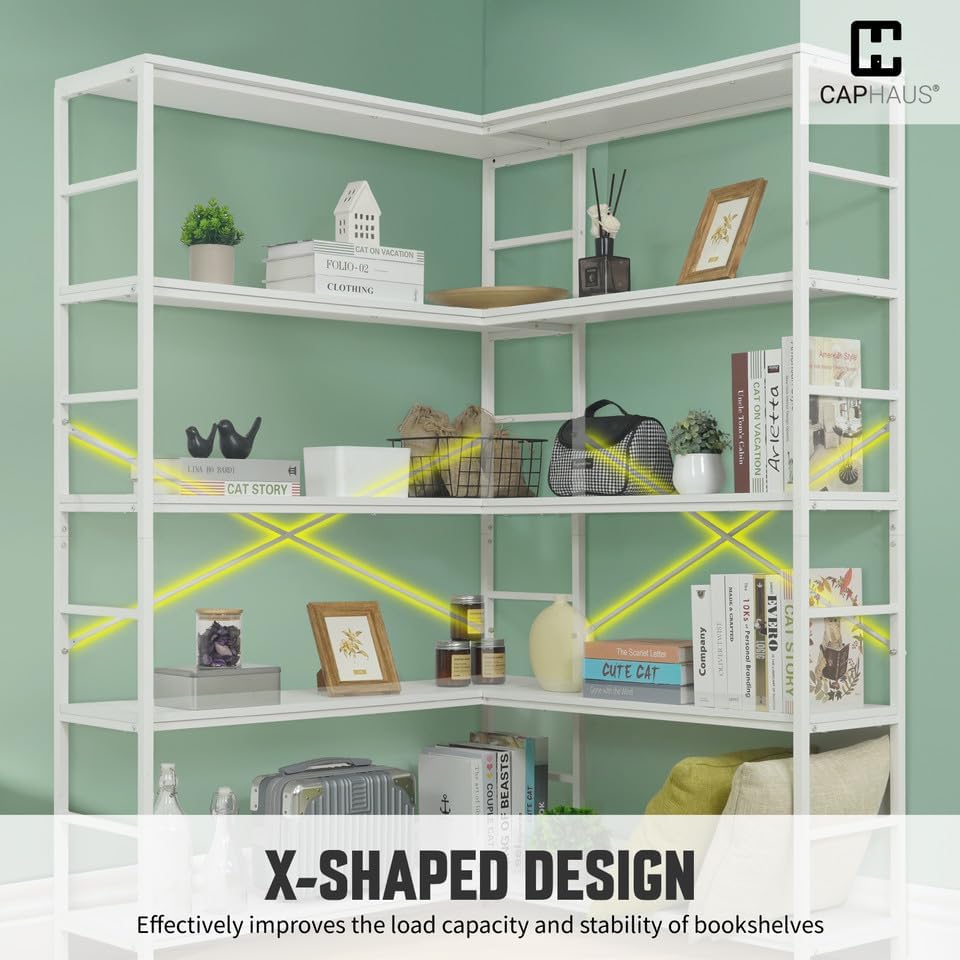

Figure 3.4: X-shaped design for enhanced load capacity and stability. This illustration features a white model.

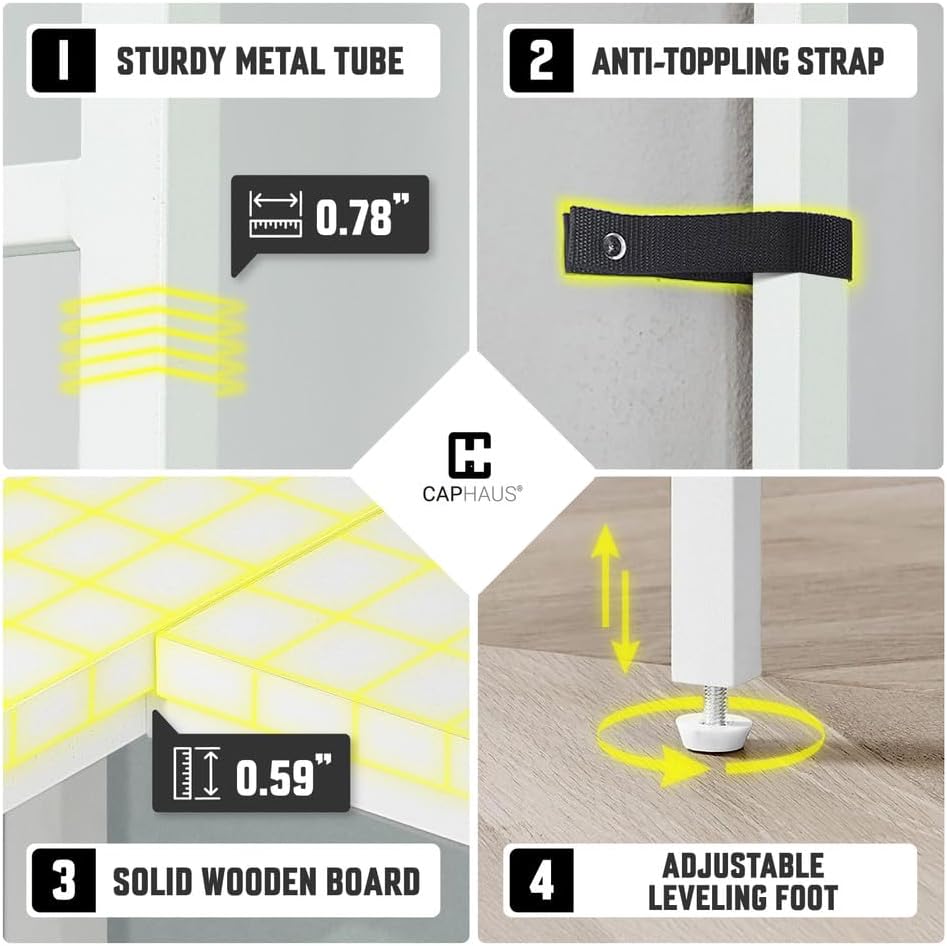

Figure 3.5: Key structural components: sturdy metal tube (0.78"), anti-toppling strap, solid wooden board (0.59"), and adjustable leveling foot. This illustration features a white model.

4. Kurulum ve Montaj

Assembly of the CAPHAUS L-Shaped Bookshelf is required. All necessary hardware is included in the package.

1. Bileşenleri Paketinden Çıkarın: Carefully unpack all parts and hardware from the packaging. Verify that all components listed in the assembly instructions are present and undamaged.
2. Review Talimatlar: Before beginning, thoroughly read the detailed assembly instructions provided in the box. Familiarize yourself with each step and the corresponding hardware.
3. Çerçeveyi Birleştirin: Begin by assembling the metal frame components. Ensure all connections are secure but do not fully tighten screws until the entire frame is loosely assembled.
4. Rafları Takın: Once the frame is stable, attach the wooden boards to form the shelves. Ensure they are correctly oriented and aligned.
5. Tüm Bağlantı Elemanlarını Sıkıştırın: After all parts are in place, gradually tighten all screws and fasteners. Avoid over-tightening to prevent damage.
6. Install Anti-Tip Hardware: Securely attach the anti-tip strap to the bookshelf and then to a wall stud using appropriate wall anchors (if not provided, use anchors suitable for your wall type). This step is crucial for safety.
7. Dengeleme Ayaklarını Ayarlayın: Adjust the leveling feet at the bottom of the bookshelf to ensure it stands level and stable on your floor.

For detailed, step-by-step visual guidance, please refer to the assembly instructions included in your product packaging.

5. Operasyon

The CAPHAUS L-Shaped Bookshelf is designed for storing and displaying various items. To ensure optimal performance and safety:

• Yük Dağılımı: Distribute weight evenly across the shelves. Avoid concentrating heavy items on one side or on the very top shelf.
• Ağırlık Sınırları: Adhere to the maximum load bearing capacity of 70 lbs per shelf and 350 lbs total for the unit.
• Atama: Position the bookshelf in a corner to maximize its stability and space-saving design. Ensure it is placed on a flat, stable surface.
• Devrilme Önleyici Mekanizma: Always use the anti-tip hardware to secure the bookshelf to the wall. This is essential to prevent accidental tipping.

6. Bakım

Proper care will extend the life and appearance of your CAPHAUS L-Shaped Bookshelf.

• Temizlik: Yüzeyleri yumuşak bir bezle silin.amp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the finish. The wooden boards are waterproof and easy to clean.
• Çizilme Önleme: While the boards are scratch-proof, avoid dragging sharp or heavy objects directly across the surface to maintain its appearance.
• Düzenli Kontroller: Tüm vida ve bağlantı elemanlarının sıkılığını düzenli olarak kontrol edin. Gerekirse tekrar sıkın.
• Çevresel Koşullar: Keep the bookshelf in a dry environment and away from direct sunlight or extreme temperature changes to prevent warping or damage to the wood and metal components.

7. Sorun Giderme

Kitaplığınızla ilgili herhangi bir sorunla karşılaşırsanız, aşağıdaki yaygın çözümleri göz önünde bulundurun:

• Kitaplık sallanıyor:
  • Tüm vidaların ve bağlantı elemanlarının güvenli bir şekilde sıkıldığından emin olun.
  • Ünitenin altındaki denge ayaklarını, zemindeki düzensizlikleri telafi edecek şekilde ayarlayın.
  • Verify that the anti-tip hardware is correctly installed and secured to the wall.
• Montaj Sırasında Yaşanan Zorluklar:
  • Refer back to the detailed assembly instructions provided in the packaging.
  • Her adım için doğru donanımı kullandığınızdan emin olun.
  • Do not force parts together; if they don't fit, re-check the orientation and instructions.
• Hasarlı veya Eksik Parçalar:
  • Contact CAPHAUS customer support immediately with your purchase details and a description of the issue.

8. Özellikler

9. Garanti ve Destek

For any questions, concerns, or assistance with your CAPHAUS L-Shaped Bookshelf, please contact our customer support team.

• Müşteri Hizmetleri: Refer to your purchase documentation or the CAPHAUS official webiletişim bilgileri için site.
• İade: This product typically includes a 30-day easy return policy. Please check your purchase receipt for specific return window and conditions.
• Garanti: Information regarding product warranty can usually be found on the manufacturer's websitede veya ürün ambalajının içinde.
