1. Giriş
Thank you for choosing the COMFEE' CIH741F238K0 Induction Cooktop. This manual provides essential information for the safe and efficient use of your new appliance. Please read it thoroughly before installation and operation, and keep it for future reference.
This 7200W induction cooktop features 4 burners, 9 power levels, a Boost function, and intuitive touch controls, designed to enhance your cooking experience with precision and speed.
2. Önemli Güvenlik Bilgileri
Yangın, elektrik çarpması, yanık veya yaralanma riskini azaltmak için elektrikli cihazları kullanırken her zaman temel güvenlik önlemlerine uyun.
- Elektriksel Güvenlik: Ensure the cooktop is correctly installed by a qualified electrician. Do not operate with wet hands or if the surface is cracked.
- Sıcak Yüzeyler: Although induction surfaces do not heat directly, residual heat from cookware can make the surface hot. Exercise caution and allow the cooktop to cool before cleaning.
- Tencere: Use only magnetic cookware suitable for induction. Non-magnetic pots or pans will not heat.
- Çocuklar ve Evcil Hayvanlar: Keep children and pets away from the cooktop during operation and while it is cooling. Utilize the child safety lock feature.
- Aşırı Isınma Koruması: The cooktop is equipped with an automatic shutdown feature to prevent overheating.
- Artık Isı Göstergesi: The cooktop features indicators to show if a cooking zone is still hot after use.
- Havalandırma: Kurulum talimatlarında belirtildiği gibi cihazın etrafında yeterli havalandırma olduğundan emin olun.
3. Ürün Bittiview
The COMFEE' CIH741F238K0 is a built-in induction cooktop featuring a sleek ceramic glass surface and four independent cooking zones. Each zone offers precise temperature control and a dedicated timer.
Temel Özellikler:
- 4 Pişirme Bölgesi: Sağlar ampBirden fazla tencere ve tava için yeterli alan.
- 9 Güç Seviyesi: Offers versatile cooking options from gentle melting to rapid boiling.
- Güçlendirme İşlevi: Delivers instant maximum power for quick heating.
- Entegre Zamanlayıcı: Independent timers for each zone (1-99 minutes).
- Dokunmatik Kontrol Paneli: Easy and precise operation.
- Çocuk Güvenlik Kilidi: Yanlışlıkla çalıştırılmasını önler.
- Aşırı Isınma Koruması: Automatic shutdown for safety.
- Artık Isı Göstergesi: Visual warning for hot surfaces.
- Dayanıklı Seramik Bardak: Enhanced shock resistance and easy to clean.
4. Kurulum ve Kurulum
Proper installation is crucial for the safe and optimal performance of your induction cooktop. It is recommended that installation be performed by a qualified professional.
4.1 Paketin açılması
Carefully remove the cooktop from its packaging. Inspect for any damage during transit. Retain packaging for potential future transport or service.

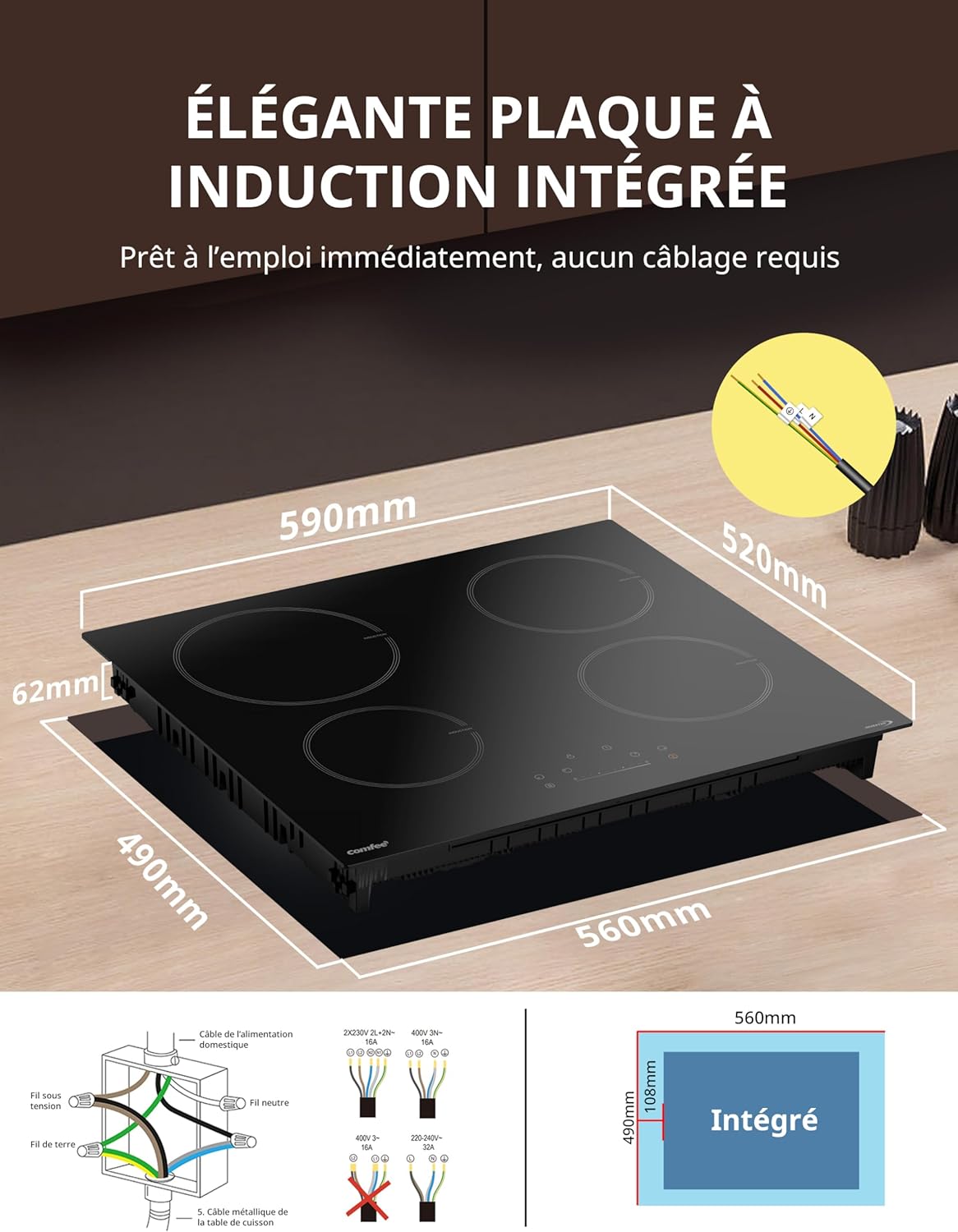

4.2 Boyutlar ve Kesim
Ensure your countertop cut-out matches the required dimensions for a secure fit. The product dimensions are approximately 59 cm (L) x 52 cm (W) x 6.2 cm (H).
4.3 Elektrik Bağlantısı
The cooktop requires a 220V electrical supply with a power rating of 7200W. The wiring is designed for straightforward connection, but professional installation is advised to ensure compliance with local electrical codes and safety standards.
5. Kullanım Talimatları
Familiarize yourself with the touch control panel for efficient operation.
5.1 Açma/Kapatma
Güç tuşuna baş (AÇIK/KAPALI) to turn the cooktop on or off. The display will illuminate upon activation.
5.2 Selecting a Cooking Zone
After powering on, select the desired cooking zone by pressing its corresponding zone selection button. The display for that zone will light up.
5.3 Güç Seviyelerinin Ayarlanması
Once a zone is selected, use the '+' and '-' buttons or slide your finger along the control bar to adjust the power level from 1 to 9. Level 1 is for gentle melting, while level 9 is for rapid boiling.
5.4 Using the Boost Function
For instant maximum heat, select a cooking zone and then press the Boost button (B). This function provides a surge of power to quickly bring liquids to a boil or rapidly heat cookware. The Boost function operates for a limited time before returning to a high power level.
5.5 Zamanlayıcıyı Ayarlama
Each cooking zone has an independent timer, adjustable from 1 to 99 minutes. Select the desired cooking zone, then press the timer button and use the '+' and '-' controls to set the duration. The cooktop will automatically turn off the zone once the timer expires.
5.6 Activating Child Safety Lock
To prevent accidental operation, especially by children, activate the child safety lock. Press and hold the lock button for a few seconds until the indicator lights up. To deactivate, press and hold the lock button again.
5.7 Dokunmatik Kontrol Paneli
The cooktop features a responsive touch control panel for all functions. A simple press is usually sufficient to activate or adjust settings.
5.8 Uyumlu Pişirme Gereçleri
Induction cooktops require cookware with a magnetic base. The minimum diameter for cookware is 12 cm to ensure proper heating. Compatible materials include cast iron, enameled iron, and stainless steel with a magnetic base. Incompatible materials include glass, ceramic, aluminum, copper, and cookware with irregular bases.
6. Bakım ve Temizlik
Düzenli temizlik ve bakım, ocağınızın uzun ömürlü olmasını ve optimum performans göstermesini sağlayacaktır.
6.1 Seramik Cam Yüzeyin Temizlenmesi
- Temizlemeden önce ocağın mutlaka soğuk olduğundan emin olun.
- Dökülenleri hemen bir reklamla silinamp cloth to prevent them from drying and hardening.
- For stubborn stains, use a ceramic hob scraper or a specialized ceramic hob cleaner. Follow the product instructions.
- Yüzeyi çizebileceği veya zarar verebileceği için aşındırıcı temizleyicilerden, ovma pedlerinden veya sert kimyasallardan kaçının.
- After cleaning, wipe the surface with a clean, damp cloth and then dry thoroughly with a soft cloth to prevent water marks.
6.2 Genel Bakım
- Do not drop heavy objects on the cooktop surface.
- Avoid dragging cookware across the surface to prevent scratches.
- Ocağı depolama yüzeyi olarak kullanmayın.
7. Sorun Giderme
If you encounter issues with your cooktop, refer to the following common problems and solutions before contacting customer service.
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Ocak açılmıyor. | Güç kaynağı yok; Çocuk kilidi aktif. | Güç bağlantısını ve devre kesiciyi kontrol edin. Çocuk kilidini devre dışı bırakın. |
| Pişirme alanı ısınmıyor. | Incompatible cookware; Cookware not centered; No cookware detected. | Use magnetic cookware. Center the pot/pan. Ensure cookware is on the zone. |
| Ocak çalışırken ses çıkarıyor. | Normal fan çalışması; Tencere titreşimi. | This is normal for induction cooktops. Some cookware may vibrate slightly. |
| Hata kodu görüntülendi. | Dahili arıza; Aşırı ısınma. | Ocağı kapatın, birkaç dakika bekleyin, ardından tekrar çalıştırın. Hata devam ederse, müşteri hizmetleriyle iletişime geçin. |
| Ocak beklenmedik şekilde kapanıyor. | Overheat protection activated; Timer expired. | Allow the cooktop to cool. Check if a timer was set. |
8. Özellikler
| Özellik | Detay |
|---|---|
| Marka | Kahve |
| Model Numarası | CIH741F238K0 (Internal Reference: MC-IF7454BJ1-A) |
| Ürün Boyutları (U x G x Y) | 59x52x6.2 cm |
| Ağırlık | 9.27 kilo |
| Kurulum Türü | Drop-in |
| Özel Özellikler | Timer, Adjustable Temperature, Safety Lock |
| Ocak Tipi | İndüksiyon |
| Ocak Sayısı | 4 |
| Renk | Siyah |
| Cilttage | 220 Volt |
| Netage | 7200 Watt |
| Güç Kaynağı | Elektrik Kablolu |
| Sertifikasyon | General Safety and Performance Standards |
| Yüzey Malzemesi | Seramik Cam |
| Bileşenler Dahil | Fiş |
9. Garanti ve Destek
For information regarding the product warranty, please refer to the warranty card included with your purchase or contact Comfee customer service. Keep your proof of purchase for warranty claims.
If you require technical assistance, spare parts, or have any questions not covered in this manual, please contact Comfee customer support through their official website veya ürün dokümantasyonunuzda sağlanan iletişim bilgileri.
