Shimbol TP Mini Max Wireless Video Transmission System User Manual

1. Giriş

The Shimbol TP Mini Max is a compact and efficient wireless video transmission system designed for professional video production. It consists of a transmitter (TX) and a receiver (RX) unit, enabling high-quality video and audio transmission over significant distances with minimal latency. This manual provides detailed instructions for the proper setup, operation, and maintenance of your TP Mini Max system.

2. Ürün Bittiview

The TP Mini Max system offers reliable wireless video transmission with advanced features for various applications.

Temel Özellikler:

• Uzun Mesafeli İletim: Up to 600 feet (180 meters) line-of-sight.
• Ultra düşük gecikme süresi: As low as 0.07 seconds for real-time monitoring.
• High-definition Video: Supports up to 1080P60 resolution with simultaneous audio and video transmission.
• HDMI Döngü Çıkışı: Transmitter features an HDMI loop-out for local monitoring.
• Fansız Tasarım: Ensures quiet operation, ideal for sound-sensitive environments.
• Çoklu Güç Seçenekleri: Supports NPF batteries (not included) and Type-C power banks.
• Dayanıklı Yapı: Aviation aluminum alloy shell for enhanced durability and portability.

Bileşenler:

The Shimbol TP Mini Max system includes a transmitter (TX) and a receiver (RX) unit, designed for wireless video transmission.

This image highlights the system's capability for long-distance transmission up to 600 feet with ultra-low latency of 0.07 seconds, suitable for various professional scenarios.

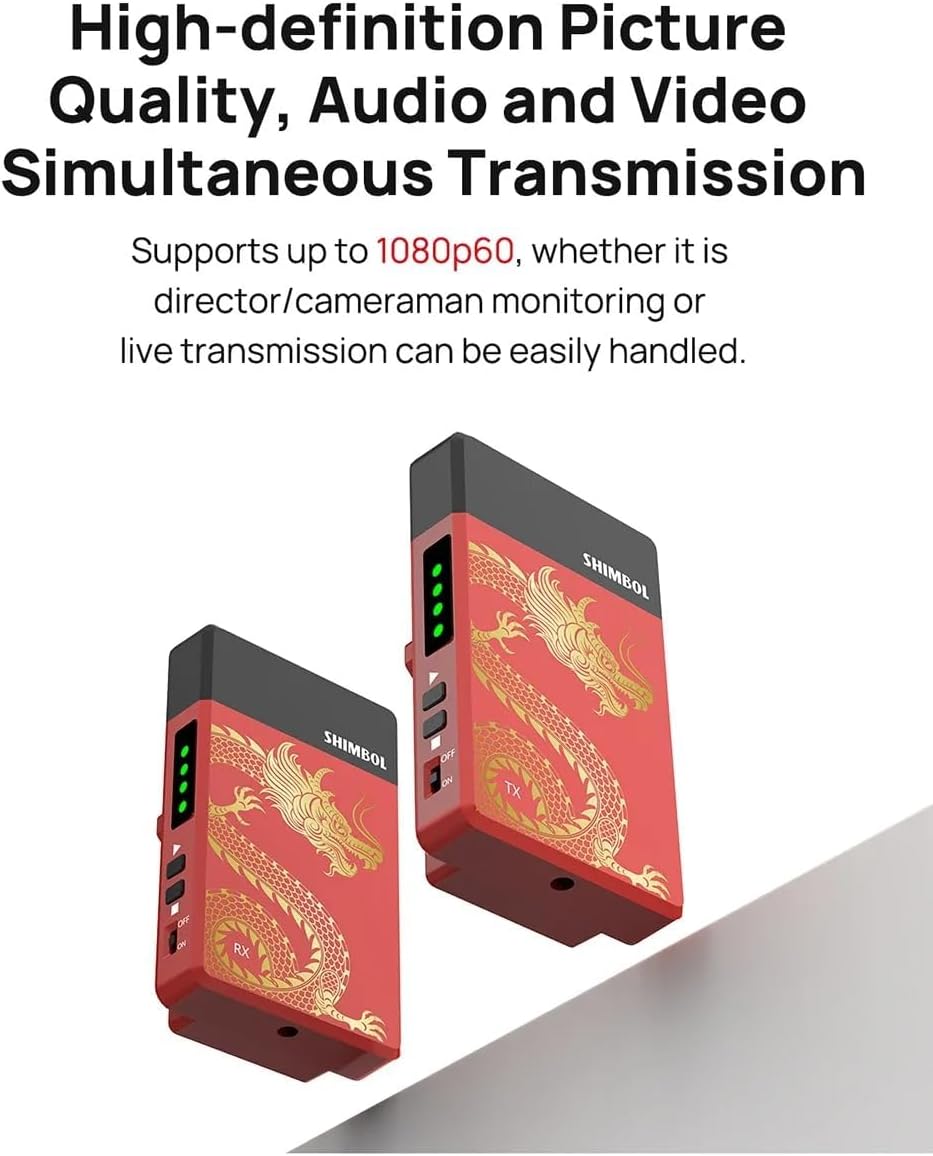

The system supports high-definition picture quality up to 1080P60, ensuring clear audio and video for monitoring and live transmission.

Constructed with an aviation aluminum alloy shell, the units are light, durable, and feature a classic sandblasted paintwork.

The system can be powered by NPF batteries or a power bank via the Type-C port, offering flexible power solutions.

Kutuda Neler Var:

The package includes one TP Mini Wireless Transmitter, one TP Mini Wireless Receiver, a user manual, two decorative stickers, and one USB charging cable.

3. Kurulum Talimatları

Follow these steps to set up your Shimbol TP Mini Max system:

1. Güç Kaynağı:
   • Attach a fully charged NPF battery (not included) to the battery plate on both the transmitter (TX) and receiver (RX) units.
   • Alternatively, connect a power bank to the Type-C port on each unit using the provided USB charging cable.
2. Vericiyi Bağlayın (TX):
   • Connect your video source (e.g., camera, camcorder) to the HDMI IN port of the TX unit using an HDMI cable (not included).
   • If local monitoring is required, connect a monitor to the HDMI ÇIKIŞI (loop-out) port of the TX unit.
3. Alıcıyı (RX) Bağlayın:
   • Connect your display device (e.g., monitor, TV, video switcher) to the HDMI ÇIKIŞI port of the RX unit using an HDMI cable (not included).
4. Güç Açık: Turn on both the TX and RX units using their respective power switches. The units will automatically pair.

The image displays the HDMI input and output ports on the Shimbol TP Mini Max unit, essential for connecting your video source and display.

4. Kullanım Talimatları

Once both units are powered on and connected, the system will automatically establish a wireless connection. The status indicators on the units will confirm successful pairing.

• İzleme: The video feed from your source connected to the TX unit will be displayed on the monitor connected to the RX unit.
• Fansız Çalışma: The fanless design ensures silent operation, preventing unwanted noise interference during recording or live broadcasts.
• Frequency Hopping: The system utilizes intelligent frequency hopping for ultra-stable connection and enhanced anti-interference capabilities.

5. Bakım

To ensure the longevity and optimal performance of your TP Mini Max system, follow these maintenance guidelines:

• Temizlik: Üniteleri temizlemek için yumuşak ve kuru bir bez kullanın. Sıvı temizleyici veya çözücü kullanmaktan kaçının.
• Depolamak: When not in use, store the units in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to use the original packaging or a protective case.
• Pil Bakım: If using NPF batteries, ensure they are charged and stored according to the battery manufacturer's recommendations. Remove batteries if the units will not be used for an extended period.

6. Sorun Giderme

If you encounter issues with your TP Mini Max system, refer to the following common problems and solutions:

• Video Sinyali Yok:
  • Hem TX hem de RX ünitelerinin açık olduğundan emin olun.
  • Tüm HDMI kablolarının doğru bağlantı noktalarına güvenli bir şekilde bağlı olduğundan emin olun.
  • Check the video source output and display input settings.
  • Confirm the distance between TX and RX is within the 600ft range and there are no significant obstructions.
• Kesintili Sinyal/Düşük Kalite:
  • TX ve RX üniteleri arasındaki mesafeyi azaltın.
  • Birimler arasındaki fiziksel engelleri (duvarlar, büyük metal nesneler) en aza indirin.
  • Yüksek Wi-Fi veya diğer kablosuz parazitlerin olduğu alanlardan uzak durun.
• Güç Sorunları:
  • Ensure NPF batteries are fully charged or the Type-C power source is providing adequate power.
  • Check the power cables and connections.

7. Özellikler

8. Garanti ve Destek

For warranty information or technical support, please contact Shimbol customer service or refer to the official Shimbol website. Herhangi bir garanti talebi için satın alma belgeniz olarak satın alma makbuzunuzu saklayın.
