Tecmojo 42U Server Rack Network Cabinet Instruction Manual

1. Ürün Bittiview

The Tecmojo 42U Server Rack Network Cabinet is a robust enclosure designed for organizing and protecting 19-inch IT, networking, AV, and server equipment. This model features a 31.5-inch depth with a clear door for easy visibility. It is constructed from high-quality alloy steel to ensure durability and a superior load capacity of up to 1800 lbs.

Key features include an 8-outlet Power Distribution Unit (PDU), cooling fans, a shelf, adjustable rack rails, cable management panels, and casters with brakes for mobility and stability. The fully lockable polycarbonate front door provides security while allowing quick visual inspection of equipment status.

Figure 1: Tecmojo 42U Server Rack with key dimensions. The cabinet has an exterior depth of 31.5 inches and a maximum mountable rail depth of 26.38 inches.

2. Güvenlik Bilgileri

Please read and understand all safety instructions before assembling, installing, or operating this server rack. Failure to follow these instructions may result in injury or damage to equipment.

• Ağırlık Kapasitesi: Do not exceed the maximum load capacity of 1800 lbs (816 kg). Distribute equipment weight evenly within the rack.
• Toplantı: Assembly should be performed by at least two individuals due to the size and weight of components. Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.
• Kararlılık: Ensure the rack is placed on a level, stable surface. Use the leveling feet for additional stability, especially when the rack is stationary and fully loaded. Engage casters' brakes when moving the rack or when it is in its final position.
• Elektriksel Güvenlik: When installing electrical components, ensure all power is disconnected. Use appropriate power strips and PDUs that comply with local electrical codes. Ensure proper grounding.
• Havalandırma: Maintain adequate airflow around the cabinet to prevent overheating of equipment. Do not block ventilation openings.

3. Paket İçeriği

Montaja başlamadan önce aşağıda listelenen tüm parçaların eksiksiz ve hasarsız olduğundan emin olun. Herhangi bir parça eksik veya hasarlıysa, lütfen müşteri desteğiyle iletişime geçin.

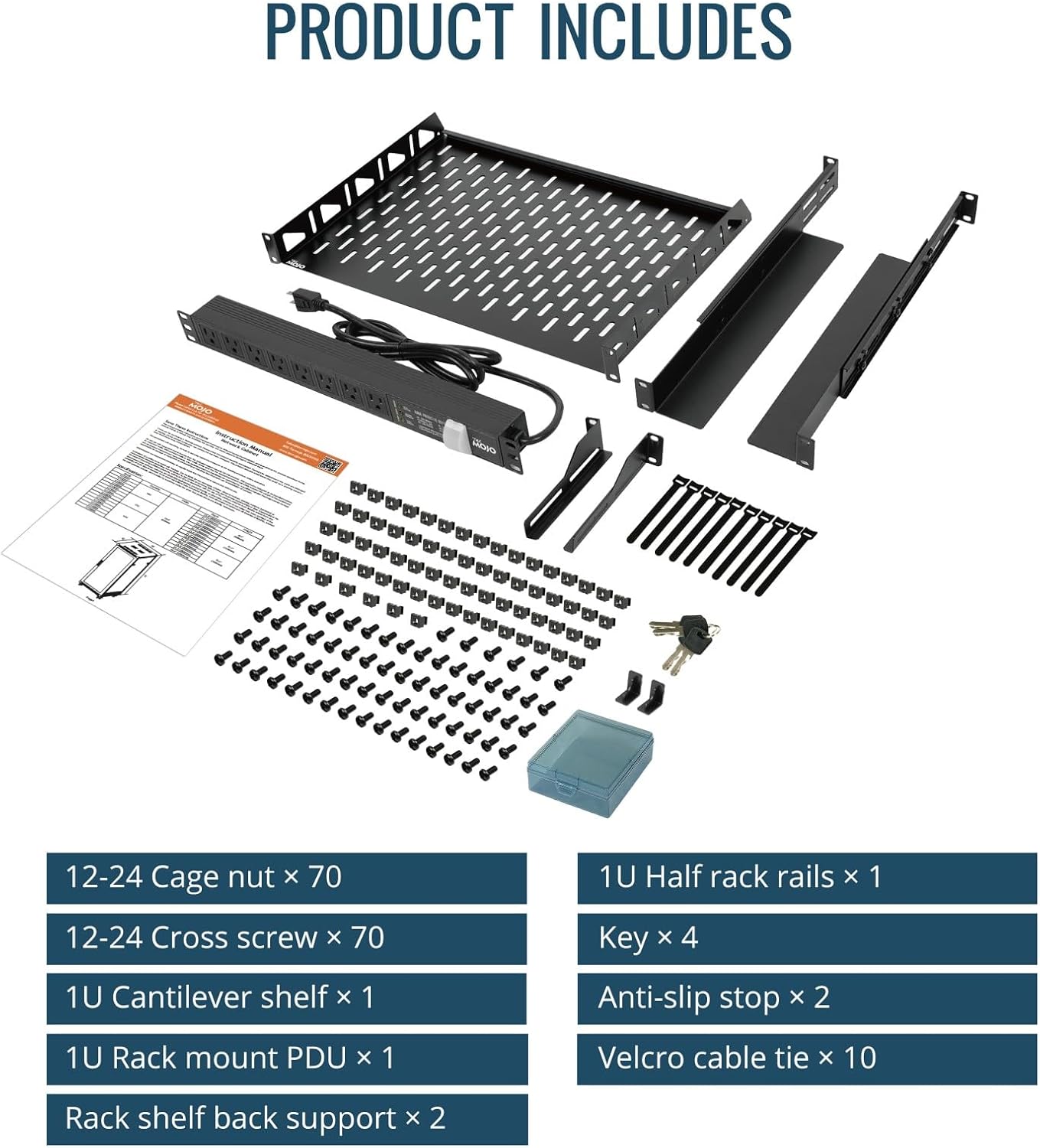

Figure 2: Included components for the Tecmojo 42U Server Rack. This includes various nuts, screws, rack rails, a cantilever shelf, a PDU, keys, anti-slip stops, and Velcro cable ties.

• 42U Server Rack Frame (unassembled)
• 8-Outlet Power Distribution Unit (PDU)
• Cooling Fans (pre-installed in top cover)
• Rack Rails (adjustable)
• 1U Cantilever Shelf
• Cable Management Panels
• Casters with Brakes
• Dengeleme Ayakları
• 12-24 Cage Nuts (x70)
• 12-24 Cross Screws (x70)
• 1U Half Rack Rails (x1)
• Tuşlar (x4)
• Anti-slip Stops (x2)
• Velcro Cable Ties (x10)
• Assembly Hardware (bolts, screws, washers)

4. Kurulum ve Montaj

The Tecmojo 42U Server Rack is designed for quick and easy assembly. It is recommended to have at least two people for assembly. Refer to the included video guide for a visual walkthrough of the assembly process.

Montaj Adımları:

1. Tüm bileşenleri paketinden çıkarın ve paket içeriği listesine göre doğrulayın.
2. Assemble the base frame of the cabinet using the provided hardware. Ensure all connections are secure but do not fully tighten screws until the entire frame is assembled.
3. Attach the vertical rack rails to the frame. The rack rails are adjustable to accommodate various equipment depths.
4. Install the top cover, which includes the pre-installed cooling fans. Secure it with the provided screws.
5. Install the side panels and the back door. These panels are removable for easy access and maintenance.
6. Attach the front clear door. Ensure the locking mechanism functions correctly.
7. Install the casters and/or leveling feet to the bottom of the cabinet. Casters provide mobility, while leveling feet offer stability.
8. Install the PDU, cantilever shelf, and cable management panels as needed using the cage nuts and screws.
9. Once all components are in place, securely tighten all screws throughout the cabinet.

5. Kullanım Talimatları

Ekipman montajı:

• Ensure the rack is stable and level before installing any equipment.
• Mount 19-inch rack-mountable equipment using the adjustable rack rails and appropriate cage nuts and screws.
• Distribute the weight of your equipment evenly from bottom to top to maintain stability.
• Utilize the cantilever shelf for non-rack-mountable devices.

Power Distribution Unit (PDU):

• Connect the PDU to a suitable power source.
• Plug your equipment into the PDU outlets. Avoid overloading the PDU's maximum current rating.

Soğutma fanları:

• The top-mounted cooling fans help dissipate heat from the cabinet. Ensure they are connected to a power source and operating correctly.
• Monitor equipment temperatures to ensure adequate cooling.

Kablo yönetimi:

• Use the provided cable management panels and Velcro ties to organize cables.
• Proper cable management improves airflow, simplifies maintenance, and prevents accidental disconnections.

Güvenlik:

• Lock the front clear door and side panels using the provided keys to secure your equipment.

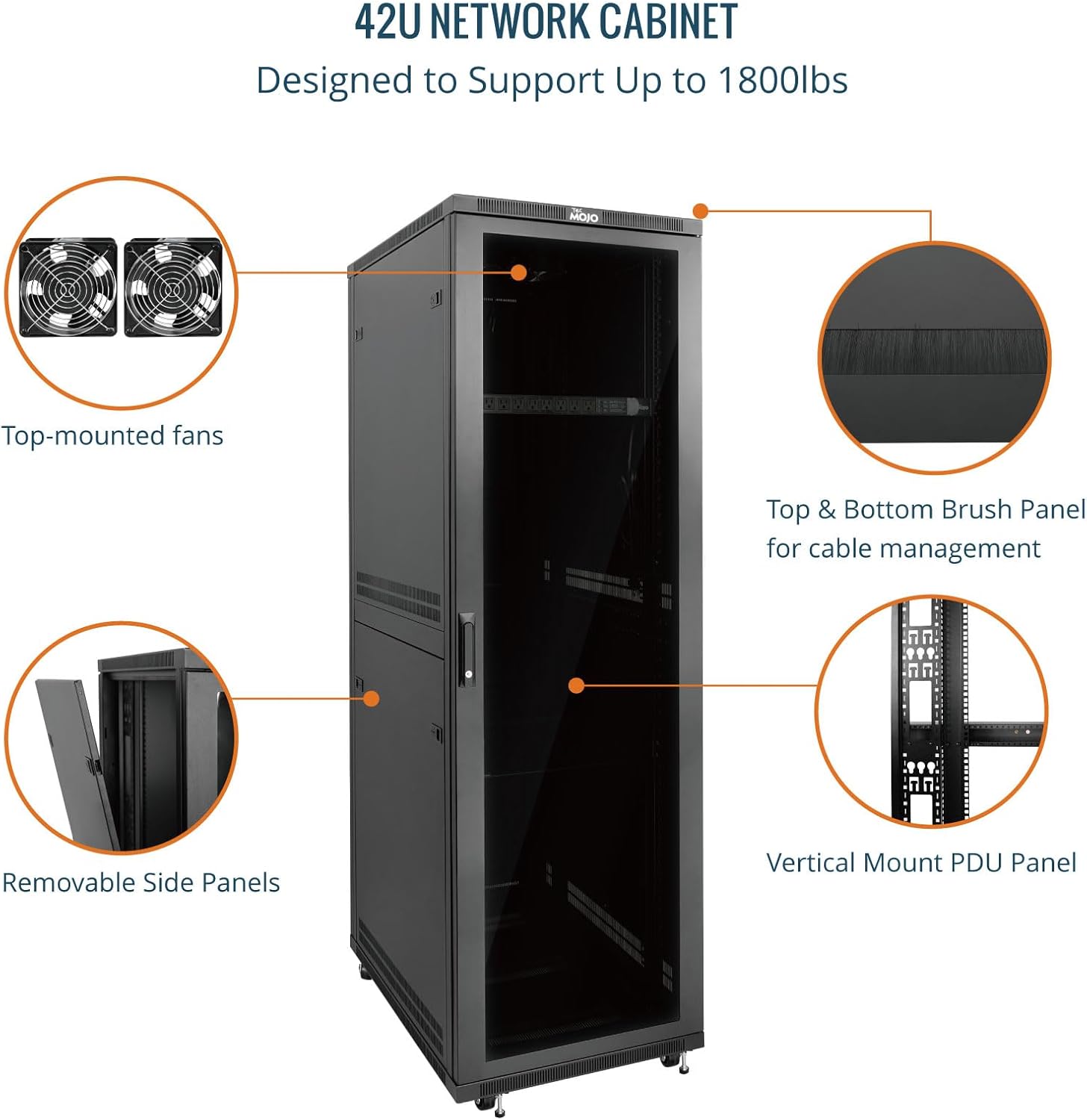

Figure 3: Internal features of the Tecmojo 42U Network Cabinet, highlighting top-mounted fans for cooling, top and bottom brush panels for cable management, removable side panels for access, and a vertical mount PDU panel.

Figure 4: The Tecmojo 42U Network Cabinet includes a PDU, shelf, and cooling fans. It also features adjustable rack rails, casters, and leveling feet for flexibility and mobility.

6. Bakım

• Temizlik: Regularly clean the exterior of the cabinet with a soft, damp cloth. Avoid abrasive cleaners. For the interior, use compressed air to remove dust from equipment and fans.
• Fan Denetimi: Periodically check the cooling fans for dust buildup and ensure they are operating quietly and efficiently. Clean or replace as necessary.
• Donanım Kontrolü: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Retighten any loose hardware.
• Kablo yönetimi: Review cable routing to ensure no cables are pinched or obstructing airflow. Adjust as needed.
• Door and Lock Functionality: Ensure the front door and side panels open, close, and lock smoothly. Lubricate hinges or locks if they become stiff.

7. Sorun Giderme

• Aşırı Isınan Ekipmanlar:
  • Ensure cooling fans are operational and not obstructed.
  • Check for proper cable management to improve airflow.
  • Verify that the room temperature is within acceptable limits for your equipment.
• Raf Dengesizliği:
  • Ensure the rack is on a level surface. Adjust leveling feet as needed.
  • Tüm montaj vidalarının iyice sıkıldığından emin olun.
  • Distribute equipment weight evenly.
• Doors or Panels Not Closing/Locking:
  • Check for any obstructions preventing the door or panel from closing fully.
  • Inspect hinges and locking mechanisms for damage or misalignment.
  • Ensure the correct key is being used for the locks.

8. Özellikler

Figure 5: Detailed specifications for the Tecmojo 42U Server Rack, showing height of 77.4 inches (1965mm), depth of 31.5 inches (800mm), length of 23.6 inches (600mm), and a weight capacity of 1800 lbs (816 kg).

9. Garanti ve Destek

Tecmojo products are manufactured to high-quality standards and come with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Tecmojo webalan.

If you encounter any issues during assembly, installation, or operation, or if you require technical assistance, please contact Tecmojo customer support. Our team is available to provide guidance and resolve any concerns you may have.

Müşteri Desteği: Yardım için lütfen şu adresi ziyaret edin: Tecmojo Store on Amazon veya ürün ambalajınızda yer alan iletişim bilgilerine başvurun.
