1. Giriş
The INKBIRD INK-VS04 Home Food Vacuum Sealer Machine is designed to preserve food freshness by removing air from specially designed bags and containers. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting of your device.
2. Güvenlik Talimatları
- Cihazı kullanmadan önce tüm talimatları okuyun.
- Cihazı, elektrik kablosunu veya fişini suya veya başka sıvılara batırmayın.
- Çocukların erişemeyeceği yerde saklayın. Çocukların yakınında kullanıldığında yakın gözetim gereklidir.
- Kullanmadığınız zamanlarda ve temizlemeden önce fişini prizden çekin.
- Kablo veya fişi hasarlı olan veya cihaz arızalandıktan veya herhangi bir şekilde hasar gördükten sonra hiçbir cihazı çalıştırmayın.
- Sadece üreticinin önerdiği aparatları kullanın.
- Açık havada kullanmayınız.
- Hareketli parçalara temas etmekten kaçının.
- Amacı dışında kullanmayınız.
- Exercise caution when handling the sealing strip, as it can become hot during operation.
- Ensure the appliance is placed on a stable, flat surface during use.
3. Paket İçeriği
The INKBIRD INK-VS04 Home Food Vacuum Sealer Machine comes with the following items:
- INK-VS04 Vacuum Sealer Machine (x1)
- 11''x16.4' / 28x500cm Bag Roll (x1)
- 8''x11.8'' / 22x30cm Food Bags (x5)
- Air Suction Tube (x1)
- Güç Kablosu (x1)
- Sticky Note (x1)
- Kullanıcı Kılavuzu (x1)
Image: All accessories included with the INKBIRD INK-VS04 Vacuum Sealer Machine.
4. Ürün Özellikleri ve Bileşenleri
The INKBIRD INK-VS04 is equipped with advanced features for efficient food preservation:
- Dual Motor, Dual Pump: Achieves a high vacuum speed of 22-25L/min for quick and stable operation.
- Wide Sealing: Features a 32cm sealing length and 5mm sealing width for secure bag closure.
- Countdown LED Display: Provides real-time progress of the vacuum process.
- Aşırı Isınma Koruması: Ensures safe operation during extended use.
- Dahili Kesici ve Torba Saklama Alanı: Conveniently stores bag rolls up to 11''x16.4' (28x500cm) and allows custom bag sizing.
- Removable Water Drip Tray: Collects excess liquid during vacuuming and is easy to clean.
- Multiple Food Modes: DRY, MOIST, LIQUID settings for various food types.
- Vacuum Strength Modes: GENTLE and NORMAL options to protect delicate foods.
- Çalışma Modları: Vac & Seal, Seal Only, Pulse, and Canister modes for versatile use.
Image: Control panel highlighting various food and operation modes.
Resim: Ayrıntılı view of variable settings for vacuum strength and sealing time.
5. Kurulum
- Cihazın ambalajını açın: Vakumlama makinesini ve tüm aksesuarlarını dikkatlice ambalajından çıkarın.
- Hasarı Kontrol Edin: Cihazda herhangi bir hasar belirtisi olup olmadığını kontrol edin. Hasarlıysa kullanmayın.
- Atama: Place the vacuum sealer on a dry, flat, and stable surface. Ensure there is enough space around the unit for proper operation.
- Güç Bağlantısı: Plug the power cable into the appliance and then into a suitable electrical outlet (220V).
- Çanta Rulosunu Takın (İsteğe Bağlı): If using a bag roll, open the lid and place the roll into the internal bag storage compartment. Pull out the desired length of bag material.

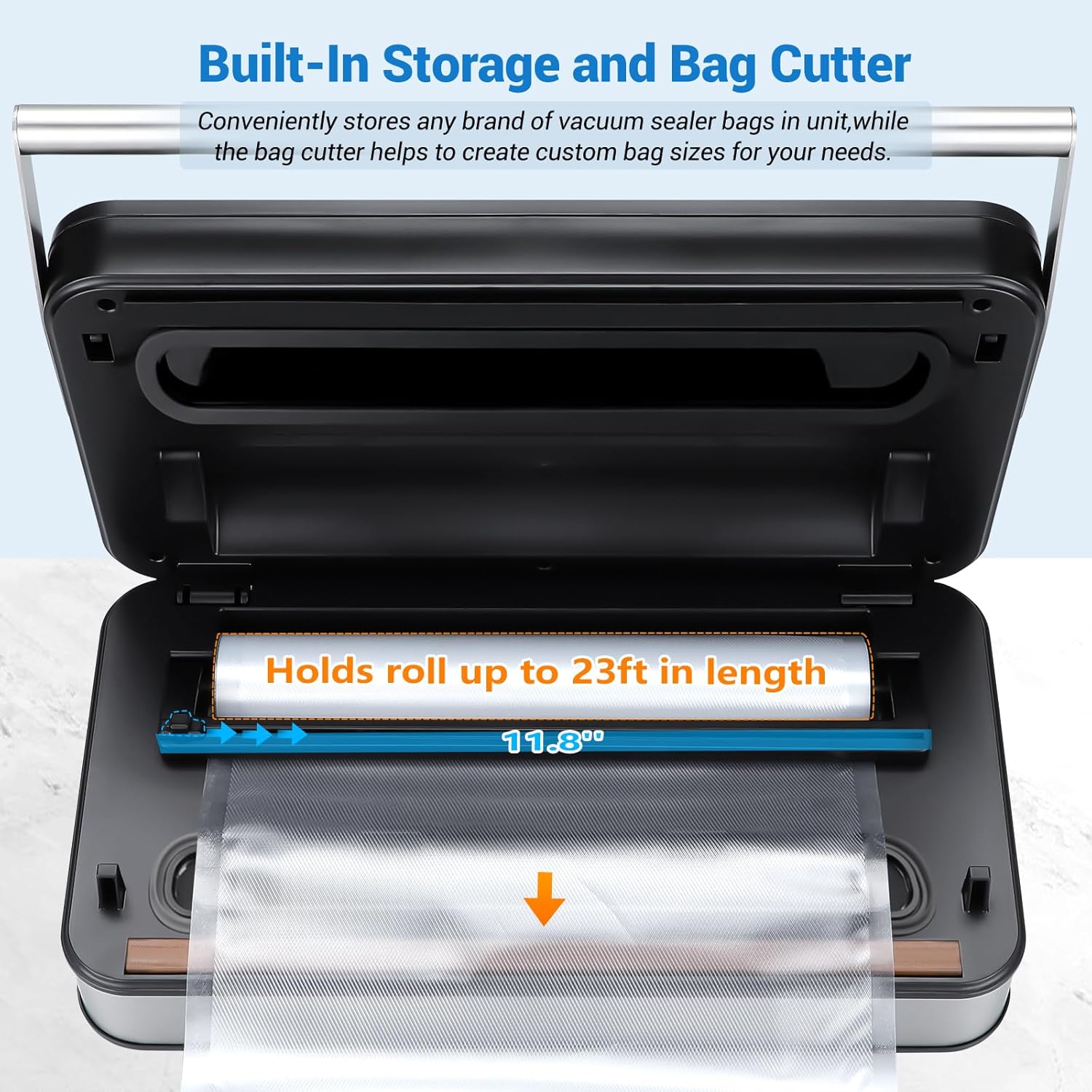

Image: Built-in bag storage and cutter for convenient bag preparation.
6. Kullanım Talimatları
6.1. Basic Vacuum Sealing (Bags)
- Çantayı Hazırlayın: Place the food item into a vacuum sealer bag, leaving at least 3 inches of space between the food and the top edge of the bag. Ensure the bag opening is clean and dry.
- Çantayı Konumlandırın: Open the lid of the vacuum sealer. Place the open end of the bag into the vacuum channel, ensuring it lies flat across the sealing strip.
- Kapağı kapat: Close the lid firmly until it locks automatically. The machine is designed for one-handed operation.
- Mod seç: Choose the appropriate food mode (DRY, MOIST, LIQUID) and vacuum strength (GENTLE or NORMAL) based on your food item.
- Çalıştırmayı Başlat: Press the 'Vac & Seal' button. The machine will automatically vacuum the air and then seal the bag. The LED display will show a countdown.
- Serbest Bırak ve Kaldır: Once the process is complete, the machine will release the lid. Carefully remove the sealed bag.
Image: Automatic locking and one-handed operation for vacuum sealing.
Video: Demonstration of an INKBIRD vacuum sealer (model IVS-011) in operation, showing the vacuum and seal process. While the model may differ slightly, the operational principles are similar.
6.2. Seal Only Function
Use this function to seal bags without vacuuming, ideal for delicate items or creating custom-sized bags from a roll.
- Çantayı Konumlandırın: Place the open end of the bag across the sealing strip.
- Kapağı kapat: Close the lid firmly until it locks.
- Sızdırmazlığa Başlayın: Press the 'Seal Only' button. The machine will create a seal without removing air.
- Çantayı Çıkar: Once the sealing is complete, remove the bag.
6.3. Nabız Fonksiyonu
The Pulse function allows manual control over the vacuum process, suitable for delicate or fragile foods that could be crushed by full vacuum pressure.
- Çantayı Konumlandırın: Torbanın açık ucunu vakum kanalına yerleştirin.
- Kapağı kapat: Close the lid firmly until it locks.
- Vakum Kontrolü: Press and hold the 'Pulse' button to start vacuuming. Release the button to stop. Repeat until desired vacuum level is reached.
- Çantayı Kapat: Once the desired vacuum is achieved, quickly press the 'Seal Only' button to seal the bag.
6.4. Canister Function
Use the included air suction tube to vacuum seal compatible canisters and containers.
- Prepare Canister: Place food into a vacuum-sealable canister and secure its lid.
- Bağlantı Borusu: Insert one end of the air suction tube into the accessory port on the vacuum sealer and the other end onto the canister's vacuum port.
- Vakumu Başlat: Press the 'Canister' button. The machine will automatically remove air from the canister.
- Bağlantıyı kes: Once vacuuming is complete, the machine will stop. Remove the air suction tube from both the machine and the canister.
Video: General demonstration of vacuum sealer bags, showing various types and uses. This video is from a different brand (Lerway) but illustrates the concept of vacuum sealer bags.
7. Bakım ve Temizlik
7.1. Cihazın Temizlenmesi
- Fişi çekin: Temizlemeden önce mutlaka cihazın fişini çekin.
- Dış Kısmı Silin: Yumuşak bir d kullanınamp cloth with mild soap to wipe down the exterior of the machine. Do not use abrasive cleaners.
- Clean Vacuum Channel: Wipe the vacuum channel and sealing strip area with a damp Bez kullanın. Hiçbir yiyecek kalıntısının kalmadığından emin olun.
- İyice Kurulayın: Saklamadan veya bir sonraki kullanımdan önce tüm parçaların tamamen kuru olduğundan emin olun.
7.2. Cleaning the Water Drip Tray
The removable water drip tray is designed to collect liquids extracted during vacuuming, preventing them from entering the machine.
- Tepsiyi çıkarın: Gently pull out the water drip tray located near the sealing strip.
- Yıkamak: Wash the tray with warm, soapy water.
- Kurutun ve Yeniden Takın: Dry thoroughly and reinsert it into its slot.
Image: Detachable drip tray being cleaned under running water.
8. Sorun Giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Makine açılmıyor. | Güç kablosu düzgün bağlanmamış. | Ensure the power cord is securely plugged into the machine and the outlet. |
| Makine vakumluyor ama kapatmıyor. | Sealing strip is dirty or wet. Bag is not positioned correctly. | Clean and dry the sealing strip. Reposition the bag, ensuring it is flat and smooth. |
| Machine seals but does not vacuum properly. | Bag is not properly placed in the vacuum channel. Bag has a hole or tear. | Ensure the bag opening is fully inside the vacuum channel. Check the bag for damage and use a new one if necessary. |
| Vakum zayıf veya tutarsızdır. | Food contents are too wet (for DRY mode). Overheating protection activated. | Use MOIST or LIQUID mode for wet foods. Allow the machine to cool down if it has been used continuously. |
| Lid does not close or open easily. | Lid is not aligned correctly. | Ensure the lid is properly aligned before pressing down to lock. Do not force it. |
9. Özellikler
| Özellik | Detay |
|---|---|
| Marka | Mürekkep kuşu |
| Örnek | MÜREKKEP-VS04 |
| Cilttage | 220V |
| Netage | 120 watt |
| Çalışma Modu | Yarı otomatik |
| Güç Kaynağı | Kablolu Elektrik |
| Ürün Ağırlığı | 3740 Gram |
| Ürün Boyutları | 43U x 27.3G x 17Y cm |
| Renk | Gümüş |
| Malzeme | Paslanmaz çelik |
10. Garanti ve Destek
INKBIRD products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty from the date of purchase. For detailed warranty information, product support, or to register your product, please visit the official INKBIRD website veya müşteri hizmetleriyle iletişime geçin.
Resmi Webalan: www.inkbird.com
Müşteri Desteği: Lütfen resmi web sitesinde verilen iletişim bilgilerine bakın. website or in your product packaging for assistance.
