PNI Escort HP 5500 CB Telsiz Kullanım Kılavuzu

1. Giriş

Thank you for choosing the PNI Escort HP 5500 CB Radio. This compact and versatile CB radio is designed for reliable communication, featuring multistandard operation, 4W power output, AM-FM modulation, and compatibility with both 12V and 24V power systems. It includes advanced features like Automatic Squelch (ASQ) and RF Gain for enhanced audio clarity and reception control. This manual provides essential information for the proper installation, operation, and maintenance of your device.

2. Güvenlik Bilgileri

• Cihazı çalıştırmadan önce tüm talimatları dikkatlice okuyunuz.
• Radyoyu yağmura, neme veya aşırı sıcaklıklara maruz bırakmayın.
• Uygun hacmi sağlayıntage supply (12V or 24V DC) to prevent damage.
• Connect the antenna correctly before transmitting to avoid damage to the transceiver.
• Üniteyi kendiniz açmaya veya onarmaya çalışmayın. Tüm servis işlemlerini kalifiye personele yaptırın.
• Radyo cihazınızı güçlü manyetik alanlardan uzak tutun.

3. Paket İçeriği

Paketin içinde tüm öğelerin mevcut olduğundan emin olun:

• PNI Escort HP 5500 CB Telsiz
• Microphone with coiled cord
• Power cord with cigarette lighter plug
• Microphone holder and screws
• Radio mounting bracket and screws
• Kullanıcı Kılavuzu

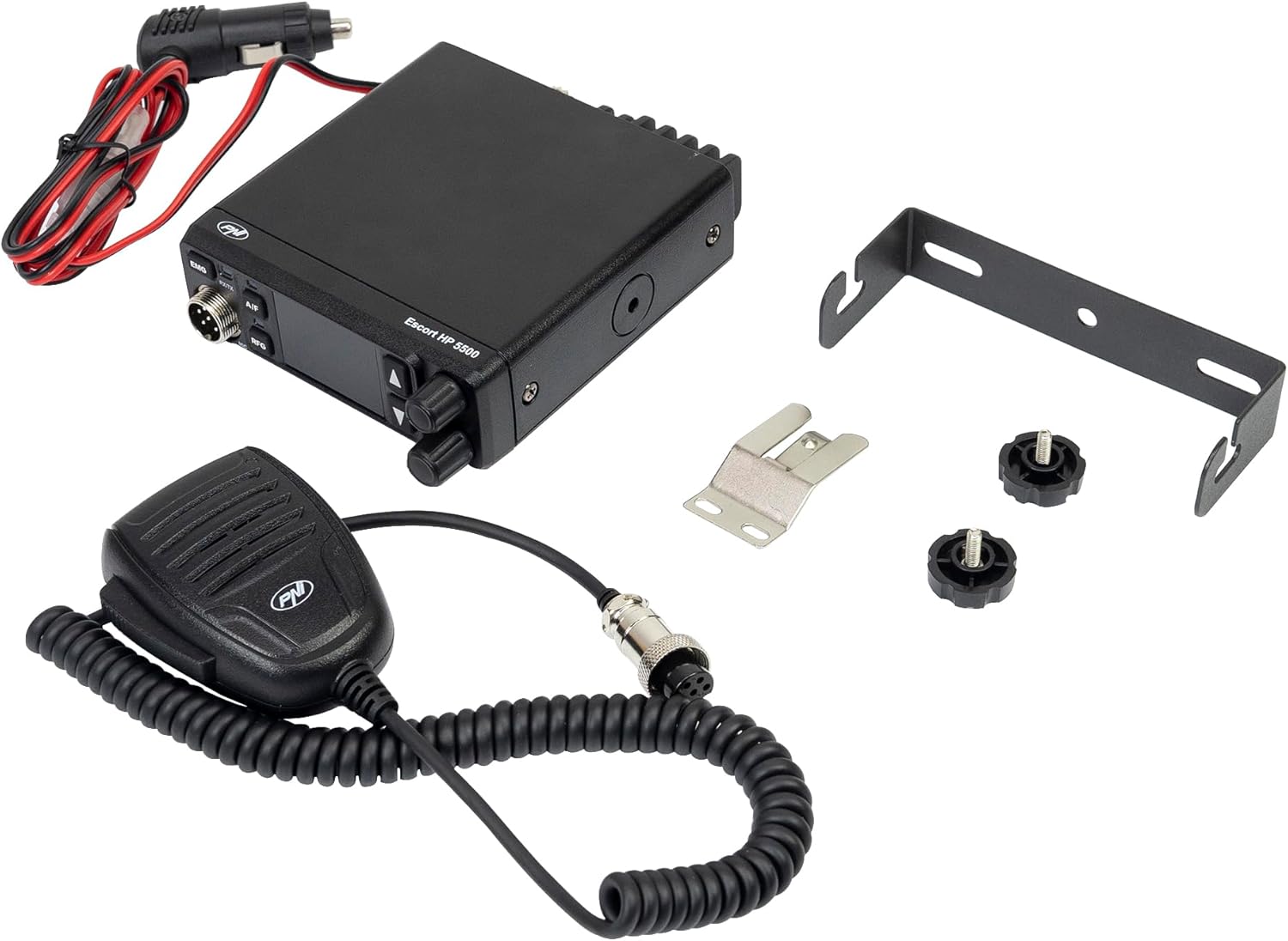

Image 3.1: PNI Escort HP 5500 CB Radio with its microphone, power cable, mounting bracket, and microphone holder.

4. Ürün Bittiview

4.1 Ön Panel

Resim 4.1: Ön view of the PNI Escort HP 5500 CB Radio, showing the display, control buttons, and microphone connection.

• Görüntülemek: Shows the current channel number and other indicators.
• EMG Düğmesi: Activates emergency channels (9/19).
• RX/TX Indicator: Illuminates green for reception (RX) and red for transmission (TX).
• A/F Düğmesi: Toggles between AM and FM modulation.
• RFG Button: Activates and adjusts RF Gain.
• YUKARI/AŞAĞI Düğmeleri: Kanal seçimi ve menüde gezinme için kullanılır.
• SQ Knob: Manual Squelch control.
• MIC Bağlantısı: Port for connecting the microphone.

4.2 Arka Panel

Resim 4.2: Arka view of the PNI Escort HP 5500 CB Radio, showing the antenna connector and power input.

• ANT Konnektörü: SO-239 type connector for CB antenna.
• Güç Girişi: For connecting the 12V/24V DC power cord.
• EXT SP: Harici hoparlör jakı.

4.3 Mikrofon

Resim 4.3: Yakın çekim view of the PNI Escort HP 5500 microphone, highlighting the PTT, UP, DOWN, and ASQ buttons.

• PTT (Bas-Konuş) Düğmesi: İletmek için basın, almak için bırakın.
• YUKARI/AŞAĞI Düğmeleri: Kanal seçimi için.
• ASQ Button: Activates and adjusts the Automatic Squelch.

5. Kurulum

5.1 Radyo Montajı

Use the provided mounting bracket and screws to secure the radio in a suitable location within your vehicle. Ensure the location allows for easy access to controls and good ventilation.

5.2 Anten Bağlantısı

Connect a compatible CB antenna (51 Ohms impedance) to the ANT connector on the rear panel of the radio. Ensure the connection is secure. It is crucial to connect the antenna before powering on the radio to prevent damage.

5.3 Güç Bağlantısı

Connect the power cord to the power input on the rear of the radio. Plug the cigarette lighter adapter into your vehicle's 12V or 24V DC power socket. The radio automatically detects the voltage.

6. Kullanım Talimatları

6.1 Güç Açma/Kapatma ve Ses

Turn the radio on by rotating the volume knob clockwise. Adjust the volume to a comfortable listening level.

6.2 Kanal Seçimi

Use the UP and DOWN buttons on the front panel or on the microphone to select the desired channel.

6.3 Modulation (AM/FM)

Basın A / F button on the front panel to switch between AM (Amplitude Modulation) and FM (Frequency Modulation) modes. The selected mode will be indicated on the display.

6.4 Squelch (SQ and ASQ)

The PNI Escort HP 5500 offers two squelch methods to eliminate background noise:

• Manuel Susturma (SQ): Döndür SQ knob clockwise until the background noise disappears. Rotate counter-clockwise to hear weaker signals.
• Otomatik Susturma (ASQ): Basın ASQ button on the microphone to activate the 5-level automatic squelch. This feature automatically filters and eliminates noise for clearer communication.

6.5 RF Gain

The 7-level RF Gain function allows you to control the receiver's sensitivity, reducing distortion from strong signals. Press the RFG button to activate and adjust the RF Gain level using the UP/DOWN buttons.

6.6 Changing Frequency Band

The PNI Escort HP 5500 supports major European bands (EU, CE, UK, PL, dE, in, i0, l2). To change the frequency band:

1. Radyo'yu kapat.
2. Aynı anda basılı tutun PTT düğme ve UP button on the microphone while restarting the radio.
3. The LED corresponding to the A / F button will illuminate, and the current standard will appear on the display.
4. Kullanın YUKARI-AŞAĞI buttons to select the desired band.
5. Restart the radio or press the PTT button to exit the band setting mode.

Image 6.1: The PNI Escort HP 5500 supports multiple European frequency bands.

6.7 Emergency Channels

Basın EMG button to quickly access emergency channels (Channel 9 for general emergencies, Channel 19 for highway information).

7. Bakım

• Clean the radio's exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Ensure all connections (antenna, power, microphone) are secure and free from corrosion.
• Avoid exposing the radio to direct sunlight or extreme heat for prolonged periods.
• Regularly check the antenna for damage and ensure it is properly tuned for optimal performance.

8. Sorun Giderme

9. Özellikler

10. Garanti ve Destek

The PNI Escort HP 5500 CB Radio comes with a 2-year manufacturer's warranty. For technical support, warranty claims, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official PNI webalan.

Spare parts availability information is not available at this time. Software updates are not guaranteed.
