HUMZOR NP716 Bidirectional Automotive Diagnostic Scan Tool User Manual

1. Giriş

The HUMZOR NP716 is an advanced bidirectional automotive diagnostic scan tool designed for comprehensive vehicle system analysis and maintenance. This device features ECU coding capabilities, all-system diagnostics, and over 17 special reset functions. Equipped with an Android 11.0 operating system and a 5.5-inch screen, it provides a user-friendly interface for efficient vehicle servicing. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your NP716 device.

2. Ürün Bittiview

2.1 Temel Özellikler

• Çift Yönlü Kontrol: Perform active tests to control vehicle components and systems.
• ECU Kodlaması: Customize vehicle settings and perform module replacement functions.
• Tüm Sistem Tanılamaları: Arıza kodlarını okuyun ve silin, view live data, and retrieve ECU information for all available vehicle systems.
• 17+ Special Reset Functions: Includes ABS Bleeding, Oil Reset, SAS Reset, TPMS Reset, EPB Reset, DPF Reset, Battery Reset, Injector Code, Throttle Learning, Gear Learning, CVT Learning, Windows, Suspension, Light, and Seat Reset.
• İşletim Sistemi: Akıcı ve sezgisel bir kullanıcı deneyimi için Android 11.0.
• Görüntülemek: 5.5 inç dokunmatik ekran.
• Bağlantı: Built-in Wi-Fi module.
• Yazılım Güncellemeleri: Includes 3 years of free software updates.

2.2 Paket İçeriği

The NP716 package typically includes the following components:

• HUMZOR NP716 Diagnostic Tablet
• VCI (Vehicle Communication Interface) Connector
• USB Şarj Kablosu
• Güç Adaptörü
• Koruyucu Taşıma Çantası
• Hızlı Başlangıç ​​Kılavuzu (tam talimatlar için bu kılavuza bakın)

Image 2.2.1: The HUMZOR NP716 diagnostic tablet, VCI module, and protective carrying case.

Image 2.2.2: A visual representation of the items included in the NP716 product package.

2.3 Cihaz Boyutları

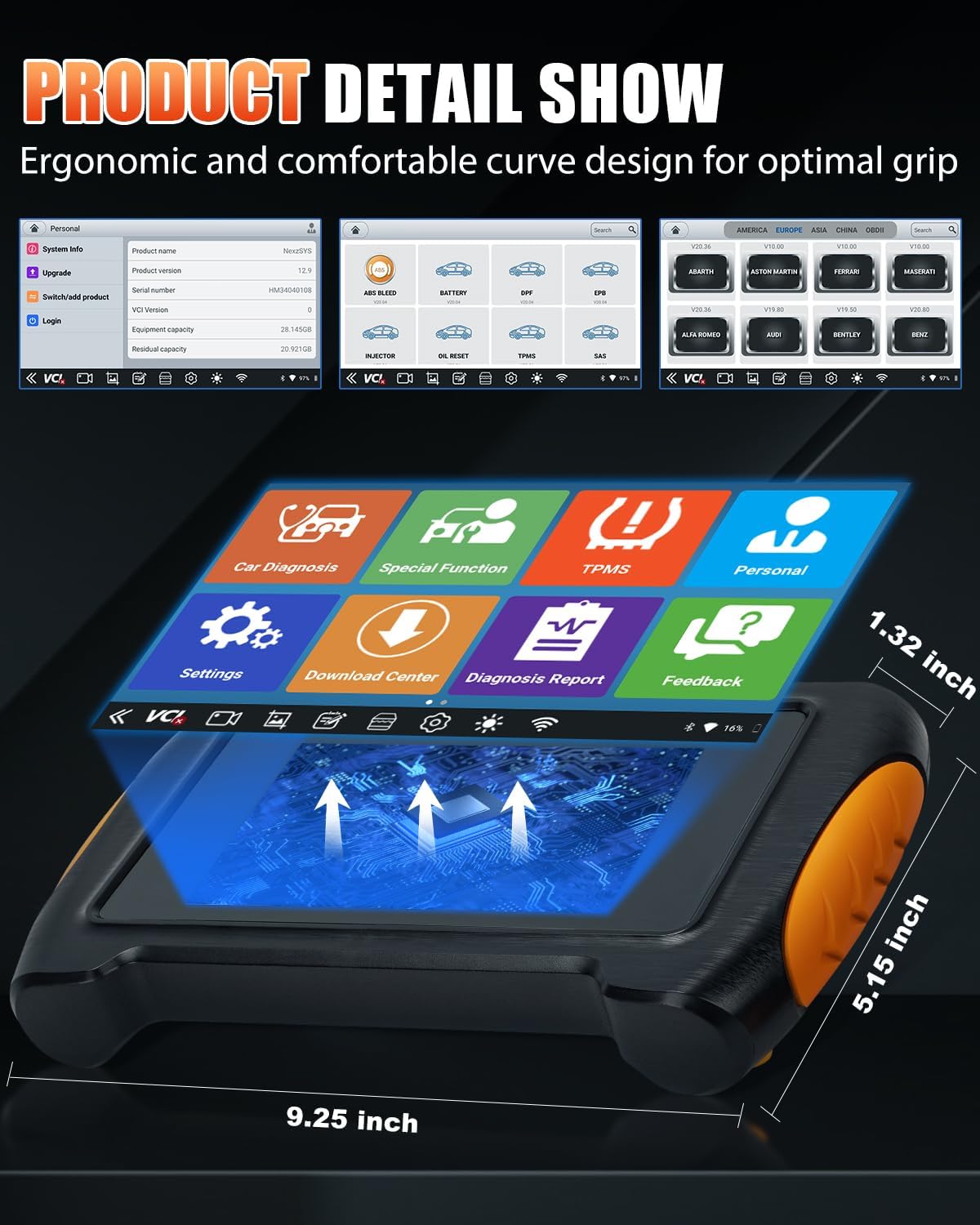

Image 2.3.1: The NP716 tablet showing approximate dimensions: 9.25 inches length, 5.15 inches width, and 1.32 inches thickness.

3. Kurulum

3.1 İlk Şarj

Before first use, ensure the NP716 tablet is fully charged. Connect the provided USB charging cable to the tablet and the power adapter, then plug the adapter into a standard electrical outlet. The charging indicator will illuminate.

3.2 Açma/Kapatma

• Güç Açık: Ekran ışığı yanana kadar tabletin yan tarafında bulunan Güç düğmesine basılı tutun.
• Kapat: Güç düğmesine basılı tutun, ardından ekranda beliren seçeneklerden 'Kapat'ı seçin.

3.3 VCI Bağlantısı

The VCI (Vehicle Communication Interface) module connects the NP716 tablet to your vehicle's OBD-II port.

1. Aracın OBD-II portunu bulun; bu port genellikle sürücü tarafındaki gösterge panelinin altında yer alır.
2. Plug the VCI module firmly into the OBD-II port. The VCI indicator lights should illuminate.
3. The NP716 tablet will automatically attempt to establish a wireless connection with the VCI module. Ensure Bluetooth and Wi-Fi are enabled on the tablet.

3.4 Wi-Fi and Software Updates

Connect the NP716 to a stable Wi-Fi network to download vehicle software and system updates.

1. From the main menu, tap 'Settings'.
2. Select 'Wi-Fi' and choose your desired network. Enter the password if prompted.
3. Once connected, navigate to the 'Download Center' or 'Upgrade' section on the main menu to download and install available software updates. Regular updates ensure compatibility with newer vehicles and improved functionality.

4. Kullanım Talimatları

4.1 Ana Arayüz Navigasyonu

The NP716 operates on Android 11.0, providing a familiar tablet-like interface. The main screen features icons for various functions:

• Car Diagnosis: For standard OBD-II and full system diagnostics.
• Özel fonksiyon: Access to various reset and service functions.
• TPMS'ler: Dedicated functions for Tire Pressure Monitoring Systems.
• Kişisel: kullanıcı profesyonelifile ve ayarlar.
• Ayarlar: Cihaz konfigürasyonu.
• İndirme Merkezi: Manage software downloads and updates.
• Tanı Raporu: View and manage saved diagnostic reports.
• Geri bildirim: Provide feedback to the manufacturer.

4.2 Car Diagnosis (OE-Level Full System Diagnostic)

This function allows for comprehensive scanning of all available electronic control units (ECUs) in the vehicle.

Image 4.2.1: The diagnostic interface displaying various vehicle systems such as ENG (Engine), SRS (Airbag), ABS (Anti-lock Braking System), AFS (Adaptive Front-lighting System), and Battery.

1. Tap 'Car Diagnosis' on the main menu.
2. Select the vehicle make, model, and year. The tool can often identify the VIN automatically.
3. Choose 'Auto Scan' for a full system scan or select specific systems (e.g., Engine, ABS, SRS, Transmission).
4. The tool will display diagnostic trouble codes (DTCs), live data streams, and freeze frame data.
5. Kodları Okuyun: Retrieve current, pending, and permanent DTCs.
6. Kodları Temizle: Erase DTCs after repairs have been made. Not: Clearing codes does not fix the underlying problem.
7. View Canlı veri: Monitor real-time sensor data and operating parameters.

4.3 Çift Yönlü Kontrol (Aktif Testler)

Bidirectional control allows the diagnostic tool to send commands to vehicle ECUs to perform specific tests and functions, verifying component integrity.

1. Within the 'Car Diagnosis' section, after selecting the vehicle, navigate to 'Active Test' or 'Bidirectional Control'.
2. Select the component or system you wish to test (e.g., fuel pump, ABS motor, window motor).
3. Follow the on-screen prompts to activate or deactivate the component and observe its response.

4.4 Özel Fonksiyonlar (17+ Sıfırlama Hizmeti)

The NP716 offers a wide range of service and reset functions for common maintenance tasks.

Image 4.4.1: A visual representation of the various special functions, including ABS Bleeding, Battery Reset, DPF Reset, EPB Reset, Injector Code, Oil Reset, TPMS Reset, SAS Reset, Throttle Learning, Gear Learning, CVT Learning, Windows, Suspension, Light, and Seat Reset.

To access these functions:

1. Tap 'Special Function' on the main menu.
2. Select the desired reset or service function from the list.
3. Follow the on-screen instructions carefully, as specific procedures may vary by vehicle make and model.

Common special functions include:

• ABS Kanaması: Bleeds air from the ABS system after brake component replacement.
• Yağ Sıfırlama: Resets the oil service light and calculates optimal oil life change interval.
• SAS Sıfırlama: Calibrates the Steering Angle Sensor after replacement or alignment.
• TPMS Sıfırlama: Resets Tire Pressure Monitoring System sensors.
• EPB Sıfırlama: Fren balataları değiştirildikten sonra elektronik park frenini sıfırlar.
• DPF Reset: Performs Diesel Particulate Filter regeneration and reset.
• Pil Sıfırlama: Registers new battery replacement with the vehicle's ECU.
• Enjektör Kodu: Programs new injector codes into the ECU.
• Gaz Kelebeği Öğrenme: Adapts the throttle body to its new position after cleaning or replacement.

4.5 ECU Kodlaması

ECU Coding allows for advanced customization and adaptation of vehicle modules. This function should only be performed by experienced technicians.

1. Access 'ECU Coding' through the 'Car Diagnosis' menu after vehicle identification.
2. Select the specific control module for coding.
3. Follow the on-screen instructions to perform coding, adaptations, or module replacement procedures.
4. Uyarı: Incorrect ECU coding can lead to vehicle malfunctions. Always ensure you have the correct procedures and data before proceeding.

5. Bakım

5.1 Cihaz Bakımı

• Keep the device clean using a soft, dry cloth. Avoid abrasive cleaners or solvents.
• Cihazı kullanılmadığı zamanlarda hasardan korumak için koruyucu taşıma çantası içinde saklayın.
• Cihazı aşırı sıcaklıklara, doğrudan güneş ışığına veya yüksek neme maruz bırakmaktan kaçının.

5.2 Pil Yönetimi

The NP716 is equipped with a Lithium Ion battery. To prolong battery life:

• Cihazı tamamen boşalmasına izin vermeden düzenli olarak şarj edin.
• If storing the device for an extended period, ensure it is charged to approximately 50-70%.

5.3 Yazılım Güncellemeleri

Regularly check for and install software updates via the 'Download Center' to ensure optimal performance, expanded vehicle coverage, and new features.

6. Sorun Giderme

6.1 Cihaz Açılmıyor

• Pilinin dolu olduğundan emin olun. Cihazı güç adaptörüne bağlayın ve tekrar deneyin.
• If the device is unresponsive, perform a hard reset by holding the power button for approximately 10-15 seconds.

6.2 VCI Connection Issues

• Verify the VCI module is securely plugged into the vehicle's OBD-II port.
• Check if the VCI indicator lights are on.
• Ensure Bluetooth and Wi-Fi are enabled on the NP716 tablet.
• Restart both the NP716 tablet and the vehicle's ignition.

6.3 Unable to Communicate with Vehicle

• Confirm the vehicle's ignition is in the 'ON' position (engine off).
• Ensure the VCI is properly connected and communicating with the tablet.
• Verify that the correct vehicle make, model, and year have been selected in the diagnostic software.
• Aracın OBD-II devresinde herhangi bir sigortanın atmış olup olmadığını kontrol edin.

6.4 Software Update Failures

• İstikrarlı ve güçlü bir Wi-Fi bağlantısı sağlayın.
• Cihazda yeterli depolama alanı olup olmadığını kontrol edin.
• Try restarting the device and attempting the update again.

7. Özellikler

8. Garanti ve Destek

For warranty information and technical support, please refer to the documentation provided with your purchase or contact HUMZOR customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

For the latest software updates and additional resources, visit the official HUMZOR webalan.
