1. Giriş ve Güvenlik Bilgileri
Satın aldığınız için teşekkür ederizasing the Amewi AMXRock Caballo 22670 RC Crawler. This manual provides essential information for the safe operation, setup, and maintenance of your new remote-controlled vehicle. Please read this manual thoroughly before operating the product to ensure proper function and to prevent damage or injury.
1.1 Genel Güvenlik Yönergeleri
- Always operate the vehicle in open areas away from people, pets, and obstacles.
- Halka açık yolların, elektrik hatlarının veya su kaynaklarının yakınında çalıştırmayın.
- Ellerinizi, saçlarınızı ve bol giysilerinizi hareketli parçalardan uzak tutun.
- This product is not a toy. It is intended for users aged 14 years and older.
- Never disassemble or modify the vehicle or remote control.
- Ensure all batteries are charged correctly and safely.
- Store the vehicle and remote control in a dry, cool place when not in use.
2. Paket İçeriği
Carefully unpack all items and check against the list below. If any components are missing or damaged, please contact your retailer or Amewi support.
- Amewi AMXRock Caballo 22670 RC Crawler
- 2.4GHz Uzaktan Kumanda
- Rechargeable Vehicle Battery
- Pil Şarj Cihazı
- Kullanım Kılavuzu (bu belge)
Note: Batteries for the remote control are typically not included and must be purchased separately (e.g., AA batteries).
3. Kurulum
3.1 Araç Aküsünün Şarj Edilmesi
Before first use, fully charge the included vehicle battery using the provided charger. Refer to the charger's specific instructions for charging times and indicators. Always supervise charging and disconnect the battery once fully charged.
3.2 Uzaktan Kumanda Pillerinin Takılması
Open the battery compartment on the back of the remote control. Insert the required batteries (e.g., 4x AA batteries, not included) ensuring correct polarity. Close the compartment securely.
Image: The 2.4GHz remote control for the Amewi AMXRock Caballo 22670, showing its ergonomic design and control layout.
3.3 Araç Aküsü Takılması
Locate the battery compartment on the vehicle, typically under the body shell. Securely connect the charged vehicle battery to the vehicle's power connector. Ensure the battery is properly seated and secured to prevent movement during operation. Reattach the body shell if removed.
Resim: Yan view of the Amewi AMXRock Caballo 22670 RC Crawler, highlighting its robust chassis and large off-road tires.
4. Kullanım Talimatları
4.1 Açma/Kapatma
- Öncelikle uzaktan kumandayı açın. Gösterge ışığı yanmalıdır.
- Turn on the vehicle's power switch. The vehicle's lights or indicator should illuminate.
- The remote control and vehicle should automatically pair. If not, refer to the troubleshooting section.
- To power off, turn off the vehicle first, then the remote control.
4.2 Sürüş Kontrolleri
- Gaz Tetiği: Pull the trigger to move forward, push it away to brake or reverse.
- Direksiyon: Turn the wheel left or right to steer the vehicle.
4.3 2 Vitesli Şanzıman
The AMXRock Caballo features a 2-speed transmission, controllable directly from the transmitter. This allows you to switch between a high-speed gear for open terrain and a low-speed gear for maximum torque and control during technical crawling. Consult your remote control's specific button layout for the gear shift function.
4.4 Individual Differential Locks
The vehicle is equipped with individual differential locks, which can be engaged or disengaged from the transmitter. Locking the differentials provides increased traction and climbing ability, especially on very difficult or uneven terrain. Unlock them for better turning radius and less stress on the drivetrain on smoother surfaces. Refer to your remote control's specific button layout for differential lock controls.
4.5 Functional Winch
A functional winch is installed under the model body. This can be controlled from the transmitter to assist in recovery situations, such as pulling the vehicle out of mud or over obstacles. Ensure the winch cable is properly spooled and free of tangles before use. Consult your remote control's specific button layout for winch operation.

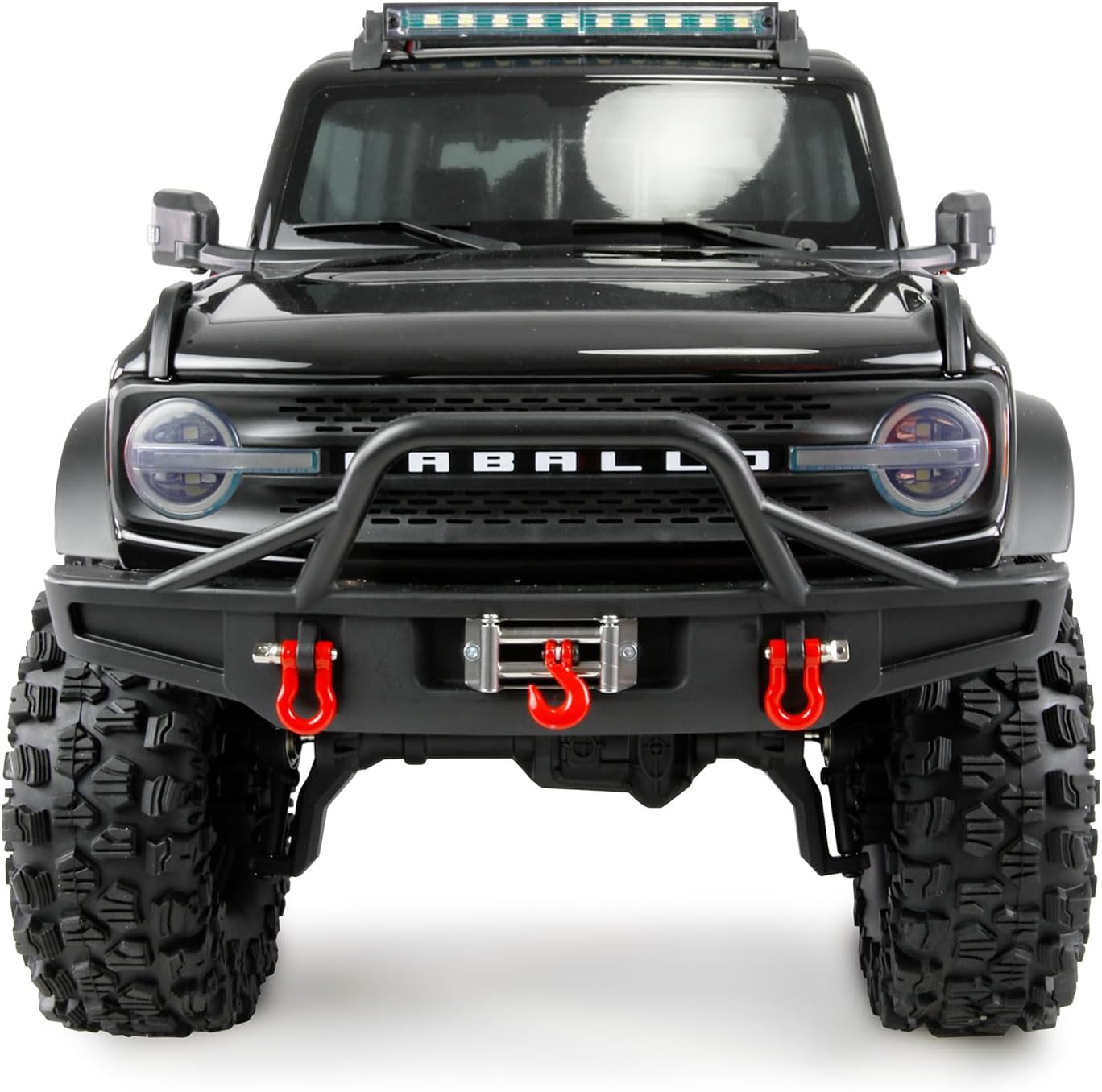

Resim: Ön view of the Amewi AMXRock Caballo 22670, showcasing the front bumper, LED headlights, and the integrated winch.
4.6 LED Aydınlatma Sistemi
The vehicle features a comprehensive LED lighting system, including front/rear lights, turn signals in rearview mirrors, brake lights, reversing lights, and roof lights. These functions are controllable via the transmitter, enhancing realism and visibility during operation. Refer to your remote control's specific button layout for lighting controls.

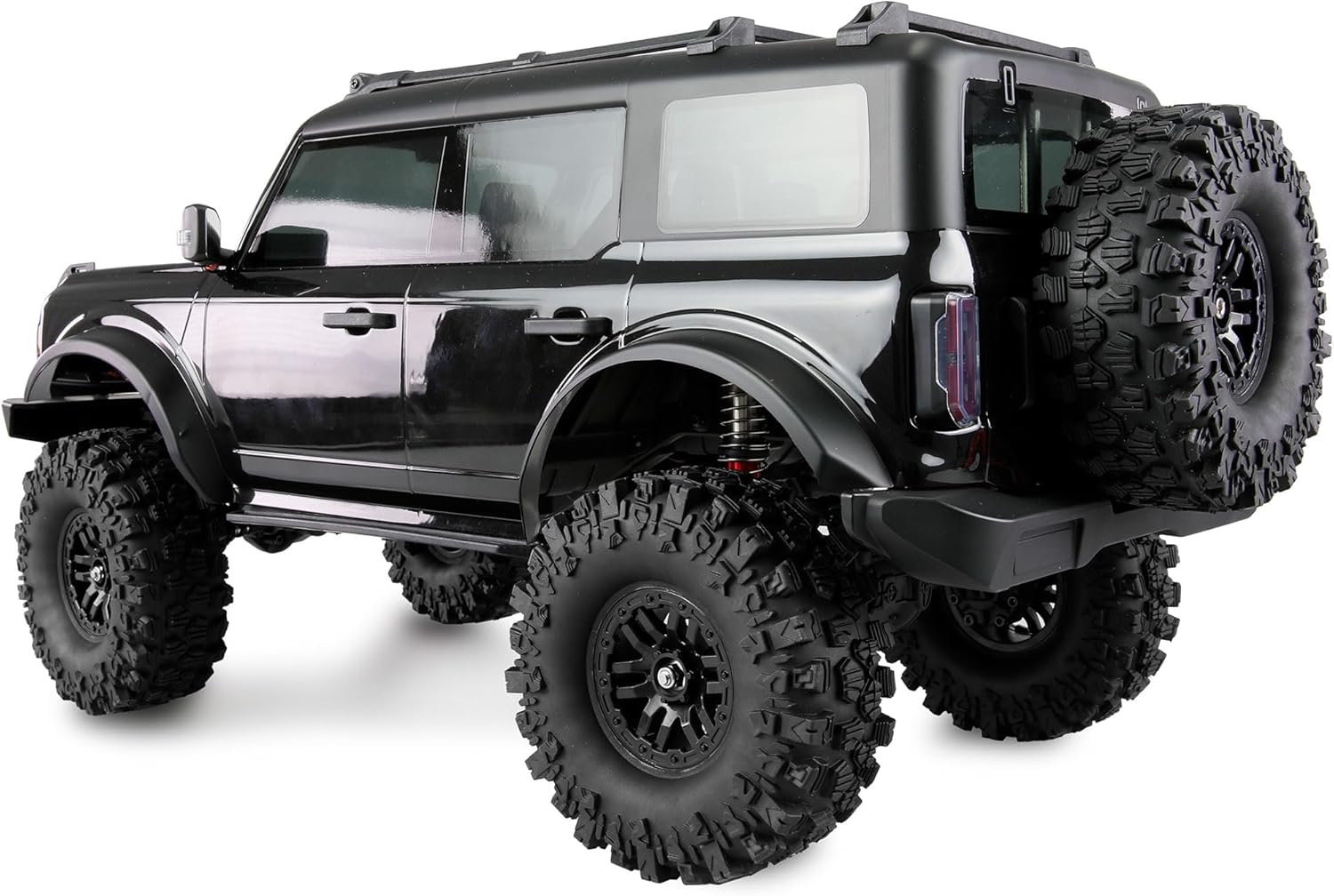

Image: Rear three-quarter view of the Amewi AMXRock Caballo 22670, showing the detailed rear lights, spare tire, and roof rack.
5. Bakım
5.1 Temizlik
- Her kullanımdan sonra, özellikle kirli veya ıslak koşullarda, aracı temizleyin.
- Şasi, süspansiyon ve aktarma organlarındaki kir ve döküntüleri temizlemek için yumuşak bir fırça veya basınçlı hava kullanın.
- Vücudu reklamla silinamp kumaş. Sert kimyasallar kullanmayın.
5.2 Muayene
- Tüm vidaların ve bağlantı elemanlarının sıkılığını düzenli olarak kontrol edin.
- Inspect tires for wear and ensure they are securely mounted.
- Check suspension components for damage or excessive play.
- Tüm elektrik bağlantılarının sağlam ve korozyonsuz olduğundan emin olun.
5.3 Yağlama
Periodically lubricate moving parts, especially the gantry axles with metal gears and CVD drive shafts, to ensure smooth operation and reduce wear. Use RC-specific lubricants as recommended by Amewi or your retailer.
6. Sorun Giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Vehicle does not respond | Low vehicle battery Uzaktan kumandanın pilleri zayıf Doğru eşlenmemiş Power switches off | Charge vehicle battery Uzaktan kumanda pillerini değiştirin Turn off both, then turn on remote first, then vehicle Ensure both power switches are ON |
| Poor range or interference | Yakınlarda başka 2.4 GHz cihazlar var Engeller sinyali engelliyor | Move to a different location Ensure clear line of sight to vehicle |
| Vehicle pulls to one side | Steering trim not adjusted Hasarlı direksiyon bileşenleri | Adjust steering trim on remote control Inspect steering linkage for damage |
| Winch not operating | Winch power off Kablo dolaşmış | Ensure winch function is activated on remote Untangle cable, ensure free movement |
7. Özellikler
| Özellik | Detay |
|---|---|
| Marka | Amewi |
| Model Adı | AMXRock Caballo |
| Model Numarası | 22670 |
| Ölçek | 1: 14 Ölçek |
| Tahrik Sistemi | 4WD (Dört Tekerlekten Çekiş) |
| Motor Tipi | Brushed Electric |
| Bulaşma | 2-Speed (Controllable via Transmitter) |
| Akslar | Gantry axles with greased metal gears and CVD drive shafts |
| Differential Locks | Individual, controllable via Transmitter |
| Özel Özellikler | Functional Winch, Front/Rear LED Lighting with Turn Signals, Brake Lights, Reversing Lights, Roof Lights |
| Uzaktan kumanda | 2.4GHz Operation |
| Malzeme Türü | Plastik |
| Renk | Metalik Siyah |
| Ürün Ağırlığı | 3813 Gram |
| Boyutlar (U x G x Y) | 568 mm x 250 mm x 255 mm (22.36 x 9.84 x 10.04 inç) |
| Montaj Gerekli | Evet |
| Önerilen Yaş | 14 yaş ve üzeri |
8. Garanti ve Destek
Amewi products are manufactured to high-quality standards. For warranty information, please refer to the documentation provided with your purchase or contact your retailer. If you encounter any issues or require technical assistance, please contact Amewi customer support through their official website or your point of purchase. Please have your model number (22670) and proof of purchase ready when contacting support.
