WEN DF8000X 8000-Watt Dual Fuel Portable Generator User Manual

giriiş

This manual provides essential information for the safe and efficient operation of your WEN DF8000X 8000-Watt Dual Fuel Portable Generator. Please read and understand all instructions and safety precautions before operating the generator. Proper use and maintenance will ensure long-lasting performance and reliability.

Güvenlik Bilgileri

UYARI: Karbon Monoksit Tehlikesi

Generators produce carbon monoxide (CO), a colorless, odorless, poisonous gas. Operating a generator indoors or in partially enclosed spaces can cause serious injury or death. ALWAYS operate the generator outdoors in a well-ventilated area, far away from windows, doors, and vents.

Your WEN DF8000X generator is equipped with a CO Watchdog Shutdown Sensor. This sensor is designed to automatically shut down the generator if dangerous levels of carbon monoxide are detected. While this feature enhances safety, it is not a substitute for proper ventilation and safe operating practices. Always use a battery-operated CO alarm in your home or RV when operating a generator nearby.

Genel Güvenlik Önlemleri:

• Çalıştırmadan önce kılavuzun tamamını okuyun.
• Çocukları ve evcil hayvanları jeneratörden uzak tutun.
• Jeneratörü yağmurda veya ıslak koşullarda çalıştırmayın.
• Jeneratörün uygun şekilde topraklandığından emin olun.
• Sıcak veya çalışan bir motora asla yakıt doldurmayın. Yakıt eklemeden önce jeneratörün soğumasını bekleyin.
• Store fuel in approved containers in a well-ventilated area, away from ignition sources.
• Jeneratörü aşırı yüklemeyin.
• Wear appropriate personal protective equipment (PPE) when operating or maintaining the generator.

Bileşenlerview

Familiarize yourself with the main components of your WEN DF8000X generator:

Image: WEN DF8000X Dual Fuel Portable Generator, highlighting the CO Watchdog sensor and dual fuel capability. This image shows the overall structure of the generator with its protective frame and wheels.

• Kontrol Paneli: Contains outlets, switches, data meter, and circuit breakers.
• Motor: 340cc 4-stroke engine.
• Yakıt Deposu (Benzin): 6.7-gallon capacity.
• Propan Girişi: Connection point for an external propane tank.
• Elektrikli Marş: Key switch for easy starting.
• Geri Tepme Başlangıcı: Manual pull-start as a backup.
• Wheels and Handle Kit: Taşınabilirlik için.
• CO İzleme Sensörü: Safety feature to detect carbon monoxide.

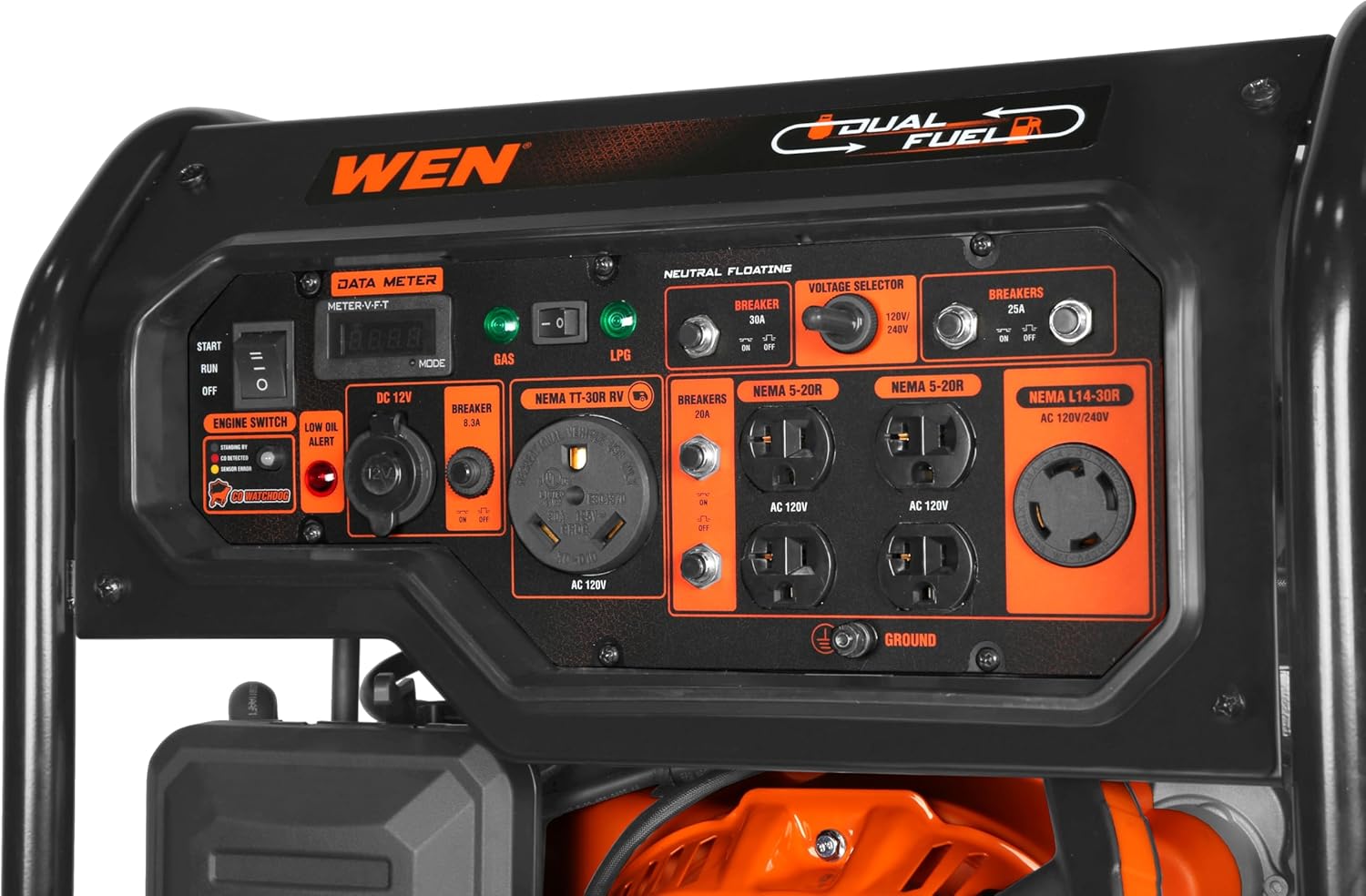

Resim: Yakın çekim view of the WEN DF8000X generator control panel, showing the data meter, outlets (120V 5-20R, 120V 30-amp TT-30R RV, 120V/240V 30-amp NEMA L14-30R), DC 12V receptacle, circuit breakers, and fuel selector switch.

Kurmak

Before first use, perform the following steps:

1. Ambalajın açılması ve Montaj:
   • Remove the generator and all components from the packaging.
   • Attach the wheels and support legs using the provided hardware.
   • Install the handle kit.
2. Motor Yağı Ekleyin:
   • Yağ doldurma kapağını/yağ çubuğunu bulun.
   • Add the recommended amount and type of engine oil (typically 10W-30, refer to the oil capacity in specifications). Do not overfill.
   • The generator ships without oil. Ensure oil is added before starting.
3. Pili bağlayın:
   • Connect the positive (+) battery cable (red) to the positive terminal on the battery.
   • Connect the negative (-) battery cable (black) to the negative terminal on the battery.
   • Bağlantıların güvenli olduğundan emin olun.
4. Yakıt ikmali:
   • Benzin: Ensure the generator is off and cool. Fill the gasoline tank with fresh, unleaded gasoline (minimum 87 octane). Do not overfill.
   • propan: Connect a standard propane tank (not included) to the generator's propane inlet using a suitable hose and regulator (often included). Ensure all connections are tight to prevent leaks.

Jeneratörün Çalıştırılması

Jeneratörünüzü güvenli bir şekilde çalıştırmak için şu adımları izleyin:

1. Başlangıç ​​Öncesi Kontrol Listesi:
   • Ensure the generator is on a level surface, outdoors, and away from any structures.
   • Motor yağı seviyesini kontrol edin.
   • Ensure sufficient fuel (gasoline or propane).
   • Make sure all circuit breakers on the control panel are in the "OFF" position.
   • Jeneratör çıkışlarından tüm elektrik yüklerini ayırın.
2. Starting on Gasoline (Electric Start):
   • Yakıt vanasını "AÇIK" konumuna getirin.
   • Set the fuel selector switch on the control panel to "GAS".
   • Motor soğuksa, jikle kolunu "JİKLE" konumuna getirin.
   • Insert the key into the ignition switch and turn it to the "START" position. Release once the engine starts.
   • Once the engine runs smoothly, gradually move the choke lever to the "RUN" position.
3. Starting on Propane (Electric Start):
   • Ensure the propane tank is connected and the valve on the tank is open.
   • Set the fuel selector switch on the control panel to "LPG".
   • Motor soğuksa, jikle kolunu "JİKLE" konumuna getirin.
   • Insert the key into the ignition switch and turn it to the "START" position. Release once the engine starts.
   • Once the engine runs smoothly, gradually move the choke lever to the "RUN" position.
4. Elektrik Yüklerinin Bağlanması:
   • Stabilize olması için jeneratörün birkaç dakika çalışmasına izin verin.
   • Flip the circuit breakers on the control panel to the "ON" position.
   • Plug in your appliances or extension cords. Do not exceed the generator's rated wattage.
5. Jeneratörün Durdurulması:
   • Disconnect all electrical loads from the outlets.
   • Turn the circuit breakers to the "OFF" position.
   • If running on gasoline, turn the fuel valve to the "OFF" position and allow the engine to run until it runs out of fuel (this helps prevent carburetor issues).
   • Eğer propanla çalışıyorsa, propan tankındaki vanayı kapatın.
   • Turn the ignition key to the "OFF" position.

Bakım

Regular maintenance is crucial for the longevity and safe operation of your generator. Always ensure the generator is off and cool before performing any maintenance.

• Motor Yağı Değişimi:
  • Change the engine oil after the first 20-25 hours of operation, then every 50 hours or annually, whichever comes first. For heavy use, more frequent changes (e.g., every 24 hours) are recommended.
  • Drain old oil when the engine is warm. Refill with the recommended oil type and amount.
• Hava Filtresi:
  • Inspect the air filter every 50 hours or every 3 months.
  • Clean or replace the air filter element if it is dirty or damaged.
• Buji:
  • Inspect the spark plug every 100 hours or every 6 months.
  • Clean or replace the spark plug as needed. Ensure proper gap setting.
• Yakıt Sistemi:
  • Yakıt hatlarını ve bağlantı noktalarını düzenli olarak sızıntı veya hasar açısından kontrol edin.
  • If storing the generator for an extended period, drain the gasoline or use a fuel stabilizer to prevent fuel degradation.
• Genel Temizlik:
  • Jeneratörünüzü temiz ve kalıntılardan uzak tutun.
  • Ensure cooling fins are clear for proper heat dissipation.

Sorun giderme

Bu bölümde jeneratörünüzde karşılaşabileceğiniz yaygın sorunlar ele alınmaktadır.

Özellikler

Key technical specifications for the WEN DF8000X generator:

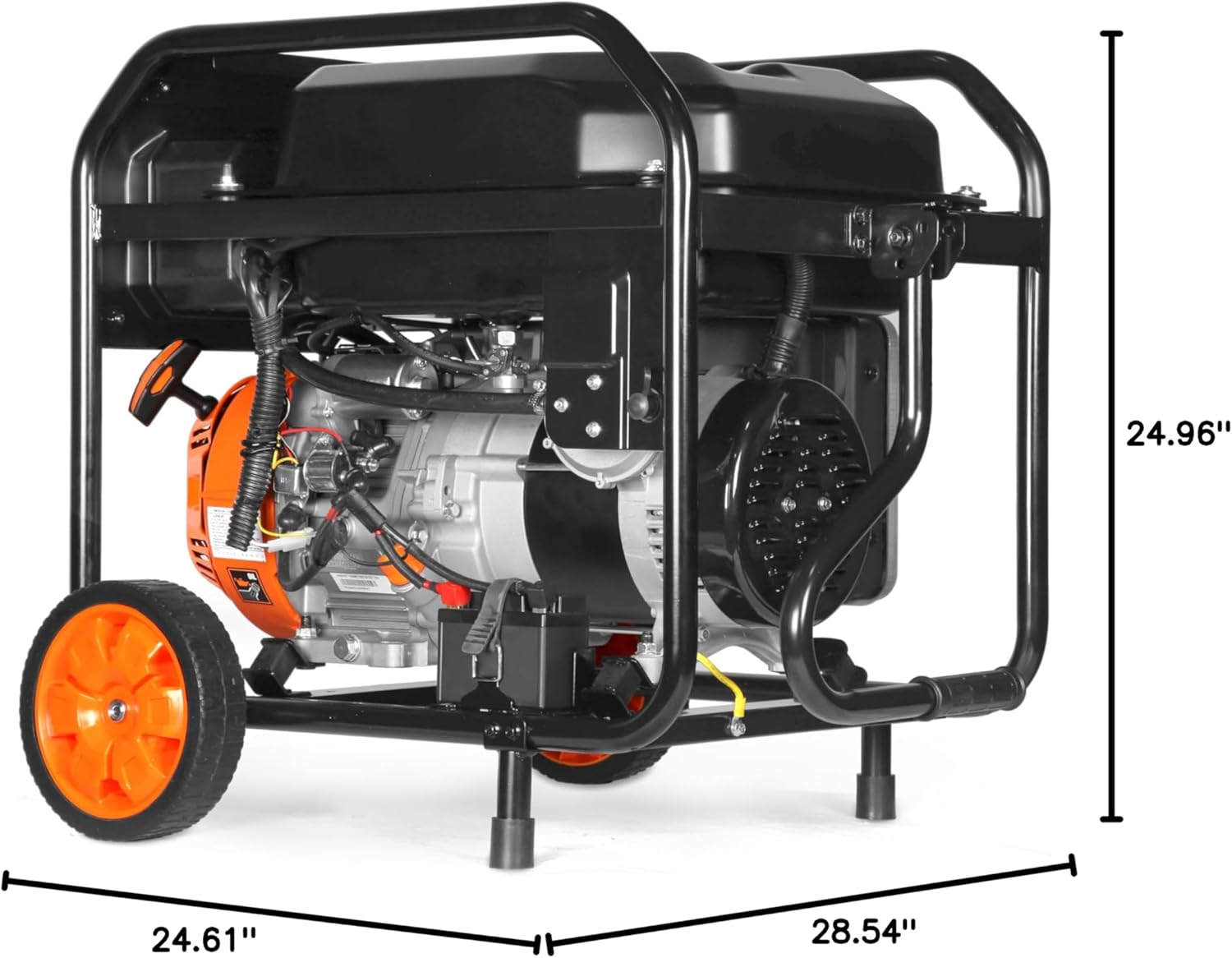

Image: Diagram showing the dimensions of the WEN DF8000X generator: 28.54 inches (L) x 24.61 inches (W) x 24.96 inches (H).

Faydalı Videolar

The following videos provide additional visual guidance for your WEN DF8000X generator:

Garanti ve Destek

Your WEN DF8000X generator comes with a three-year limited warranty. For warranty claims, technical assistance, or to locate authorized service centers, please contact WEN customer support.

WEN Customer Support: Resmi WEN'e bakın. website or the contact information provided with your product for the most up-to-date support details.
