Amica WA 484 072 8kg Front-Load Washing Machine User Manual

1. Giriş ve Güvenlik Bilgileri

This image shows the Amica WA 484 072 front-load washing machine with its door open, revealing the stainless steel drum. The control panel is visible at the top.

Thank you for choosing the Amica WA 484 072 8kg Front-Load Washing Machine. This manual provides essential information for the safe and efficient operation of your appliance. Please read it thoroughly before first use and keep it for future reference.

Temel Özellikler:

• 8 kg Kapasite: Suitable for medium to large laundry loads.
• Max. 1400 RPM Spin Speed: Daha hızlı kurutma için etkili su tahliyesi.
• Brushless Motor (BLDC): Energy-efficient, quiet, and durable due to reduced friction and heat generation.
• 15 Yıkama Programı: Versatile options for various fabric types and soil levels.
• LED ekran: Clear and intuitive interface for program selection and monitoring.
• Çocuk Kilidi: Çocukların yanlışlıkla çalıştırmasını önler.
• AutoSensor Automatic Load Sensing: Optimizes water and energy consumption based on load size.
• AquaStop Safety Hose: Provides protection against water leaks.
• Automatic Unbalance System & Overflow Protection: Enhances safety and performance.

Yangın, elektrik çarpması ve kişilerin yaralanma riskini azaltmak için elektrikli aletleri kullanırken her zaman temel güvenlik önlemlerine uyun.

2. Kurulum ve Kurulum

Proper installation is crucial for the safe and efficient operation of your washing machine. Please ensure all steps are followed carefully.

2.1 Paketin açılması

Remove all packaging materials, including the transport bolts located at the rear of the machine. Keep the packaging for potential future transport. Failure to remove transport bolts will cause severe vibration and damage during operation.

2.2 Konumlandırma ve Tesviye

Place the washing machine on a firm, level floor. Adjust the leveling feet at the bottom of the machine to ensure it is perfectly stable and level. Use a spirit level to verify. An unlevel machine can cause excessive noise and vibration.

2.3 Su Bağlantısı

Connect the supplied water inlet hose to the cold water tap and the corresponding inlet valve on the back of the washing machine. Ensure all connections are tight to prevent leaks. The AquaStop safety hose provides additional protection.

2.4 Drenaj Bağlantısı

Securely place the drain hose into a standpipe or over the edge of a sink, ensuring it is properly hooked to prevent it from falling out. The drain hose should be positioned at a height between 60 cm and 100 cm from the floor.

2.5 Elektrik Bağlantısı

Güç kablosunu topraklı bir elektrik prizine takın. Ses seviyesinin düşük olduğundan emin olun.tage ve frekans değerlerinin cihazın bilgi plakasındaki özelliklerle eşleştiğinden emin olun. Uzatma kablosu veya adaptör kullanmayın.

3. Kullanım Talimatları

This section guides you through the daily use of your Amica washing machine.

3.1 Kontrol Paneli Üstüview

Yakın çekim view of the Amica WA 484 072 washing machine's control panel, featuring a central program selector dial, an LED display showing '3:18', and various buttons for temperature, spin speed, and start/pause functions.

The control panel features a program selector dial, an LED display, and buttons for additional functions such as temperature, spin speed, and start delay. The LED display shows the remaining time and selected options.

3.2 Çamaşırların Yüklenmesi

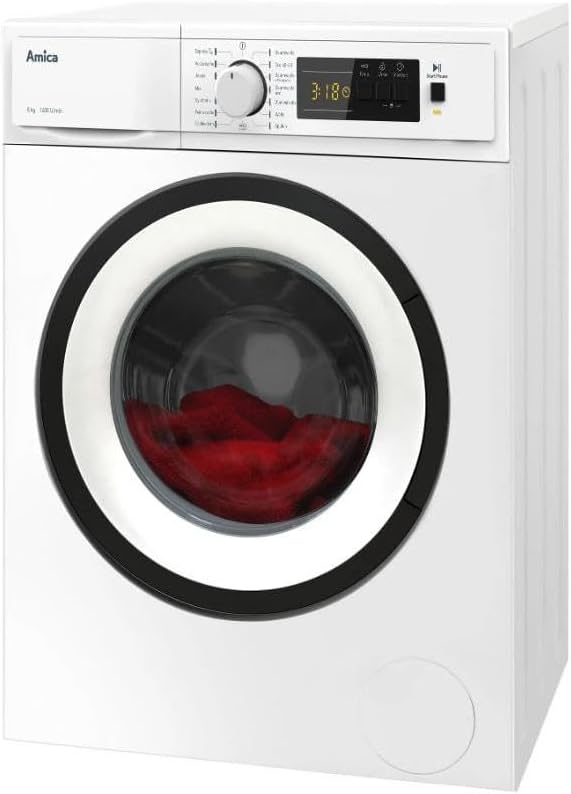

The Amica WA 484 072 washing machine with its door closed, showing red laundry visible through the porthole. The machine appears ready for a wash cycle.

Open the washing machine door and load your sorted laundry. Do not overload the machine; ensure there is enough space for the clothes to tumble freely. Close the door firmly.

3.3 Deterjan ve Yumuşatıcı Ekleme

Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and fabric softener to its designated compartment. Refer to your detergent packaging for dosage recommendations.

3.4 Program Seçimi

Turn the program selector dial to choose one of the 15 available washing programs:

• İfade etmek
• Quick Wash (Kurzwäsche)
• Kot
• Karışım
• Synthetics (Synthetik)
• Delicates (Feinwäsche)
• Spin (Schleudern)
• Anti-Allergy (Anti-Allergie)
• Yün (Wolle)
• Rinse (Spülen)
• Cotton (Baumwolle)
• Eko 40-60
• Cotton Pre-wash (Baumwolle Vorwäsche)
• Coloreds (Buntwäsche)
• Boşaltmak

The LED display will show the default settings for the selected program.

3.5 Ayarların Yapılması

Use the corresponding buttons to adjust temperature (cold/20/30/40/50/60/70°C) and spin speed (--/400/600/800/1000/1200/1400 RPM) if desired. You can also set a start delay (1-24 hours) for convenience.

3.6 Yıkama Döngüsünü Başlatma

Press the "Start/Pause" button to begin the selected wash program. The machine will automatically detect the load size (AutoSensor) and adjust water and energy consumption.

3.7 Çocuk Kilidi İşlevi

To prevent children from accidentally changing settings or starting the machine, activate the child lock. Refer to the control panel for the specific button combination (usually pressing and holding two buttons simultaneously for a few seconds). The child lock symbol will appear on the display. Repeat the action to deactivate.

4. Bakım ve Özen

Düzenli bakım, çamaşır makinenizin uzun ömürlü olmasını ve optimum performans göstermesini sağlar.

4.1 Deterjan Bölmesinin Temizlenmesi

Deterjan kalıntısı birikmesini önlemek için deterjan haznesini periyodik olarak çıkarıp akan su altında temizleyin.

4.2 Tamburun Temizlenmesi

Run a maintenance wash cycle (e.g., a hot cotton program without laundry and with a descaling agent or washing machine cleaner) once a month to clean the drum and remove any odors or residue.

4.3 Tahliye Filtresinin Temizlenmesi

Locate the drain filter at the bottom front of the machine. Open the cover, place a shallow container underneath to catch residual water, and carefully unscrew the filter. Clean any lint or foreign objects from the filter and its housing. Reinsert and tighten the filter securely.

4.4 Dış Cephenin Temizlenmesi

Çamaşır makinesinin dış yüzeylerini yumuşak bir bezle silin.amp bezle silin. Aşındırıcı temizleyiciler veya çözücüler kullanmayın.

5. Sorun Giderme

Müşteri hizmetleriyle iletişime geçmeden önce lütfen aşağıdaki yaygın sorunlara ve çözümlerine bakın.

6. Teknik Özellikler

Detailed specifications for the Amica WA 484 072 washing machine.

7. Garanti ve Müşteri Desteği

For warranty information, please refer to the documentation provided with your purchase or visit the official Amica website. In case of technical issues or questions not covered in this manual, please contact Amica customer support. Have your model number (WA 484 072) and serial number ready when contacting support.
