1. Giriş
This manual provides essential information for the safe and efficient operation of your XtremepowerUS 1HP Portable Shallow Well Pump. This electric water pump is designed for various applications including irrigation, water transfer, draining water from shallow wells, lakes, ponds, rain barrels, and water tanks. Please read all instructions carefully before use and retain this manual for future reference.
2. Güvenlik Bilgileri
Yangın, elektrik çarpması ve kişisel yaralanma riskini azaltmak için her zaman temel güvenlik önlemlerine uyun. Bu talimatlara uyulmaması ciddi yaralanmalara veya maddi hasara yol açabilir.
- Elektriksel Güvenlik: Ensure the pump is connected to a properly grounded 115V/60Hz power outlet. Do not operate the pump with a damaged cord or plug. Keep all electrical connections dry.
- Su güvenliği: This pump is not intended for potable (drinking) water. Do not use the pump in areas where flammable liquids or gases are present.
- Kişisel Güvenlik: Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves. Keep children and pets away from the operating pump.
- Aşırı Isınma Koruması: The pump features a scientific cooling vent design and an automatic shut-off mechanism to protect the motor from dry running. However, avoid prolonged dry running.
- İşleme: Use the integrated iron handle for safe and stable transport.
3. Paket İçeriği
Paketleri açtığınızda tüm eşyaların mevcut olduğundan emin olun:
- XtremepowerUS 1HP Portable Shallow Well Pump (Model 76091)
- Kullanım Kılavuzu (bu belge)
4. Ürün Bittiview
The XtremepowerUS 1HP Portable Shallow Well Pump is constructed with a durable stainless steel pump head, a PP0-GF20 plastic impeller, and a high-material single-end mechanical seal for reliability. It features an integrated iron handle for portability and a robust motor with a scientific cooling vent design.

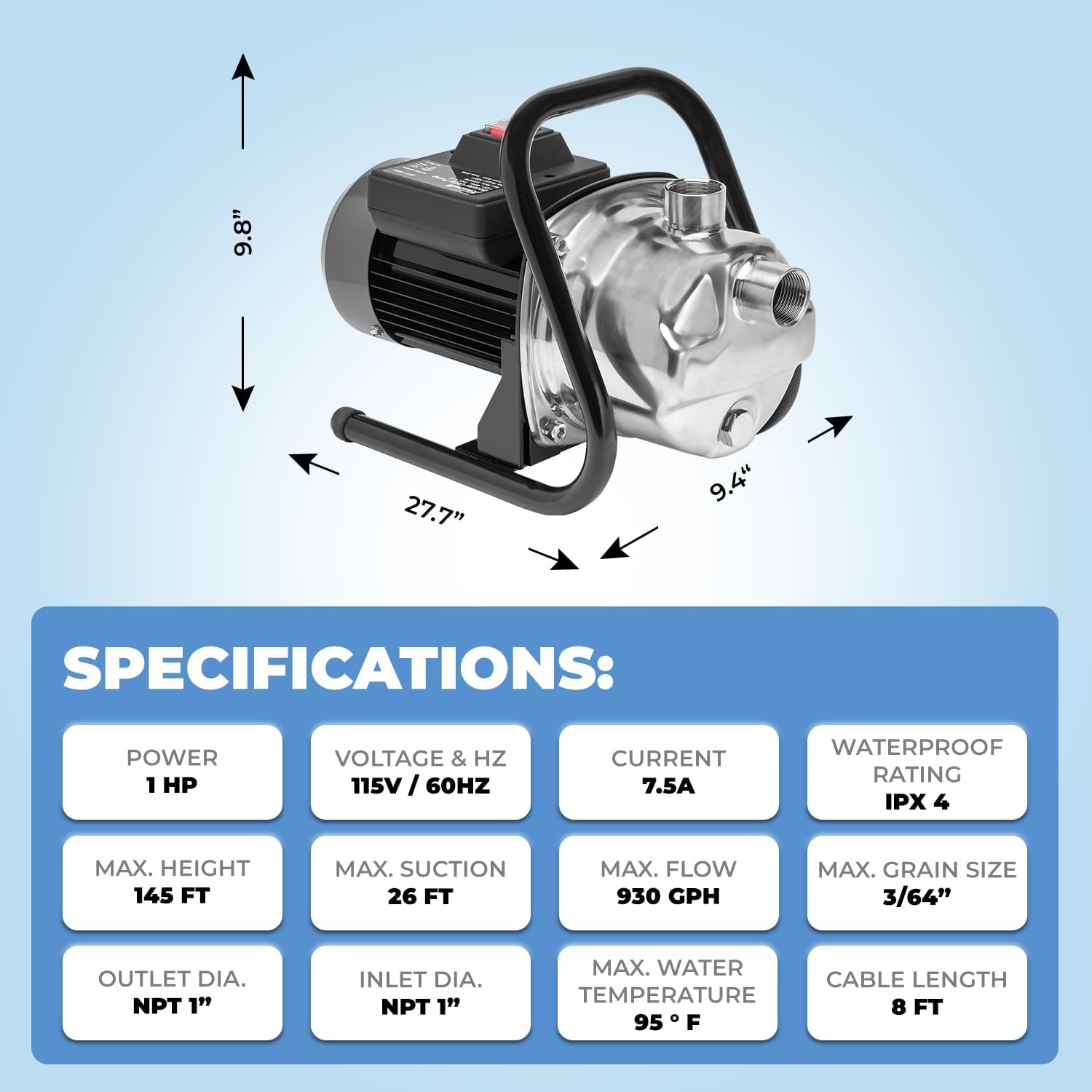

Şekil 4.1: Pump Dimensions. This image illustrates the physical dimensions of the pump, showing a height of 9.8 inches, a width of 27.7 inches, and a depth of 9.4 inches.
Şekil 4.2: Başlıca Özelliklerview. This image provides a visual summary of the pump's technical specifications, including 1 HP power, 115V/60Hz voltage, 7.5A current, IPX4 waterproof rating, 145 ft max height, 26 ft max suction, 930 GPH max flow, 3/64 inch max grain size, NPT 1 inch outlet/inlet diameter, 95°F max water temperature, and 8 ft cable length.
5. Kurulum Talimatları
Doğru kurulum, en iyi performans ve güvenlik için çok önemlidir.
- Atama: Position the pump on a stable, level surface. Ensure it is close enough to the water source and power outlet without requiring extension cords.
- Bağlantılar: Connect the inlet (suction) hose to the pump's NPT 1" inlet and the outlet (discharge) hose to the NPT 1" outlet. Ensure all connections are tight to prevent leaks and maintain prime.
- Pompanın Hazırlanması: This pump is self-priming, but it is essential to fill the pump casing with water before the first use or after the pump has been drained.
Şekil 5.1: Priming the Pump. This image demonstrates the critical step of filling the pump with water before operation. It also shows typical setups for connecting to water taps and for self-priming directly from a water source.
- Güç Bağlantısı: Plug the pump into a grounded 115V/60Hz electrical outlet.
6. Kullanım Talimatları
Güvenli ve etkili çalışma için şu adımları izleyin:
- Ilk başlangıç: After priming and connecting to power, turn on the pump using the power switch. The pump will begin to draw water.
- İzleme: Observe the pump during operation. Ensure there are no leaks and that water is flowing as expected. The pump is designed to provide a maximum flow of 930 GPH and can lift water up to 145 feet with a maximum suction of 26 feet.
- Otomatik Kapanma: The pump is equipped with a safety feature that automatically shuts off the motor if it detects dry running, protecting the motor from damage.
- Kapat: When finished, turn off the power switch and disconnect the pump from the power source.
Şekil 6.1: Optimized Performance. This diagram visually represents the pump's performance capabilities, highlighting its maximum flow rate, maximum lifting height, and maximum suction depth.
Şekil 6.2: Performance Curve. This graph illustrates the pump's flow rate (GPH) at various head lift heights (FT), providing a detailed understanding of its operational characteristics.
7. Bakım
Regular maintenance ensures longevity and consistent performance.
- Temizlik: Periodically clean the exterior of the pump. Ensure cooling vents are free from debris to maintain proper motor cooling.
- Kışlama: If operating in freezing temperatures, drain all water from the pump and hoses to prevent damage from ice expansion. Store the pump in a dry, protected area.
- Denetleme: Regularly inspect the power cord, plug, and all hose connections for wear or damage. Replace any damaged components immediately.
8. Sorun Giderme
Yaygın sorunlar ve çözümleri için bu bölüme bakın.
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Pump does not start or hums but does not pump water. | No power; Clogged impeller; Air in pump/lines (loss of prime); Motor overload. | Check power connection and circuit breaker. Disconnect power and inspect impeller for obstructions. Re-prime the pump by filling the casing with water. Allow motor to cool if overloaded. |
| Düşük su akışı veya basıncı. | Partial clog in inlet/outlet; Air leak in suction line; Insufficient water source; Incorrect pressure setting. | Check and clear any clogs. Inspect suction line for leaks and tighten connections. Ensure water source is adequate. Adjust pressure settings if applicable (refer to specific pressure switch instructions if present). |
| Pompa çalışıyor ancak su tahliyesi olmuyor. | Pump not primed; Suction lift too high; Inlet hose blocked. | Ensure pump is properly primed. Verify suction lift is within the 26 ft maximum. Check inlet hose for blockages. |
| Pump shuts off unexpectedly. | Dry running detected; Motor overheating; Electrical issue. | Ensure continuous water supply to prevent dry running. Allow pump to cool. Check electrical connections. |
9. Özellikler
Detailed technical specifications for the XtremepowerUS 1HP Portable Shallow Well Pump.
| Özellik | Şartname |
|---|---|
| Model Numarası | 76091 |
| Güç | 1.0 beygir |
| Cilttage | 115 Volt / 60 Hz |
| Akım | 7.5 Amps |
| Maksimum Akış Hızı | 930 GPH (Saat Başına Galon) |
| Maksimum Kaldırma Yüksekliği | 145 Ayak |
| Maksimum Emiş Kaldırma | 26 Ayak |
| Su Geçirmezlik Derecesi | IPX4 |
| Maximum Grain Size | 3/64 inç |
| Giriş çapı | NPT 1 inch |
| Çıkış Çapı | NPT 1 inch |
| Maksimum Su Sıcaklığı | 95° F |
| Kablo Uzunluğu | 8 Ayak |
| Ürün Ağırlığı | 20.9 pound |
| Malzeme | Steel, Aluminum, Metal, Stainless Steel |
| UPC | 840166543863 |
10. Garanti Bilgileri
For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official XtremepowerUS webGaranti kapsamı genellikle satın alma tarihinden itibaren belirli bir süre boyunca malzeme ve işçilik kusurlarını kapsar.
11. Müşteri Desteği
If you have any questions, require technical assistance, or need to report an issue with your XtremepowerUS 1HP Portable Shallow Well Pump, please contact XtremepowerUS customer service. Contact information can typically be found on the product packaging or the official brand webalan.
