Ingco 550W Electric Planer PL5508 User Manual

1. Giriş

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Ingco 550W Electric Planer, Model PL5508. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage. Keep this manual in a safe place for future reference.

2. Güvenlik Talimatları

Genel Elektrikli Alet Güvenlik Uyarıları:

• Çalışma Alanı Güvenliği: Çalışma alanını temiz ve iyi aydınlatılmış tutun. Dağınık veya karanlık alanlar kazalara davetiye çıkarır. Yanıcı sıvılar, gazlar veya toz gibi patlayıcı ortamlarda elektrikli aletleri kullanmayın. Elektrikli aletler, tozu veya dumanı tutuşturabilecek kıvılcımlar oluşturur. Elektrikli alet kullanırken çocukları ve çevredeki kişileri uzak tutun. Dikkat dağıtıcı unsurlar kontrolü kaybetmenize neden olabilir.
• Elektriksel Güvenlik: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
• Kişisel Güvenlik: Always wear eye protection. Use personal protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions. Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.

Specific Planer Safety Warnings:

• Aleti yere koymadan önce kesicinin durmasını bekleyin. Açıkta dönen bir kesici yüzeye temas ederek olası kontrol kaybına ve ciddi yaralanmaya neden olabilir.
• Hold the power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Contact with a 'live' wire will also make exposed metal parts of the power tool 'live' and could give the operator an electric shock.
• Her zaman cl'yi kullanamps veya iş parçasını sabit bir platforma sabitlemenin ve desteklemenin başka bir pratik yolu. İş parçasını elle veya vücudunuza dayayarak tutmak onu dengesiz bırakır ve kontrol kaybına yol açabilir.
• Keep hands away from the planing area. Never reach under the tool or near the rotating blades.
• Ensure the blades are sharp and correctly installed before operation. Dull or improperly installed blades can cause kickback and poor performance.

3. Ürün Bittiview

The Ingco 550W Electric Planer PL5508 is a robust power tool designed for efficient wood planing. It features a powerful 550W motor and a heavy-duty aluminum base for durability and precision.

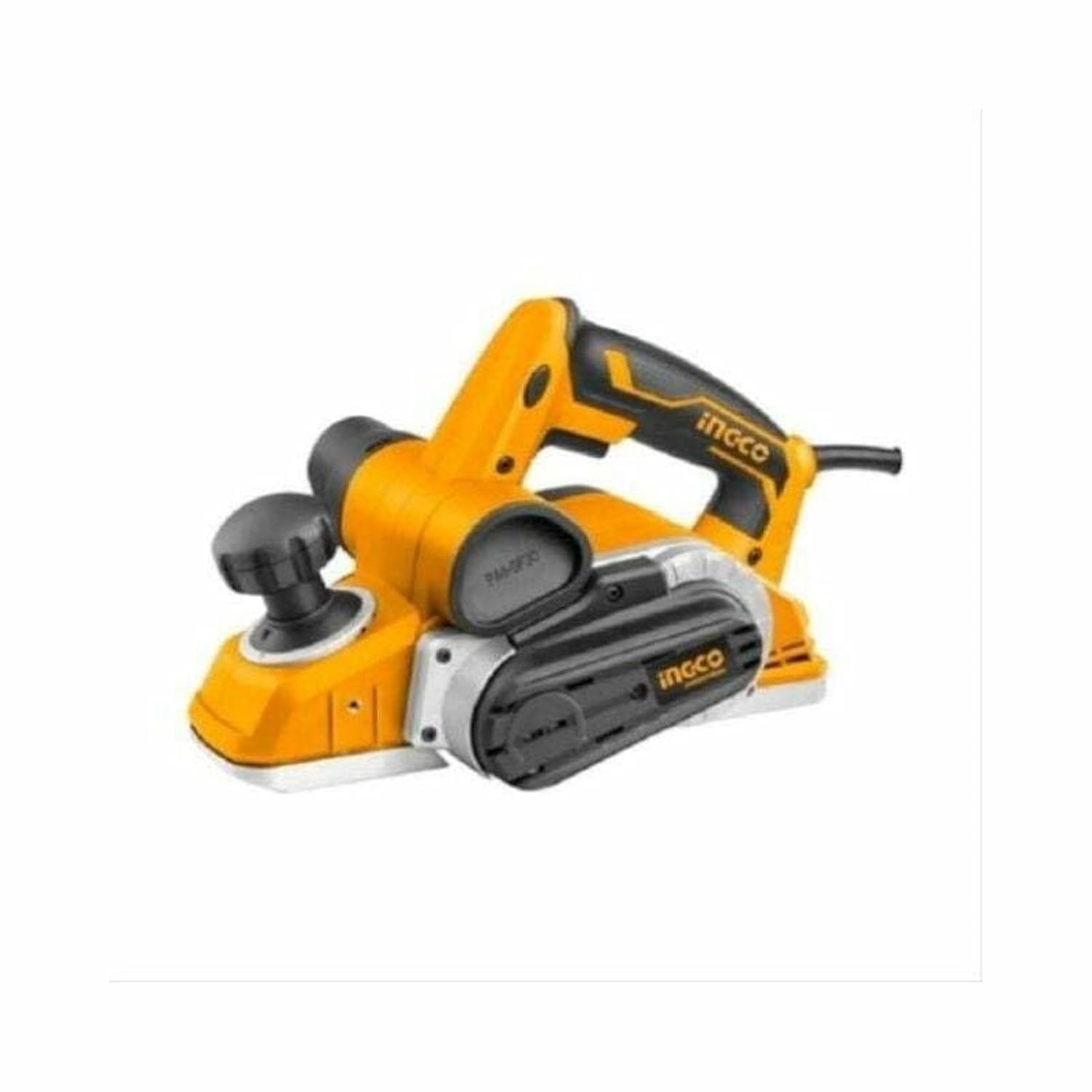

Image of the Ingco 550W Electric Planer, Model PL5508, showing its main body and handle.

Temel Bileşenler:

• Motor Muhafazası: 550W'lık motor içerir.
• Ön Sap: For guiding the planer.
• Rear Handle (with Trigger Switch): For operating the planer and controlling power.
• Derinlik Ayar Düğmesi: To set the desired planing depth.
• Planlama Tabanı: Heavy-duty aluminum base for smooth operation.
• Çip Çıkarma Portu: For sawdust removal.
• Bıçaklar: Reversible or replaceable cutting blades.

Dahil Aksesuarlar:

• 1 x Pipe Wrench
• 1 x Parallel Guide for Precision

4. Kurulum

Before starting any work, ensure the planer is unplugged from the power source.

4.1 Paketin açılması

Carefully remove the planer and all accessories from the packaging. Inspect for any damage that may have occurred during transit. Retain packaging for future storage or transport.

4.2 Blade Installation/Adjustment

The planer comes with blades pre-installed. If replacement or adjustment is needed:

1. Aleti fişten çekin.
2. Bıçak cl'yi bulunamping screws on the cutter head.
3. Loosen the screws using the provided pipe wrench.
4. Carefully remove the old blade. Be cautious as blades are extremely sharp.
5. Insert the new blade, ensuring it is correctly seated and aligned with the blade holder.
6. Cl'yi sıkınampVidaları güvenli bir şekilde takın.

Not: Always replace both blades simultaneously to maintain balance and prevent vibration.

4.3 Planlama Derinliğinin Ayarlanması

The planing depth can be adjusted using the depth adjustment knob located at the front of the tool. Rotate the knob to select the desired depth. A smaller depth setting is recommended for initial passes and fine work.

4.4 Paralel Kılavuzun Kurulumu

For precise, straight cuts along the edge of a workpiece, attach the parallel guide:

1. Slide the parallel guide into the designated slot on the side of the planer base.
2. Kılavuzu bıçaktan istediğiniz genişliğe ayarlayın.
3. Secure the guide by tightening its locking screw.

5. Kullanım Talimatları

Always wear appropriate personal protective equipment, including eye protection and hearing protection, during operation.

5.1 Güce Bağlama

Plug the planer into a suitable 220-240V ~ 50/60Hz AC power outlet. Ensure the power cord is not damaged and is positioned to avoid entanglement or tripping hazards.

5.2 Aletin Başlatılması ve Durdurulması

• Başlamak: Press the trigger switch on the rear handle. Some models may have a safety lock-off button that needs to be pressed first.
• Durdurmak için: Tetik anahtarını bırakın.

5.3 Planyalama Tekniği

1. Secure the workpiece firmly to a workbench using clamps.
2. Planya makinesinin ön tabanını iş parçasına düz bir şekilde yerleştirin ve bıçakların yüzeye temas etmemesine dikkat edin.
3. Start the planer and allow it to reach full speed before engaging the blades with the wood.
4. Apply even pressure to both handles and push the planer smoothly across the workpiece. Maintain a consistent feed rate.
5. İşlem bittiğinde, aleti kaldırmadan önce arka pabucun iş parçası üzerinde tamamen desteklendiğinden emin olun.
6. En iyi sonuçlar için, tek bir derin geçiş yerine birden fazla sığ geçiş yapın.

5.4 Toz Toplama

The planer is equipped with a chip ejection port. For cleaner operation and to prevent sawdust buildup, connect a suitable dust collection system or bag to this port.

6. Bakım

Regular maintenance ensures the longevity and optimal performance of your planer. Always unplug the tool before performing any maintenance.

6.1 Temizlik

• After each use, clean the planer thoroughly. Remove all sawdust and debris from the base, chip ejection port, and around the cutter head.
• Use a soft brush or compressed air for cleaning. Do not use solvents or abrasive cleaners.

6.2 Bıçak Bakımı

Inspect the blades regularly for sharpness and damage. Dull or chipped blades will result in poor planing quality and can strain the motor. Replace blades as described in Section 4.2 when necessary.

6.3 Carbon Brush Inspection

The carbon brushes in the motor may wear out over time. If the tool experiences reduced power or intermittent operation, have the carbon brushes inspected and replaced by a qualified service technician.

6.4 Depolama

Store the planer in a clean, dry place, out of reach of children. Protect it from dust and moisture. If storing for an extended period, apply a light coat of machine oil to metal surfaces to prevent rust.

7. Sorun Giderme

Before attempting any repairs, ensure the tool is unplugged from the power source.

8. Özellikler

9. Garanti ve Destek

For warranty information, technical support, or service inquiries regarding your Ingco 550W Electric Planer PL5508, please contact your local Ingco dealer or visit the official Ingco webSite. Satın alma fişinizi, garanti talepleriniz için satın alma belgeniz olarak saklayın.
