ALLWEI 300W Power Inverter

1. Giriş

Thank you for choosing the ALLWEI 300W Power Inverter. This device converts 12V DC power from your vehicle's battery into 230V AC power, allowing you to operate and charge various electronic devices on the go. With its compact design and multiple safety features, it is an ideal companion for travel, campve acil güç ihtiyaçları.

Image 1: The ALLWEI 300W Power Inverter, showing its compact form factor and integrated cigarette lighter plug.

2. Güvenlik Talimatları

İnvertörü çalıştırmadan önce lütfen tüm güvenlik talimatlarını okuyun ve anlayın. Bu talimatlara uyulmaması elektrik çarpmasına, yangına veya ciddi yaralanmaya neden olabilir.

• Havalandırma: Ensure adequate ventilation around the inverter. Do not block any ventilation openings.
• Çevre: Do not expose the inverter to rain, moisture, direct sunlight, or extreme temperatures. Operate in a dry, well-ventilated area.
• Bağlantı: Connect the inverter directly to a 12V DC power source (e.g., car cigarette lighter socket). Ensure the vehicle's electrical system can support the inverter's power draw.
• Yük Kapasitesi: Do not exceed the inverter's continuous power rating of 300W. The peak power is 600W. Overloading can damage the inverter and connected devices.
• Koruma Özellikleri: The inverter includes built-in protections against overheating, under-voltage, aşırı hacimtage, short-circuit, overload, and overcharge. If a protection is triggered, the inverter may shut down.
• Çocuklar ve Evcil Hayvanlar: İnvertörü çocukların ve evcil hayvanların erişemeyeceği yerde saklayın.
• Sökme: İnvertörü sökmeye veya değiştirmeye çalışmayın. Tüm servis işlemlerini yetkili personele yaptırın.

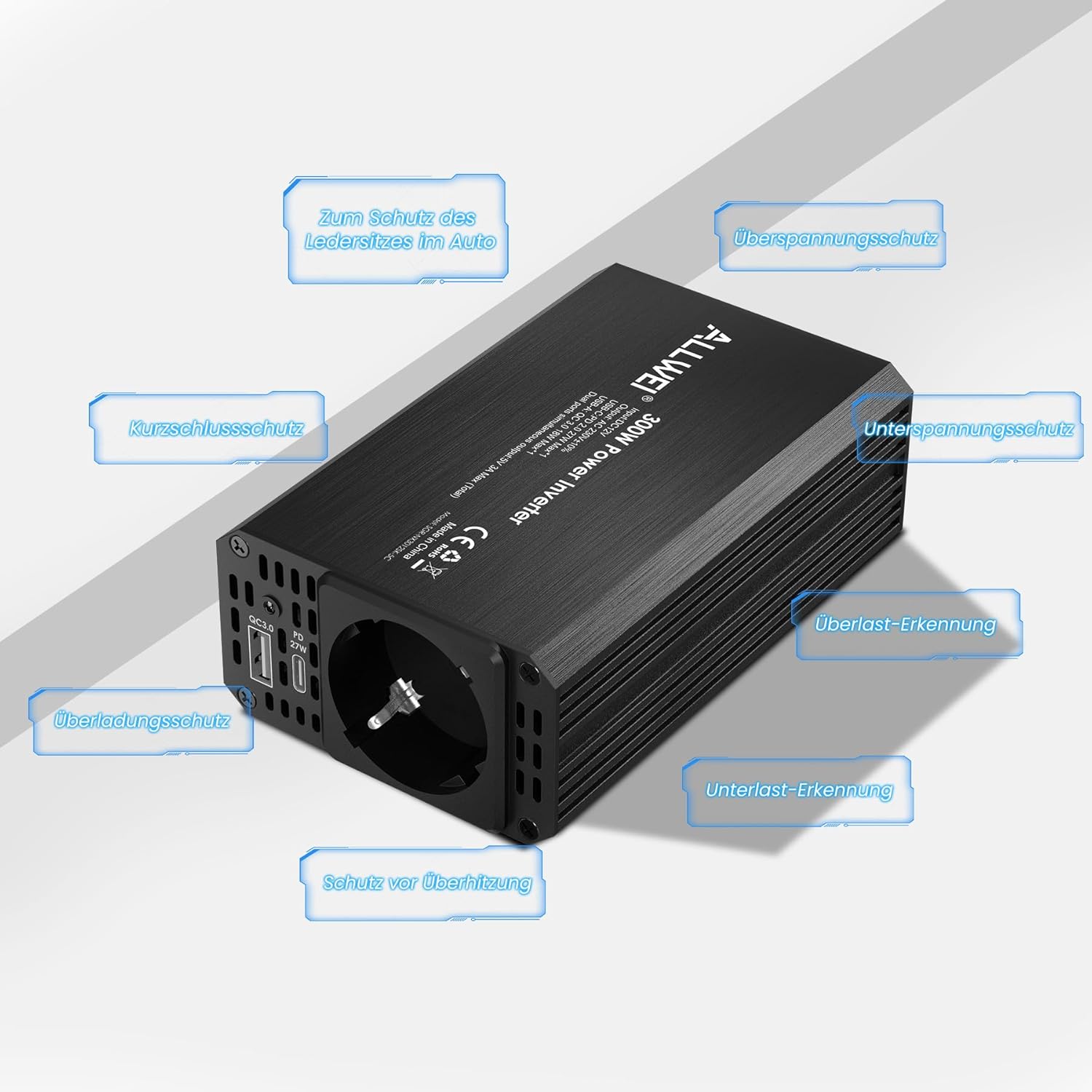

Resim 2: Üzeriview of the inverter's integrated safety features, including protection against overheating, over-voltage, cilt altıtage, short-circuit, overload, and overcharge.

3. Ürün Bittiview

The ALLWEI 300W Power Inverter is designed for ease of use and reliability. Below are the key components and features:

• Durable Aluminum Casing: Provides robust protection and efficient heat dissipation.
• Güç düğmesi: Controls the AC output.
• Quiet Cooling Fan: Automatically activates to prevent overheating, ensuring stable operation.
• LED Güç Göstergesi: Shows the operational status of the inverter.
• AC Outlet (230V): Standard European socket for connecting AC-powered devices.
• USB-C PD 27W Bağlantı Noktası: Hızlı şarj uyumlu cihazlar için.
• USB Quick Charge 18W Port: For rapid charging of USB-powered devices.
• Sigara Çakmağı Fişi: For connecting the inverter to your vehicle's 12V DC socket.

Resim 3: Ayrıntılı view of the inverter's components, including the aluminum casing, power switch, quiet fan, LED indicator, AC outlet, USB-C, USB-A, and cigarette lighter plug.

Image 4: Close-up of the USB-C (PD 27W) and USB Quick Charge (18W) ports, highlighting their fast-charging capabilities. Note that simultaneous use of both USB ports shares a total output of 5V/3A Max.

4. Kurulum

1. Araç Hazırlığı: Ensure your vehicle's engine is running or the ignition is in the ACC position to provide stable 12V power and prevent draining the car battery.
2. Connect to Cigarette Lighter: Insert the inverter's cigarette lighter plug firmly into your vehicle's 12V cigarette lighter socket. The cable length is 80 cm, providing flexibility for placement.
3. Güç Açık: Flip the power switch on the inverter to the "ON" position. The LED power indicator will illuminate, indicating the inverter is ready for use.

5. Kullanım Talimatları

Once the inverter is set up, you can connect your electronic devices:

• AC Devices: Plug your 230V AC devices (e.g., laptops, CPAP machines, small lights, game consoles, DVD players) into the AC outlet. Ensure the total wattage of connected devices does not exceed 300W continuous power.
• USB Cihazları: Connect your mobile phones, tablets, or other USB-powered devices to the USB-C (PD 27W) or USB-A (QC 18W) ports for fast charging. Note that the total output for both USB ports combined is 5V/3A Max.
• Eşzamanlı Kullanım: You can use the AC outlet and USB ports simultaneously, provided the total power consumption remains within the inverter's limits.

Uyumlu Cihazlar:

• Dizüstü bilgisayarlar
• Cep Telefonları
• Tabletler
• CPAP Makineleri
• İnhalerler
• Oyun Konsolları
• Kindle/E-readers
• Small TVs
• DVD Oynatıcılar
• LED Işıkları
• Kameralar
• Milk Pumps

Incompatible Devices (High Power Consumption):

• Su Isıtıcıları
• Kahve Makineleri
• Saç Curlers/Straighteners
• Isıtıcılar
• Saç kurutma makineleri

Resim 5: Örn.amples of compatible devices being powered by the inverter, such as laptops, mobile phones, and string lights, demonstrating its versatility for outdoor and travel use.

Image 6: A visual guide distinguishing between devices suitable for the inverter (e.g., laptops, game consoles) and those that are not (e.g., high-wattage appliances like kettles or hair dryers).

6. Bakım

To ensure the longevity and optimal performance of your ALLWEI Power Inverter, follow these maintenance guidelines:

• Temizlik: Regularly wipe the exterior of the inverter with a soft, dry cloth. Do not use liquid cleaners or solvents.
• Havalandırma: Keep the ventilation openings clear of dust and debris. The built-in cooling fan helps manage heat, but proper airflow is crucial.
• Depolamak: Kullanılmadığı zamanlarda inverteri serin, kuru bir yerde, doğrudan güneş ışığından ve nemden uzak tutarak saklayın.
• Kablo Denetimi: Periodically check the cigarette lighter cable and connections for any signs of damage or wear.

7. Sorun Giderme

If you encounter issues with your ALLWEI Power Inverter, refer to the following common problems and solutions:

8. Özellikler

Image 7: Visual representation of the inverter's compact dimensions (13.5 x 8 x 4.5 cm) for easy portability.

9. Garanti ve Destek

For warranty information and customer support, please contact ALLWEI directly or refer to the product packaging. You can also visit the official ALLWEI store for more information:
