Marvo MIC-05 USB Powered Microphone User Manual

giriiş

This manual provides instructions for the proper setup, operation, and maintenance of your Marvo MIC-05 USB Powered Microphone. Please read this manual thoroughly before use to ensure optimal performance and longevity of the device.

Paket İçeriği

• 1 x Marvo MIC-05 USB Powered Microphone

Ürün Özellikleri

• Omnidirectional pickup pattern for versatile audio capture.
• Dual-function Mute-RGB button for microphone muting and backlight control.
• EQ button for quick access to voice-magic functions, including Boy, Girl, Older, and Baby voice modes.
• Flexible microphone boom for adjustable positioning.
• Integrated knob for precise volume control.
• Built-in 1-port USB hub for connecting additional devices.
• 3.5 mm AUX output interface for headphone monitoring.
• Kolay tak ve çalıştır kurulumu için USB bağlantısı.

Ürün Bittiview

Familiarize yourself with the components of your Marvo MIC-05 microphone:

Şekil 1: Ön View. Ön view of the Marvo MIC-05 microphone base, highlighting the central volume control knob, the Mute-RGB button to its left, and the EQ button to its right. The flexible microphone boom extends upwards from the rear of the base.

Şekil 2: Arka View. Arka view of the Marvo MIC-05 microphone base, showing the integrated USB hub port and the 3.5 mm AUX output interface. The main USB cable for power and data extends from the center.

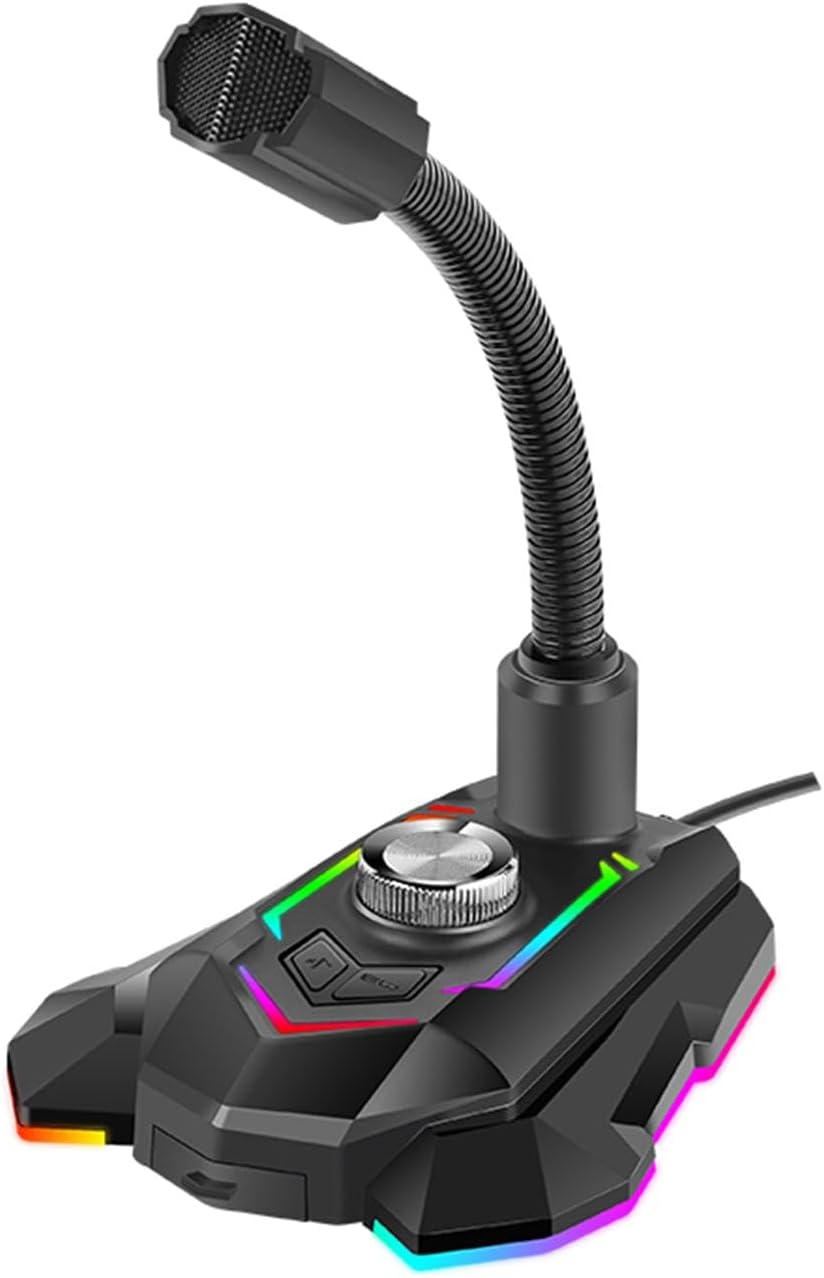

Şekil 3: Yan View. Taraf view of the Marvo MIC-05 microphone, illustrating the flexible microphone boom and the omnidirectional microphone head. The base features RGB lighting accents.

Kurulum Talimatları

1. Place the Marvo MIC-05 microphone on a stable, flat surface.
2. Connect the microphone's integrated USB cable to an available USB port on your computer or laptop.
3. The microphone is designed for plug-and-play operation and should be automatically recognized by your operating system (Windows, macOS, etc.).
4. Navigate to your computer's sound settings and select "Marvo MIC-05" as your default audio input device.
5. (İsteğe bağlı) If you wish to monitor your audio directly, connect your headphones to the 3.5 mm AUX output interface located at the rear of the microphone base.

Kullanım Talimatları

Ses Kontrolü

Rotate the central knob on the microphone base clockwise to increase the microphone's output volume and counter-clockwise to decrease it.

Mute and RGB Lighting Control

• Sessiz/Sesi Aç: Press the Mute-RGB button (located to the left of the volume knob) once to mute or unmute the microphone. An indicator light may change to show the mute status.
• RGB Aydınlatma: Press and hold the Mute-RGB button for approximately 3 seconds to cycle through different RGB lighting modes or to turn the lighting off.

EQ Voice-Magic Functions

Press the EQ button (located to the right of the volume knob) to cycle through the available voice-magic functions. These include Boy, Girl, Older, and Baby voice modes, altering your voice output in real-time.

USB Hub Kullanımı

The integrated USB port at the rear of the microphone base can be used to connect low-power USB devices such as a mouse, keyboard, or USB flash drive.

Bakım

• Clean the microphone's exterior with a soft, dry, lint-free cloth. Do not use liquid cleaners or abrasive materials.
• Avoid exposing the microphone to excessive moisture, dust, or extreme temperatures.
• Do not attempt to disassemble or modify the microphone, as this will void the warranty and may cause damage.
• Kullanmadığınız zaman mikrofonu serin ve kuru bir yerde saklayın.

Sorun giderme

No Sound or Microphone Not Detected

• USB kablosunun hem mikrofona hem de bilgisayarınıza güvenli bir şekilde bağlı olduğundan emin olun.
• Mikrofonu bilgisayarınızdaki farklı bir USB bağlantı noktasına bağlamayı deneyin.
• Verify that "Marvo MIC-05" is selected as the default input device in your computer's sound settings.
• Check if the microphone is muted by pressing the Mute-RGB button.
• Bilgisayarınızı yeniden başlatın.

Bozuk veya Net Olmayan Ses

• Adjust the microphone's volume knob to an appropriate level.
• Ensure the microphone is positioned at an optimal distance from the sound source (typically 6-12 inches).
• Check your computer's audio input levels and adjust them if they are too high or too low.
• Avoid speaking directly into the microphone head; speak across it.

RGB Aydınlatma Çalışmıyor

• Mikrofonun doğru şekilde bağlandığından ve USB üzerinden güç aldığından emin olun.
• Press and hold the Mute-RGB button to cycle through lighting modes or to turn the lighting on.

Özellikler

Garanti ve Destek

For detailed warranty information, technical support, or service inquiries regarding your Marvo MIC-05 USB Powered Microphone, please refer to the official MARVO webSite üzerinden iletişime geçebilir veya doğrudan müşteri hizmetleri departmanıyla görüşebilirsiniz. Garanti talepleri için satın alma fişinizi saklamanız önerilir.
