1. Giriş
This manual provides instructions for the Vurkcy Key Fob Entry Remote Control Key. It covers compatibility, package contents, button functions, programming procedures, operation, maintenance, and troubleshooting.
2. Uyumluluk
This key fob is compatible with various Chrysler and Dodge vehicle models. Please verify your vehicle's make, model, and year, along with the FCC ID, before attempting to program the key fob.
- Chrysler: 300 (2008-2011), Town & Country (2008-2012)
- Atlatmak: Journey (2009-2013), Charger (2008-2012), Durango (2008-2013), Challenger (2008-2014), Grand Caravan (2008-2014), Magnum (2008)
Replacement for FCC ID: M3N5WY783X, IYZ-C01C
Replaces P/N: 267F-5WY783X, 2701A-C01C
Figure 2.1: Compatible Vehicles and Identification Numbers
3. Paket İçeriği
- 2x Keyless Entry Remote Start Control Key Fob
- Electronics and Battery Pre-Installed
Figure 3.1: Two Vurkcy Key Fobs Included

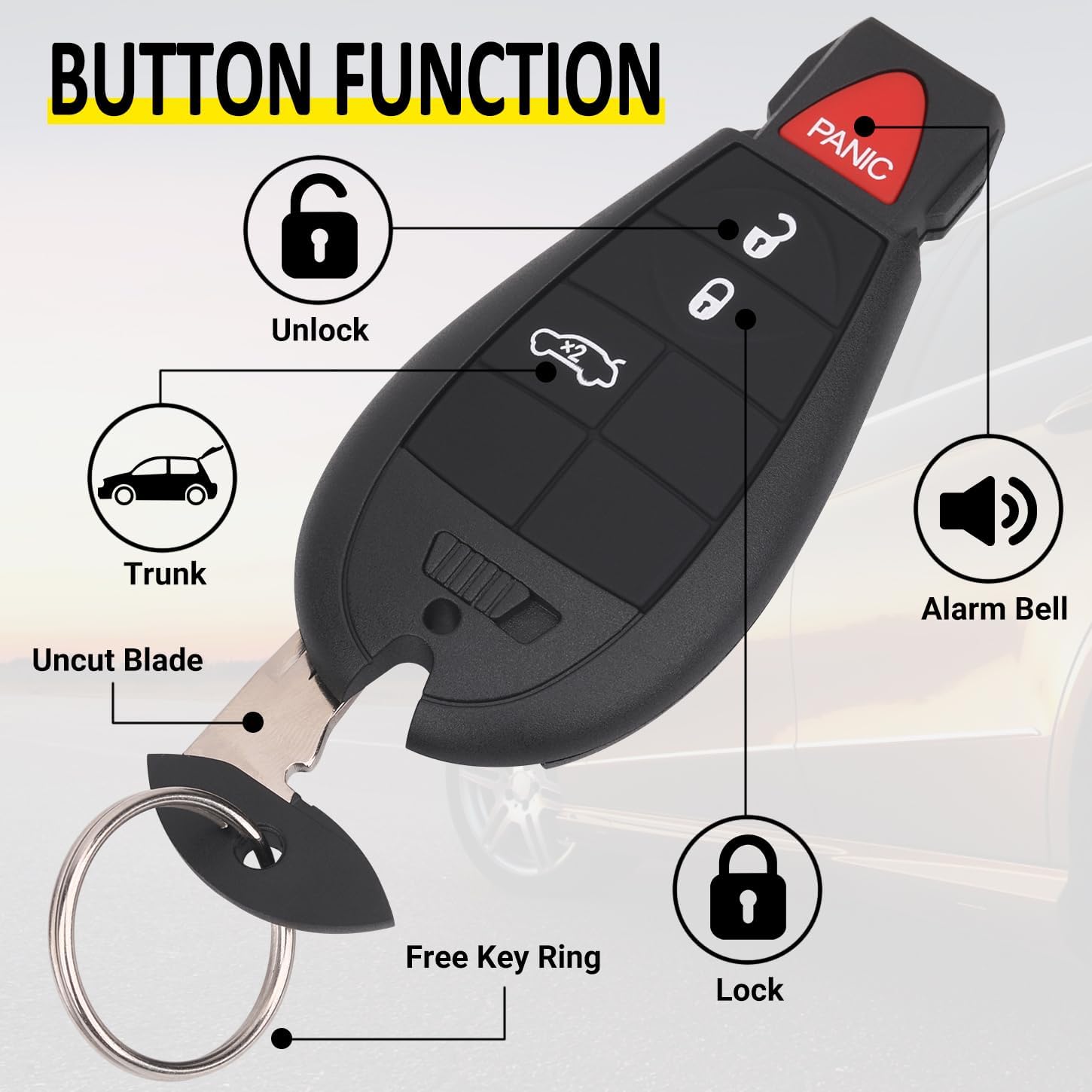

4. Düğme Fonksiyonları
The key fob features several buttons for various vehicle functions:
- Kilit Düğmesi: Locks all vehicle doors.
- Kilit Açma Düğmesi: Unlocks all vehicle doors.
- Panik Butonu: Activates the vehicle's alarm system.
- Gövde Düğmesi: Opens the vehicle's trunk or liftgate.
- Alarm Bell Button: Activates the vehicle's alarm system (may be combined with Panic).
Figure 4.1: Key Fob Button Functions
5. Kurulum ve Programlama
Programming the key fob requires specific steps. Please ensure you have all necessary original keys before beginning.
5.1 DIY Programming (Self-Programming)
For vehicles manufactured before 2010, self-programming may be possible if you possess two existing, working, and programmed keys. Follow the instructions provided on the following webSiteler:
Bunlarda websites, locate your vehicle's brand, model, and year, then select the "Remote Programming" option. Do not select "Key Programming" unless specifically instructed.
5.2 Professional Programming
For vehicles manufactured in 2010 or later, programming must be performed by a qualified automotive locksmith or dealership. DIY programming is generally not available for these models. Additionally, if an ignition recall has been performed on your vehicle, DIY programming will not be an option.
It is highly recommended to have the key blade cut by a professional locksmith or dealership.
Figure 5.1: Programming Instructions Overview
5.3 Programlama Video Rehberi
For a visual guide on programming, please refer to the official video below. This video demonstrates the process for Dodge and Chrysler key fobs.
Video 5.1: Vurkcy Key Fob Entry Remote Control Key Programming Guide for Dodge and Chrysler
6. Kullanım Talimatları
Once programmed, the key fob operates similarly to your original remote. Press the corresponding button for the desired function:
- Basın Kilit Tüm kapıları kilitlemek için düğmeye bir kez basın.
- Basın Kilidini aç button once to unlock the driver's door, or twice to unlock all doors (may vary by vehicle settings).
- Basılı tutun Panik button to activate the vehicle's alarm. Press again to deactivate.
- Basın Gövde button to open the trunk or liftgate.
Ensure you are within range of the vehicle for the remote functions to work correctly.
7. Bakım
To ensure the longevity and proper function of your Vurkcy key fob, follow these maintenance guidelines:
- Temizlik: Wipe the key fob with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
- Pil Değişimi: The key fob uses a Lithium Metal battery. When the remote range decreases or functions become intermittent, the battery may need replacement. Refer to a professional for battery replacement to avoid damaging the internal electronics.
- Koruma: Avoid dropping the key fob or exposing it to extreme temperatures, moisture, or direct sunlight for extended periods.
8. Sorun Giderme
Anahtarlığınızla ilgili sorun yaşıyorsanız, aşağıdakileri göz önünde bulundurun:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Key fob not working after programming | Incorrect programming procedure; incompatible vehicle/FCC ID; dead battery. | Verify compatibility. Re-attempt programming carefully following instructions. Check battery. Consult a professional locksmith or dealership. |
| Azaltılmış çalışma aralığı | Pil zayıf; sinyal paraziti. | Replace battery. Ensure no strong electronic devices are causing interference. |
| Düğmeler yanıt vermiyor | Low battery; physical damage; internal circuit issue. | Replace battery. Inspect for physical damage. If issues persist, contact support. |

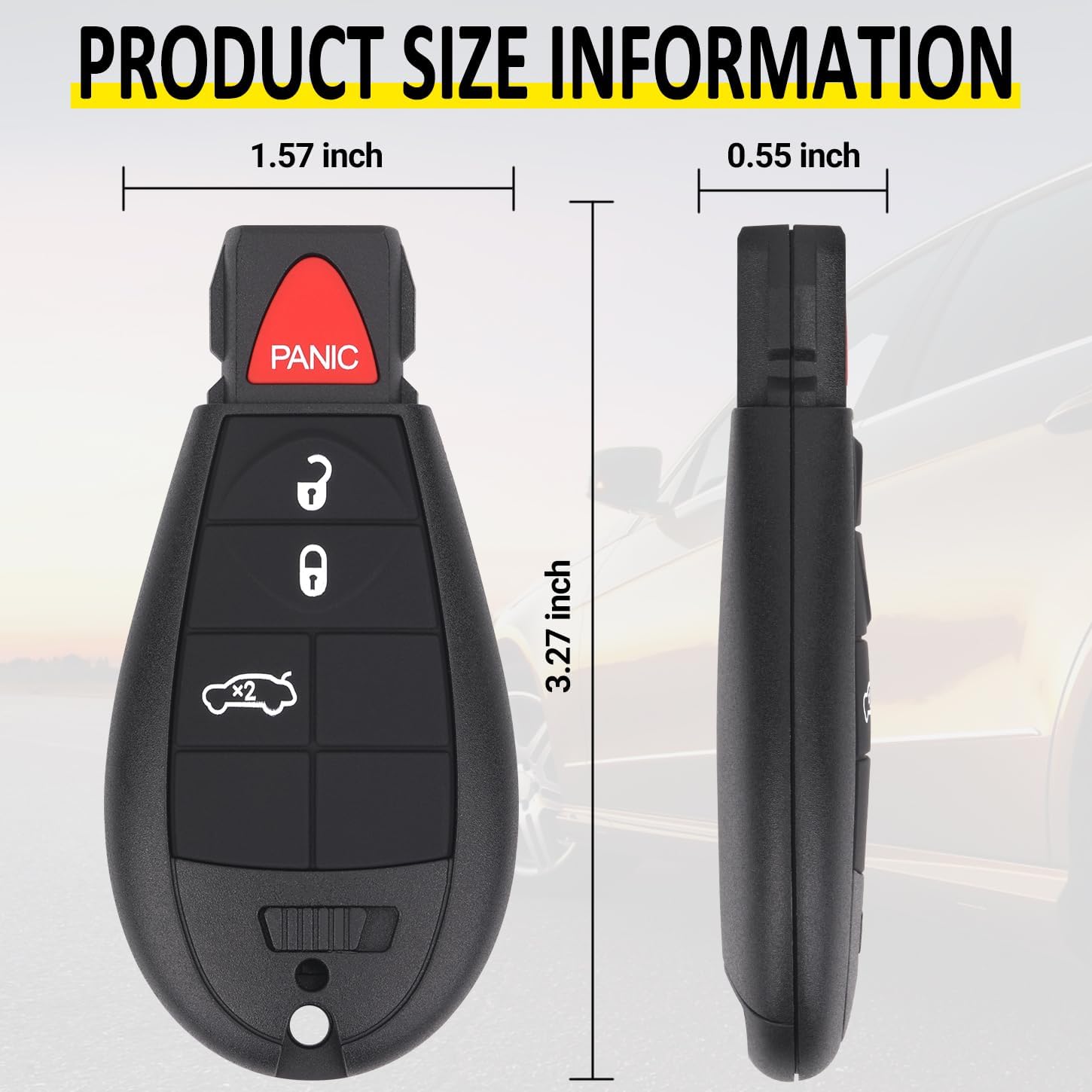

9. Özellikler
- Modeli: M3N5WY783X or IYZ-C01C
- Ürün Ağırlığı: 2.39 ons
- Paket Boyutları: 3.19 x 2.8 x 0.59 inç
- Piller: 1 Lityum Metal pil (dahil)
- Özel Özellikler: Ergonomik tasarım
- Renk: Siyah
Şekil 9.1: Ürün Özellikleri
10. Garanti ve Destek
For warranty information or technical support, please refer to the product packaging or contact Vurkcy customer service through the retailer where the product was purchased. Keep your purchase receipt for warranty claims.
