Haotao Bird

Haotao Kuşu Lamp Kullanım Kılavuzu

Model: Bird | Brand: Haotao

1. Ürün Bittiview

The Haotao Bird Lamp is a versatile and portable LED table lamp designed for various uses, including as a bedside lamp, night light, reading lamp, or camping light. Its unique bird-shaped design allows for detachment from its base, making it easy to carry or hang. The lamp features touch control for power, brightness adjustment, and color temperature changes, along with a built-in rechargeable battery and an aroma diffuser function.

Haotao Kuşu Lamp on a wooden table, emitting a warm glow.

Image 1.1: The Haotao Bird Lamp, gösterasing its elegant design and warm illumination.

Temel Özellikler:

Child sleeping peacefully next to the Haotao Bird Lamp, highlighting its quiet operation and energy-saving features.

Image 1.2: The Haotao Bird Lamp functioning as a cordless night light, emphasizing its quiet, dimmable, and energy-saving qualities.

2. Kurulum ve İlk Kullanım

2.1 Paket İçeriği:

İşleme başlamadan önce tüm bileşenlerin mevcut olduğundan emin olun:

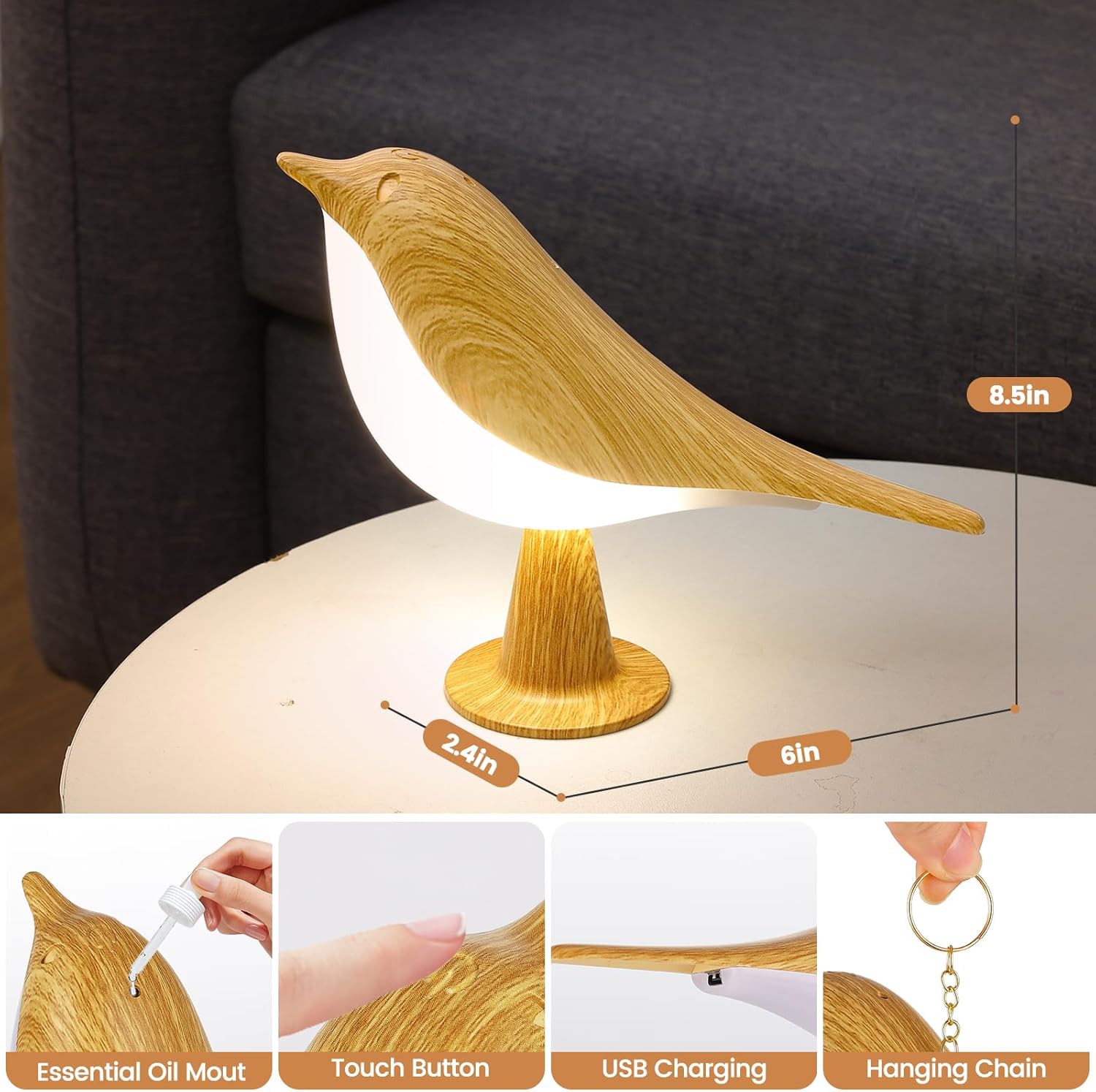

Diagram showing the Haotao Bird Lamp's components: essential oil mouth, touch button, USB charging port, and hanging chain, along with dimensions.

Image 2.1: Key features and dimensions of the Haotao Bird Lamp, including the essential oil port, touch button, USB charging port, and hanging chain.

2.2 İlk Şarj:

For optimal performance, fully charge the lamp ilk kullanımdan önce.

  1. Connect the provided USB charging cable to the USB port located on the underside of the bird unit.
  2. USB kablosunun diğer ucunu uyumlu bir USB güç adaptörüne (dahil değildir) veya bilgisayarın USB portuna takın.
  3. Şarj gösterge ışığı (varsa) şarj sırasında yanacak ve tamamen şarj olduğunda sönecektir.
  4. Tam şarj genellikle yaklaşık 3-4 saat sürer.

2.3 Assembling the Lamp:

The bird unit can be easily attached to or detached from its base.

  1. To attach, align the bottom of the bird unit with the top of the lamp base and gently push down until it is securely seated.
  2. To detach, simply lift the bird unit upwards from the base.
Diagram showing how to detach the bird lamp from its base and how it can be hung by a chain.

Image 2.2: The detachable design of the Haotao Bird Lamp, illustrating how it can be separated from its base and used as a portable, hangable light.

3. Kullanım Talimatları

3.1 Power On/Off and Light Color Adjustment:

Lamp is controlled by a touch-sensitive area located on the bird's head.

Three images showing the Haotao Bird Lamp at different brightness levels (20%, 60%, 100%) and three images showing the lamp with different light colors (Warm, Neutral, White).

Image 3.1: Visual representation of the brightness adjustment and the three available light color temperatures (Warm, Neutral, White).

3.2 Parlaklık Ayarı:

Lamp's brightness is continuously dimmable.

3.3 Aroma Diffuser Function:

Lamp can also function as an aroma diffuser.

A person relaxing with headphones, while the Haotao Bird Lamp on a nearby table diffuses aroma, with an inset showing how to add essential oil.

Image 3.2: The Haotao Bird Lamp being used as an aroma diffuser, demonstrating its ability to enhance air quality and promote relaxation.

4. Bakım ve Onarım

5. Sorun Giderme

SorunOlası NedenÇözüm
Lamp açılmıyor.Pil bitmiş.l'yi bağlayınamp to a USB power source and charge it fully.
Lamp açılmıyor.Touch control not responding.Ensure your finger is clean and dry. Try tapping firmly on the touch area.
Parlaklık ayarı çalışmıyor.Not holding the touch area long enough.Press and hold the touch-sensitive area for a continuous adjustment.
Açık renk değişmez.Not tapping the touch area correctly.Ensure you are tapping the touch-sensitive area briefly to cycle through colors.
Aroma diffusion is weak or absent.Insufficient essential oil or clogged hole.Add 3-4 drops of essential oil. Clean the essential oil hole if it appears clogged.

6. Ürün Özellikleri

ÖzellikŞartname
MarkaHaotao
Model NumarasıKuş
Ürün Boyutları21.5 x 15 x 6 cm; 180 g
Pil1 Lithium Ion battery (1800 mAh)
MalzemeABS, Plastik
Bitiş TürüBoyalı
Işık Sayısı1
Cilttage3 Volt
Özel Özellikler3-way, Dimmable, Cordless, Portable, Rechargeable
Gölge RengiBeyaz
Gölge MalzemesiAkrilonitril Bütadien Stiren (ABS)
Işık YönüNEDEN OLMUŞ
Anahtar StiliDokunmak
Kurulum TürüMasaüstü
Ampul TipiNEDEN OLMUŞ
Netage6 watt
Renk Sıcaklığı6000 Kelvin (adjustable to 3000K-6000K)

7. Garanti ve Müşteri Desteği

For warranty information and customer support, please refer to the specific terms provided at the point of purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.

For any issues not covered in this manual or for further assistance, please contact Haotao customer service through the retailer's platform or the official Haotao webalan.
