1. Güvenlik Bilgileri
Kurulum işlemine başlamadan önce lütfen tüm talimatları dikkatlice okuyun. Bu talimatlara uyulmaması elektrik çarpmasına, yangına veya kişisel yaralanmaya neden olabilir.
- Elektriksel Güvenlik: Always disconnect power at the main circuit breaker before installing, cleaning, or servicing the fan. Ensure all electrical connections comply with local codes and ordinances. If you are unsure about wiring, consult a qualified, licensed electrician.
- Montaj: The mounting structure must be capable of supporting the weight of the fan (approximately 13.02 lbs). Ensure the outlet box is securely fastened to the building structure.
- Bıçak Boşluğu: Maintain a minimum clearance of 7 feet from the floor to the bottom edge of the fan blades. Ensure blades do not strike any objects or walls.
- Damp-Rated Use: Bu fan damp-rated, suitable for covered outdoor locations such as patios and gazebos, provided it is protected from direct rain exposure.
- Sertifikalar: The product is ETL/FCC safety certified, ensuring compliance with safety standards.
2. Ürün Bittiview
The Sofucor 48-Inch Smart Ceiling Fan is designed for both indoor and covered outdoor use, offering advanced functionality and efficient air circulation. It features a quiet DC motor, three solid wood blades, and an integrated LED light kit.
- Boyut: 48-inch diameter, suitable for rooms up to 16x16 feet.
- Hava akışı: Generates up to 4500 CFM (Cubic Feet per Minute) of airflow.
- Motor: High-efficiency DC motor for quiet operation and energy saving.
- Gürültü Seviyesi: Operates at approximately 35dB in standard mode and 30dB in deep sleep mode.
- Kontrol: Multiple control options including voice control (Alexa/Google Assistant), mobile app, and a dedicated remote control.
- Aydınlatma: Integrated LED light with 3 color temperature options (3000K Warm Light, 4000K Natural Light, 6000K White Light) and adjustable brightness from 10% to 100%.
- Tersine çevrilebilir İşlev: Allows for downward airflow in summer for cooling and upward airflow in winter to circulate warm air.
- Zamanlayıcı: Features a timing function with settings for 1H, 2H, 4H, and 8H.
Image: The Sofucor 48-inch smart ceiling fan with walnut blades and a matte black body, shown installed in a modern living room setting.
3. Kurulum ve Kurulum
Proper installation is crucial for the safe and efficient operation of your ceiling fan. It is recommended to have the fan installed by a qualified electrician.
3.1 Dahil Edilen Bileşenler
- Fan Motoru Montajı
- 3 Masif Ahşap Fan Pervanesi
- Entegre LED Aydınlatma Kiti
- Uzaktan kumanda
- 3 Downrods (5-inch, 10-inch, 24-inch)
- Montaj Braketi ve Donanımı
- Tel kırbaç
3.2 Montaj Seçenekleri
The fan supports various ceiling types with included downrods:
- Flat Ceiling: Can be installed directly or with any of the included downrods.
- Eğimli Tavan: Compatible with sloped ceilings up to 15 degrees.
Image: A diagram illustrating the fan's dimensions with different downrod lengths (17", 22", 36" total height) and compatibility with flat and sloped ceilings (less than 15 degrees). Recommended room size is 10ft x 10ft to 16ft x 16ft.
Image: Visual representation of the three included downrods: 5-inch, 10-inch, and 24-inch, allowing for flexible installation heights.
3.3 Genel Kurulum Adımları (Özet)
- Güç Bağlantısının Kesilmesi: Sigortadan elektriği kesin.
- Montaj dirseği: Montaj braketini tavan priz kutusuna sabitleyin.
- Kablolama: Connect the fan's electrical wires to the household wiring according to the provided wiring diagram.
- Fan montajı: Attach the downrod to the fan motor assembly and then hang the fan assembly onto the mounting bracket.
- Bıçak Ataşmanı: Securely attach the three solid wood blades to the fan motor.
- Işık Kiti Kurulumu: Connect and install the integrated LED light kit.
- Kanopi Kurulumu: Slide the canopy up to cover the wiring and mounting bracket.
For detailed step-by-step instructions, refer to the comprehensive installation guide included in your product packaging.
4. Kullanım Talimatları
Your Sofucor smart ceiling fan offers multiple convenient ways to control its functions.
4.1 Kontrol Yöntemleri
The fan can be controlled via voice commands, a mobile application, or the included remote control.
Image: An illustration detailing the three primary control methods: Voice Control (compatible with Google Assistant and Amazon Alexa), App Control (via a smartphone application), and Remote Control (with a wall-mountable option).
- Ses Kontrolü: Integrate with Amazon Alexa or Google Assistant for hands-free operation. Follow the instructions in your smart home device's app to connect the fan.
- Uygulama Kontrolü: Download the dedicated mobile application (refer to the product packaging or included manual for app name and QR code). The app allows for comprehensive control of fan speed, light settings, and timer functions from your smartphone.
- Uzaktan kumanda: The included remote control provides direct access to all fan and light functions. It can be used handheld or mounted on a wall for convenience.
4.2 Fan Hızı Ayarı
The fan features 6 adjustable wind speeds to suit your comfort needs:
- Seviye 1-2: Comfortable Breeze, ideal for gentle air circulation.
- Seviye 3-4: Natural Wind, suitable for everyday use.
- Seviye 5-6: Strong Wind, for maximum cooling effect.
Image: A visual guide to the fan's 6 adjustable speeds, categorized into Comfortable Breeze, Natural Wind, and Strong Wind, along with an illustration of the reversible function for summer cooling and winter heat circulation.
4.3 Işık Kontrolü
The integrated LED light offers customizable illumination:
- Renk Sıcaklığı: Choose from 3 distinct light colors: 3000K (Warm Light), 4000K (Natural Light), and 6000K (White Light).
- Parlaklık Ayarı: Adjust the light brightness from 10% to 100% to create the desired ambiance.
Image: A visual representation of the fan's lighting capabilities, showing the three color temperature options (3000K Warm, 4000K Natural, 6000K White) and a slider indicating 10% to 100% adjustable brightness.
4.4 Tersine Çevrilebilir Fonksiyon
The fan's reversible function allows for year-round comfort:
- Yaz Modu: Fan blades rotate counter-clockwise, creating a downward airflow that produces a cooling effect.
- Kış Modu: Fan blades rotate clockwise, creating an upward airflow that circulates warm air trapped near the ceiling, helping to reduce heating costs.
4.5 Zamanlama Fonksiyonu
Set a timer for automatic shutdown, useful for sleeping, exercising, or working:
- Available timer settings: 1 hour, 2 hours, 4 hours, and 8 hours.
Image: A visual depicting the fan's timing function, showing timer settings for 1H, 2H, 4H, and 8H, useful for automatic shutdown during sleep or other activities.
5. Bakım
Regular maintenance helps ensure the longevity and optimal performance of your Sofucor ceiling fan.
- Temizlik: To clean the fan, wipe surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or electrical components. Ensure power is disconnected before cleaning.
- Bıçak Bakımı: The solid wood blades can be gently wiped with a dry or slightly damp Bez. Aşırı nemden kaçının.
- LED Işık Kiti: The integrated LED light kit is designed for long life. If replacement is ever needed, the LED light board is replaceable. Contact customer support for assistance.
Resim: Ayrıntılı view of the replaceable LED light board, highlighting its design for brighter and more even lighting, and ease of replacement.
6. Sorun Giderme
Sofucor tavan vantilatörünüzle ilgili sorunlarla karşılaşırsanız, aşağıdaki yaygın sorunlar ve çözümlere göz atın:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Fan açılmıyor | No power; Loose wiring; Remote/App issue | Check circuit breaker; Verify all wiring connections are secure; Ensure remote has fresh batteries or app is connected. |
| Light flickers or does not work | Loose light kit connection; LED driver issue; Remote/App issue | Check light kit wiring; Ensure remote/app settings are correct. If issue persists, contact support. |
| Fan makes excessive noise | Loose screws; Unbalanced blades; Motor issue | Tighten all screws; Use balancing kit (if included) to balance blades; Contact support if motor noise persists. |
| Uzaktan kumanda yanıt vermiyor | Pil bitmiş; Uzaktan kumanda eşleştirilmemiş; Engel | Replace batteries; Refer to pairing instructions in the full manual; Ensure no obstructions between remote and receiver. |
| Smart control (Alexa/Google/App) not working | Network connectivity issue; Incorrect pairing; App outdated | Check Wi-Fi connection; Re-pair the fan with your smart home system/app; Update the app to the latest version. |
Bu çözümleri denedikten sonra sorun devam ederse, daha fazla yardım için lütfen Sofucor müşteri desteğiyle iletişime geçin.
7. Özellikler
Detailed technical specifications for the Sofucor 48-Inch Smart Ceiling Fan:

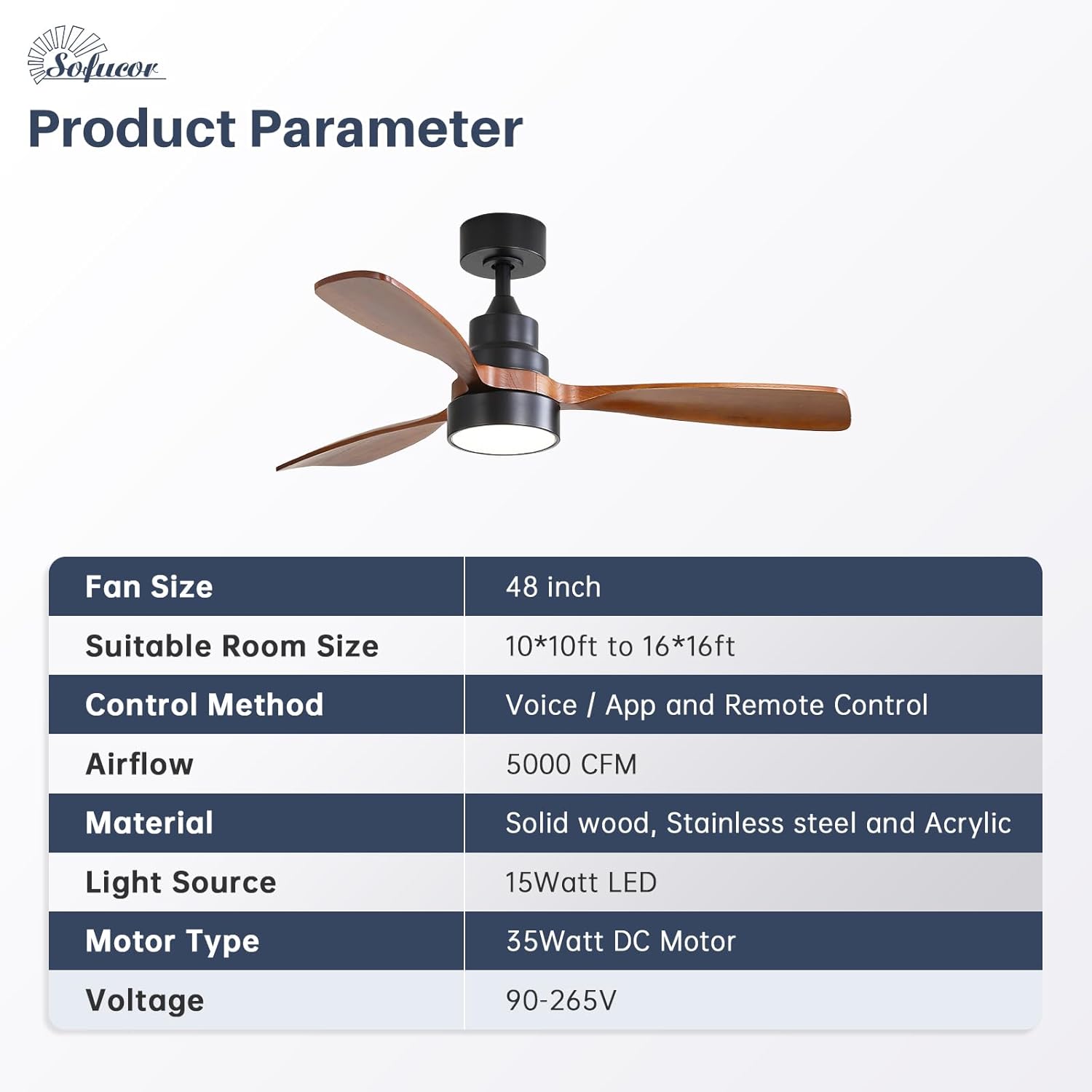

Image: A table summarizing key product parameters including fan size, suitable room size, control method, airflow, material, light source, motor type, and voltage.
| Parametre | Değer |
|---|---|
| Marka | sofukor |
| Model Adı | 48K006-BK-DC-HTM-50 |
| Fan Boyutu | 48 inç |
| Uygun Oda Büyüklüğü | 10x10ft to 16x16ft |
| Kontrol Yöntemi | Voice / App / Remote Control |
| Hava akışı | 4500 CFM |
| Malzeme | Solid Wood (Blades), Stainless Steel, Acrylic |
| Işık kaynağı | Integrated 15W LED |
| Motor Tipi | 35W DC Motor |
| Cilttage | 120 Volt (DC) |
| Gürültü Seviyesi | 30-35 dB |
| Bıçak Sayısı | 3 |
| Hız Ayarları | 6 RPM |
| İç/Dış Mekan Kullanımı | İç Mekan, Dış Mekan (D)amp-derecelendirilmiş) |
| Ürün Ağırlığı | 13.02 pound |
8. Garanti ve Destek
Sofucor is committed to providing high-quality products and excellent customer service.
- Motor Garantisi: The DC motor comes with a lifetime warranty. If the motor ceases to function, it will be replaced free of charge.
- Parça Garantisi: All other components and accessories are covered by a 3-year comprehensive warranty. Damaged or lost parts, including fan blades, bulbs, remote controls, and receivers, can be replaced within this period.
- Teknik Destek: Sofucor offers 24/7 technical support to assist with any installation questions, operational issues, or after-sales service needs.
Resim: Bir overview of Sofucor's after-sales service, detailing the lifetime free replacement for the motor and 3-year free replacement for other accessories like blades, remotes, and light kits.
For warranty claims or technical assistance, please refer to the contact information provided in your product packaging or visit the official Sofucor webalan.
