NEWQIDA 12V Çocuk Elektrikli Binilebilir Damperli Kamyon Kullanım Kılavuzu

Önemli Güvenlik Uyarıları

Please read this manual carefully before assembly and operation. Keep this manual for future reference. Failure to follow these safety instructions may result in serious injury or death.

• Yetişkin Denetimi Gereklidir: This product is intended for children aged 3-8 years. Constant adult supervision is mandatory during operation.
• Ağırlık sınırı: 110 lbs (50 kg) maksimum ağırlık kapasitesini aşmayın.
• Oturma düzeni: Designed for one rider. Ensure the child is properly seated and secured with the safety belt.
• Çalışma Ortamı: Use on flat, dry surfaces. Avoid slopes, uneven terrain, public roads, swimming pools, or other water bodies.
• Koruyucu Ekipman: Always ensure the child wears appropriate safety gear, such as a helmet and knee pads.
• Şarj: Only use the provided charger. Do not overcharge the battery. Keep the charger away from water.
• Pil Güvenliği: Do not short-circuit the battery terminals. Do not attempt to open or modify the battery.
• Uzaktan kumanda: The remote control allows parents to override child operation for safety. Familiarize yourself with its functions.
• Hareketli parçalar: Ellerinizi, ayaklarınızı, saçınızı ve giysilerinizi hareketli parçalardan uzak tutun.

Paket İçeriği

Verify all components are present before beginning assembly:

• NEWQIDA Ride on Dump Truck Body
• Uzaktan Kumanda Ünitesi
• 12V 10Ah Battery (pre-installed or separate)
• Şarj cihazı
• Kürek Aksesuarı
• Montaj Donanımı (vidalar, pullar, vb.)
• Kullanım Kılavuzu (bu belge)

Resim: Üzeriview of the NEWQIDA 12V Kids Electric Ride on Dump Truck, showing the main vehicle and remote control.

Montaj Talimatları

Assembly typically involves attaching wheels, steering wheel, and connecting the battery. Refer to the detailed video guide for visual assistance.

1. Bileşenleri Paketinden Çıkarın: Tüm parçaları dikkatlice ambalajından çıkarın.
2. Tekerlek Kurulumu: Attach the four wheels securely to the axles. Ensure all washers and nuts are tightened as per instructions.
3. Direksiyon Düzeneği: Connect the steering wheel to the steering column and secure it.
4. Pil Bağlantısı: Locate the battery compartment (often under the seat) and connect the battery terminals. Ensure correct polarity.
5. Dump Bed Assembly: If the dump bed is separate, attach it to the main body. The shovel accessory can be placed in the designated holder.
6. Son Kontroller: Before first use, ensure all connections are secure and all screws are tightened.

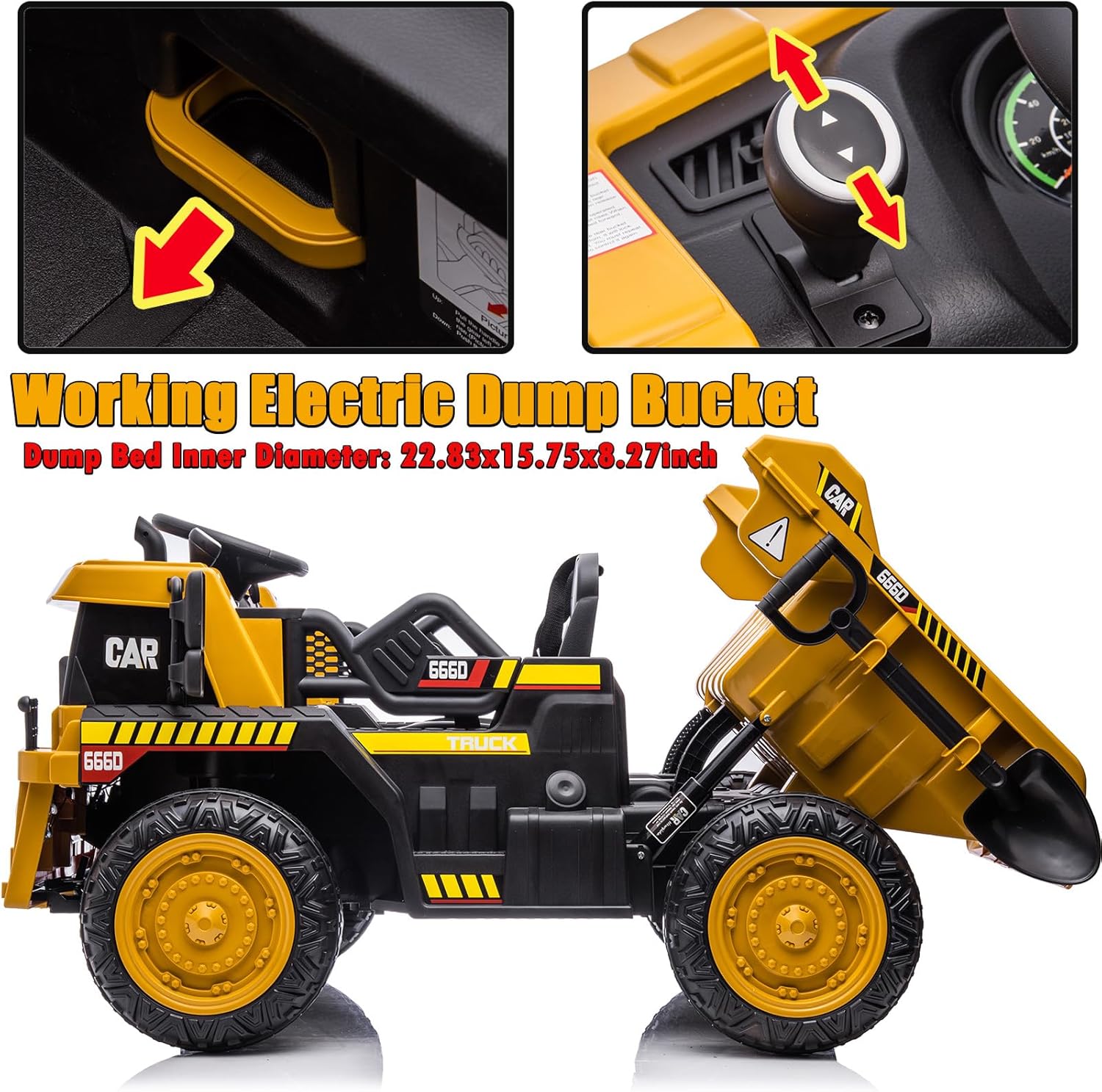

Image: Illustration of the electric lifting dump bed and its control mechanism.

İlk Kurulum

Pil Şarjı

Before first use, fully charge the 12V 10Ah battery for 8-12 hours. Do not charge for more than 18 hours to prevent battery damage.

• Locate the charging port (usually near the battery compartment).
• Şarj cihazını şarj portuna, ardından standart bir duvar prizine takın.
• The charger indicator light will show charging status (refer to charger manual for specific light indications).
• Şarj işlemi tamamlandıktan sonra şarj cihazının bağlantısını kesin.

Uzaktan Kumanda Eşleştirme

The remote control may need to be paired with the vehicle before first use or after battery replacement.

• Aracın kapalı olduğundan emin olun.
• Insert batteries into the remote control (typically 2x AAA, not included).
• Press and hold the pairing button on the remote control (refer to remote diagram for location).
• While holding the button, turn ON the vehicle.
• Release the pairing button once the indicator light on the remote stops flashing or a confirmation sound is heard.

Kullanım Talimatları

Vehicle Controls (Kids Manual Operation)

Resim: Ayrıntılı view of the vehicle's dashboard and controls for manual operation.

• Power Button/Key Start: Turn the vehicle ON/OFF.
• Ayak pedalı: Hızlanmak için basın. Fren yapmak için bırakın.
• Direksiyon: Aracı yönlendirmek için sola veya sağa dönün.
• Forward/Backward Switch: Sürüş yönünü seçin.
• Hız Anahtarı: Adjust between high and low speeds.
• Music/Horn Buttons: Activate built-in music or horn sounds.
• USB Interface/Bluetooth: Connect external devices to play music.
• Dump Bed Controller: Use the lever or switch to raise and lower the electric dump bed. (Instruction: Pulling out the handle under the seat and then control the shift.)

Remote Control Operation (Parental Control)

The remote control allows parents to safely guide the vehicle or intervene when necessary.

• İleri geri: Aracın hareketini kontrol edin.
• Sol/Sağ: Aracı yönlendirin.
• Hız Seçimi: Adjust speed settings (High/Low).
• Emergency Brake (P): Press to immediately stop the vehicle.

Bakım

• Temizlik: Aracı yumuşak bir bezle silin.amp Bez kullanın. Aşındırıcı temizleyiciler veya çözücüler kullanmayın. Elektrikli bileşenlerin üzerine doğrudan su püskürtmekten kaçının.
• Pil Bakım:
  • Pili her kullanımdan sonra şarj edin.
  • If storing for extended periods, charge the battery once a month to prolong its lifespan.
  • Pili serin ve kuru bir yerde saklayın.
• Depolamak: Store the vehicle indoors in a dry area, away from direct sunlight and extreme temperatures.
• Denetimler: Regularly check for loose screws, damaged wiring, or worn parts. Replace any damaged components immediately.

Sorun giderme

Özellikler

• Modeli: NEWQIDA Ride on Dump Truck (12V 10Ah/Tread Tire Yellow-1)
• Pil: 12V 10Ah
• Motorlar: 2x35W
• Maksimum Hız: 3.11 mil/saate (5 km/saate) kadar
• Önerilen Yaş: 36 ay - 8 yıl
• Maksimum Yük Kapasitesi: 110 lbs (50 kg)
• Ürün Ölçüleri: 46.06" (Uzunluk) x 32.28" (Genişlik) x 24.21" (Yükseklik)
• Koltuk Genişliği: 19 inç
• Dump Bed Inner Dimensions: 22.83" x 15.75" x 8.27"
• Ürün Ağırlığı: Yaklaşık 55 lbs
• Özellikler: Electric Dump Bed, Remote Control, Soft Start, Music, Bluetooth, USB, Headlights, Horn.

Image: Key specifications including wheel size, battery, motor, speed, and suitable terrains.

Image: Details on seat width, battery capacity, recommended age, and soft start feature.

Garanti ve Destek

NEWQIDA stands behind the quality of its products. For any questions, concerns, or issues regarding your ride-on dump truck, please contact NEWQIDA customer support.

Refer to your purchase documentation or the NEWQIDA brand store on Amazon for specific warranty details and contact information.

NEWQIDA Store Link: Visit the NEWQIDA Store
