xTool Smoke Purifier M1/M1 Ultra/F1 Ultra/S1/P2 Laser Engraver D1/D1 Pro Compatible Instruction Manual

1. Giriş

The xTool Smoke Purifier is an essential accessory designed to create a healthy and safe working environment when operating laser engravers indoors. It efficiently removes smoke, dust, and harmful gases generated during laser processing, ensuring clean air quality. This manual provides comprehensive instructions for the setup, operation, and maintenance of your smoke purifier.

2. Güvenlik Bilgileri

Please read and understand all safety instructions before operating the xTool Smoke Purifier. Failure to follow these instructions may result in injury or damage to the product.

Cihazın sağlam ve düz bir yüzeye yerleştirildiğinden emin olun.
Çalışma sırasında hava giriş veya çıkış deliklerini kapatmayın.
Yalnızca cihazla birlikte verilen güç adaptörünü kullanın.
Cihazı su veya diğer sıvılardan uzak tutun.
Cihazı kendiniz açmaya veya onarmaya çalışmayın. Yardım için müşteri desteğiyle iletişime geçin.
Regularly check and replace filters as recommended to maintain optimal performance and safety.
Ensure proper ventilation in the workspace, even with the purifier in use, especially when processing materials that produce strong odors or fumes.

3. Paket İçeriği

Aşağıda listelenen tüm öğelerin paketinizde bulunduğunu doğrulayın:

xTool Smoke Purifier Unit
Pipe Adapter (for xTool M1)
Pipe Adapter (for Smoke Purifier)
Boru Clamp (for Smoke Purifier)
Boru Clamp (for xTool M1)
Güç kablosu
Tornavida
Kullanıcı Kılavuzu
Filter Pack (includes replacement pre-filter)

All components included in the xTool Smoke Purifier package, such as pipe adapters, clamps, power cable, screwdriver, user manual, and filter pack. — A visual representation of all items included in the product package: two pipe adapters (for xTool M1 and smoke purifier), two pipe clamps, a power cable, a screwdriver, the user manual, and a filter pack (with a replacement pre-filter).

4. Kurulum

4.1 Kutudan Çıkarma ve Montaj

1. Tüm bileşenleri ambalajından dikkatlice çıkarın.

2. Place the xTool Smoke Purifier on a stable surface near your laser engraver.

3. Connect the flexible exhaust hose to the smoke purifier's air inlet using the appropriate pipe adapter and clamp. Ensure a secure fit to prevent smoke leakage.

4. Connect the other end of the exhaust hose to your laser engraver's exhaust port, again using the correct adapter and clamp. For D1/D1 Pro models, ensure a protective cover is in place for effective smoke capture.

xTool Smoke Purifier connected to a laser engraver with exhaust hose. — This image shows the xTool Smoke Purifier connected via a flexible hose to a laser engraver, illustrating its primary function of extracting smoke and fumes from the engraving area.

xTool Smoke Purifier positioned next to an xTool M1 laser engraver. — The image displays the xTool Smoke Purifier alongside an xTool M1 laser engraver, highlighting its compatibility and compact design for integration into a workspace.

xTool Smoke Purifier shown with an xTool D1/D1 Pro laser engraver, emphasizing compatibility when a cover is used. — The image illustrates the xTool Smoke Purifier's compatibility with xTool D1 and D1 Pro laser engravers, noting that a protective cover is required for proper integration and smoke extraction.

4.2 Filtre Kurulumu

The xTool Smoke Purifier comes with a pre-installed 3-stage filtration system. Ensure all filters are correctly seated before first use. Refer to the Maintenance section for future filter replacement.

Üçlüleri gösteren diyagramtage filtration system of the xTool Smoke Purifier. — A detailed diagram showing the internal components of the smoke purifier, including the pre-filter, HEPA filter, and activated carbon filter, which work together for comprehensive air purification.

5. Kullanım Talimatları

5.1 Güç Açma/Kapatma ve Fan Hızı Ayarı

1. Connect the power cable to the smoke purifier and a suitable power outlet.

2. Turn the rotary knob on the front panel clockwise to power on the device. Continue turning to adjust the fan speed from minimum to maximum. Turn counter-clockwise to reduce speed and power off.

3. For optimal smoke removal, adjust the fan speed according to the material being processed and the density of fumes generated.

Close-up of the xTool Smoke Purifier showing its handles, caster wheels, and a rotary knob for fan speed adjustment. — This image highlights the ergonomic features of the purifier, including convenient handles and wheels for easy mobility, and a simple knob for precise fan speed control.

5.2 Uyumluluk

The xTool Smoke Purifier is designed for wide compatibility with various xTool laser engravers, including:

xTool M1
xTool M1 Ultra
xTool F1 Ultra
xTool S1
xTool P2
xTool D1 (requires cover)
xTool D1 Pro (requires cover)

It is also suitable for use with most other enclosed laser engravers.

6. Temel Özellikler

6.1 Powerful 150W Suction

The xTool Smoke Purifier features a powerful 150W suction capability, designed to efficiently remove smoke and harmful substances generated during laser engraving. This ensures a healthy and safe indoor working environment for users.

6.2 Advanced 3-Stage Filtrasyon

Equipped with a high-quality 3-stage filter system, including a 25mm pre-filter, an expanded HEPA filter, and premium activated carbon, the purifier captures all smoke, dust, and harmful gases. It achieves a filtration and purification efficiency of 99.97%.

6.3 Sealed Design for Smoke Leak Prevention

The integrated design of the xTool Smoke Purifier prevents random smoke emission. Its unique form covers the air inlet, and the external exhaust port is designed with a metal buckle. By maintaining only the air inlet and outlet, smoke leakage is prevented, significantly enhancing air purification effectiveness.

6.4 Ergonomic and Quiet Operation

Operating at a maximum noise level of only 55dB, the xTool fume extractor ensures a quiet and comfortable working environment during laser cutter use. It features handles and wheels for easy mobility. The knob switch allows for precise adjustment of fan speed to maximize purification efficiency.

Smartphone screen displaying a noise level of 54dB, indicating quiet operation of the xTool Smoke Purifier. — This image features a smartphone displaying a decibel reading of 54dB, demonstrating the low noise level of the xTool Smoke Purifier during operation, ensuring a quiet working environment.

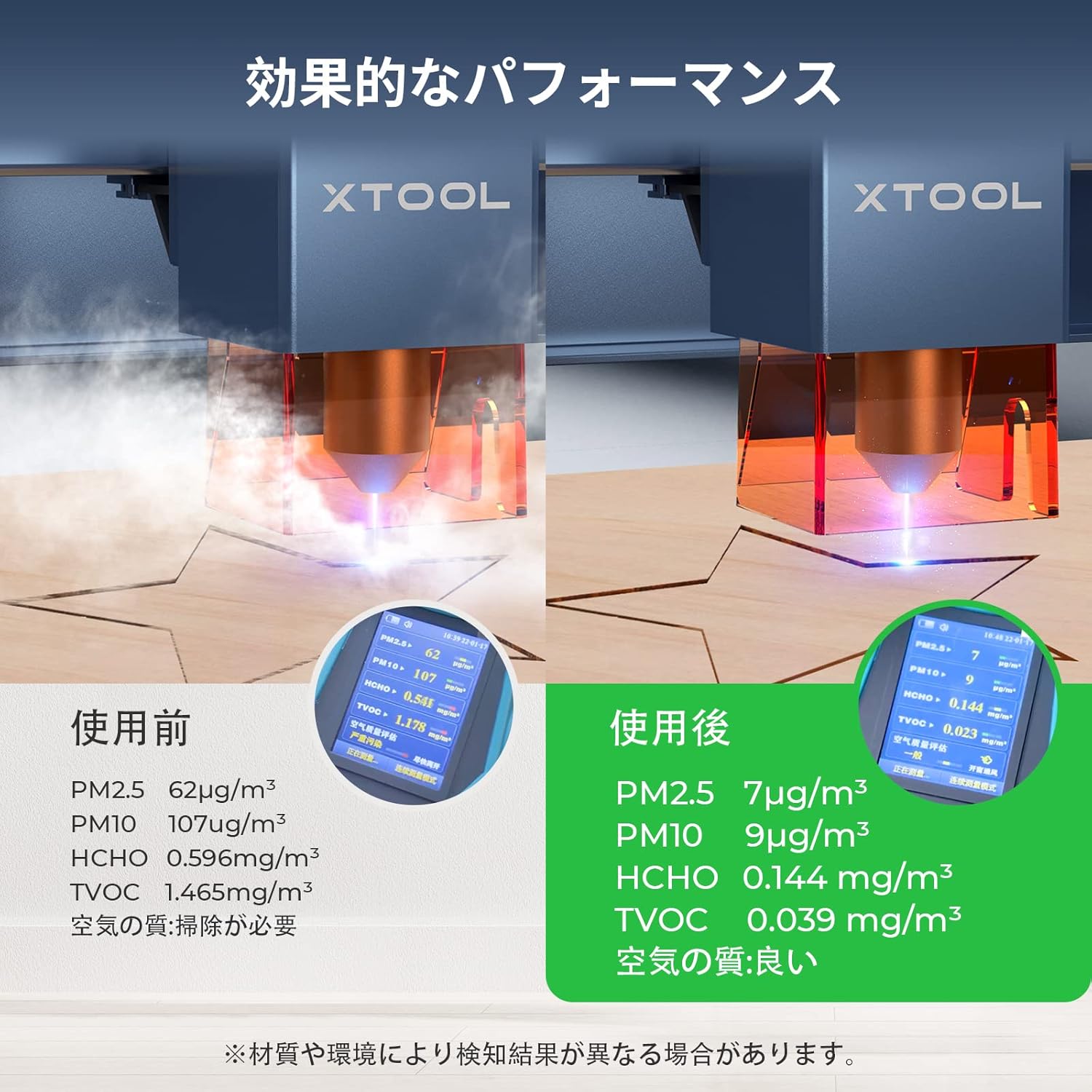

Comparison of air quality readings before and after using the xTool Smoke Purifier, showing significant reduction in PM2.5, PM10, HCHO, and TVOC. — Two screens show air quality data: 'Before Use' with high pollutant levels (PM2.5 62µg/m³, PM10 107µg/m³, HCHO 0.596mg/m³, TVOC 1.465mg/m³) and 'After Use' with significantly reduced levels (PM2.5 7µg/m³, PM10 9µg/m³, HCHO 0.144mg/m³, TVOC 0.039mg/m³), indicating effective purification.

7. Bakım

7.1 Filtre Değişimi

The lifespan of the filters depends on usage frequency and the types of materials processed. Replace filters when you notice a decrease in suction power or an increase in odors.

Ön filtre: The pre-filter can be washed and reused multiple times. Clean it regularly to extend the life of the other filters.
HEPA ve Aktif Karbon Filtreler: These filters are not washable and must be replaced when saturated. Replacement filter kits are available from xTool.

7.2 Ünitenin Temizlenmesi

Wipe the exterior of the smoke purifier with a soft, dry cloth. Do not use abrasive cleaners or solvents.

8. Sorun Giderme

If you encounter issues with your xTool Smoke Purifier, refer to the following common problems and solutions:

Azaltılmış Emiş Gücü: Check if the filters are clogged and require cleaning or replacement. Ensure the exhaust hose connections are secure and not obstructed.
Duman Kaçağı: Verify that all hose connections are tightly clamped and that the laser engraver's cover (if applicable) is properly sealed. The integrated design aims to minimize leaks, but external factors can contribute.
Olağandışı Kokular: This indicates that the activated carbon filter is saturated and needs replacement.
Cihaz Açılmıyor: Ensure the power cable is securely connected to both the device and the power outlet. Check the power switch position.

If the problem persists, please contact xTool customer support for further assistance.

9. Özellikler

Özellik	Detay
Üretici	Makeblock Co., Ltd.
Model Numarası	1421
Paket Boyutları	54.9x52.2x34.3 cm
Renk	Beyaz
Paket Ağırlığı	19.55 Kilogram
Piller Gerekli	HAYIR
Marka Adı	xTool
Ürün Boyutları	20 depth x 20 width x 80 height cm
Güç Kaynağı	Kablolu Elektrik
Kontrol Yöntemi	Dokunmak

10. Product Application Context

The xTool Smoke Purifier is designed to work seamlessly with various xTool laser engravers, enhancing the user experience by managing fumes and particles. Below are videos showcasing some of the compatible laser engravers in action, demonstrating the types of projects where the smoke purifier would be beneficial.

Video: xTool F1 Laser Engraver. This video demonstrates the xTool F1 laser engraver's capabilities with various materials, highlighting its speed and precision for different projects. The smoke purifier would ensure a clean workspace during these operations.

Video: xTool M1 Ultra Laser Engraver. This video showcases the xTool M1 Ultra, a 4-in-1 craft machine, performing various engraving and cutting tasks. The smoke purifier is essential for maintaining air quality during such versatile crafting.

Video: Using the S1 Dedicated Riser. This video demonstrates the use of a dedicated riser for the xTool S1, expanding its capabilities. The smoke purifier would be used in conjunction with the S1 to manage fumes from larger projects.

Video: xTool F1 Laser Engraver. Another demonstration of the xTool F1 laser engraver, showcasing its versatility. The smoke purifier ensures a clean and safe environment for all engraving tasks.

11. Garanti ve Destek

The xTool Smoke Purifier comes with a standard manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please visit the official xTool webSite üzerinden satın alabilir veya doğrudan müşteri hizmetleriyle iletişime geçebilirsiniz. Satın alma belgenizi saklayın.

xTool 1421
