1. Giriş
This manual provides essential information for the safe and efficient operation of your Beko B5WFT59415W washing machine. Please read these instructions carefully before installation, first use, and maintenance. Keep this manual for future reference.
2. Güvenlik Bilgileri
- Ensure the appliance is unplugged before any cleaning or maintenance.
- Çocukların cihazla oynamasına izin vermeyin.
- Cihazın mutlaka topraklı bir prize bağlanması gerekmektedir.
- Güç kablosu veya fişi hasarlıysa makineyi çalıştırmayın.
- Çalışma esnasında kapıyı asla zorla açmayınız.
- Ambalaj malzemelerini çocuklardan uzak tutunuz.
3. Ürün Bittiview
Çamaşır makinenizin ana bileşenlerini tanıyın.

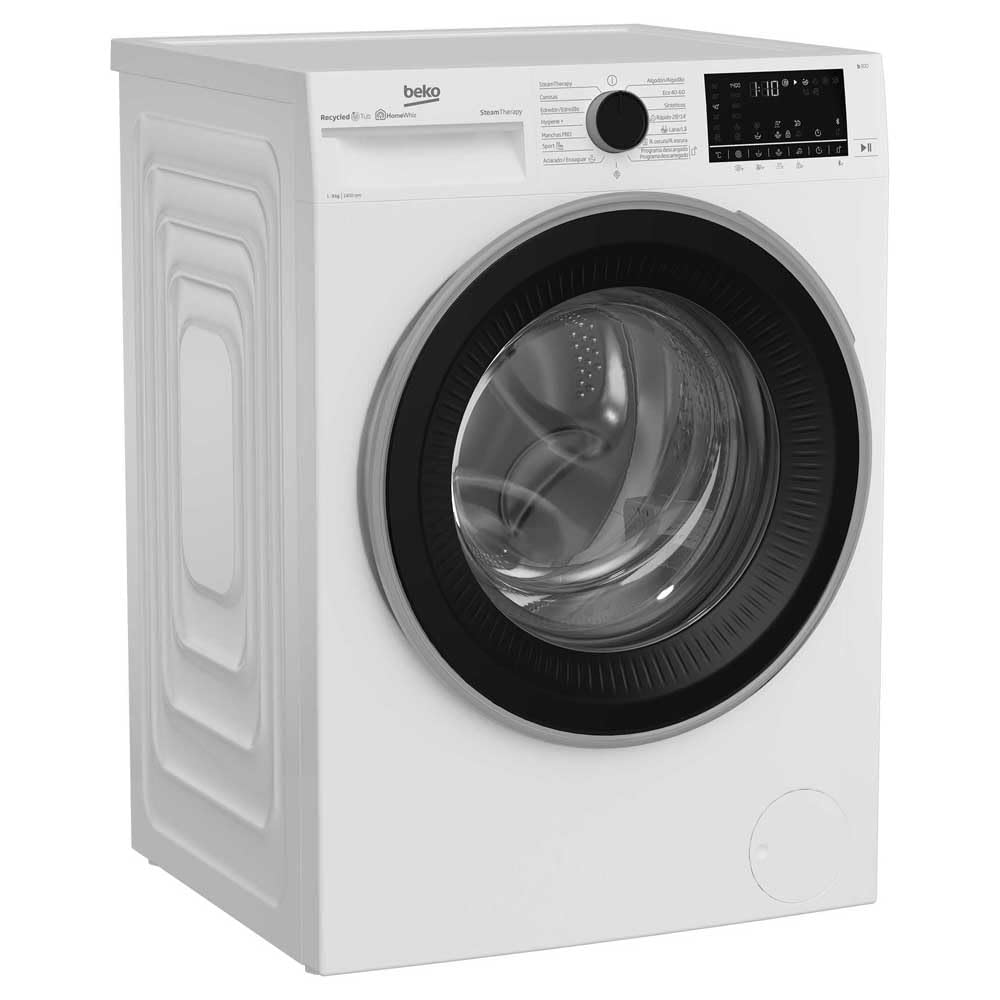

Şekil 3.1: Ön view of the Beko B5WFT59415W washing machine, showing the control panel, detergent drawer, and main drum door.

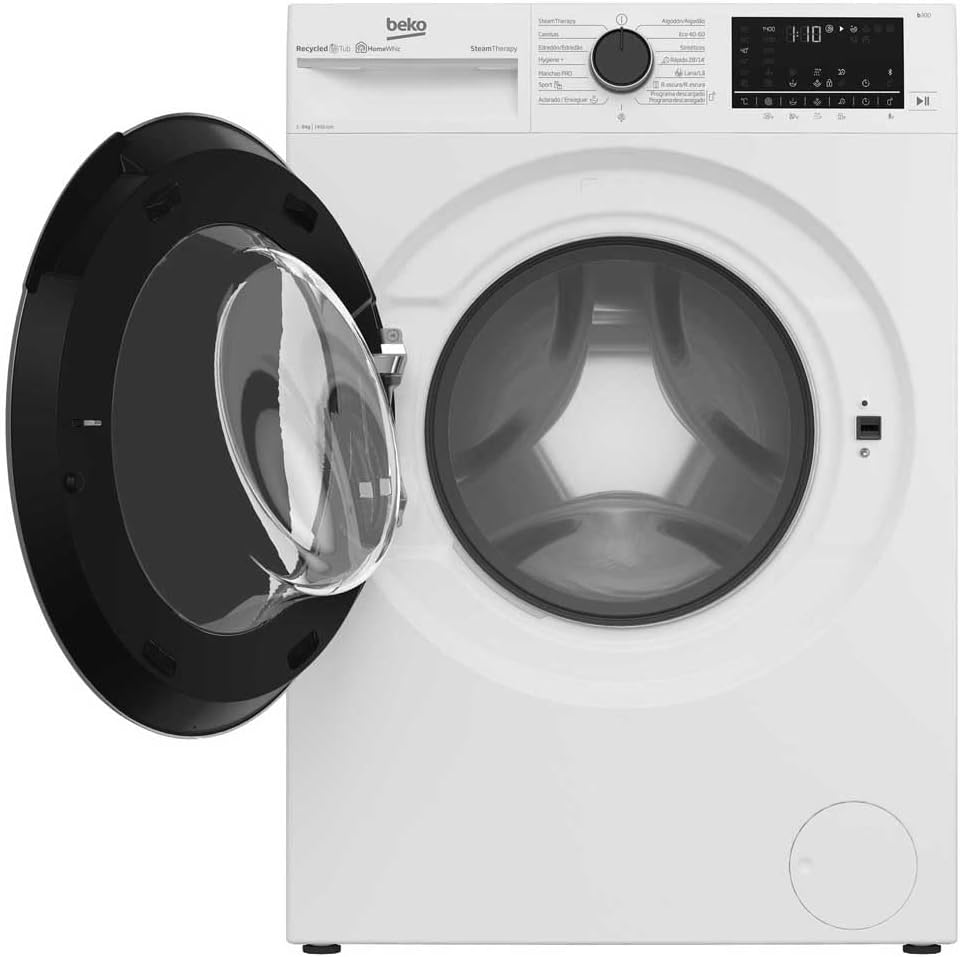

Şekil 3.2: The washing machine with its large, black-rimmed door open, revealing the stainless steel drum inside.
Şekil 3.3: Kapatmak view of the detergent drawer, showing compartments for pre-wash, main wash, and fabric softener, with a 'MAX' indicator.
Şekil 3.4: Ayrıntılı view of the control panel, featuring a program selection knob, digital display, and touch buttons for various functions like SteamTherapy, temperature, spin speed, and delay start.
4. Kurulum ve Kurulum
4.1 Paketin açılması
Remove all packaging materials, including the polystyrene base and any protective films. Inspect the machine for any damage. Keep packaging materials for potential future transport.
4.2 Taşıma Cıvatalarının Sökülmesi
Before operating, remove the transit bolts located at the rear of the machine. These bolts secure the drum during transport. Failure to remove them will cause excessive vibration and damage. Use the provided wrench to loosen and remove them, then cover the holes with the plastic caps supplied.
4.3 Makinenin Düzleştirilmesi
Adjust the feet at the bottom of the machine until it is perfectly level and stable. Use a spirit level to ensure accuracy. A level machine reduces vibration and noise during operation.
4.4 Su Bağlantısı
Connect the water inlet hose to a cold water tap with a 3/4-inch thread. Ensure the connections are tight to prevent leaks. Do not use old hoses; always use the new hoses supplied with the appliance.
4.5 Tahliye Hortumu Bağlantısı
Securely attach the drain hose to a standpipe or over the edge of a sink, ensuring it is at a height between 60 cm and 100 cm from the floor. The end of the hose must not be submerged in water to prevent siphoning.
4.6 Elektrik Bağlantısı
Cihazı topraklı bir elektrik prizine takın. Ses seviyesinin doğru ayarlandığından emin olun.tage and frequency specified on the rating plate match your local power supply. Do not use extension cords or multi-plugs.
5. Kullanım Talimatları
5.1 Çamaşırların Hazırlanması
- Çamaşırları kumaş türüne, rengine ve kirlilik derecesine göre ayırın.
- Yıkama talimatları için giysi bakım etiketlerini kontrol edin.
- Cepleri boşaltın ve hasar görmesini önlemek için fermuarları ve kancaları kapatın.
5.2 Çamaşırların Yüklenmesi
Open the loading door and place laundry loosely into the drum. Do not overload the machine; leave enough space for clothes to tumble freely. The maximum capacity for this model is 9 kg.
5.3 Deterjan ve Katkı Maddelerinin Eklenmesi
Pull out the detergent drawer (refer to Figure 3.3). Add detergent to the main wash compartment (II) and fabric softener to the designated compartment (flower symbol). If using pre-wash, add detergent to compartment (I). Follow detergent manufacturer's recommendations for dosage.
5.4 Bir Programın Seçilmesi
Turn the program selection knob (refer to Figure 3.4) to choose the desired wash program. Available programs include:
- SteamTherapy: For refreshing clothes and reducing wrinkles.
- Cottons/Algodoes: Dayanıklı pamuklu ürünler için.
- Eko 40-60: Energy-efficient program for normally soiled cottons.
- Sentetikler: Sentetik ve karışık kumaşlar için.
- Quick 28'/14': Hafif kirli eşyalar için hızlı yıkama.
- Hassas: Hassas ürünler için, özenli bakım gerektirir.
- Büyük Eşyalar: For larger items like blankets or duvets.
- Durulama sıkma: Durulama ve sıkma işlemlerini ayrı ayrı yapmak için.
- Döndür + Boşalt: Suyu boşaltmak ve çamaşırları sıkmak için.
5.5 Adjusting Program Settings
After selecting a program, you can adjust settings such as temperature, spin speed, and add auxiliary functions (e.g., pre-wash, extra rinse, delay start) using the buttons on the control panel. The digital display will show the selected settings and remaining time.
5.6 Yıkama Döngüsünü Başlatma
Press the Start/Pause button to begin the selected wash program. The door will lock, and the machine will start filling with water.
5.7 Ending the Cycle
Once the program is complete, the machine will signal with an audible alert and/or a message on the display. The door will unlock after a short delay. Remove laundry promptly to prevent wrinkles.
6. Bakım ve Temizlik
6.1 Deterjan Çekmecesinin Temizlenmesi
Periodically remove the detergent drawer and clean it under running water to remove any detergent residue. Use a brush if necessary. Reinsert the drawer once clean and dry.
6.2 Kapı Contasının Temizlenmesi
Wipe the rubber door seal after each wash to remove lint, dirt, and moisture. This prevents mold growth and unpleasant odors.
6.3 Pompa Filtresinin Temizlenmesi
The pump filter should be cleaned regularly (every few months or if drainage issues occur). Open the small cover at the bottom front of the machine, place a shallow container underneath to catch water, and slowly unscrew the filter. Remove any debris and clean the filter under running water. Reinsert and tighten securely.
6.4 Su Giriş Filtrelerinin Temizlenmesi
If water filling is slow, the water inlet filters may be clogged. Close the water tap, disconnect the inlet hose, and clean the filters located at the tap end and the machine end of the hose using a small brush or pliers. Reconnect securely.
6.5 Kireç çözme
In areas with hard water, descaling may be necessary. Use a suitable descaling agent specifically designed for washing machines, following the product's instructions.
6.6 Kış Muhafazası
If the machine is to be stored in an unheated area during winter, drain all remaining water from the machine to prevent freezing and damage. Disconnect water hoses and run a drain cycle if possible.
7. Sorun Giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Makine başlamıyor | No power; door not closed; Start/Pause not pressed. | Check power supply; ensure door is latched; press Start/Pause. |
| Su dolmuyor | Water tap closed; inlet hose kinked; inlet filter clogged. | Open water tap; straighten hose; clean inlet filters. |
| Su akmıyor | Drain hose kinked; pump filter clogged. | Straighten drain hose; clean pump filter. |
| Aşırı titreşim/gürültü | Taşıma cıvataları çıkarılmamış; makine düz değil; yük dengesiz. | Remove transit bolts; level the machine; redistribute laundry. |
| Kötü yıkama sonuçları | Overloading; incorrect detergent dosage; wrong program. | Reduce load; adjust detergent; select appropriate program. |
If problems persist after attempting these solutions, contact authorized service personnel.
8. Özellikler
- Marka: Beko
- Model Numarası: B3WFT59415W
- Kapasite: 9 Kilogram
- Maksimum Sıkma Hızı: 1400 RPM
- Boyutlar (U x G x Y): 50x50x28 cm
- Ağırlık: 50 Kilogram
- Arayüz Türü: Düğmeler
- Döngü Seçenekleri: Normal, Bulky, Delicate Laundry, SteamTherapy, Eco 40-60, Synthetics, Quick 28'/14', Rinse & Spin, Spin + Drain
9. Garanti ve Destek
Your Beko washing machine comes with a manufacturer's warranty. Please refer to the warranty card provided with your appliance for specific terms and conditions, including the warranty period and coverage details. For technical assistance, spare parts, or to schedule a service appointment, please contact Beko customer support or an authorized service center. Keep your purchase receipt as proof of purchase for warranty claims.
For further information, you may visit the official Beko webSiteyi ziyaret edin veya satıcınıza danışın.
