VIVOHOME Dual Fans Airbrush Paint Spray Booth (Model VH1178US) Instruction Manual

1. Giriş

Thank you for choosing the VIVOHOME Dual Fans Airbrush Paint Spray Booth. This portable and efficient spray booth is designed to provide a clean and well-ventilated workspace for various hobby painting, crafting, and model-making projects. Featuring dual fans, integrated LED lighting, and a flexible exhaust system, it ensures a comfortable and safe environment for your creative endeavors. Please read this manual thoroughly before use to ensure proper setup, operation, and maintenance.

2. Güvenlik Bilgileri

Yaralanma veya hasarı önlemek için her zaman aşağıdaki güvenlik önlemlerine uyun:

• Always operate the spray booth in a well-ventilated area.
• Wear appropriate personal protective equipment (PPE), including a respirator, safety glasses, and gloves, when spraying paints or chemicals.
• Ensure all electrical connections are secure and the power cord is not damaged.
• Açık alev veya tutuşturma kaynaklarının yakınına yanıcı maddeler püskürtmeyin.
• Keep children and pets away from the operating spray booth.
• Regularly inspect and replace filters to maintain optimal performance and safety.
• Do not block the fan intake or exhaust ports during operation.

3. Ürün Bittiview

The VIVOHOME Dual Fans Airbrush Paint Spray Booth is engineered for efficiency and convenience. Key features include:

• Powerful Dual-Fan Ventilation: Dual fans provide steady, high-volume airflow (5.2 m³/min) to quickly remove fumes and overspray.
• Taşınabilir Tasarım: The booth folds neatly into a carrying case shape with a handle for easy transport and storage.
• Hatta LED Aydınlatma: Four built-in LED lights (1100 lm) deliver uniform visibility for accurate spraying and true color representation.
• Compact, Rigid Structure: Built with a sturdy ABS housing for durability and stable performance.
• Clean & Safe Filtering System: Includes a 2-layer high-density fiberglass filter and an extendable exhaust hose (16–72 inches) to guide fumes outdoors.
• Integrated Turntable: A removable turntable facilitates painting from all angles.

4. Kurulum Talimatları

Follow these steps to set up your VIVOHOME Airbrush Paint Spray Booth:

1. Unpack the Booth: Carefully remove all components from the packaging. The booth is designed to unfold from its compact carrying case form.
2. Unfold the Booth: Release the latches and unfold the side panels and top cover to form the spray booth enclosure. Ensure all panels are securely in place.
3. Filtreyi yükleyin: Insert the 2-layer high-density fiberglass filter into the designated slot at the rear of the booth, ensuring it sits flush against the fan intake.
4. Egzoz Hortumunu takın: Connect the flexible exhaust hose to the exhaust port at the rear of the booth. Secure it with the provided clamp. Extend the hose to a window or door opening and use the exhaust port adapter to direct fumes outdoors.
5. Place the Turntable: Position the rotating turntable inside the booth on the base for easy access to your painting projects.
6. Gücü bağlayın: Plug the power adapter into the booth's power input and then into a standard electrical outlet.

Figure 4.1: Fully assembled VIVOHOME Dual Fans Airbrush Paint Spray Booth with exhaust hose connected to a window. A model car is placed inside the booth on the turntable.

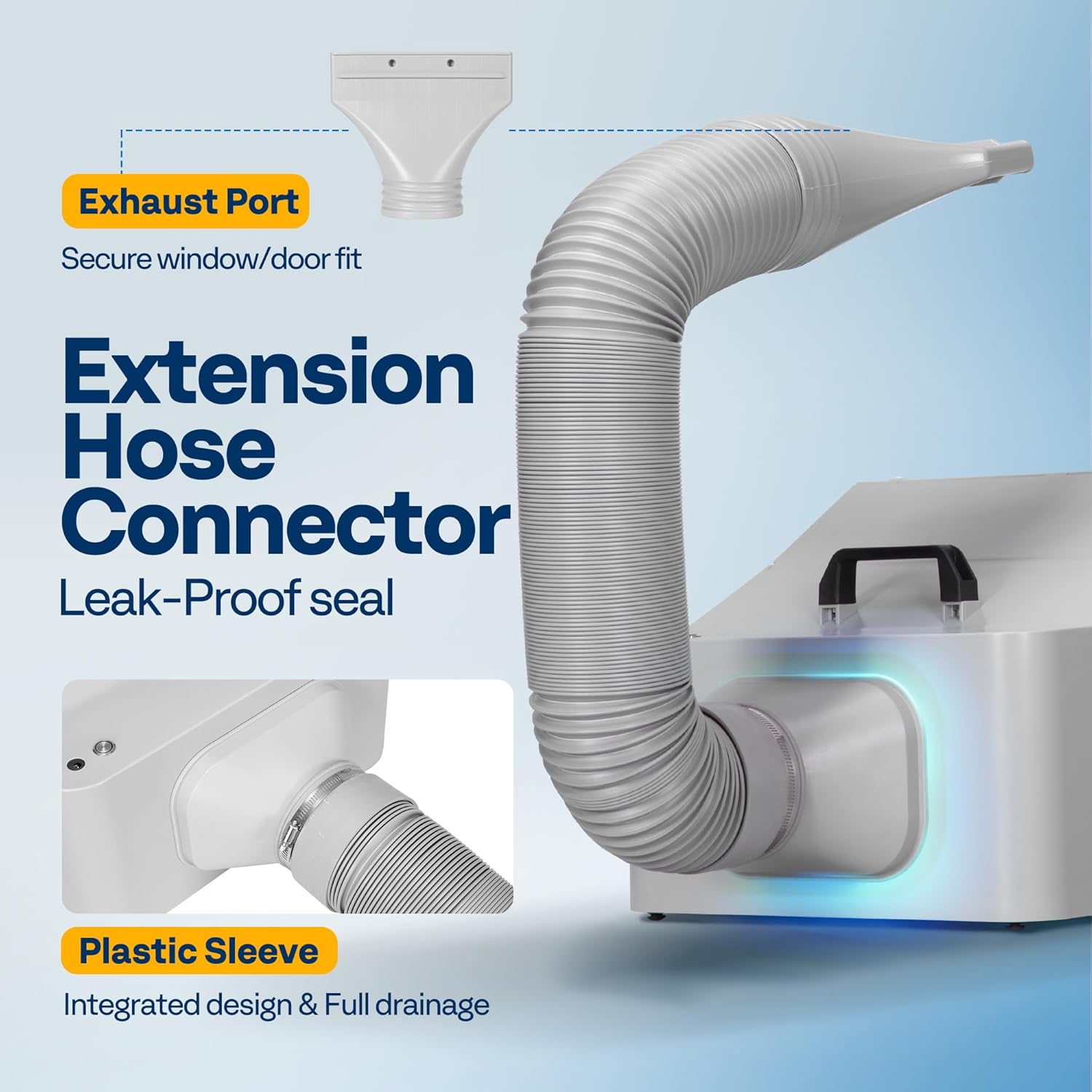

Şekil 4.2: Ayrıntılı view of the flexible exhaust hose connected to the rear port of the spray booth, illustrating the secure attachment mechanism.

5. Kullanım Talimatları

Once the spray booth is set up, you can begin your painting projects:

1. Güç Açık: Press the power button to activate the fans and LED lights. The booth features separate controls for fans and lights.
2. Adjust Fans: The dual fans can be operated together for maximum ventilation or individually depending on your needs. Refer to the control panel for fan speed adjustments.
3. Utilize LED Lights: Turn on the integrated LED lights to illuminate your workspace. The 1100 lm output ensures clear visibility for detailed work.
4. Use the Turntable: Place your item on the rotating turntable. This allows you to easily rotate the item for even paint application without touching it.
5. Püskürtmeye Başlayın: With proper PPE, begin airbrushing or spraying your project. The fans will draw overspray and fumes through the filter and out the exhaust hose.
6. Kapat: After completing your work, turn off the fans and lights, then unplug the power adapter.

Figure 5.1: The interior of the spray booth is shown with the integrated LED lights turned on, providing clear illumination of the workspace.

Figure 5.2: A black, textured rotating turntable is positioned inside the spray booth, designed to facilitate easy access to all sides of the item being painted.

6. Bakım

Proper maintenance ensures the longevity and efficiency of your spray booth:

• Filtre Değişimi: The 2-layer high-density fiberglass filter should be regularly inspected and replaced when it becomes saturated with paint or dust. Replacement filters are available from VIVOHOME.
• Cleaning the Booth: Wipe down the interior surfaces of the booth with a damp cloth after each use to prevent paint buildup. Avoid using harsh chemicals that may damage the ABS material.
• Egzoz Hortumu: Periodically check the exhaust hose for any blockages or damage. Ensure it remains flexible and free of kinks.
• Depolamak: When not in use, fold the booth into its compact form and store it in a dry, clean place.

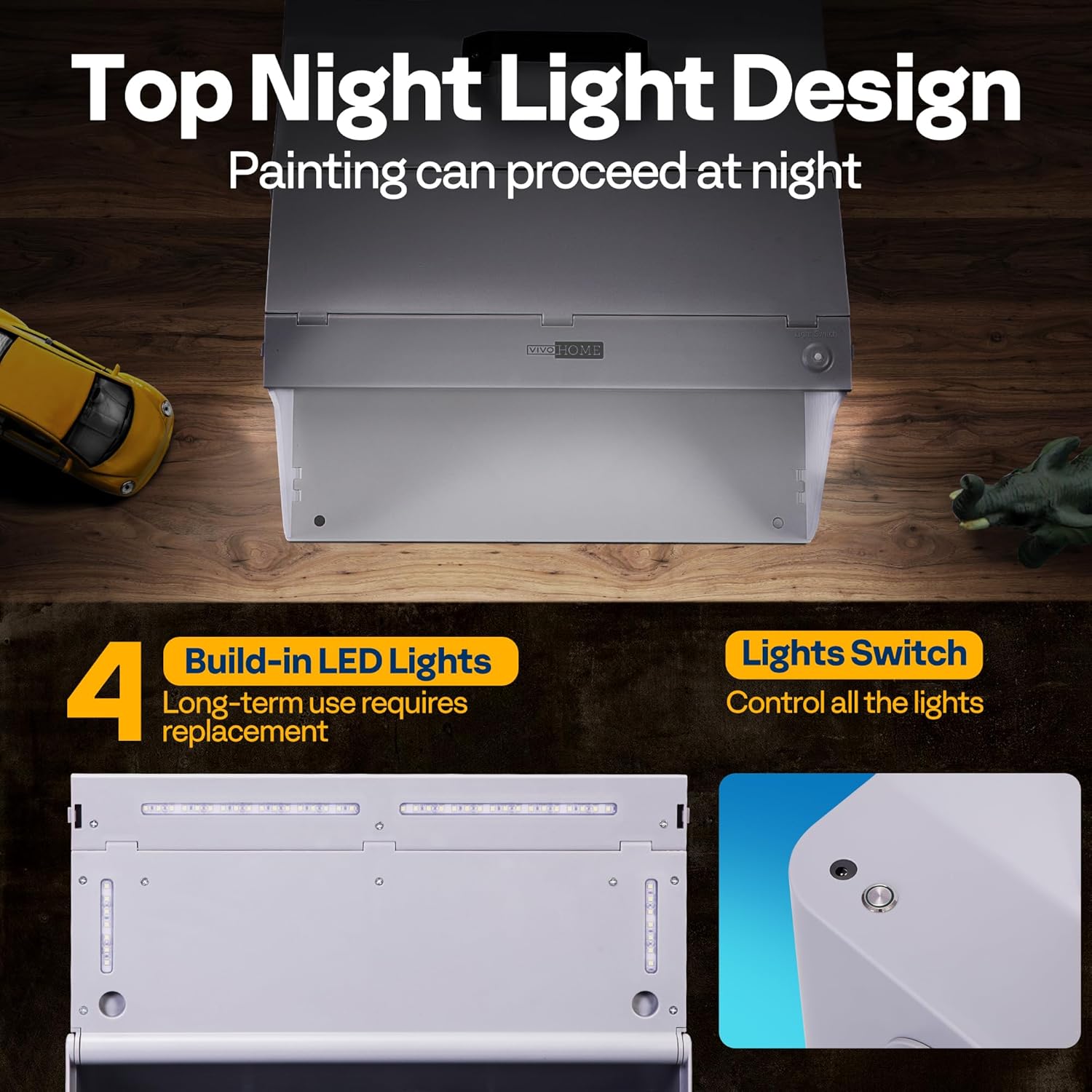

Figure 6.1: This image shows the multi-layered high-density fiberglass filter, highlighting its construction for effective air purification within the booth.

Figure 6.2: The spray booth is shown in its folded, compact form, resembling a carrying case with a handle for convenient transport and storage.

7. Sorun Giderme

If you encounter issues with your VIVOHOME Airbrush Paint Spray Booth, refer to the following common problems and solutions:

• Güç Yok:
  • Check if the power adapter is securely plugged into both the booth and the electrical outlet.
  • Başka bir cihazla test ederek elektrik prizinin çalışır durumda olduğundan emin olun.
  • Güç kablosunu gözle görülür bir hasar açısından inceleyin.
• Zayıf Hava Akışı:
  • Verify that the fans are turned on and operating at the desired speed.
  • Check the filter for excessive paint or dust buildup and replace it if necessary.
  • Ensure the exhaust hose is not kinked or blocked and is properly extended outdoors.
• Işıklar Çalışmıyor:
  • Confirm that the light switch is in the 'ON' position.
  • Check the power connection to the booth.

8. Özellikler

9. Garanti ve Destek

This VIVOHOME product comes with a 1 yıllık üretici garantisi. For warranty claims, technical support, or any questions regarding your spray booth, please contact VIVOHOME customer service through their official website or the retailer where the product was purchased. Please have your model number (VH1178US) and proof of purchase ready when contacting support.
