WLtoys K110S 6CH 3D/6G System Flybarless RC Helicopter User Manual

1. Güvenlik Bilgileri

Before operating the WLtoys K110S RC Helicopter, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the product.

• Always operate the helicopter in a spacious, wind-free, and obstacle-free outdoor area. Maintain a safe distance from the aircraft.
• Keep hands, face, and loose clothing away from rotating blades.
• Her uçuştan önce pilin tamamen şarj olduğundan emin olun.
• Do not fly with broken or damaged rotor blades.
• Ameliyat için önerilen yaş 14 ve üzeridir.
• In case of emergency, immediately use the emergency stop function on the remote control.

2. Kurulum

2.1. Paket İçeriği

The WLtoys K110S package typically includes:

• WLtoys K110S RC Helicopter
• 2.4G 6-channel Remote Control
• 3.7V 450mAh 25C Li-Po Battery
• Dedicated USB Charger (charges 2 batteries simultaneously)
• Yedek Ana Bıçaklar
• Yedek Kuyruk Rotoru
• Tools (e.g., screwdriver)
• Kullanım Kılavuzu

Image: Package contents of the WLtoys K110S helicopter, showing the helicopter, remote control, charger, and various accessories.

2.2. Pil doldurma

Ensure the helicopter's 3.7V 450mAh 25C Li-Po battery is fully charged before use. Use the dedicated USB charger provided. The charger can charge two batteries simultaneously.

• Connect the USB charger to a compatible USB power source (e.g., phone adapter, computer USB port).
• Connect the battery to the charger. The indicator light will show charging status.
• Charging time is approximately 50-60 minutes for a single battery.

Image: Illustration of various battery charging methods, including using a cell phone power adapter, computer USB port, or mobile phone charger.

2.3. Uzaktan Kumanda Hazırlığı

Uzaktan kumanda 6 adet AA pil gerektirir (piller dahil değildir).

• Install 6 AA batteries into the remote control, ensuring correct polarity.
• Push the throttle stick to its lowest position.
• Set all switches on the remote control to the upper position.

2.4. Connecting and Calibrating

After preparing the remote control and charging the battery:

1. Connect the fully charged battery to the helicopter. Ensure battery wires do not interfere with landing gear or internal gears.
2. Helikopteri düz ve yatay bir zemine yerleştirin.
3. Turn on the remote control. The remote will automatically pair with the helicopter.
4. To calibrate, pull both control sticks to their outermost sides. The helicopter blades will twitch up and down, indicating successful calibration.

3. Kullanım Talimatları

3.1. Flight Modes (3D/6G System)

The WLtoys K110S features both 3D and 6G flight modes, switchable via the remote control.

• 6G Modu: Utilizes a 6-axis gyroscope for stable flight, ideal for beginners. It offers enhanced stability and wind resistance.
• 3D Modu: Employs a 3-axis gyroscope, providing responsive control for aerobatics such as rolls, inverted flight, and other advanced maneuvers. Recommended for experienced pilots.

Tavsiye: Beginners should start practicing in 6G mode and switch to 3D mode only after mastering all basic functions.

Image: The WLtoys K110S helicopter flying outdoors, illustrating the stability of 6G mode for beginners.

Image: The WLtoys K110S helicopter performing advanced maneuvers, highlighting the responsive control of 3D mode.

3.2. Kalkış ve İniş

For takeoff, gently push the throttle stick upwards to lift the helicopter. For beginners, it is advisable to fly at a low altitude initially.

After takeoff, gently control the throttle stick to adjust the helicopter's altitude. Use the right stick to adjust forward/backward and left/right attitude, ensuring the tail remains stable and hovers facing towards you.

To land, slowly pull the throttle stick downwards until the helicopter gently touches down.

3.3. Hovering Point Adjustment

The remote control allows for setting the aircraft's hovering point. Enter the setting mode to adjust the hover point according to your preference for stable flight.

Image: The WLtoys K110S helicopter maintaining a stable hover, with the remote control showing the "Spot Hover" feature.

4. Bakım

• Regularly inspect the helicopter for any signs of damage to the blades, frame, or electronic components.
• Replace any damaged parts immediately using genuine WLtoys spare parts.
• Helikopteri temiz tutun ve tozdan ve döküntülerden arındırın.
• Helikopteri ve uzaktan kumandasını serin, kuru ve doğrudan güneş ışığından uzak bir yerde saklayın.
• Ensure batteries are stored at a partial charge (around 3.8V per cell for Li-Po) if not used for extended periods.

5. Sorun Giderme

6. Özellikler

• Modeli: K110S
• Marka: WL oyuncakları
• Kanallar: 6CH
• Flight System: 3D/6G (Brushless, Flybarless)
• Ana motor: 1106 Fırçasız Motor
• Kuyruk Motoru: 0716 Çekirdeksiz Motor
• Pil: 3.7V 450mAh 25C Li-Po
• Uçuş Süresi: Yaklaşık 6-7 dakika
• Şarj Süresi: Yaklaşık 50-60 dakika
• Uzaktan kumanda: 2.4GHz (FUTABA S-FHSS ile uyumlu)
• Uzaktan Kumanda Mesafesi: Yaklaşık 120m
• Ürün Ölçüleri: 9.65 x 1.89 x 3.03 inç
• Ürün Ağırlığı: 2.12 ons
• Önerilen Yaş: 14 yaş ve üzeri

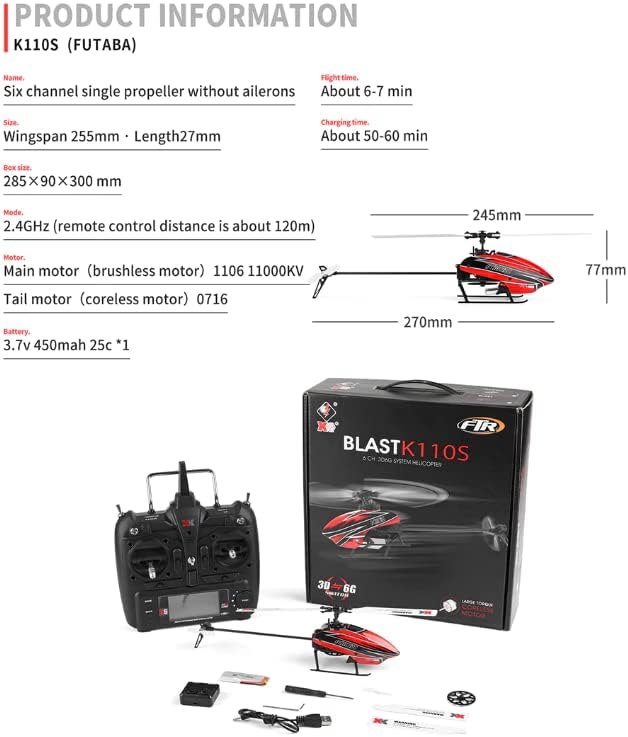

Image: Detailed product information and dimensions for the WLtoys K110S helicopter.

Resim: Yakın çekim view of the WLtoys K110S helicopter, highlighting the 1106 brushless main motor and 0716 coreless tail motor.

7. Garanti ve Destek

For warranty information, technical support, or to purchase spare parts, please contact the seller or the official WLtoys customer service. Refer to your purchase documentation for specific warranty terms and contact details.
