CLP Salford Genuine Leather Office Chair User Manual

Önemli Güvenlik Bilgileri

Montaj ve kullanımdan önce lütfen tüm talimatları dikkatlice okuyun. Bu kılavuzu ileride başvurmak üzere saklayın.

Maksimum Yük Kapasitesi: Maksimum ağırlık kapasitesini aşmayın 136 kg (299 lbs). Exceeding this limit may cause instability and damage to the chair, potentially leading to injury.
Ensure the chair is positioned on a stable, level surface before use.
Sandalyenin üzerine çıkmaktan veya onu basamak olarak kullanmaktan kaçının.
Ayarlama işlemi sırasında ellerinizi ve parmaklarınızı hareketli parçalardan uzak tutun.
Tüm cıvata ve vidaların sıkı olduğundan emin olmak için düzenli olarak kontrol edin. Gerektiğinde yeniden sıkın.
Do not use abrasive cleaners or harsh chemicals on the leather or metal components.

Image showing the CLP Salford office chair with a 136 kg weight capacity icon. — Figure 1: The CLP Salford office chair highlighting its maximum load capacity of 136 kg.

Ürün Bittiview

The CLP Salford Office Chair is designed for comfort and durability, featuring genuine leather upholstery and an ergonomic design. It includes adjustable height, a 360° swivel function, and a tilt mechanism for enhanced flexibility.

Tam dolu view of the CLP Salford office chair in light brown leather, positioned in a modern office setting. — Figure 2: The CLP Salford Office Chair, showcasing its design and genuine leather finish.

Temel Özellikler:

Genuine leather upholstery for comfort and easy maintenance.
Ergonomically shaped backrest for lumbar support.
Ayarlanabilir koltuk yüksekliği.
360° swivel function.
Integrated tilt mechanism for freedom of movement.
Sturdy metal base with 5 smooth-rolling casters.
Padded armrests with chrome-plated metal frame.

Montaj Talimatları

Assembly requires careful attention to detail. It is recommended to have a second person assist with certain steps. Lay out all components on a soft, clean surface to prevent scratches.

Bileşen Kontrol Listesi:

Seat cushion (A)
Sırtlık (B)
Base plate / Mechanism (C)
Armrests (Left & Right) (D)
Gas lift cylinder (E)
Star base (F)
Casters (x5) (G)
Screws (various sizes, e.g., 20mm, 30mm) (H, I, J)
Allen key (K)

Adım Adım Montaj:

Yıldız tabanına tekerlekleri takın: Insert each of the five casters (G) firmly into the holes at the end of each leg of the star base (F) until they click into place.
Gazlı kaldırma silindirini takın: Place the gas lift cylinder (E) into the central hole of the assembled star base (F).
Taban plakasını koltuğa takın: Position the base plate/mechanism (C) onto the underside of the seat cushion (A). Ensure the front of the mechanism aligns with the front of the seat. Secure it using the appropriate screws (e.g., 20mm screws, I). Do not fully tighten all screws at this stage.
Sırtlığı Koltuğa Takın: Align the backrest (B) with the seat cushion (A). The fastening bracket of the backrest should align with the corresponding holes on the base plate/mechanism. Secure the backrest using the longer screws (e.g., 30mm screws, J). It may be helpful to keep the bracket parallel to the seat surface during this step. Do not fully tighten all screws yet.
Kolçakları takın: Attach the left and right armrests (D) to both the seat cushion (A) and the backrest (B). The armrests are made of solid metal and will not bend, so precise alignment is crucial. You may need to slightly adjust the position of the backrest and seat to align the screw holes. Secure with the remaining screws.
Tüm Vidaları Sıkıştırın: Once all components are loosely assembled, carefully tighten all screws using the provided Allen key (K). Ensure all connections are secure but do not overtighten.
Connect Seat Assembly to Base: Carefully place the assembled seat and backrest onto the gas lift cylinder (E) which is already in the star base (F). The tapered end of the gas lift cylinder should fit securely into the mechanism on the underside of the seat.

Ön view of the CLP Salford office chair, showing its full assembled form. — Figure 3: The fully assembled CLP Salford Office Chair.

Kapatmak view of the chrome-plated star base and casters of the CLP Salford office chair. — Figure 4: Detail of the chair's stable 5-caster metal base.

Kullanım Talimatları

Yükseklik Ayarı:

To adjust the seat height, locate the lever on the right side, underneath the seat.

Koltuğu yükseltmek için: Koltuğu kaldırırken ağırlığınızı koltuktan alın. Koltuk otomatik olarak yükselecektir.
Koltuğu indirmek için: Otururken kolu yukarı kaldırın. Koltuk, ağırlığınız altında aşağı inecektir.

Döner Fonksiyon:

The chair is designed to swivel 360 degrees, allowing for easy movement and access to your workspace without needing to reposition the entire chair.

Eğim Mekanizması:

The integrated tilt mechanism allows the backrest and seat to recline together, providing a comfortable rocking motion.

To activate/deactivate tilt: Push the lever (often the same one used for height adjustment, or a separate knob) inwards or pull it outwards.
To adjust tilt tension: Rotate the round knob located at the front, underneath the seat. Turn clockwise to increase tension (making it harder to tilt) or counter-clockwise to decrease tension (making it easier to tilt).

Image illustrating the 360-degree swivel and height adjustment functions of the CLP Salford office chair with blue arrows. — Figure 5: Demonstrating the 360° swivel and height adjustment capabilities.

Image showing the tilt function of the CLP Salford office chair, with multiple chair outlines indicating recline. — Figure 6: The chair's integrated tilt mechanism for reclining.

Bakım ve Özen

Deri Bakımı:

For daily cleaning, gently wipe the leather surface with a soft, damp pamuklu bez.
Avoid using harsh detergents, solvents, or abrasive cleaners, as these can damage the genuine leather.
For deeper cleaning or spills, use a specialized leather cleaner according to its instructions.
Vacuum the surface regularly using a soft brush attachment to remove dust and debris.
Keep the chair away from direct sunlight and heat sources to prevent drying and cracking of the leather.

Metal Bileşenler:

Wipe chrome-plated metal parts with a soft, dry cloth to maintain their shine.
Avoid using abrasive materials or chemical cleaners that could scratch or tarnish the finish.

Genel Bakım:

Periodically check all screws and bolts for tightness and re-tighten if necessary to ensure stability and safety.
Inspect casters for any debris (e.g., hair, lint) that might hinder smooth rolling. Clean as needed.

Kapatmak view of the padded armrest of the CLP Salford office chair, showing the genuine leather and chrome frame. — Figure 7: Detail of the chair's padded armrest and chrome frame, highlighting material quality.

Sorun giderme

Chair feels wobbly or unstable:
Ensure all assembly screws are fully tightened. Check the connection between the gas lift cylinder and the seat mechanism. Verify that the casters are securely inserted into the star base.
Difficulty with assembly, parts not aligning:
Some components, particularly the armrests and backrest, require precise alignment. Do not fully tighten any screws until all major components (seat, backrest, armrests) are loosely in place. This allows for minor adjustments to align holes. If a part seems misaligned, loosen surrounding screws, adjust, and then re-tighten.
Koltuk yüksekliği ayarı çalışmıyor:
Check if the lever is fully engaged. Ensure the gas lift cylinder is correctly seated in both the star base and the seat mechanism. If the issue persists, the gas lift cylinder may need replacement.
Tekerlekler düzgün dönmüyor:
Inspect casters for trapped debris like hair or lint. Clean them thoroughly. Ensure casters are fully inserted into the star base.

Özellikler

Model Numarası	314905
Marka	ÇKP
Malzeme	Genuine Leather (Upholstery), Chrome-plated Metal (Frame/Base)
Toplam Yükseklik	120 - 130 cm (47.2 - 51.2 inç)
Toplam Genişlik	64 cm (25.2 inç)
Toplam Derinlik	79 cm (31.1 inç)
Oturma Yüksekliği	49 - 59 cm (19.3 - 23.2 inç)
Oturma Yüzeyi (G x D)	52 x 51 cm (20.5 x 20.1 inç)
Sırtlık Yüksekliği	79 cm (31.1 inç)
Kolçak Yüksekliği	75 - 85 cm (29.5 - 33.5 inç)
Maksimum Yük Kapasitesi	136 kg (299 lbs)
Ürün Ağırlığı	21 kg (46.3 lbs)

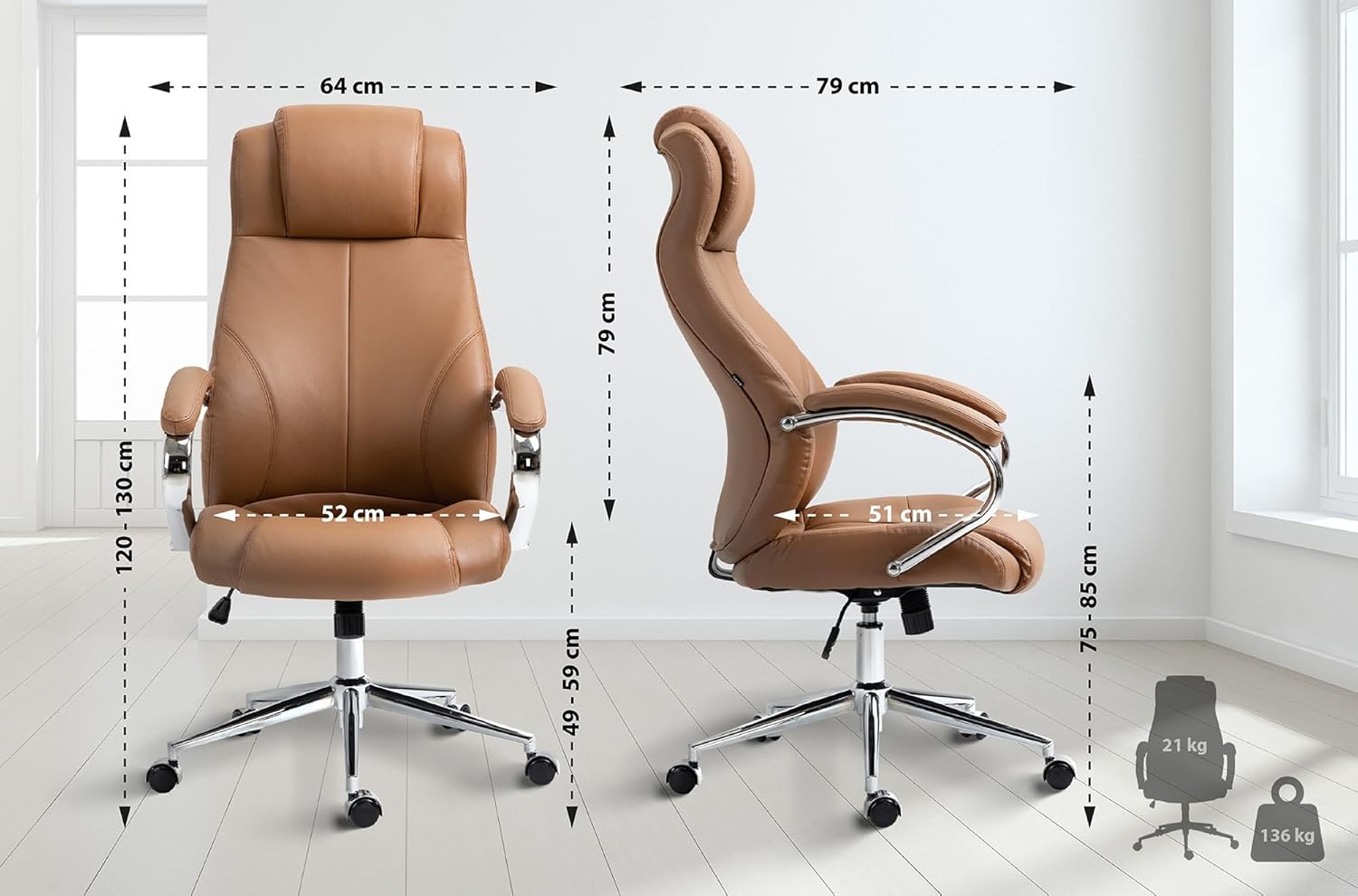

Diagram showing detailed dimensions of the CLP Salford office chair, including total height, width, depth, seat height, seat surface, backrest height, and armrest height. — Figure 8: Detailed dimensions of the CLP Salford Office Chair.

Garanti ve Destek

Information regarding specific warranty terms and conditions for the CLP Salford Office Chair is not provided in this manual. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty details and customer support.

For any questions or assistance, please contact CLP customer service through their official webÜrünün satın alındığı site veya perakendeci.
