1. Önemli Güvenlik Bilgileri
Please read this entire manual before assembling or operating the Jamara Ride-On Jeep Willys MB Army 12V Electric Car. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.
- Yetişkin Denetimi Gereklidir: This product is a toy and must be assembled and operated under direct adult supervision at all times.
- Yaş ve Kilo Sınırı: This ride-on vehicle is designed for one child with a maximum weight of 25 kg. Do not exceed this weight limit.
- Çalışma Ortamı: Use only on flat, dry, paved surfaces. Avoid slopes, uneven terrain, sand, gravel, or water. Do not use on public roads, near motor vehicles, or in areas with heavy pedestrian traffic.
- Koruyucu Ekipman: Always ensure the child wears appropriate safety gear, including a helmet, elbow pads, and knee pads.
- Pil Güvenliği: The battery should only be charged by an adult. Use only the charger provided. Do not short-circuit the battery terminals. Keep batteries away from children.
- Toplantı: Assembly must be performed by an adult. Ensure all parts are securely fastened before use.
2. Ürün Bileşenleri
Montaja başlamadan önce tüm parçaların eksiksiz ve hasarsız olduğundan emin olun. Herhangi bir parça eksik veya hasarlıysa, montaja devam etmeyin ve müşteri desteğiyle iletişime geçin.
- Main Vehicle Body
- Tekerlekler (4)
- Direksiyon
- Koltuk
- 12V Şarj Edilebilir Pil
- Pil Şarj Cihazı
- Montaj Donanımı (vidalar, pullar, somunlar)
- Kullanıcı Kılavuzu
3. Montaj Talimatları
Assembly is required and should be performed by an adult. Please follow these steps carefully.
3.1 Paketin Açılması ve İlk Muayene
- Tüm bileşenleri dikkatlice ambalajından çıkarın.
- Lay out all parts and compare them with the parts list to ensure everything is present.
- Inspect all parts for any signs of damage.
3.2 Tekerleklerin Takılması
- Attach each wheel to its respective axle using the provided washers and nuts.
- Ensure the wheels are securely fastened but can still rotate freely.
3.3 Installing the Steering Wheel
- Connect the steering column to the main vehicle body.
- Attach the steering wheel to the steering column, ensuring it clicks into place or is secured with a screw.
3.4 Pilin Bağlanması
The battery is located under the hood of the jeep.
Resim: Ön view of the Jamara Ride-On Jeep with the hood open, revealing the battery compartment and internal wiring.
- Open the hood of the jeep.
- Connect the red battery terminal to the red wire and the black battery terminal to the black wire. Ensure connections are secure.
- Close the hood securely.
3.5 Koltuğun Takılması
- Place the seat onto the designated area on the vehicle body.
- Secure the seat using the provided screws or clips.
3.6 İlk Pil Şarjı
Before first use, fully charge the battery for 8-12 hours. Do not overcharge for more than 20 hours.
4. Kullanım Talimatları
Çocuğun aracı kullanmasına izin vermeden önce kumanda düğmelerini iyice öğrenin.
4.1 Pilin Şarj Edilmesi
- Locate the charging port, typically near the battery compartment or on the dashboard.
- Plug the charger into a standard wall outlet, then connect the charger to the vehicle's charging port.
- Charge the battery for 8-12 hours. Disconnect the charger once charging is complete.
4.2 Açma/Kapatma

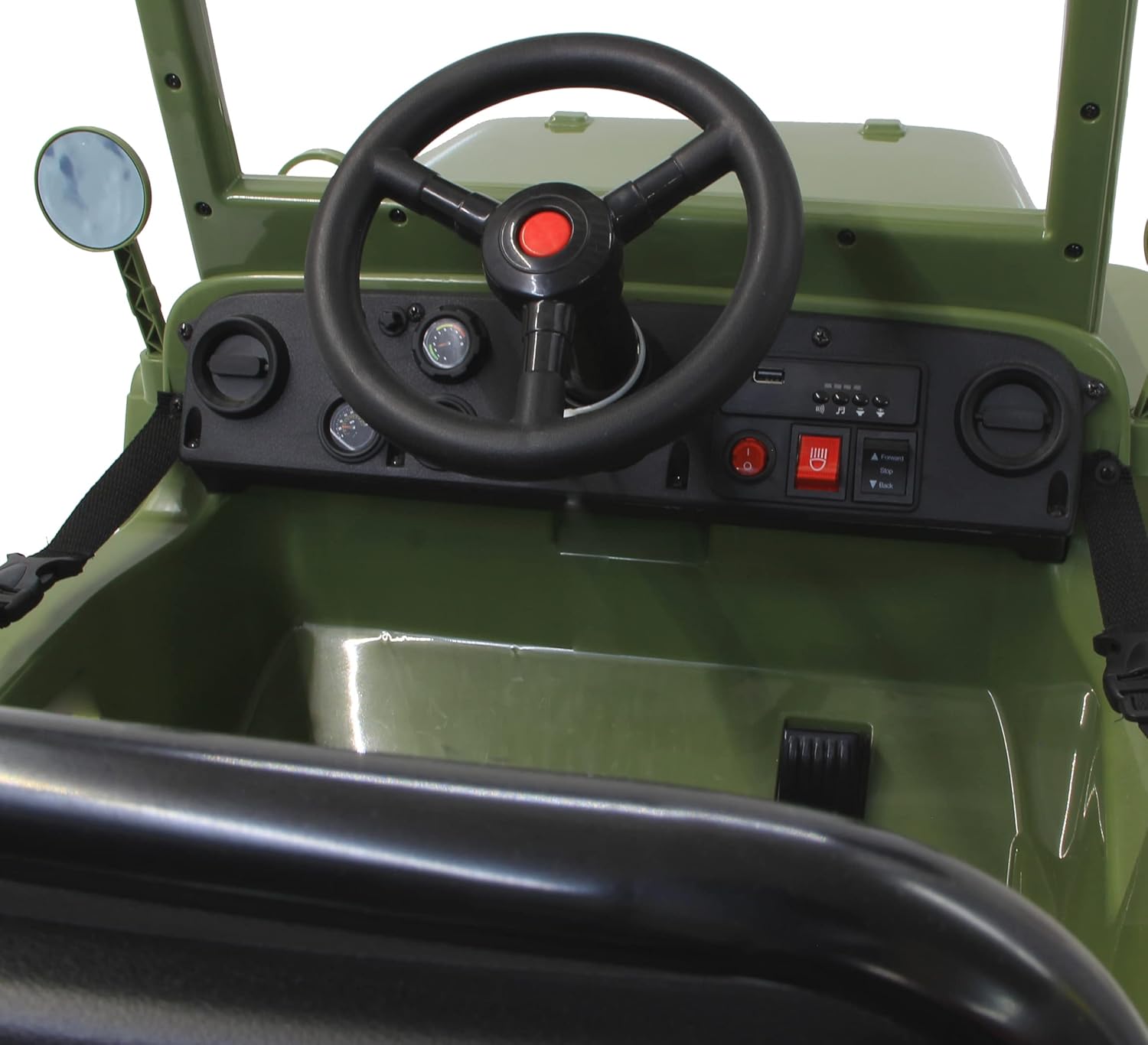

Image: Close-up of the Jamara Ride-On Jeep's dashboard, displaying the steering wheel, power button, and various control switches.
- Press the power button on the dashboard to turn the vehicle on.
- Press the power button again to turn the vehicle off.
4.3 Sürüş Kontrolleri
- Gaz Pedalı: İleri gitmek için ayak pedalına basın. Fren yapmak için pedalı bırakın.
- İleri/Geri Anahtarı: Use the switch on the dashboard to select forward or reverse gear.
- Direksiyon: Yön değiştirmek için direksiyonu sola veya sağa çevirin.
4.4 Ek Özellikler
Resim: Arka view of the Jamara Ride-On Jeep, highlighting the rear storage compartment and details.
- Işıklar: The jeep features working headlights.
- Depolamak: A small storage area is available at the rear of the vehicle.
5. Bakım
Regular maintenance ensures the longevity and safe operation of your ride-on jeep.
- Temizlik: Aracı yumuşak bir bezle silin.amp Bez kullanın. Aşındırıcı temizleyiciler veya çözücüler kullanmayın. Elektrikli bileşenlerin üzerine doğrudan su püskürtmekten kaçının.
- Pil Bakım: Recharge the battery after each use. If storing the vehicle for an extended period, charge the battery once a month to prolong its lifespan. Do not allow the battery to fully discharge for long periods.
- Denetimler: Periodically check all screws, nuts, and electrical connections to ensure they are tight and secure. Inspect wheels for wear and tear.
- Depolamak: Aracı kuru, serin ve doğrudan güneş ışığından ve nemden uzak bir yerde saklayın.
6. Sorun Giderme
If you encounter issues with your Jamara Ride-On Jeep, refer to the following common problems and solutions.
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Araç hareket etmiyor | Battery is low or not connected; Power switch is off; Loose wire connection; Motor malfunction. | Charge the battery; Ensure battery terminals are securely connected; Turn on the power switch; Check all wire connections. If motor malfunction is suspected, contact customer support. |
| Araç yavaş hareket ediyor | Low battery charge; Overload (exceeding weight limit); Operating on unsuitable surface. | Recharge the battery; Ensure child's weight is within limits; Use on flat, hard surfaces. |
| Işıklar çalışmıyor | Gevşek kablo bağlantısı; Hasarlı ampul/LED. | Check wire connections to the lights; Contact customer support for replacement parts if necessary. |
If the problem persists after attempting these solutions, please contact Jamara customer support.
7. Özellikler
Detailed technical specifications for the Jamara Ride-On Jeep Willys MB Army 12V Electric Car.
Resim: Yan view of the Jamara Ride-On Jeep with key dimensions (length, width, height) indicated.
| Özellik | Detay |
|---|---|
| Model Numarası | 461815 |
| Ürün Boyutları (U x G x Y) | 110x59x60 cm |
| Ürün Ağırlığı | 15.3 kilo |
| Maksimum Önerilen Yük | 25 kilo |
| Pil Türü | 12V Şarj Edilebilir |
| Malzeme | Plastik |
| Montaj Gerekli | Evet |
| Piller Dahil | Evet |
| Yolcu Sayısı | 1 |
| GTIN (UPC/EAN) | 04042774469801 |
8. Garanti ve Destek
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Jamara webSite. Satın alma belgenizi herhangi bir garanti talebi için saklayın.
