1. Giriş
Thank you for choosing the Benchmark 20 Volt Cordless Lawn Trimmer and Axial Fan Blower Combo Kit. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new tools. Please read this manual thoroughly before first use and keep it for future reference.
This combo kit includes a powerful 20V cordless lawn trimmer and an axial fan blower, both designed for efficient outdoor yard work. The brushless motor technology ensures higher efficiency and extended durability for both tools.
2. Güvenlik Bilgileri
UYARI: Tüm güvenlik uyarılarını ve tüm talimatları okuyun. Uyarılara ve talimatlara uyulmaması elektrik çarpmasına, yangına ve/veya ciddi yaralanmaya neden olabilir.
- Kişisel Güvenlik: Always wear eye protection (safety glasses or goggles) and hearing protection when operating the trimmer or blower. Wear long pants, sturdy footwear, and gloves. Do not operate while barefoot or wearing open-toed sandals.
- Çalışma Alanı Güvenliği: Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children, bystanders, and pets away while operating the tool.
- Elektriksel Güvenlik: İstenmeyen çalıştırmayı önleyin. Aleti pil takımına bağlamadan, kaldırmadan veya taşımadan önce şalterin kapalı konumda olduğundan emin olun. Herhangi bir ayar yapmadan, aksesuar değiştirmeden veya elektrikli aletleri saklamadan önce pil takımını aletten ayırın.
- Pil Takımının Kullanımı ve Bakımı: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs. When battery pack is not in use, keep it away from other metal objects that can make a connection from one terminal to another.
- Trimmer Specific Safety: Inspect the area before trimming. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the cutting line. Do not use the trimmer near fences, walls, or other hard surfaces that could cause kickback or damage to the line.
- Blower Specific Safety: Never point the blower nozzle at people or pets. Do not use the blower to spread chemicals, fertilizers, or any other substances. Be aware of flying debris.
3. Paket İçeriği
Upon unpacking, ensure all items listed below are present and undamaged. If any parts are missing or damaged, please contact Benchmark customer service.
- 20V Cordless Lawn Trimmer (Brushless Motor)
- 20V Axial Fan Blower (Brushless Motor)
- 20V Lityum İyon Pil Paketi
- Pil Şarj Cihazı
- Trimmer Koruyucu
- Auxiliary Handle (for trimmer)
- Üfleyici Nozul
- Kullanım Kılavuzu (bu belge)

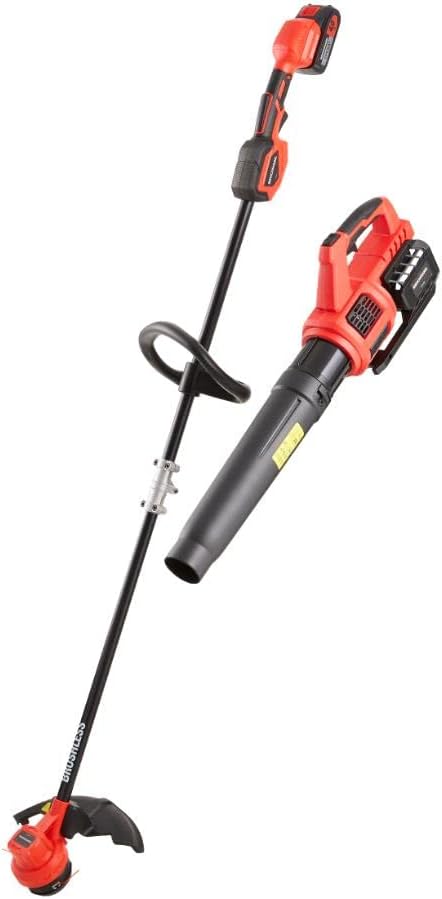

Image: The complete Benchmark 20 Volt Cordless Lawn Trimmer and Axial Fan Blower Combo Kit, showing both tools and a battery.
4. Kurulum ve Montaj
4.1. Pil doldurma
- Şarj cihazını standart bir elektrik prizine takın.
- Pil takımını şarj cihazına kaydırın. Yerine oturduğundan emin olun.
- The charger indicator light will show the charging status (refer to charger manual for specific light patterns).
- Tamamen şarj olduktan sonra, pili şarj cihazından ayırın ve şarj cihazını prizden çıkarın.
Note: Fully charge the battery before first use to ensure optimal performance and battery life.
4.2. Lawn Trimmer Assembly
- Koruyucuyu Takın: Align the trimmer guard with the mounting slots on the trimmer head. Secure it firmly with the provided screws or by snapping it into place until it locks.
- Yardımcı kolu takın: Slide the auxiliary handle onto the trimmer shaft. Adjust its position for comfortable operation and tighten the locking mechanism.
- Şaftı Birleştirin: If the trimmer comes in two pieces, connect the upper and lower shafts, ensuring the alignment arrow or pin engages correctly. Tighten the coupling mechanism securely.
- Pili takın: Slide the charged battery pack into the battery port on the trimmer handle until it clicks into place.
Image: The Benchmark 20 Volt Cordless Lawn Trimmer, showing its full assembled form.
4.3. Axial Fan Blower Assembly
- Nozulu Takın: Align the blower nozzle with the air outlet on the blower body. Twist or push until it locks securely into position.
- Pili takın: Slide the charged battery pack into the battery port on the blower until it clicks into place.
Image: The Benchmark 20 Volt Axial Fan Blower, showing its assembled form with the nozzle attached.
5. Kullanım Talimatları
5.1. Operating the Lawn Trimmer
- Başlangıç: Ensure the battery is fully charged and properly inserted. Hold the trimmer firmly with both hands. Press the safety lock-off button (if present) and then squeeze the trigger switch to start the motor. The trimmer features a variable speed trigger for added control.
- Durdurma: Motoru durdurmak için tetik düğmesini bırakın.
- Kırpma Tekniği:
- Hold the trimmer at a comfortable angle, keeping the cutting head parallel to the ground for even cutting.
- Düzelticiyi yan yana hareket ettirerek süpürme hareketi kullanın.
- Kenar düzeltme işlemi için, düzeltme başlığını dikey konuma getirin ve kaldırım veya araba yolu kenarı boyunca yönlendirin.
- Hat İlerlemesi: This trimmer uses a 0.080" dual line with bump feed advancement. To advance the line, lightly tap the trimmer head on a firm surface while the motor is running.
5.2. Operating the Axial Fan Blower
- Başlangıç: Ensure the battery is fully charged and properly inserted. Hold the blower firmly. Squeeze the trigger switch to start the motor.
- Durdurma: Motoru durdurmak için tetik düğmesini bırakın.
- Üfleme Tekniği:
- Temizlemek istediğiniz kalıntıya doğru püskürtme ucunu yöneltin.
- Yaprakları ve döküntüleri süpürme hareketiyle toplayıp yığınlar halinde toplayın.
- İnatçı kalıntılar için kısa ve güçlü hava püskürtmeleri kullanın.
- The high efficiency axial fan provides increased air flow, up to 330 CFM, for effective clearing.
6. Bakım
Düzenli bakım, aletlerinizin uzun ömürlü olmasını ve en iyi performansı göstermesini sağlar.
- Temizlik: Her kullanımdan sonra pili çıkarın ve aletleri ad ile temizleyin.amp cloth. Remove any grass clippings, dirt, or debris from the air vents, motor housing, and cutting head/nozzle. Do not use harsh chemicals or abrasive cleaners.
- Trimmer Misinası Değişimi: When the trimmer line is depleted, replace it with 0.080" diameter monofilament line. Refer to the trimmer head instructions for specific winding or cartridge replacement procedures.
- Depolamak: Store the tools and battery pack in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (not fully depleted or fully charged) for long-term storage. Keep out of reach of children.
- Denetleme: Periodically inspect the tools for any signs of damage, loose fasteners, or worn parts. Do not operate damaged tools.
7. Sorun Giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Araç başlamıyor. | Pil şarj edilmemiş veya doğru takılmamış. | Ensure battery is fully charged and securely inserted until it clicks. |
| Alet çalışırken duruyor. | Battery is depleted or tool is overloaded. | Recharge battery. Reduce load on the tool (e.g., don't force trimmer through thick brush). |
| Çim biçme makinesinin misinası ilerlemiyor. | Line is tangled, too short, or spool is empty. | Inspect line for tangles. Bump head firmly on ground while running. Replace line spool if empty. |
| Blower has low air output. | Nozzle or air intake vents are blocked. | Disconnect battery and clear any obstructions from the nozzle or air intake vents. |
| Alet aşırı ısınıyor. | Sürekli yoğun kullanım veya tıkalı havalandırma delikleri. | Allow tool to cool down. Ensure vents are clear. Avoid prolonged heavy use. |
8. Özellikler
| Özellik | Şartname |
|---|---|
| Marka | Kalite testi |
| Motor Tipi | Fırçasız |
| Cilttage | 20 Volt |
| Düzeltici Kesme Genişliği | 12 inç |
| Düzeltici Hat Çapı | 0.080 İnç (Çift Hat) |
| Trimmer Line Feed | Hızlı Besleme |
| Trimmer Max RPM | 7,000 RPM |
| Üfleyici Hava Hacmi | 330 CFM'ye kadar |
| Ürün Ağırlığı | 16.3 Pound (Kombine Set) |
| Paket Boyutları | 37.5 x 11.1 x 10.9 inç |
| Montaj Gerekli | Evet |
| UPC | 822733325539 |
| ASIN | B09YP59XNR |
| Menşei ülke | Kanada |
9. Garanti ve Destek
Benchmark products are manufactured to high-quality standards. For information regarding warranty coverage, product support, or to purchase replacement parts, please refer to the warranty card included with your product or visit the official Benchmark webalan.
Please have your model number (B09YP59XNR) and UPC (822733325539) ready when contacting customer service for efficient assistance.
