maXpeedingrods MXR3500 3500W Taşınabilir İnverter Jeneratör Kullanım Kılavuzu

1. Giriş

Thank you for choosing the maXpeedingrods MXR3500 Portable Inverter Generator. This generator is designed to provide reliable, clean power for various applications, including home backup, outdoor camping, RV use, and tailgating. With 3500 peak watts and 3000 running watts, it is capable of powering sensitive electronics and essential appliances.

This manual provides important information regarding the safe operation, maintenance, and troubleshooting of your generator. Please read it thoroughly before operating the unit and keep it for future reference.

Figure 1.1: The maXpeedingrods MXR3500 Inverter Generator, highlighting its key features such as high rated power, multi-purpose use, low noise, clean power, long run time, ultra-light design, safety, and certification.

2. Güvenlik Bilgileri

Operating a generator safely is crucial to prevent injury or damage. Always follow these guidelines:

• Karbon Monoksit Tehlikesi: Generators produce carbon monoxide (CO), an odorless, colorless, poisonous gas. Operate the generator outdoors in a well-ventilated area, far from windows, doors, and vents. Never operate it inside a home, garage, basement, crawl space, or other enclosed area. This generator is equipped with a CO Sensor for added safety.
• Yangın Tehlikesi: Gasoline is highly flammable. Store fuel in an approved container in a well-ventilated area. Do not refuel the generator while it is running or hot. Ensure the generator is on a level surface and away from combustible materials.
• Elektrik Çarpması Tehlikesi: Do not operate the generator in wet conditions. Ensure all electrical connections are secure and dry. Never connect the generator directly to your home's electrical system without a transfer switch installed by a qualified electrician.
• Sıcak Yüzeyler: The generator's engine and muffler become very hot during operation and remain hot for a period after shutdown. Avoid touching these surfaces to prevent burns.
• Çocuklar ve Evcil Hayvanlar: Jeneratör çalışırken çocukları ve evcil hayvanları jeneratörden uzak tutun.

3. Paket İçeriği

Carefully unpack your generator and check for the following items:

• 1 x İnverter Jeneratör (MXR3500)
• 1 x Spark Plug Socket Wrench
• 1 x Owner Manual
• 1 x Yağ Hunisi
• 1 x AU Plug
• 1 x Generator Parallel Cables
• 1 x Generator Cover (waterproof)
• 1 x Tornavida
• 1 x Sigara Çakmağı Fişi

Figure 3.1: All accessories included with the MXR3500 generator, such as parallel cables, cigarette lighter plug, spark plug socket, oil funnel, AU plug, screwdriver, and generator cover.

4. Kurulum

İlk kullanımdan önce, güvenli ve verimli çalışma için doğru kurulum şarttır.

4.1 Motor Yağı Ekleyin

1. Jeneratörü düz bir yüzeye yerleştirin.
2. Yağ doldurma kapağını/yağ çubuğunu bulun.
3. Using the provided oil funnel, slowly add 0.45 liters (0.12 gallons) of recommended engine oil (e.g., 10W-30) into the oil fill opening. Do not overfill.
4. Yağ doldurma kapağını/yağ çubuğunu güvenli bir şekilde yerine takın.

Not: It is recommended to change the oil frequently during the first few hours of operation to ensure proper engine break-in.

4.2 Yakıt Ekleme

1. Ensure the generator is turned OFF and cool.
2. Yakıt kapağını sökün.
3. Carefully pour fresh, unleaded gasoline (minimum 87 octane) into the fuel tank. The tank capacity is 4 liters (1.05 gallons). Do not overfill.
4. Yakıt deposu kapağını güvenli bir şekilde yerine takın.

5. Kullanım Talimatları

5.1 Jeneratörün Çalıştırılması

1. Jeneratörün düz bir zeminde ve iyi havalandırılan bir dış mekanda olduğundan emin olun.
2. Yakıt vanasını "AÇIK" konumuna getirin.
3. Jikle kolunu "JİKLE" konumuna getirin (motor soğuksa).
4. Motor anahtarını "AÇIK" konumuna getirin.
5. Motor çalışana kadar geri tepmeli marş kolunu sıkıca ve yavaşça çekin.
6. Motor çalıştıktan sonra, jikle kolunu kademeli olarak "ÇALIŞMA" konumuna getirin.

5.2 Cihazların Bağlanması

The MXR3500 offers multiple output options:

• 1 x 240V 15Amp AC Çıkışı
• 1 x DC 12V/8.3A Outlet
• 2 x USB Outlets (1.0A and 2.1A)

Plug your appliances into the appropriate outlets. Ensure the total wattagBağlı cihazların e'si jeneratörün çalışma suyunu aşmamalıdırtage (3000W).

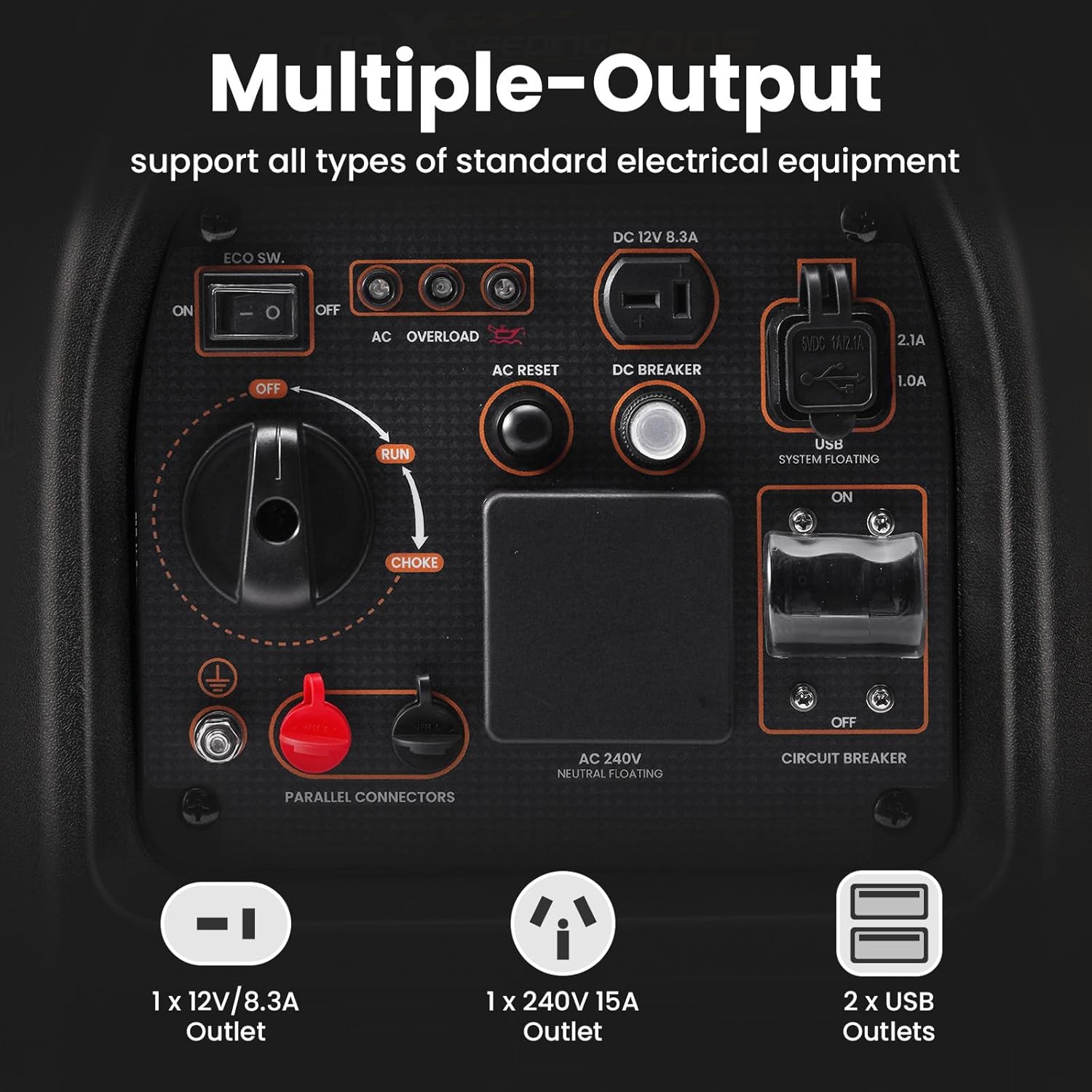

Figure 5.1: The control panel of the MXR3500, detailing the ECO switch, AC overload indicator, AC reset button, DC 12V/8.3A outlet, USB ports, engine switch, choke, parallel connectors, and AC 240V 15A outlet.

5.3 Eko Modda Çalışma

The "Eco-Mode" switch, located on the control panel, allows the generator to automatically adjust engine speed to match the load. This feature improves fuel efficiency and reduces noise when less power is required. For maximum fuel efficiency and quieter operation, engage the Eco-Mode when powering lighter loads.

5.4 Paralel Çalışma

For increased power output, two MXR3500 generators can be connected in parallel using the provided parallel cables. This allows for combined wattage, enabling you to power more equipment. Refer to the parallel kit instructions for detailed connection procedures.

Figure 5.2: Two MXR3500 generators operating in parallel to provide increased power for larger applications like mid-sized homes or job sites.

5.5 Jeneratörün Durdurulması

1. Jeneratörden tüm elektrik yüklerini ayırın.
2. Motor anahtarını "KAPALI" konumuna getirin.
3. Yakıt vanasını "KAPALI" konumuna getirin.

6. Bakım

Düzenli bakım, jeneratörünüzün uzun ömürlü olmasını ve en iyi performansı göstermesini sağlar.

6.1 Motor Yağı Değişimi

Change the engine oil after the first 20 hours of operation, and then every 50-100 hours or annually, whichever comes first. Refer to Section 4.1 for oil specifications and capacity.

6.2 Spark Plug Inspection and Replacement

Inspect the spark plug every 100 hours or annually. Clean or replace if necessary. Use the provided spark plug socket wrench for removal and installation.

6.3 Hava Filtresi Temizliği

Clean the air filter element every 50 hours or more frequently in dusty conditions. A dirty air filter can reduce engine performance and increase fuel consumption.

6.4 Depolama

Uzun süreli saklama için (30 günden fazla):

• Yakıt deposunu ve karbüratörü boşaltın.
• Motor yağını değiştirin.
• Bujiyi çıkarın ve silindire az miktarda motor yağı dökün. Yağı dağıtmak için marş kolunu birkaç kez çekin, ardından bujiyi tekrar takın.
• Store the generator in a clean, dry place, covered with the provided generator cover.

7. Sorun Giderme

Bu bölüm, yaygın operasyonel sorunlara çözümler sunmaktadır. Burada listelenmeyen sorunlar için müşteri desteğiyle iletişime geçin.

8. Özellikler

Detailed technical specifications for the maXpeedingrods MXR3500 Inverter Generator:

Figure 8.1: Dimensions of the MXR3500 generator: 48cm length, 29cm width, and 44cm height.

9. Garanti ve Destek

Your maXpeedingrods MXR3500 Inverter Generator comes with a 3 yıllık sınırlı parça garantisiBu garanti, normal kullanım koşullarında malzeme ve işçilik hatalarını kapsar.

Additionally, maXpeedingrods provides free lifetime technical support and customer service. If you encounter any issues or have questions regarding your generator, please contact our support team for assistance.

For warranty claims or technical support, please refer to the contact information provided in your owner manual or visit the official maXpeedingrods webalan.
