Midea Robot Süpürge M3L Kullanım Kılavuzu

1. Giriş

This manual provides essential information for the safe and effective use of your Midea Robot Vacuum M3L. Please read this manual thoroughly before operating the device and retain it for future reference.

The Midea Robot Vacuum M3L is designed to provide efficient and comprehensive floor cleaning. It features a 3-stage cleaning process that includes sweeping, vacuuming, and mopping, ensuring thorough removal of dirt and debris from various floor types.

2. Ürün Bittiview

The Midea M3L robot vacuum is equipped with advanced features for autonomous cleaning:

• Yüksek Emiş Gücü: Delivers 3000 PA suction for effective removal of hair, dust, and small particles.
• Uzun Pil Ömrü: Operates for up to 150 minutes on a single charge, covering large areas.
• Otomatik Şarj: The robot automatically returns to its charging base when the battery is low.
• Akıllı Navigasyon: Utilizes mapping technology to learn home layouts and plan efficient cleaning paths.
• Engel kaldırma: Equipped with 360° sensors to detect and navigate around obstacles.
• Uçurum Sensörleri: Built-in anti-drop sensors prevent the robot from falling down stairs.
• Çoklu Temizleme Modu: Offers Edge, Auto, and Spot cleaning modes to suit different needs.
• Uzaktan kumanda: Includes a user-friendly remote for basic operation and scheduling.
• Uygulama Kontrolü: Compatible with a mobile application for advanced features like setting no-go zones and customized cleaning schedules.
• Tırmanma Yeteneği: Can climb over obstacles up to 21mm, such as carpets or cords.

3. Kurulum

3.1 Paketin açılması

Tüm bileşenleri ambalajından dikkatlice çıkarın. Tüm aksesuarların mevcut olduğundan emin olun:

• Midea Robot Vacuum M3L
• Şarj Üssü
• Güç Adaptörü
• Uzaktan kumanda
• Yan Fırçalar
• Temizleme Aracı
• Kullanıcı Kılavuzu

3.2 Şarj Üssü Yerleşimi

Place the charging base against a wall in an open area, ensuring there are no obstacles within 1 meter (3 feet) to the front and 0.5 meters (1.5 feet) to the sides. Connect the power adapter to the charging base and plug it into a power outlet.

3.3 İlk Şarj

Place the robot vacuum onto the charging base. Ensure the charging contacts on the robot align with those on the base. The indicator light on the robot will show charging status. For first-time use, charge the robot for at least 6 hours to ensure optimal battery performance.

Image: Self-Recharging. The robot vacuum automatically returns to its charging base when its battery level is low, ensuring it is always ready for the next cleaning cycle.

3.4 Uzaktan Kumanda Pilinin Takılması

Open the battery compartment on the back of the remote control and insert two AAA batteries (not included), observing the correct polarity. Close the compartment.

3.5 Mobile Application Setup (Optional)

Download the Midea app from your smartphone's app store. Follow the in-app instructions to connect your robot vacuum to your home Wi-Fi network. This enables advanced control features.

4. Kullanım Talimatları

4.1 Açma/Kapatma

Robotu açmak veya kapatmak için üzerindeki güç düğmesine birkaç saniye basılı tutun. İşlem sesli olarak onaylanacaktır.

4.2 Temizleme Döngüsünü Başlatma

Press the 'Clean' button on the robot or the remote control to start an automatic cleaning cycle. The robot will begin cleaning in Auto Mode.

4.3 Temizleme Modu

The Midea M3L offers several cleaning modes to address different cleaning needs:

Image: Multiple Cleaning Modes. The robot vacuum supports Edge Mode for cleaning along walls, Auto Mode for general area cleaning, and Spot Mode for concentrated cleaning of specific dirty areas.

• Otomatik mod: The robot cleans in an organized, systematic pattern to cover the entire floor area.
• Kenar Modu: Robot, köşelerin ve çevrelerin iyice temizlenmesini sağlamak için duvarlar ve mobilya kenarları boyunca temizlik yapıyor.
• Nokta Modu: The robot cleans a specific area in a spiral pattern, ideal for concentrated dirt or spills.

Select the desired mode using the remote control or the mobile application.

4.4 Uzaktan Kumandanın Kullanımı

Resim: Uzaktan Kumanda. The included remote control allows users to steer the robot to a particular area, select cleaning modes, or set cleaning appointments.

Uzaktan kumanda şunları yapmanızı sağlar:

• Temizlemeyi Başlat/Duraklat
• Send the robot back to the charging base
• Select cleaning modes (Auto, Edge, Spot)
• Set cleaning schedules
• Manually control the robot's direction

4.5 Engelden Kaçınma ve Uçurum Sensörleri

Image: Anti-Collision Sensors. The robot vacuum is equipped with sensors to detect and avoid collisions with furniture and other objects, protecting both the robot and your home.

Image: Smart Cliff Sensors. Anti-drop sensors located on the bottom of the robot prevent it from falling off ledges or stairs, ensuring safe operation.

The robot is designed to detect and avoid obstacles. Its anti-collision sensors help protect furniture and the robot itself. Smart cliff sensors on the underside prevent the robot from falling down stairs or off elevated surfaces.

4.6 Tırmanma Yeteneği

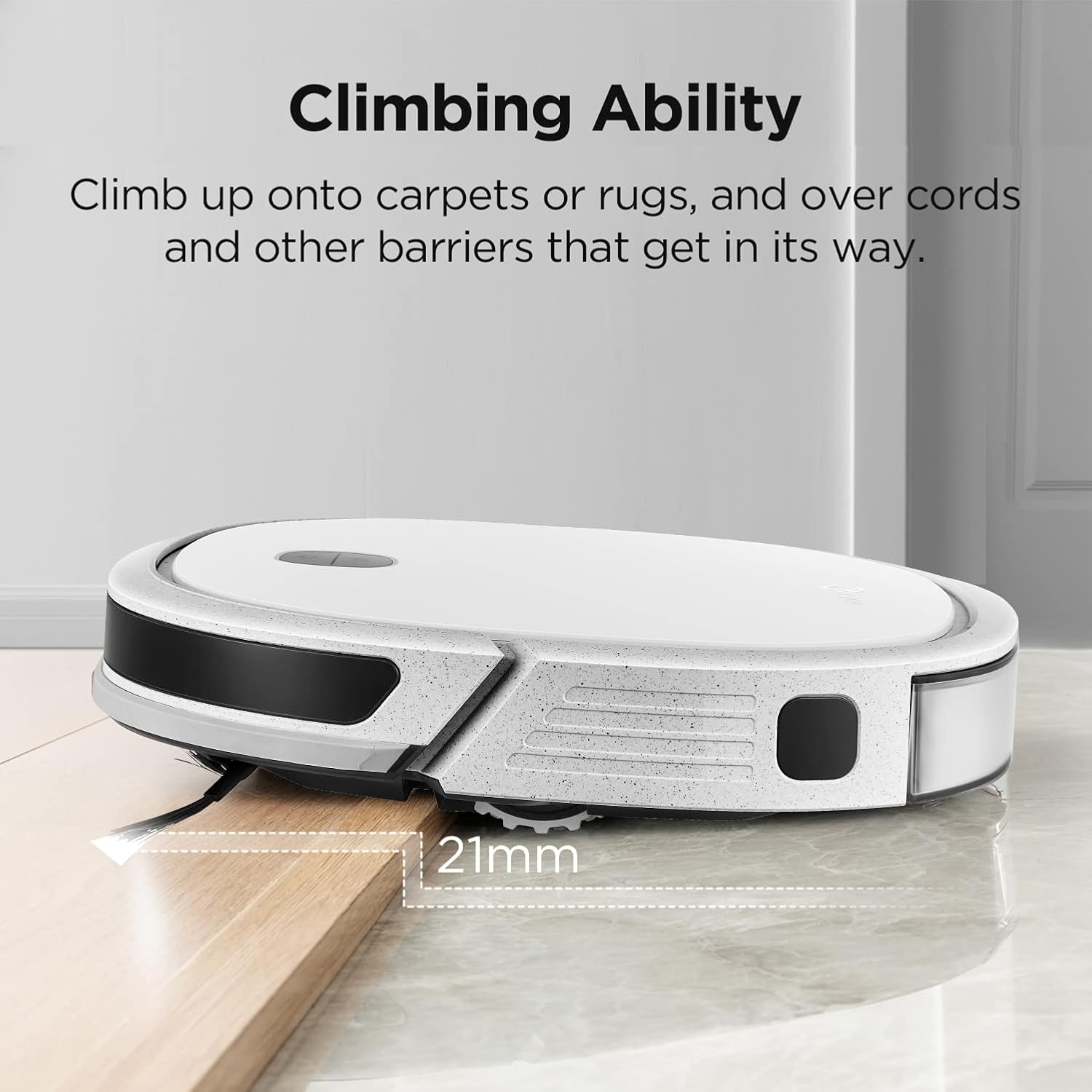

Image: Climbing Ability. The robot vacuum can navigate over small obstacles such as carpets, rugs, and floor transitions up to 21mm in height.

The Midea M3L can climb over obstacles up to 21mm high, allowing it to transition between different floor types and navigate over small rugs or cords.

4.7 Sessiz Çalışma

Image: Cleaning in Quietness. The Midea M3L is designed to operate with minimal noise, allowing for cleaning without significant disturbance to household activities.

The robot vacuum is engineered for quiet operation, minimizing disruption during cleaning cycles.

5. Bakım

Düzenli bakım robot süpürgenizin optimum performansını sağlar ve kullanım ömrünü uzatır.

5.1 Çöp Kutusunun Boşaltılması

After each cleaning cycle, or when indicated, remove the dustbin and empty its contents into a trash receptacle. Rinse the dustbin with water if necessary, ensuring it is completely dry before reinserting.

5.2 Temizleme Fırçası

Regularly inspect and clean the main brush and side brushes. Use the provided cleaning tool to remove tangled hair or debris. Replace brushes if they show signs of wear.

5.3 Filtrelerin Temizlenmesi

Remove the filter from the dustbin and tap it gently to remove dust. For thorough cleaning, rinse the filter under running water. Allow it to air dry completely before reinstallation. Replace filters every 3-6 months, depending on usage.

5.4 Sensörlerin Temizlenmesi

Wipe the anti-collision sensors, cliff sensors, and charging contacts with a clean, dry cloth to ensure they remain free of dust and debris, which can affect navigation and charging.

5.5 Paspas Pedi Bakımı

If using the mopping function, remove and clean the mopping pad after each use. Wash it with water and mild detergent, then allow it to air dry. Replace the pad when it becomes worn or loses effectiveness.

6. Sorun Giderme

If you encounter issues with your Midea Robot Vacuum M3L, refer to the following common problems and solutions:

If the problem persists, please contact Midea customer support.

7. Özellikler

8. Garanti Bilgileri

The Midea Robot Vacuum M3L comes with a manufacturer's warranty. Please refer to the warranty card included in the product packaging or visit the official Midea webGaranti kapsamı ve süresi ile ilgili detaylı şartlar ve koşullar için siteyi ziyaret edin.

9. Destek

For further assistance, technical support, or service inquiries, please contact Midea customer support through their official webSiteyi veya ürün belgelerinizde belirtilen iletişim bilgilerini de ziyaret edebilirsiniz. Ayrıca, Midea Brand Store on Amazon Ek ürün bilgisi için.
