INGCO Circular Saw 1400W

1. Giriş

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your INGCO 1400W Circular Saw, Model B09VNZ4QHC. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

The INGCO Circular Saw is designed for cutting wood and wood-based materials. It features a powerful 1400W motor, adjustable cutting depth, and bevel cutting capabilities up to 45 degrees, making it suitable for various woodworking and home decoration tasks.

2. Genel Güvenlik Bilgileri

UYARI: Bu elektrikli aletle birlikte verilen tüm güvenlik uyarılarını, talimatları, çizimleri ve teknik özellikleri okuyun. Aşağıda listelenen tüm talimatlara uyulmaması elektrik çarpmasına, yangına ve/veya ciddi yaralanmaya neden olabilir.

• Testereyi kullanırken daima göz koruyucu, kulak koruyucu ve toz maskesi takın.
• Çalışma alanınızı temiz ve iyi aydınlatılmış tutun. Dağınık veya karanlık alanlar kazalara davetiye çıkarır.
• Elektrikli aletleri yanıcı sıvılar, gazlar veya tozların bulunduğu patlayıcı ortamlarda çalıştırmayın.
• Elektrikli bir aleti çalıştırırken çocukları ve çevredekileri uzak tutun. Dikkat dağıtıcı şeyler kontrolü kaybetmenize neden olabilir.
• Ensure the power cord is in good condition and positioned to avoid tripping hazards or contact with the cutting blade.
• Always unplug the saw from the power source before making any adjustments, changing accessories, or storing the tool.
• cl kullanınamps veya iş parçasını sabit bir platforma sabitlemek ve desteklemek için diğer pratik yollar. İşi elinizle veya vücudunuza karşı tutmak dengesizdir ve kontrol kaybına neden olabilir.
• Maintain a firm grip on the saw with both hands during operation.
• Never reach underneath the workpiece while the saw is operating.
• Kesmeye başlamadan önce bıçağın tam hıza ulaşmasını bekleyin.
• Avoid cutting small pieces that cannot be securely clamped.
• Do not force the saw. Let the blade do the work.
• Be aware of kickback. Kickback is a sudden reaction to a pinched, bound, or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator.

3. Ürün Bittiview ve Bileşenler

Familiarize yourself with the parts of your INGCO Circular Saw before operation.

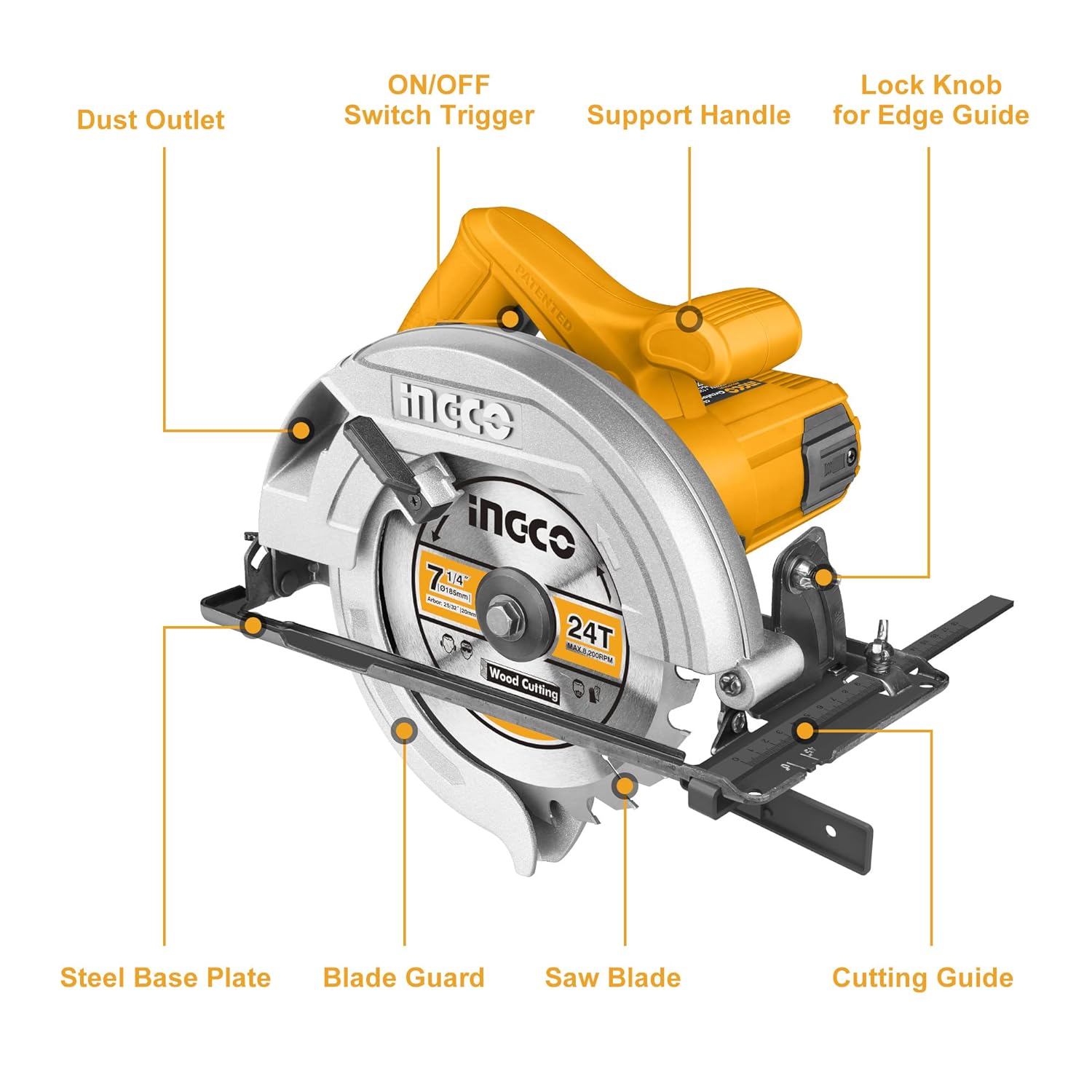

Şekil 1: Labeled diagram of the INGCO Circular Saw showing key components such as the Dust Outlet, ON/OFF Switch Trigger, Support Handle, Lock Knob for Edge Guide, Steel Base Plate, Blade Guard, Saw Blade, and Cutting Guide.

• Dust Outlet: Connects to a dust extraction system to keep the work area clean.
• ON/OFF Switch Trigger: Activates and deactivates the saw.
• Destek Kolu: Provides an additional grip point for better control.
• Lock Knob for Edge Guide: Secures the edge guide for straight cuts.
• Steel Base Plate: Provides a stable surface for the saw to glide on the workpiece.
• Bıçak Koruması: Retracts during cutting and covers the blade when not in use for safety.
• Testere Bıçağı: The cutting accessory.
• Kesim Kılavuzu: Assists in making straight and accurate cuts.

4. Kurulum ve Ayarlamalar

4.1 Bıçak Takılması ve Çıkarılması

Always ensure the saw is unplugged before installing or removing the blade.

1. Bıçağın dönmesini engellemek için mil kilitleme düğmesine basılı tutun.
2. Use the provided wrench to loosen the blade retaining bolt by turning it counter-clockwise.
3. Lift the lower blade guard and carefully remove the old blade.
4. Place the new blade onto the spindle, ensuring the teeth are pointing in the direction of rotation indicated by the arrow on the saw.
5. Secure the blade with the retaining bolt and tighten it clockwise using the wrench while holding the spindle lock button.

Şekil 2: Close-up of the spindle lock button, used for securing the blade during installation or removal.

Şekil 3: A 185mm carbide-tipped saw blade, indicating its diameter and tooth count (24T).

4.2 Kesme Derinliğinin Ayarlanması

The cutting depth can be adjusted to match the thickness of your workpiece. This ensures cleaner cuts and reduces the risk of kickback.

1. Loosen the depth adjustment lever or knob located on the side of the saw.
2. Raise or lower the base plate until the desired cutting depth is achieved. The maximum cutting depth is 65mm.
3. Tighten the depth adjustment lever or knob securely.

Şekil 4: Illustration demonstrating the maximum cutting depth of 65mm achievable with the circular saw.

4.3 Eğim Açısının Ayarlanması

The saw allows for bevel cuts up to 45 degrees for angled cuts.

1. Loosen the bevel adjustment knob or lever.
2. Tilt the base plate to the desired angle, typically between 0 and 45 degrees.
3. Tighten the bevel adjustment knob or lever firmly to secure the angle.

Şekil 5: The circular saw demonstrating its adjustable cutting angle, allowing for up to a 45-degree oblique cut.

Şekil 6: Close-up of the bevel adjustment mechanism, showing the scale for setting the cutting angle up to 45 degrees.

4.4 Using the Cutting Guide

The cutting guide helps achieve straight and consistent cuts.

1. Insert the cutting guide into the slot on the base plate.
2. Kılavuzu bıçaktan istediğiniz genişliğe ayarlayın.
3. Tighten the lock knob for the edge guide to secure it in place.

Şekil 7: The cutting guide attached to the saw's base plate, used for maintaining a straight cut line.

5. Operasyon

Before starting, ensure all safety precautions are followed and the workpiece is securely clamped.

1. Testereyi uygun bir elektrik prizine takın.
2. Position the front of the base plate on the workpiece, ensuring the blade is not touching the material.
3. Depress the ON/OFF switch trigger to start the saw and allow the blade to reach full speed.
4. Gently push the saw forward through the workpiece, maintaining a steady and controlled pace. Do not force the saw.
5. Kesim tamamlandıktan sonra tetiği bırakın ve testereyi iş parçasından kaldırmadan önce bıçağın tamamen durmasını bekleyin.

Şekil 8: An operator using the INGCO Circular Saw to cut a wooden board, demonstrating proper handling and cutting technique.

Şekil 9: The circular saw actively cutting a wooden panel, highlighting the blade's action and potential for dust generation.

6. Bakım

Düzenli bakım, daire testerenizin uzun ömürlü olmasını ve güvenli çalışmasını sağlar.

• Temizlik: After each use, unplug the saw and clean off any sawdust or debris from the motor housing, blade guard, and base plate. Use a soft brush or compressed air. Do not use solvents.
• Bıçak Denetimi: Testere bıçağını düzenli olarak keskinlik, çatlak veya eksik diş açısından kontrol edin. Körelmiş veya hasar görmüş bıçakları derhal değiştirin.
• Kordon Muayenesi: Check the power cord for any cuts, fraying, or damage. Replace damaged cords by a qualified technician.
• Yağlama: The internal components are factory-lubricated and generally do not require additional lubrication.
• Karbon Fırçalar: The carbon brushes may need replacement after extended use. Consult a qualified service center for this procedure.

7. Sorun Giderme

8. Özellikler

9. Garanti ve Destek

INGCO products are manufactured to high-quality standards. This circular saw is covered by a lifetime warranty and a 30-day money-back guarantee as per the product's feature bullets. For warranty claims, technical support, or service inquiries, please contact INGCO customer service through their official channels or the retailer where the product was purchased.

Lütfen garanti geçerliliği için satın alma belgenizi saklayın.
