1. Giriş
The BLANCO drink.soda EVOL-S Pro is a sophisticated multifunctional soda water system designed to enhance your kitchen experience. This system provides chilled, filtered water with customizable carbonation levels (still, medium, or sparkling), alongside standard cold and hot tap water. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your BLANCO drink.soda EVOL-S Pro.

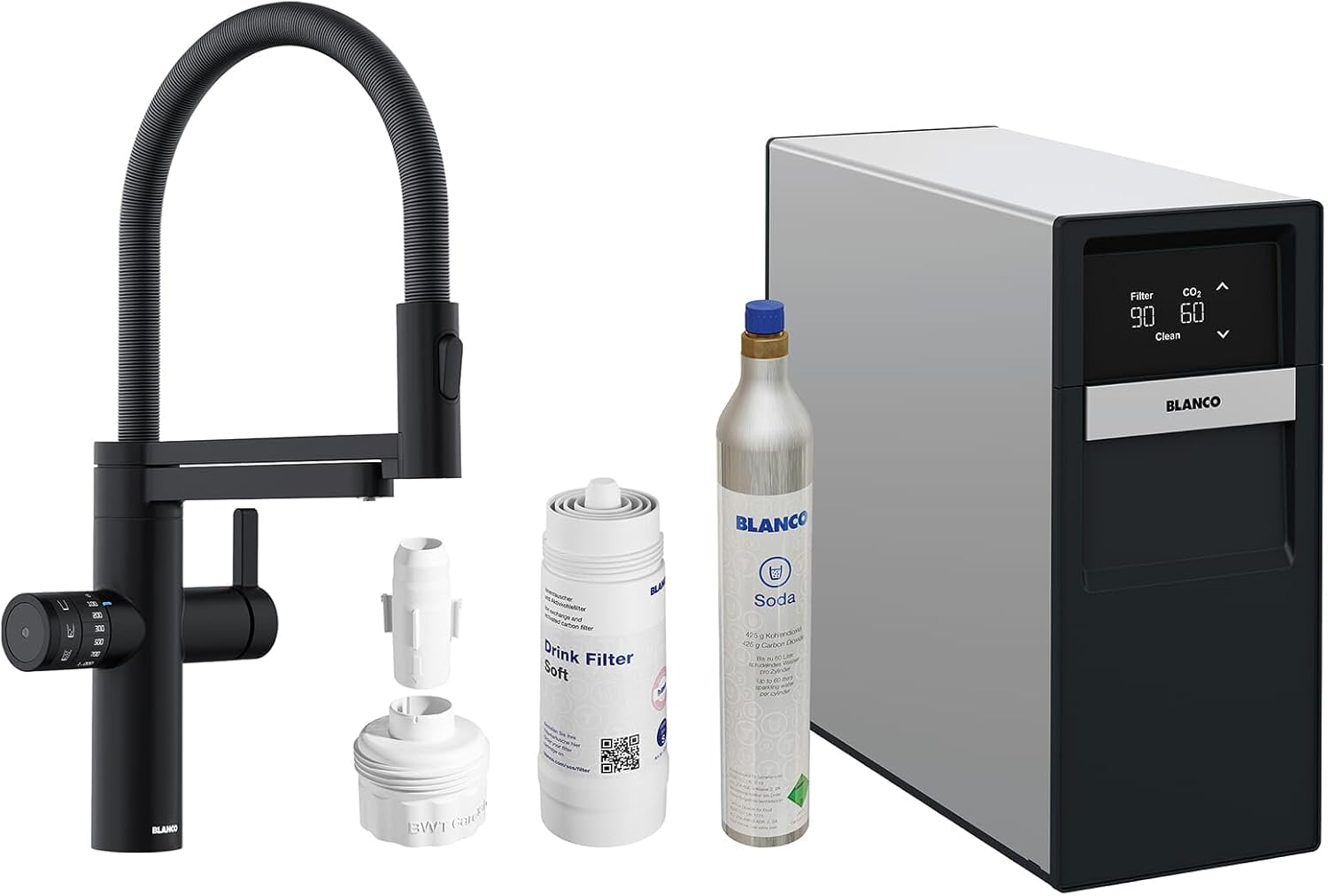

Image 1.1: The BLANCO drink.soda EVOL-S Pro faucet, showcasing its matte black finish and professional design.
2. Kurulum ve Kurulum
Before beginning installation, ensure all components are present and undamaged. Professional installation is recommended for optimal performance and safety.
2.1 Dahil Bileşenler
- Musluk
- Montaj Kiti
- BWT Filter
- Soğutma Ünitesi
2.2 Kurulum Bittiview
- Kurulum Alanını Hazırlayın: Ensure adequate space under the sink for the cooling unit and filter. Refer to the dimension diagrams for clearance requirements.
- Musluğu Monte Edin: Secure the faucet to the countertop using the provided mounting kit.
- Su Hatlarını Bağlayın: Connect the hot and cold water supply lines to the faucet.
- Install BWT Filter: Connect the BWT filter in line with the water supply for the filtered water system.
- Install Cooling Unit: Position the cooling unit in a well-ventilated area under the sink and connect it to the filtered water line and power supply.
- Connect CO2 Cylinder: Attach the CO2 cylinder to the cooling unit for carbonation.
- Deneme sistemi: After all connections are made, slowly open the water supply and check for leaks. Power on the cooling unit and test all faucet functions.
Image 2.1: Faucet dimensions for installation planning. All measurements are in millimeters.
Image 2.2: Cooling unit dimensions for under-sink placement. All measurements are in millimeters.
3. Kullanım Talimatları
The BLANCO drink.soda EVOL-S Pro offers a 5-in-1 functionality, providing cold, hot, chilled, and refined drinking water (still, medium, or sparkling).
3.1 Standard Tap Water (Cold & Hot)
The right lever controls the standard tap water. Move the lever forward for cold water and backward for hot water. Adjust the lever position to control flow rate and temperature.
3.2 Filtered & Chilled Drinking Water (Still, Medium, Sparkling)
The left side of the faucet is dedicated to filtered and chilled drinking water. It features a separate spout and intuitive controls for carbonation and volume.
- Carbonation Level Selection: Use the rotary wheel to select your desired carbonation level: Hala, Orta, veya Köpüklü. The selected level will be indicated on the display.
- Volume Control (Click & Touch): The precise rotary wheel and touch control allow you to set the exact amount of filtered water you need. Available volume settings typically include 100ml, 200ml, 300ml, 500ml, 700ml, and 1000ml. Rotate the wheel to select the volume, then touch to dispense.
- Separate Spout: Refined drinking water is dispensed from a dedicated spout to prevent mixing with unfiltered tap water.
Image 3.1: The rotary control for selecting carbonation level and water volume.
Image 3.2: The faucet dispensing filtered water from its dedicated spout.
3.3 Shower Spray with Magnetic Holder
The faucet features a pull-out shower spray with a precise magnetic holder for convenient use and secure retraction. This is ideal for rinsing dishes or cleaning the sink area.
4. Bakım
Regular maintenance ensures the longevity and optimal performance of your BLANCO drink.soda EVOL-S Pro system.
4.1 Filtre Değişimi
The BWT filter requires periodic replacement to maintain water quality. The system will typically indicate when a filter change is due. Refer to the BWT filter manual for specific replacement instructions and frequency.
4.2 Temizlik
- Musluk: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners or scouring pads, which can damage the finish.
- Soğutma ünitesi: Ensure the cooling unit's ventilation grilles are free from dust and obstructions to maintain efficient operation.
4.3 CO2 Cylinder Replacement
Replace the CO2 cylinder when the sparkling water output diminishes or ceases. Follow the instructions provided with your CO2 cylinder for safe replacement.
5. Sorun Giderme
If you encounter issues with your BLANCO drink.soda EVOL-S Pro, consult the following common troubleshooting steps:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| No water flow (tap water) | Water supply turned off; clogged aerator | Check main water supply; clean faucet aerator. |
| No filtered water flow | Filter clogged or expired; cooling unit not powered; water supply to unit off | Replace BWT filter; ensure cooling unit is plugged in and powered on; check water supply to cooling unit. |
| Köpüklü su yok | CO2 cylinder empty; CO2 cylinder not connected properly | Replace CO2 cylinder; ensure CO2 cylinder is securely connected. |
| Su soğutulmamış | Cooling unit not powered; ventilation obstructed | Ensure cooling unit is powered on; clear any obstructions from cooling unit vents. |
| Sızıntılar | Gevşek bağlantılar; hasarlı contalar | Check all water connections and tighten if necessary; inspect seals and replace if damaged. |
If the problem persists after attempting these solutions, please contact BLANCO customer support.
6. Özellikler
Detailed technical specifications for the BLANCO drink.soda EVOL-S Pro (Model 526633).
| Şartname | Detay |
|---|---|
| Marka | BLANKO |
| Model Adı | Drink.soda EVOL-S Pro |
| Ürün Model Numarası | 526633 |
| Üretici | BLANKO |
| Ürün Boyutları | 44.7 x 25.2 x 16 cm (Faucet) |
| Ürün Ağırlığı | 23 Kilogram |
| Renk | Mat Siyah |
| Malzeme | Metal (likely stainless steel) |
| Kapasite | 8 Liters (Cooling Unit Volume) |
| Güç Kaynağı | Manual (Faucet), Electrical (Cooling Unit) |
| Çalışma Modu | Manuel |
| Dahil Bileşenler | Faucet, Mounting Kit, BWT Filter, Cooling Unit |
| Pil Gerekli Mi? | HAYIR |
| İlk Mevcut Tarih | 29 Eylül 2021 |
7. Garanti ve Destek
For warranty information, product registration, or technical support, please refer to the documentation included with your purchase or visit the official BLANCO website. Ensure you have your model number (526633) and proof of purchase available when contacting support.
Üretici: BLANKO
