1. Ürün Bittiview
The JOYO JF-16 British Sound Amp Simulator Pedal is a guitar effect pedal designed to emulate the tones of classic British amplifiers. It offers a range of tones from bluesy overdrive to powerful rock sounds, providing versatility for various musical styles. This pedal features true bypass to maintain signal integrity when disengaged.
Resim 1.1: Üst view of the JOYO JF-16 British Sound Pedal.
2. Güvenlik Bilgileri
- Ensure proper power supply (DC 9V, center negative) to avoid damage to the pedal.
- Always connect the guitar fully to the pedal before playing to prevent unexpected noise.
- Avoid using the pedal in extremely hot, cold, humid, or dusty environments.
- Do not disassemble or attempt to repair the pedal yourself. Refer to qualified service personnel.
3. Paket İçeriği
The bundle includes:
- JOYO JF-16 British Sound Amp Simülatör Pedalı
- DC 9V Power Supply (800mA - 1A) AC Adapter
Note: Items may be shipped separately.
4. Kontroller ve İşlevler
Resim 4.1: Açısal view of the JOYO JF-16 British Sound Pedal showing controls and jacks.
- DÜŞÜK Ayar Düğmesi: Düşük frekans tepkisini ayarlar.
- MID Düğmesi: Orta frekans tepkisini ayarlar.
- YÜKSEK Düğme: Yüksek frekans tepkisini ayarlar.
- SEVİYE Düğmesi: Controls the overall output volume of the effect.
- VOICE Knob: Shapes the tonal character, simulating different ampdaha canlı seslendirmeler.
- SÜRÜŞ Düğmesi: Adjusts the amount of gain/distortion.
- AYAK PEDALI: Engages or bypasses the effect. Features true bypass.
- Giriş jakı: 1/4-inch mono audio input for your guitar.
- ÇIKIŞ Jakı: 1/4-inch mono audio output to your ampyükseltici veya bir sonraki pedal.
- DC 9V Girişi: Power input for a 9V DC center-negative adapter.
5. Kurulum
- Connect your guitar to the INPUT jack of the JF-16 pedal using a standard 1/4-inch instrument cable.
- Connect the OUTPUT jack of the JF-16 pedal to your ampAmplifikatörün girişi veya sinyal zincirinizdeki bir sonraki pedal.
- Connect the DC 9V power adapter to the pedal's power input. Ensure the adapter meets the specified requirements (9V DC, center negative, 800mA - 1A).
- Aç şunu ampcankurtaran.
Image 5.1: The JOYO JF-16 pedal integrated into a guitar setup.
6. Kullanım Talimatları
- Engage/Bypass: Press the footswitch to toggle the effect on or off. The LED indicator will illuminate when the effect is active.
- Ses tonunu ayarlama: Use the LOW, MID, and HIGH knobs to sculpt your desired EQ. Experiment with these controls to match your guitar and amplifli özellikler.
- Setting Gain: Turn the DRIVE knob clockwise for more distortion and sustain, or counter-clockwise for cleaner tones.
- Voicing the Amp: The VOICE knob allows you to fine-tune the amplifier's tonal character. This control is crucial for achieving specific British amp sounds, from classic blues-rock to aggressive hard rock.
- Kontrol Hacmi: Adjust the LEVEL knob to set the overall output volume of the pedal. Ensure the volume is balanced with your bypassed signal or other effects.
7. Power Supply Information
The JOYO JF-16 pedal requires a DC 9V power supply with a center-negative polarity. The recommended current draw is between 800mA and 1A. Using an incorrect power supply can damage the unit and void the warranty.

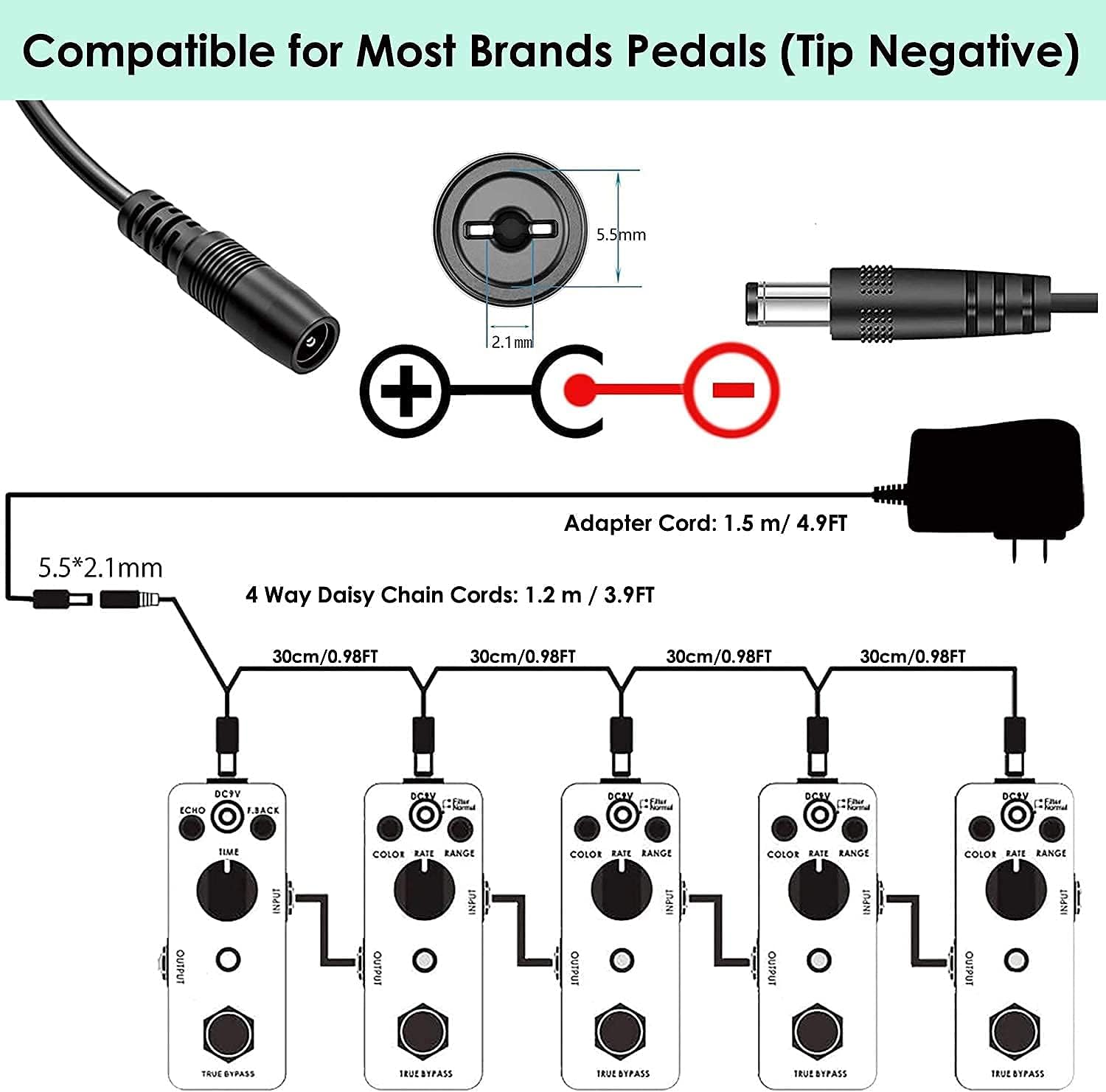

Image 7.1: Diagram illustrating the DC 9V power adapter specifications (5.5x2.1mm, tip negative).
Resim 7.2: Dahili view of a power adapter with Smart IC Control for protection against over-current, over-temp, over-voltage ve kısa devreler.
8. Noise Reduction Tips
- Ensure your electric guitar circuits are properly shielded and have a ground wire.
- Use high-quality instrument cables to minimize signal interference.
- Şunu doğrulayın: amplifier has a proper ground connection.
- Be aware that some pickups, especially single-coil pickups in high-gain settings, can naturally produce more noise.
- Consider using a dedicated power supply designed for guitar pedals to reduce noise disturbance.
9. Özellikler
| Özellik | Şartname |
|---|---|
| Marka | Sevinç |
| Örnek | JF-16 |
| Ses Çıkışı Efektleri | Çarpıtma |
| Kontrol Tipi | Topuz |
| Sinyal Biçimi | Analog |
| Güç Kaynağı | Adapter, Electric (DC 9V, 800mA-1A, center negative) |
| Donanım Arayüzü | HP-HSC |
| Renk | Purple (based on product images) |
10. Bakım
- Pedalı düzenli olarak yumuşak, kuru bir bezle temizleyin. Aşındırıcı temizleyiciler veya çözücüler kullanmayın.
- Avoid exposing the pedal to moisture or extreme temperatures.
- Store the pedal in a dry, cool place when not in use.
- Periodically check all cable connections for wear and tear.
11. Sorun Giderme
- Ses Yok: Check all cable connections, power supply, and ensure the pedal is engaged. Test with different cables and a different power supply if possible.
- Aşırı Gürültü/Vızıltı: Refer to the "Noise Reduction Tips" section. Ensure proper grounding and use high-quality cables. Test in a different electrical outlet.
- Weak/Distorted Sound (unexpectedly): Check your guitar's battery (if active pickups), cable integrity, and amplifier settings. Adjust the pedal's LEVEL and DRIVE knobs.
- LED Not Lighting Up: Verify the power supply connection and ensure it meets the correct specifications.
12. Garanti ve Destek
For any product issues or support inquiries, please contact the seller directly through your order details on Amazon. This is the fastest and most effective way to receive assistance.
Image 12.1: The JOYO pedal is compatible with various brands of effect pedals and keyboards.
