1. Giriş
Thank you for choosing the Orange Super Crush 100 Combo Amplifier. This 100-watt solid-state amplifier is designed to deliver a wide range of tones, from pristine cleans to high-gain distortion, utilizing high-quality analog circuitry. It features two independent channels, a Celestion G12H-150 12-inch speaker, and a balanced XLR output with CabSim speaker emulation. This manual will guide you through the proper setup, operation, and maintenance of your amplifier to ensure years of reliable performance.
Şekil 1: Ön view of the Orange Super Crush 100 Combo Ampcankurtaran.
2. Önemli Güvenlik Talimatları
Please read and follow all safety instructions before operating this product. Retain this manual for future reference.
- Güç Kaynağı: Bağlan ampAmplifikatörü yalnızca bu kılavuzda açıklanan veya ünite üzerinde işaretlenmiş tipte bir güç kaynağına bağlayın. Ses seviyesinin doğru ayarlandığından emin olun.tage, bölgeniz için doğrudur.
- Topraklama: This appliance must be grounded. Do not defeat the safety purpose of the polarized or grounding-type plug.
- Havalandırma: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amp(ısı üreten)
- Su ve Nem: Do not use this apparatus near water. Do not expose to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
- Temizlik: Sadece kuru bezle temizleyin.
- Kablolar: Güç kablosunun, özellikle fişlerde, prizlerde ve cihazdan çıktığı noktalarda üzerine basılmasını veya sıkışmasını önleyin.
- Servis: Tüm servisleri kalifiye servis personeline yaptırın. Cihaz herhangi bir şekilde hasar gördüğünde, örneğin güç kaynağı kablosu veya fişi hasar gördüğünde, cihaza sıvı döküldüğünde veya içine nesneler düştüğünde, cihaz yağmura veya neme maruz kaldığında, normal şekilde çalışmadığında veya düşürüldüğünde servis gereklidir.
- İşitme Koruması: Prolonged exposure to high volume levels can cause permanent hearing damage. Use caution when setting volume levels.
3. Kutuda Neler Var?
Upon unpacking your Orange Super Crush 100 Combo Amplifier, please ensure all items are present:
- Orange Super Crush 100 Combo Ampcankurtaran
- Güç kablosu
- Kullanım Kılavuzu (bu belge)
If any items are missing or damaged, please contact your retailer or Orange customer support immediately.
4. Kurulum
4.1 Paketin açılması
Dikkatlice çıkarın amplifier from its packaging. Retain all packaging materials for future transport or servicing needs.
4.2 Yerleştirme
Yerleştir amplifier on a stable, level surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing the amplifier in direct sunlight or near sources of excessive heat or moisture.
4.3 Gücün Bağlanması
Before connecting the power cable, ensure the amplifier's power switch is in the 'OFF' position. Connect the supplied power cable to the AC input on the rear panel of the amplifier and then to a grounded electrical outlet.
4.4 Cihazınızı Bağlama
Gitarınızı veya diğer müzik aletinizi şuraya bağlayın: GİRİŞ Ön paneldeki jakı yüksek kaliteli bir enstrüman kablosu kullanarak bağlayın.
Şekil 2: Yan view of the Orange Super Crush 100 Combo Amplifier, showing its robust construction.
5. Kontroller ve Özellikler
The Orange Super Crush 100 Combo Amplifier features a user-friendly control layout. Familiarize yourself with the following controls:

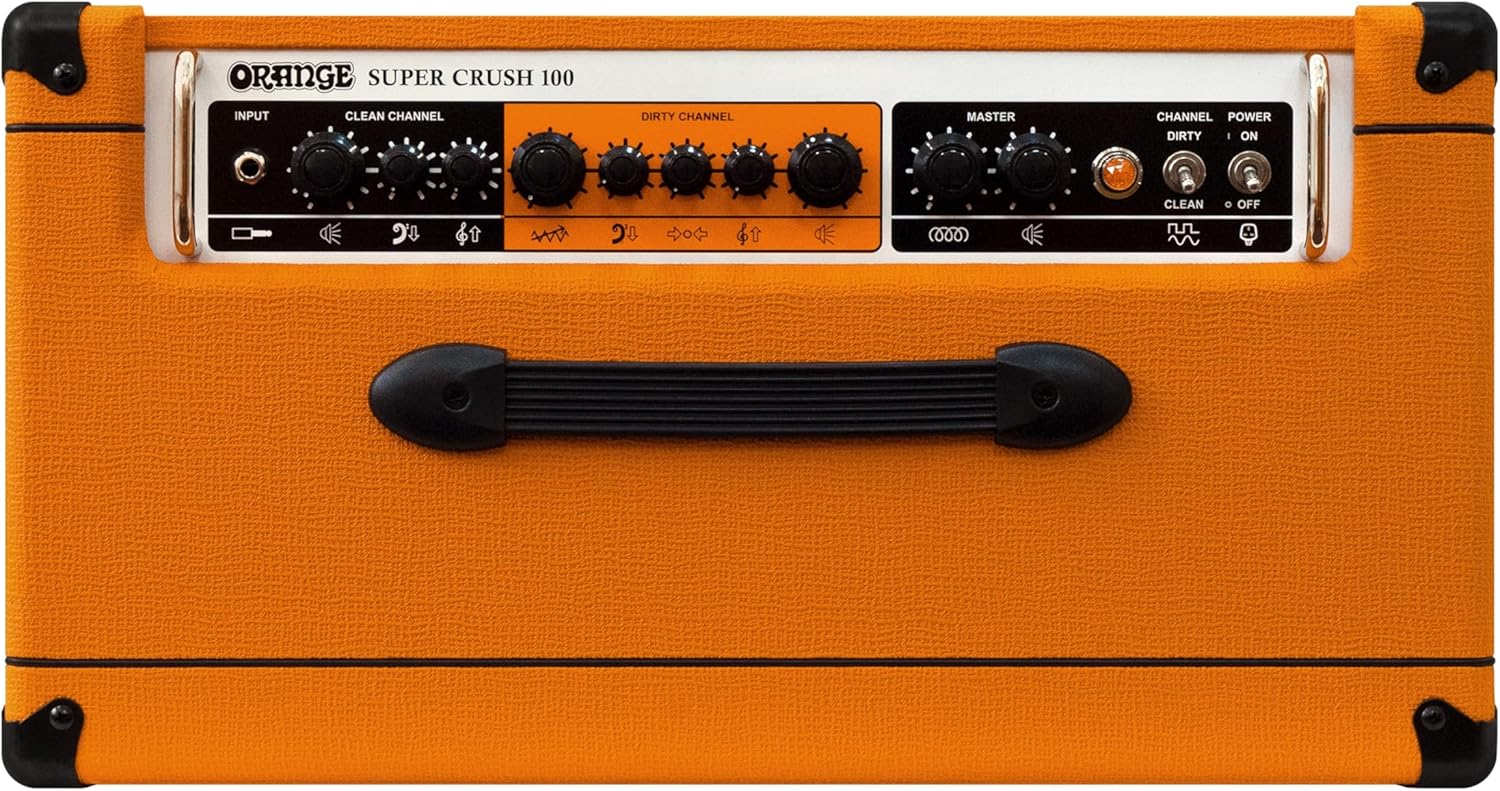

Şekil 3: Üst-ön view of'un amplifier, kontrol panelini vurguluyor.
5.1 Ön Panel Üzeriview
- GİRİŞ: 1/4-inch jack for connecting your instrument.
- CLEAN CHANNEL CONTROLS:
- SES: Adjusts the overall output level of the Clean Channel.
- BAS, ORTA, TİZ: 3-band EQ for shaping the tone of the Clean Channel.
- DIRTY CHANNEL CONTROLS:
- KAZANÇ: Aşırı yüklenme/bozulma miktarını kontrol eder.
- BAS, ORTA, TİZ: 3-band EQ for shaping the tone of the Dirty Channel.
- SES: Adjusts the overall output level of the Dirty Channel.
- MASTER BÖLÜM:
- yankı: Controls the amount of built-in digital reverb.
- ANA SES: Controls the overall output volume of the entire ampcankurtaran.
- KANAL ANAHTARI: Toggles between the Clean and Dirty channels.
- GÜÇ DÜĞMESİ: Döner ampkaldırıcı AÇIK veya KAPALI.
5.2 Arka Panel Üstüview
Şekil 4: Arka view of'un amplifier, showing the various input/output connections.
- FX DÖNGÜSÜ (GÖNDER/DÖN): Harici efekt pedallarını bağlamak için.
- CABSIM OUT (XLR): Balanced XLR output with speaker cabinet emulation for direct connection to a mixing console or audio interface.
- HOPARLÖR ÇIKIŞLARI: Connect external speaker cabinets. Ensure correct impedance matching.
- AYAK PEDALI: Input for an optional footswitch to control channel switching and reverb.
- AC GİRİŞİ: Güç kablosunu bağlamak için.
6. Kullanım Talimatları
6.1 Açma/Kapatma
- Ensure all connections (instrument, power) are secure.
- Çevir ANA SES control to its minimum setting.
- Çevir GÜÇ DÜĞMESİ to the 'ON' position. The indicator light will illuminate.
- Yavaşça artırın ANA SES to your desired listening level.
- To power off, reverse these steps: turn down ANA SES, then flip the GÜÇ DÜĞMESİ to 'OFF'.
6.2 Kanalların Seçilmesi
Kullanın KANAL ANAHTARI on the front panel to toggle between the Clean and Dirty channels. An optional footswitch (sold separately) can also be used for remote channel switching.
6.3 Adjusting Tone
Each channel features independent BAS, ORTA, Ve TİZ controls. Experiment with these to find your desired sound. The KAZANMAK control on the Dirty Channel allows you to dial in the amount of overdrive, from subtle crunch to heavy distortion.
6.4 Using Reverb
The built-in digital reverb can be adjusted using the YANKI control in the Master section. Turn the knob clockwise to increase the reverb effect.
6.5 Effects Loop Usage
The buffered effects loop allows you to integrate external effects pedals into your signal chain after the preamp section. Connect the GÖNDERMEK jack to the input of your effects pedal and the output of your effects pedal to the GERİ DÖNMEK kriko.
7. Bakım
7.1 Temizlik
Silin amplifier's exterior with a soft, dry cloth. Do not use abrasive cleaners, solvents, or waxes, as these can damage the finish. Avoid spraying liquids directly onto the ampcankurtaran.
7.2 Depolama
Uzun süre kullanılmayacaksa, saklayın amplifier in a cool, dry place, away from extreme temperatures and humidity. If possible, cover the ampTozdan korumak için daha kalın bir kılıf.
7.3 Hoparlör Bakımı
The Celestion speaker is robust, but avoid physical impact to the speaker cone. Do not attempt to clean the speaker cone directly.
8. Sorun Giderme
If you encounter issues with your Orange Super Crush 100, consult the table below for common problems and solutions.
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Ses yok | Power not connected, volume too low, instrument cable faulty, speaker cable disconnected. | Check power connection, increase Master Volume, test instrument cable, ensure speaker is connected. |
| Distorted or weak sound | Incorrect gain settings, faulty instrument/cable, external effects issue. | Adjust Gain and Volume controls, test with a different instrument/cable, bypass effects loop. |
| Vızıltı veya uğultu sesi | Ground loop, faulty power cable, interference from other electronics. | Try a different power outlet, ensure proper grounding, move ampAmplifikatörü diğer elektronik cihazlardan uzakta tutun. |
| Reverb not working | Reverb control set to minimum. | Increase the Reverb control. |
If the problem persists after attempting these solutions, please contact Orange customer support or a qualified service technician.
9. Özellikler
- Çıkış Watttage: 100 Watt
- Konuşmacı: 1 x 12-inch Celestion G12H-150
- Kanallar: Two (Clean, Dirty)
- Önamp: All-analogue circuitry
- EQ: 3-band (Bass, Middle, Treble) per channel
- Etkileri: Built-in Reverb, Fully-buffered Effects Loop
- Çıktılar: Balanced XLR output with CabSim speaker emulation
- Boyutlar (Ürün): 18 x 25 x 24 inç (yaklaşık)
- Ürün Ağırlığı: 49 pound (yaklaşık)
- Model Numarası: SUPER-CRUSH-100-C
- Marka: Turuncu
10. Garanti ve Destek
10.1 Garanti Bilgileri
Orange products are manufactured to high standards and are warranted against defects in materials and workmanship for a specified period from the date of purchase. Please refer to the warranty card included with your product or visit the official Orange Amplifikasyon webBölgenize özgü ayrıntılı garanti şartları ve koşulları için siteyi ziyaret edin.
10.2 Destek Ekibiyle İletişime Geçin
For technical assistance, service inquiries, or to purchase accessories, please contact Orange customer support through their official websitenize veya yerel distribütörünüze başvurun.
10.3 Çevrimiçi Kaynaklar
Ziyaret edin Orange Store on Amazon Ek ürün bilgisi ve aksesuarlar için.
