1. Giriş ve Üzeriview
Thank you for choosing the PowerPac PPFZ99 90L Upright Freestanding Freezer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions thoroughly before using the freezer and retain them for future reference.
The PowerPac PPFZ99 is a compact 90-liter upright freestanding freezer designed for convenient storage of frozen foods. Its efficient design and reliable performance make it suitable for various household needs.

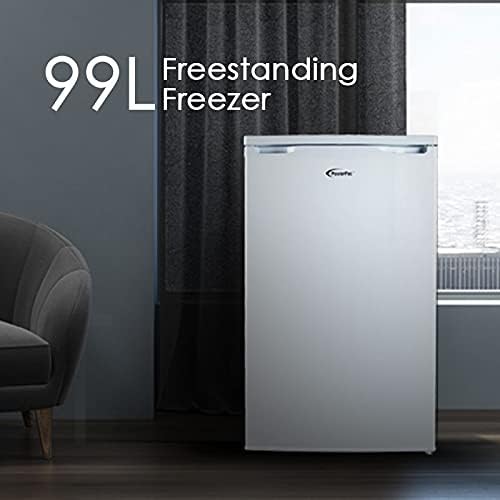

Şekil 1: The PowerPac PPFZ99 90L Upright Freestanding Freezer. This image shows the exterior of the white freestanding freezer, highlighting its compact and modern design.
2. Güvenlik Bilgileri
Güvenli çalışma sağlamak için lütfen aşağıdaki güvenlik önlemlerine daima uyun:
- Elektriksel Güvenlik: Güç kaynağının ses seviyesiyle eşleştiğinden emin oluntage specified on the appliance's rating label. Do not use extension cords or multiple socket adapters. Always plug the freezer into a grounded outlet.
- Havalandırma: Dondurucunun etrafında yeterli hava sirkülasyonu için yeterli boşluk bırakın. Tıkalı havalandırma delikleri aşırı ısınmaya ve verimliliğin azalmasına yol açabilir.
- Yanıcı malzemeler: Patlayıcı maddeleri veya yanıcı malzemeleri dondurucunun içinde veya yakınında saklamayın.
- Çocuklar: Bu cihaz, fiziksel, duyusal veya zihinsel yetenekleri kısıtlı veya deneyim ve bilgi eksikliği olan kişiler (çocuklar dahil) tarafından, güvenliklerinden sorumlu bir kişi tarafından cihazın kullanımıyla ilgili gözetim veya talimat verilmediği sürece kullanılmak üzere tasarlanmamıştır. Çocukların cihazla oynamamalarını sağlamak için gözetim altında tutulmaları gerekir.
- buzunun çözülmesi: Üretici tarafından önerilenlerin dışında, buz çözme işlemini hızlandırmak için mekanik cihazlar veya başka araçlar kullanmayın.
- Bakım: Herhangi bir temizlik veya bakım işlemi yapmadan önce dondurucunun fişini çekin.
3. Ürün Bileşenleri
The PowerPac PPFZ99 freezer features a practical design for optimal storage. Key components include:
- Dondurucu Bölmesi: The main storage area for frozen goods.
- Drawer Compartments: Multiple transparent drawers for organized storage and easy access to items.
- Sıcaklık Kontrol Kadranı: Located externally or internally, used to adjust the freezer's temperature.
- Kapı Contası: Ensures an airtight closure to maintain internal temperature.
- Tesviye Ayakları: Adjustable feet at the base to ensure the appliance is stable and level.
Şekil 2: İç mekan view of the freezer. This image displays the freezer's interior with its front-opening design and four clear drawer compartments, ideal for organizing various frozen items.

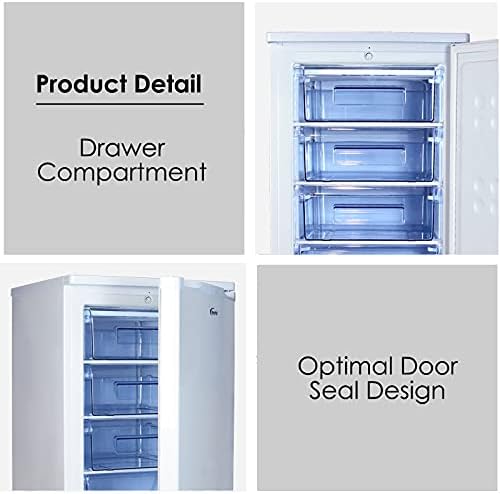

Şekil 3: Product Detail: Drawer Compartment and Optimal Door Seal Design. This image provides a closer look at the transparent drawer compartments and highlights the effective door seal, crucial for maintaining coldness.
4. Kurulum
Follow these steps for proper installation of your freezer:
- Paketin açılması: Carefully remove all packaging materials, including protective films and tapes. Keep packaging out of reach of children.
- Atama: Choose a dry, well-ventilated location away from direct sunlight, heat sources (e.g., oven, radiator), and extreme cold. Ensure there is at least 10 cm of space around the back and sides for adequate air circulation.
- Tesviye: Use the adjustable levelling feet at the bottom of the freezer to ensure it stands firmly and level on the floor. A level appliance operates more efficiently and quietly.
- Temizlik: Before first use, clean the interior and exterior of the freezer with a damp Bir bez ve hafif bir deterjan kullanın. İyice kurulayın.
- Initial Wait Time: After placing the freezer in its final position, wait for at least 2-4 hours before plugging it into the power outlet. This allows the refrigerant to settle.
- Güç Bağlantısı: Dondurucuyu özel, topraklı bir elektrik prizine takın.
Şekil 4: Product Measurement. This diagram illustrates the dimensions of the freezer: 850mm height, 525mm width, and 505mm depth, crucial for planning placement.
Şekil 5: Temperature Control and Levelling Feet. This image highlights the temperature control dial for adjusting settings and the adjustable levelling feet at the base of the freezer.
5. Kullanım Talimatları
Once the freezer is set up, follow these guidelines for operation:
- Sıcaklık Ayarı: Locate the temperature control dial (refer to Figure 5). Turn the dial to your desired setting. A colder setting is typically indicated by a higher number or a 'Max' position. Allow several hours for the freezer to reach the set temperature before loading food.
- Yiyecek Yükleme: Do not overload the freezer. Ensure there is space for air to circulate around items. Avoid placing hot food directly into the freezer; allow it to cool down first.
- Kapı Açma: Minimize the frequency and duration of door openings to maintain a stable internal temperature and conserve energy.
- Taze Yiyeceklerin Dondurulması: For optimal freezing, place fresh food in the upper compartments or directly on the shelves (if applicable) to allow for faster freezing.
6. Bakım
Düzenli bakım, dondurucunuzun uzun ömürlü ve verimli olmasını sağlar:
- Temizlik: Unplug the freezer before cleaning. Clean the interior regularly with a solution of mild detergent and warm water. Wipe down the exterior with a damp cloth. Do not use abrasive cleaners or sharp objects.
- buzunun çözülmesi: Over time, frost will accumulate inside the freezer. When the frost layer becomes about 5mm thick, defrost the appliance. To defrost, unplug the freezer, remove all food, and leave the door open. Place towels at the bottom to absorb melting ice. Do not use sharp objects to remove ice. Once defrosted, clean and dry the interior thoroughly before plugging it back in.
- Kapı Contası: Regularly check the door seal for any damage or gaps. A damaged seal can lead to inefficient operation. Clean the door seal with a damp Kumaş.
- Güç Tasarrufu İpuçları: Keep the freezer in a cool, well-ventilated area. Avoid frequent door openings. Ensure the door seal is intact. Defrost when necessary.
7. Sorun Giderme
Before contacting customer service, try these simple troubleshooting steps:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Dondurucu soğutmuyor | No power; temperature setting too high; door not closed properly; excessive frost build-up. | Check power plug and outlet; adjust temperature setting; ensure door is fully closed; defrost the freezer. |
| Aşırı gürültü | Freezer not level; objects touching the back of the unit; compressor noise (normal). | Adjust levelling feet; move objects away from the freezer; compressor noise is normal during operation. |
| Zeminde su var | Defrost water not properly drained; door left open. | Ensure drain plug (if applicable) is secure; close door properly. |
8. Özellikler
Detailed specifications for the PowerPac PPFZ99 freezer:
- Model Adı: PPFZ99
- Marka: Güç Paketi
- Kapasite: 90 Litre
- Kurulum Türü: Solo
- Ürün Boyutları (D x G x Y): 50.5D x 52.5G x 85Y santimetre
- Ürün Ağırlığı: 33 kilo
- Netage: 110 watt
- Kapı Malzeme Türü: Metal
- Kapı Yönü: Sağ
- Renk: Black (Note: Product title indicates White, but specifications list Black. Please verify product color upon purchase.)
Şekil 6: High Quality Compressor. This image highlights the internal compressor unit, emphasizing its quality and the associated 10-year warranty.
9. Garanti ve Destek
Your PowerPac PPFZ99 freezer comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
- Kompresör Garantisi: The high-quality compressor is covered by a 10 yıllık garanti.
- Genel Garanti: Other components are covered by a standard manufacturer's warranty, typically 1 year. Please check your warranty documentation for exact details.
- Müşteri Desteği: For technical assistance, warranty claims, or spare parts, please contact PowerPac customer service through their official webSiteyi veya garanti belgelerinizde yer alan iletişim bilgilerini kullanın.
